Grohe Grohtherm Cube Concealed Thermostatic Shower Valve - 2 Controls - Square Trim

Grohe Grohtherm Cube Concealed Thermostatic Shower Valve - 2 Controls - Square Trim

• Choice of Finishes: Chrome and Supersteel
• Choice of Outlet Configuration: 1 Outlet, 2 Outlet – Shower/Shower, 2 Outlet – Bath/Shower
• Size of Trim [mm]: 158 x 10 x 158mm [Width x Depth x Height]
• Size of Trim [cm]: 15.8 x 1 x 15.8cm [Width x Depth x Height]
• Set for Final Installation for GROHE Rapido SmartBox 35 600 / 35 604
• GROHE TurboStat Compact Cartridge with Wax Thermoelement
• Wall Escutcheon with GROHE FastFixation (Covered Escutcheon and Shaft Sealing, Covered Fixing)
• GROHE SafeStop Safety Button at 38°C (Calibration Required)
• GROHE SafeStop Plus Optional Temperature Limiter at 43°C or 46°C (Included)
• Flow Performance:
• Outlet B = 27 l/Min
• Outlet C = 30 l/Min
• Supplied Without a Roughing-in Set
• Refer to the Technical Drawing for Complete Technical Dimensions
• Download the Product Data Sheet & Installation PDF from the Additional Info Section
• Details of 1 Outlet:

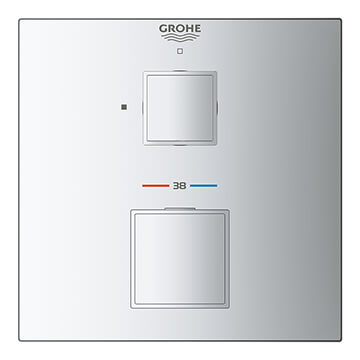

• Without a Diverter (for Single Outlet Use)
• Built-In Non-Return Valve and Dirt Strainers
• Ceramic Stop Valve, 120° Opening
• Details of 2 Outlet [For Head & Hand Shower]:
• AquaDimmer Diverter Included (2-Outlet Use)
• Printed Head + Hand Shower symbols on Escutcheon

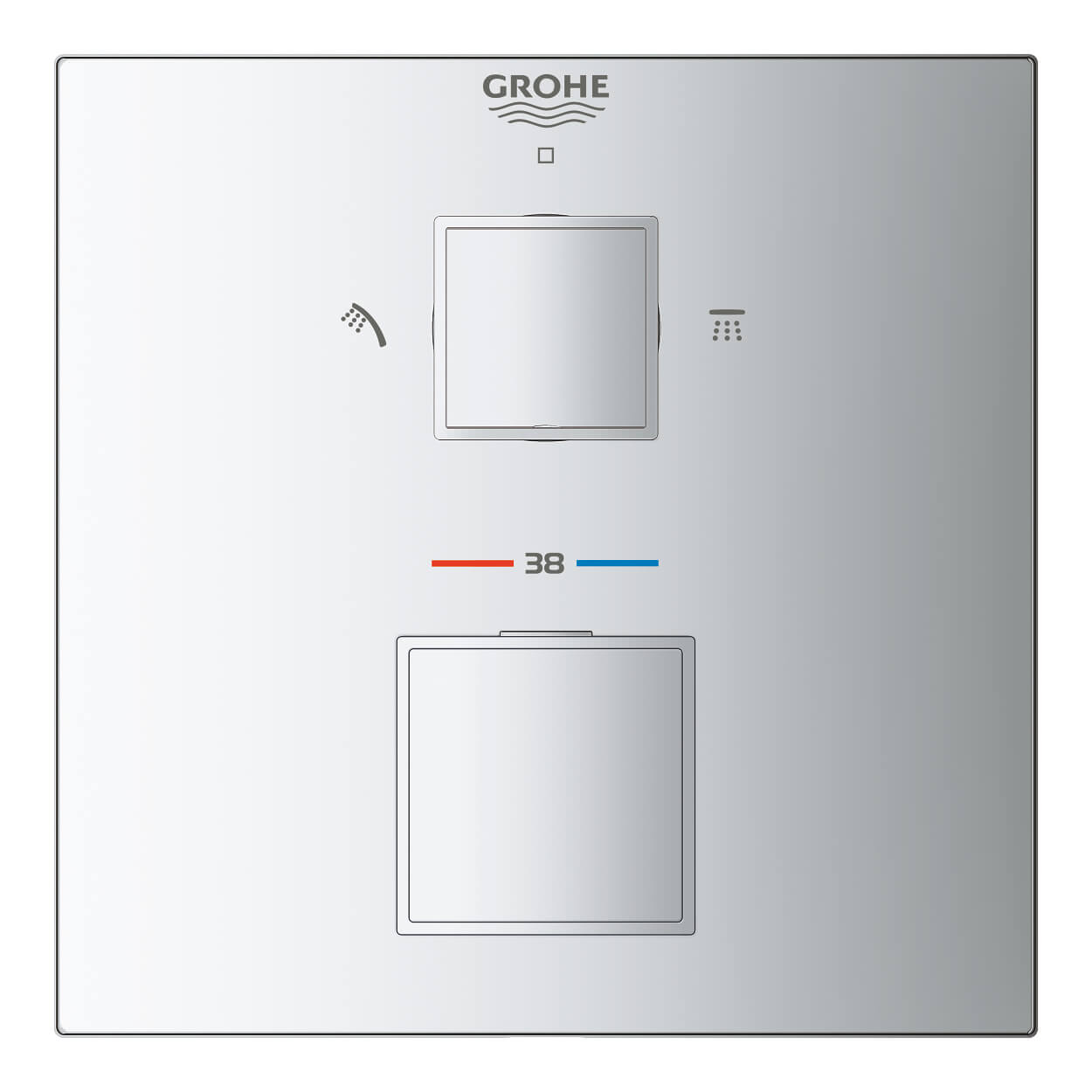

• Designed for a Dual Shower Outlet setup (e.g. Overhead Shower + Hand Shower)
• Ideal for Shower-Only Bathrooms (No Bathtub)
• Details of 2 Outlet [For Bathtub & Shower]:
• AquaDimmer Diverter Included (2-Outlet Use)
• Printed Hand Shower + Bath Filler symbols on Escutcheon

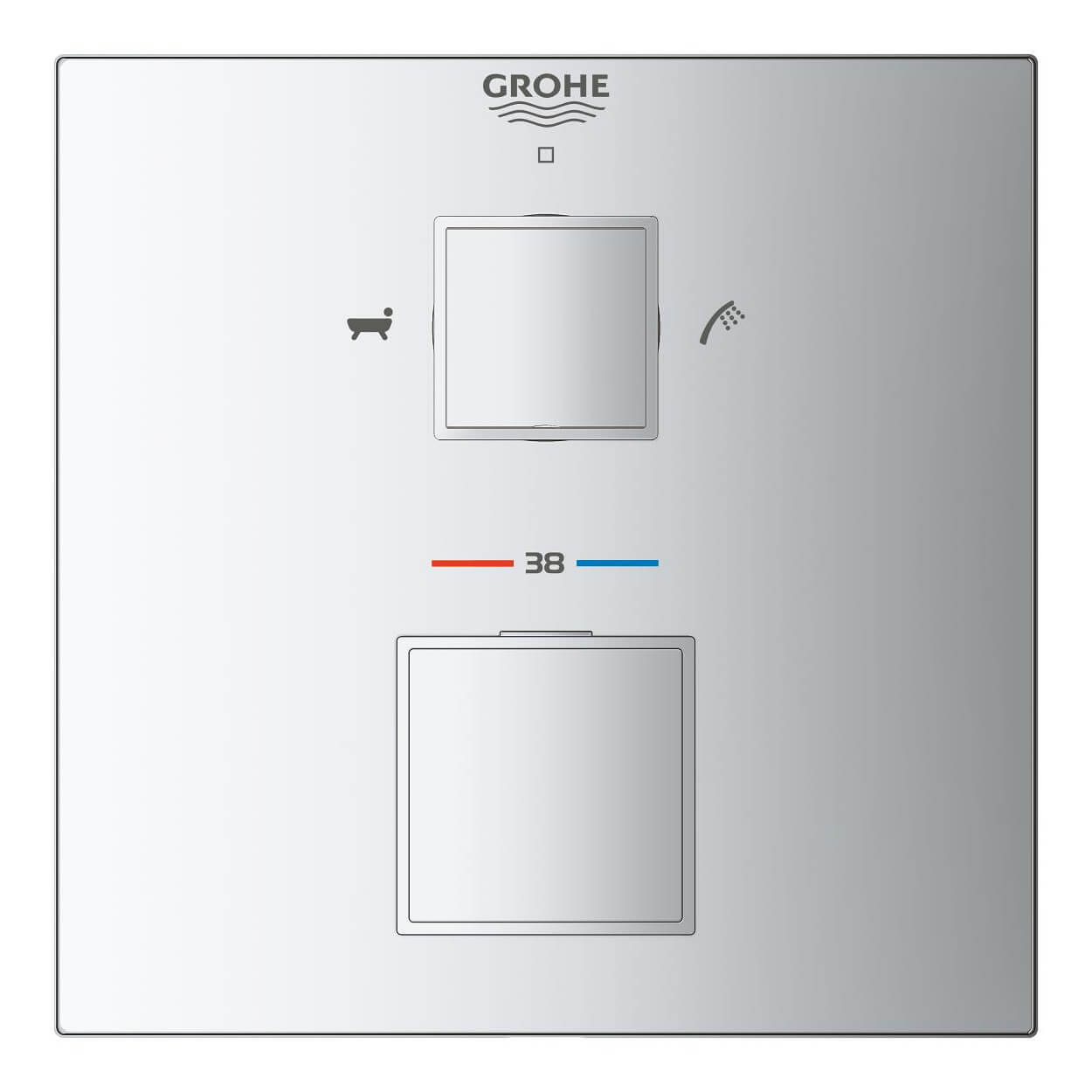

• Designed for a Bath and Shower Combination (e.g. Bathtub Spout + Hand Shower)
• Ideal for Bathrooms with a Bathtub
• Additional Features:
• GROHE QuickFix® - [See Features Explained Section]
• GROHE AquaDimmer’s® - [See Features Explained Section]
• GROHE TurboStat® - [See Features Explained Section]
• GROHE Safety Stop® - [See Features Explained Section]
