Ideal Standard Cerabase Chrome Dual Control Bath Mixer Tap, BD057AA

Ideal Standard Cerabase Details

MFC: BD057AA

Ideal Standard Cerabase Chrome Dual Control Bath Mixer Tap - Short Handles.

Key Features

✔Zero Single Use Plastics
✔Conform to EN200 Standards
✔Made Using Chrome Plated Brass Material
✔SmartShine Finishing for Increased Shine and Durability
✔5-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Variants: Without Kit and With Kit
It Comes in a Chrome Finish
Feature Dual Lever Operation
100% Brass Waste Recycling
German Engineering
Suitable for Deck-Mounted Installation
Size [mm]: 231 x 149 x 81mm [Width x Depth x Height]
Size [cm]: 23.1 x 14.9 x 8.1cm [Width x Depth x Height]
Base to Spout: 27mm [2.7cm]
Inlet Connection: G 3/4 Inch
Inlet Centres: 180mm [18cm]
Centre of the Inlet to Centre of the Outlet: 112mm [11.2cm]
Works on a Minimum of 0.2 Bar to a Maximum of 10 Bar Water Pressure
Flow Rate: 15.0 Litres Per Minute at 3 Bar Pressure
Download the Flow Rate Diagram PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
Details Of Shower Kit:
Comes with Hand Shower and 1750mm Shower Hose
Handset is Supplied Fitted with a Removable 8 Litres Per Minute Eco Flow Regulator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Cerabase
⤷ Handle Position
: Left And Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: FirmaFlow Ceramic Cartridge
⤷ Base To Spout
: 27
⤷ Spout Reach
: 112

⤷ Inlet Centres
: 180
⤷ Overall Height
: 81
⤷ Width
: 231
⤷ Inlet Connections
: G 3/4 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Water Saving
: Yes
⤷ Hose Length
: 1750
⤷ Hand-Shower Included
: Optional
⤷ Hand-Shower Function
: Single
⤷ Flow Rates (l/min)
: 3 Bar - 15.0 Ltr
⤷ Handle Style
: Lever
⤷ Compliance/Approvals/Standard
: EN200
⤷ Barcode
: 3800861114611
⤷ Product Type
: Bath Shower Mixer Tap

Additional Info & Downloads

This item can also be found in:

Technical Images

Ideal Standard Cerabase Chrome Dual Control Bath Mixer Tap - Short Handles

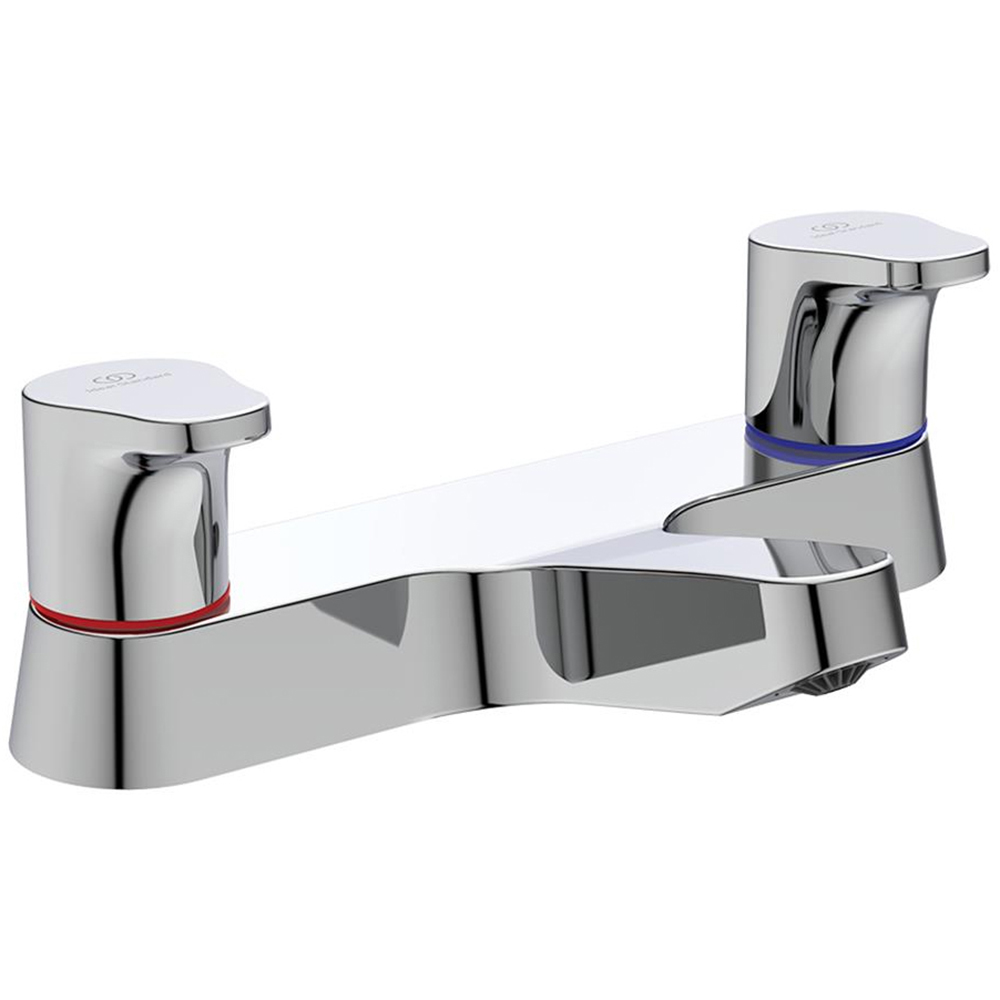

Tap without Kit

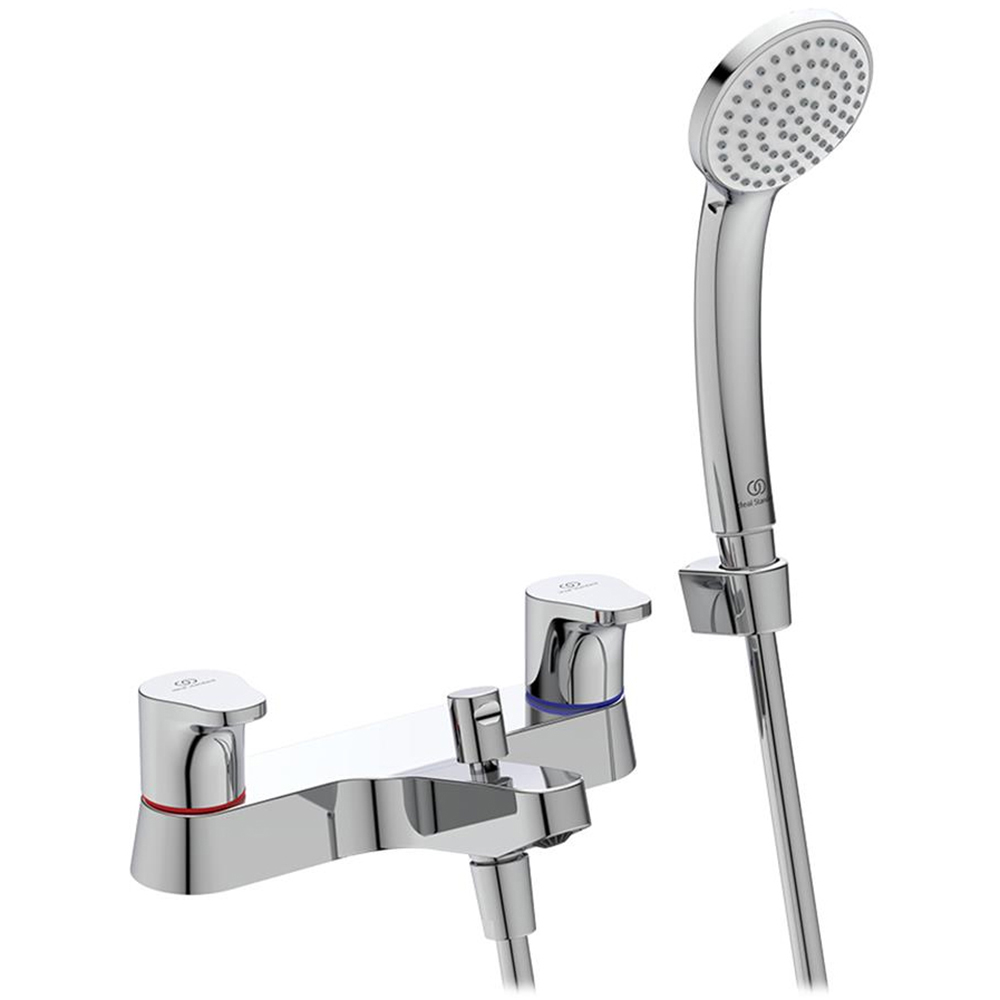

Tap with Shower Kit

£101.95

RRP: ~~£172.12~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Eco Flow Regulator

Water is a precious resource. Save water with Eco Flow. Our Eco Flow regulator reduces the water consumption down to 5L/min, without compromising on comfort.

FirmaFlow Ceramic Cartridge

The firmaFlow ceramic disc cartridge uses Click Technology with a mechanical stop to limit the tap water flow at the basin to just the amount needed to wash hands. It maintains flow consistency, reduces use by up to 50%, and offers the utmost temperature precision and safety. It can fine-tune the temperature between 34°C and 42°C. This cartridge has almost double the lifespan as the industry standard lasts– 500,000 cycles, compared to 300,000 cycles. It has a high hot water resistance of greater than 95°C.

Ideal Standard Cerabase Chrome Dual Control Bath Mixer Tap - Short Handles
