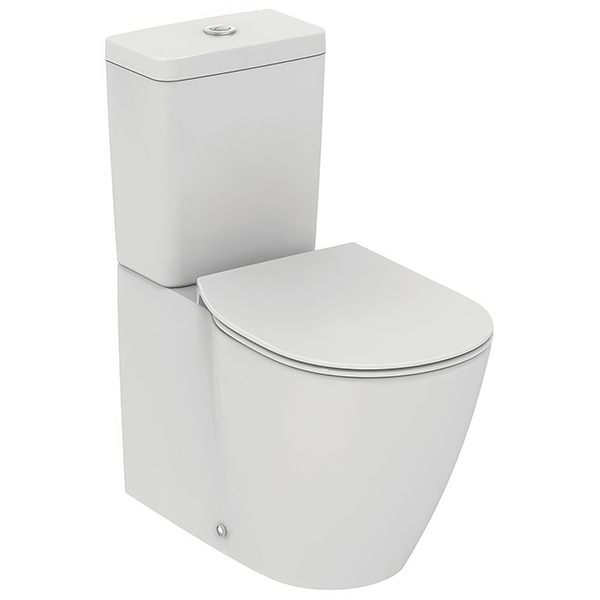

Ideal Standard Concept Close Coupled Fully Back To Wall White WC Pan with Aquablade Technology

Not Yet Rated No Rating

£755.28

RRP: £944.10
SKU: QS-V113095
Pan Connector
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

10-14 Working Days Approx.

Ideal Standard Concept Details

MFC: E039701|E796901|E772601

Ideal Standard Concept Close Coupled Back-To-Wall White WC Pan with Aquablade Technology.

Key Features
  • Seat Material: Plastic
  • Features Innovative Aquablade Flush Technology
  • Standards: WC Pan to BS EN 997 and BS EN 33
  • WC and Cistern Constructed Using Vitreous China Material
  • Lifetime Guarantee from the Manufacturer Against any Manufacturing Defects
  • The Manufacturing Code of this Product is E039701
  • It Comes in a White Finish
  • Designer: Robin Levien, RDI
  • WC Pan with Horizontal Outlet
  • Suitable for Domestic and Commercial Use
  • Size [mm]: 365 x 780mm [Width x Height]
  • Size [cm]: 36.5 x 78cm [Width x Height]
  • Projection from the Wall: 665mm [66.5cm]
  • Sleek, Modern Pan Designed for Hygiene and Effortless Cleaning
  • Support Brackets for Securing WC Pan to the Floor Included
  • Panekta Outlet Connector to Convert Horizontal Outlet WCs to P-Trap [Optional]
  • Panekta Outlet Connector to Convert Horizontal Outlet WCs to S or Turned P-Trap [Optional]
  • Refer to the Technical Drawing for More Technical Details
  • Pack Includes:
  • Concept Close Coupled Back-to-Wall Toilet Bowl with Horizontal Outlet and Aquablade Flush Technology [E0397]
  • Concept Cube Close-Coupled Delay Fill Cistern, Dual Flush Push Button Valve, Bottom Supply and Internal Overflow [E7969]
  • Concept Toilet Seat and Cover, Slim with Quick Release, Slow Close [E7726]

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Concept
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 45
  • ⤷ Warranty/Guarantee
  • : Lifetime
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Floor Standing
  • ⤷ Water Saving
  • : Yes
  • ⤷ Pan Width
  • : 365
  • ⤷ Pan Height
  • : 400
  • ⤷ Toilet Overall Height
  • : 780
  • ⤷ Projection (Depth)
  • : 665
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Cistern Width
  • : 315
  • ⤷ Cistern Height
  • : 380
  • ⤷ Flush Type
  • : Dual Flush
  • ⤷ Full Flush Volume in litres
  • : 4
  • ⤷ Half Flush Volume in litres
  • : 2.6
  • ⤷ Flush Mechanism
  • : Push Button
  • ⤷ Cistern Lever Or Button Placement
  • : Top
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Configuration
  • : Pan with Seat and Cistern
  • ⤷ Seat Included
  • : Yes
  • ⤷ Seat Type
  • : Soft Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Compliance/Approvals/Standard
  • : BS EN 997 | BS EN 33
  • ⤷ Barcode
  • : 5017830501367
  • ⤷ Product Type
  • : Close Couple WC
  • ⤷ Base width
  • : 280
  • ⤷ Base Depth (projection)
  • : 510
  • ⤷ Pan fixing centres
  • : 145
  • ⤷ Cistern Fixing Centres
  • : 225
  • ⤷ Floor to centre of cistern fixing hole
  • : 715
  • ⤷ Base to centre of outlet
  • : 190
£755.28
RRP: £944.10
Stock Availablity: 10-14 Working Days Approx
QS Supplies

8 Features Included In This Product Explained

Soft-Close Seat

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Push-Button Flush Valve Cistern

Push-Button Flush Valve Cistern

Toilets with push-button flush valves are usually dual-flush toilets. One button triggers a liquid, and the other is for solid flushes. Additionally, since these valves are smaller than levers, they use less water than traditional toilets.

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

BS EN 997 Standard

BS EN 997 Standard

This standard specifies the constructional, performance requirements and test methods for close-coupled suites, one-piece and independent WC pans with integral traps used for personal hygiene made using vitreous china or stainless steel. Compliance with this standard aims to ensure reliability, performance and safety.

BS EN 33 Standard

BS EN 33 Standard

BS EN 33 specifies requirements for the connecting dimensions of WC pans and related cisterns, irrespective of the materials they are made of. The focus of this standard is to ensure that the products are compatible and their assembly is correct, so they can be interchanged when needed and parts can also be replaced when needed.

Quick Release Toilet Seat

Quick Release Toilet Seat

The hinge on a regular toilet seat makes it challenging to clean in some areas. As a result, some areas build up with hairs, grime, and dirt over time. Fortunately, the invention of a quick-release toilet seat means you can keep your entire toilet clean. The hinge mechanism of these toilets allows you to remove the seat entirely, making it easier to wash the areas it covers on the toilet itself.

AQUABLADE FLUSH TECHNOLOGY

AQUABLADE FLUSH TECHNOLOGY

AquaBlade is an award-winning, patented flush technology. It offers a superior flushing action, even with low water volume. The AquaBlade system is an intelligent innovation in flushing that gives a cleaner, quieter flush, thanks to a more innovative design, to offer unmatched hygiene. Upon flushing, the system creates a wall of water that cascades from the top of the toilet bowl, along with two powerful plumes of water, for energising flushing action. The toilet is designed so that it flush bacteria away with a powerful flushing system without splashing.
