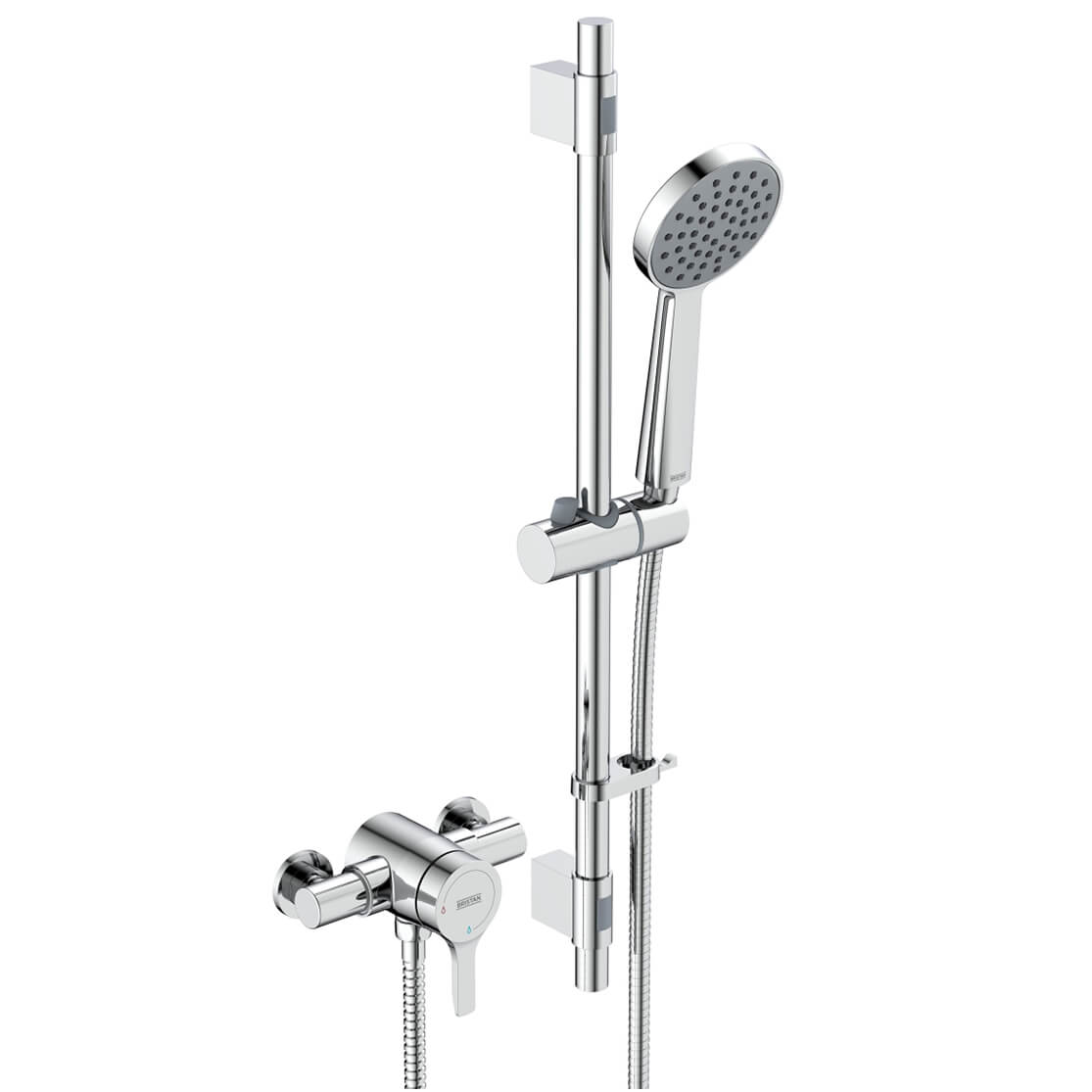

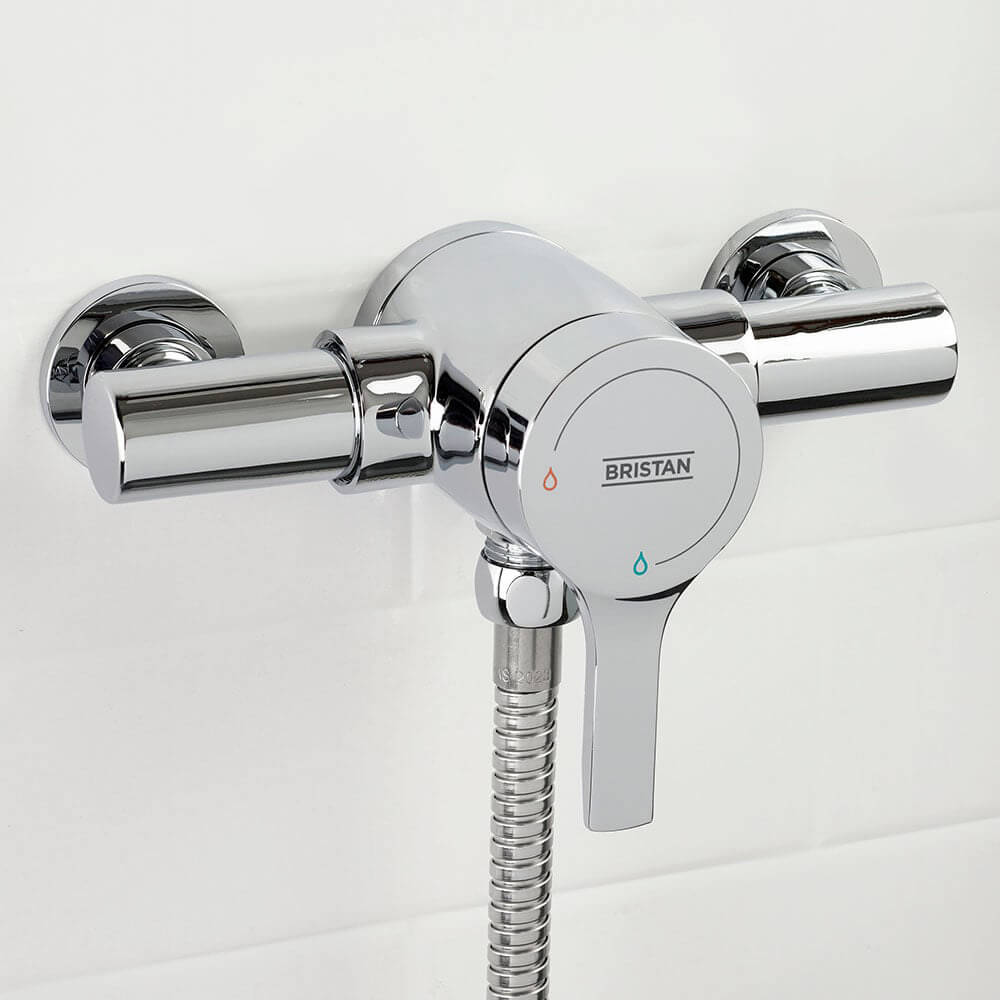

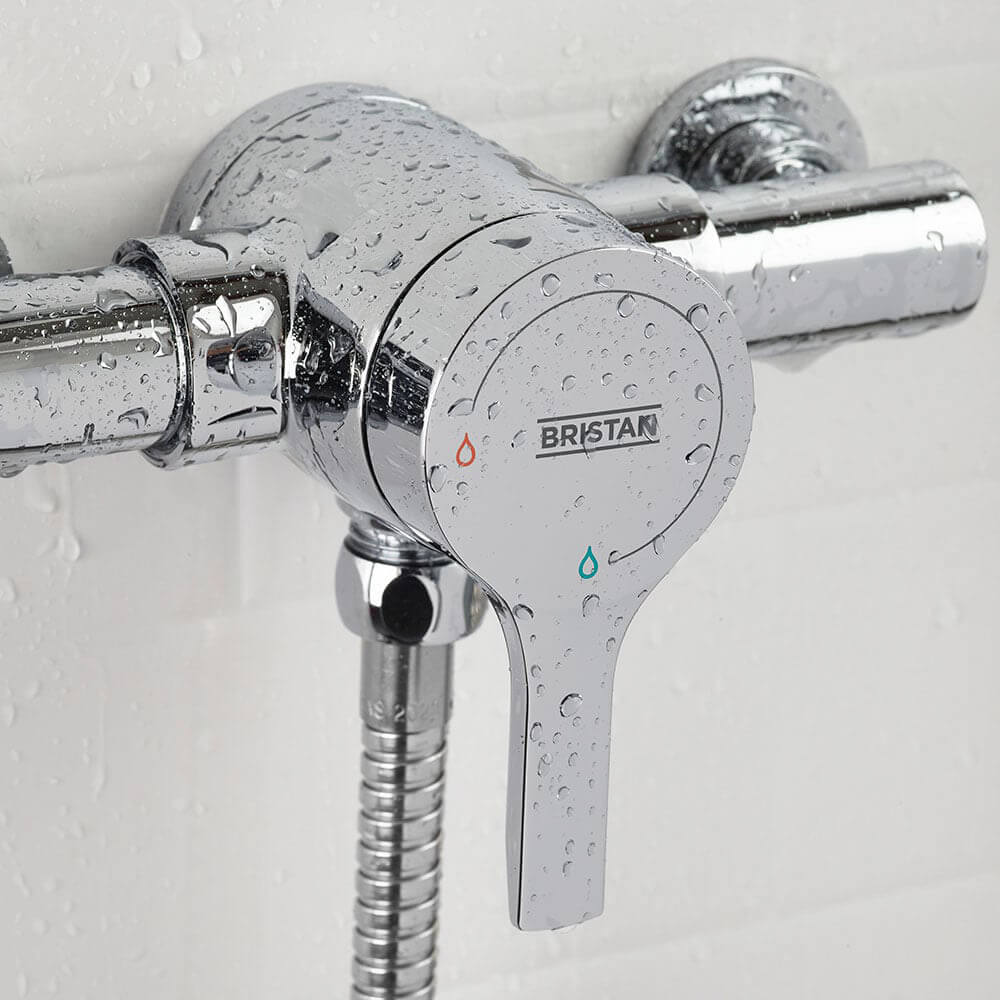

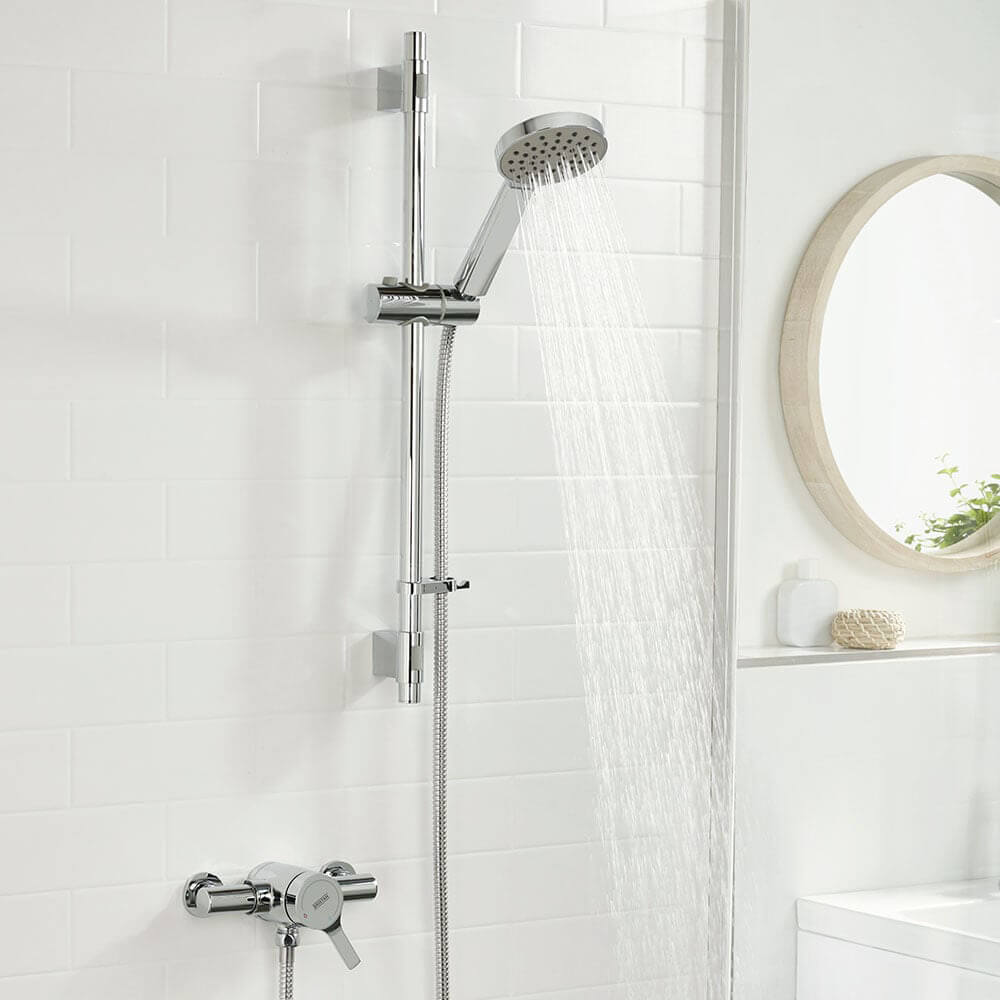

Bristan Onza Exposed Thermostatic Shower Valve with Riser Rail Kit

Onza Details

MFC: NZA SHXAR C

Bristan Onza Exposed Thermostatic Shower Valve with Riser Rail Kit

Key Features

✔WRAS Approved
✔Check Valve Included
✔Certified to TMV2 and NSF
✔Manufactured Using Brass, Stainless Steel and ABS Material
✔5 Years On Parts and 1 Year of Labour Guarantee from the Manufacturer

Pack Includes:

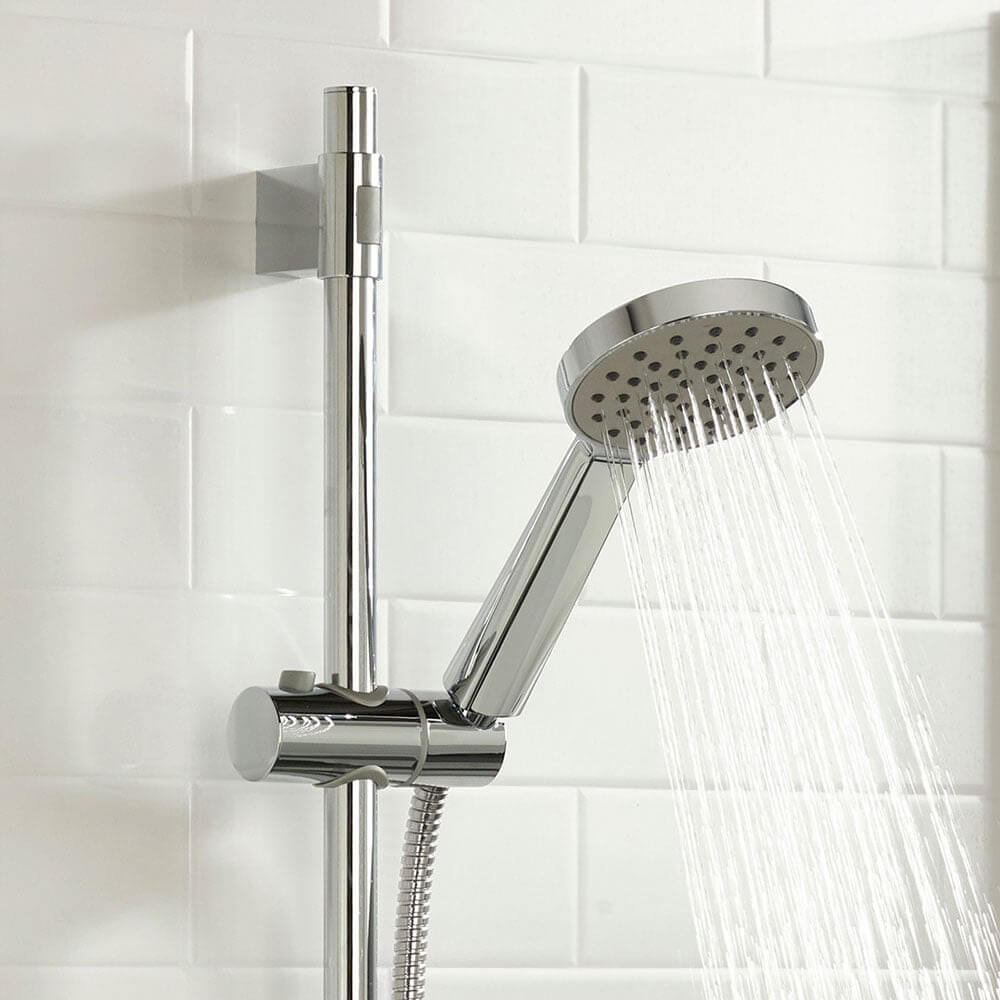

Shower Valve, Hose, Hose Retainer, Riser Rail and a Rub-Clean Anti-Limescale Single-Function Handset
Details of Kits:

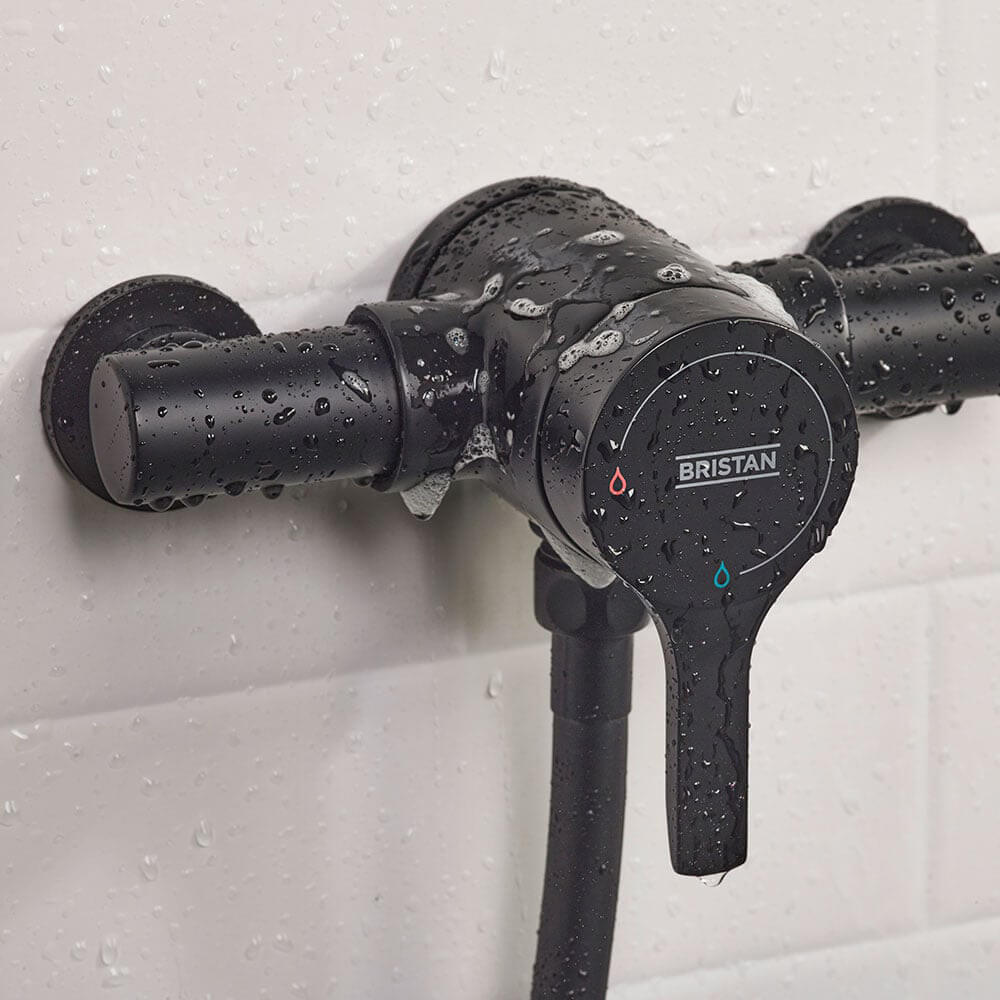

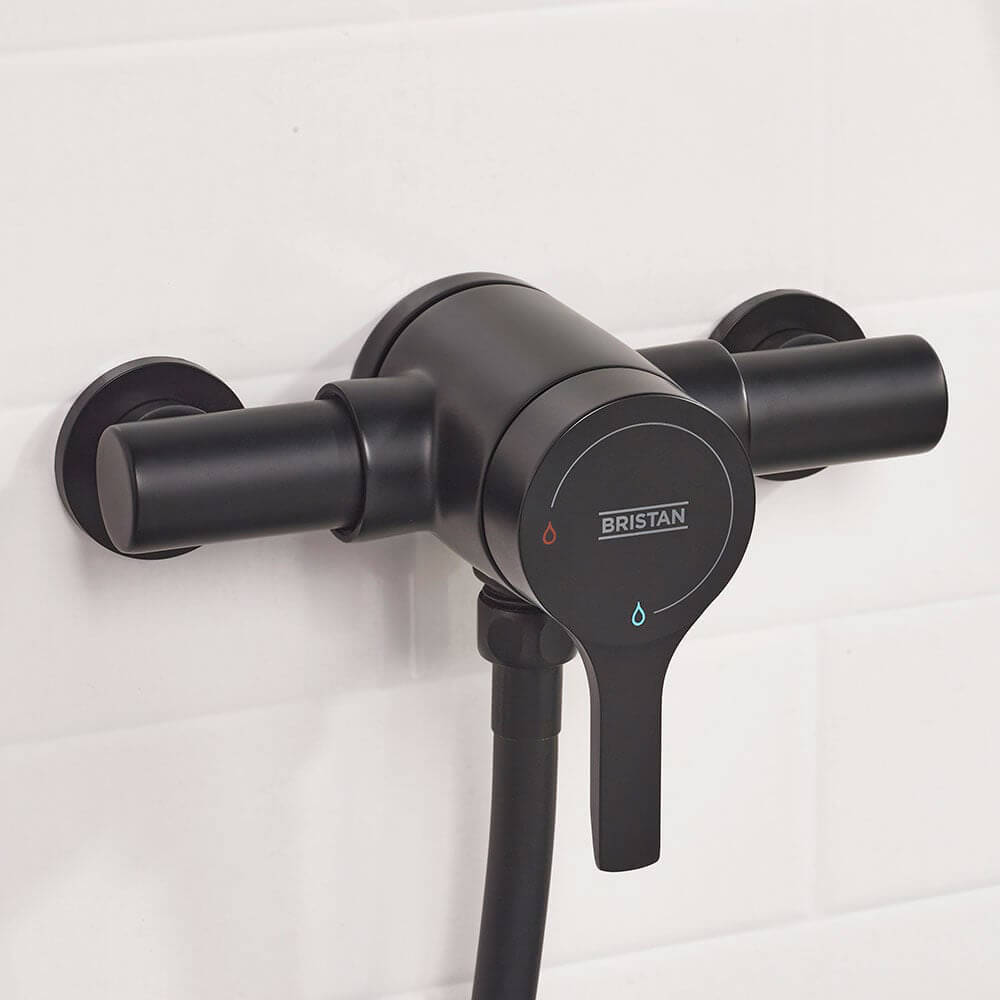

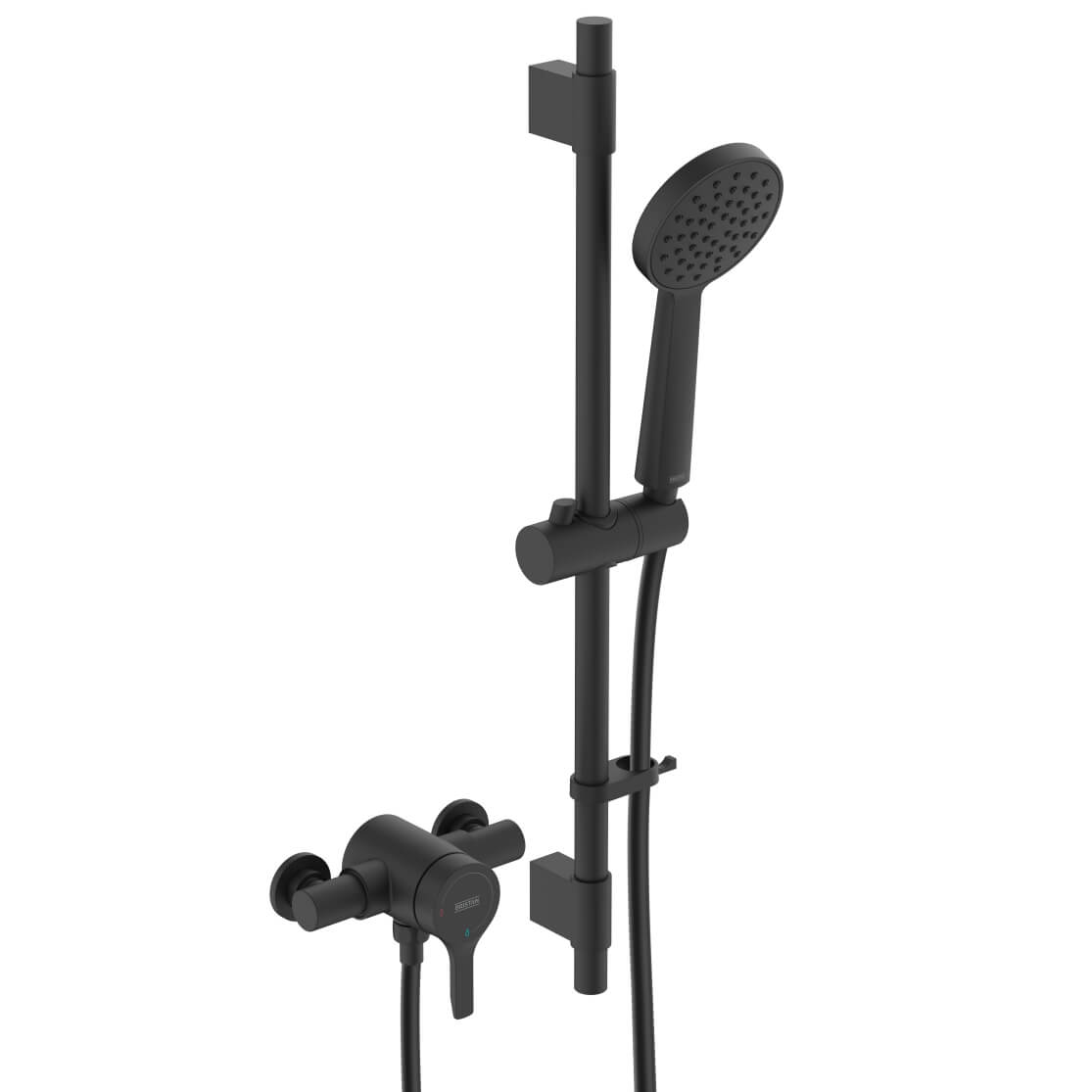

Available in 2 Finishes: Chrome and Black
Depth of Valve: 90mm [9cm]
Height of Riser Rail: 650mm [65cm]
Inlet Centre of Valve: 110-115mm [11-11.5cm]
No of Controls: 1
Shower Type: Sequential Mini Valve
Shower Kit: Adjustable Riser
Valve/Cartridge Type: Sequential Cartridge
Maximum Hot Water Supply Temperature: 60°C
Maximum Static Pressure: 10 Bar
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Suitable for High Water Pressure Systems
Required Minimum 1.0 Bar to Maximum 5.0 Bar Water Pressure
The Single Sequential Lever to Control Both Flow and Temperature in One
Automatic Shut-Off in the Event of Hot or Cold Water Supply Failure for Family-Safe Showering
Thermostatic Cartridge with Preset Temperature Safety Stop at 41°C for Family-Safe Showering
Salt Spray Tested to Ensure Added Durability
A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish That Lasts for Years

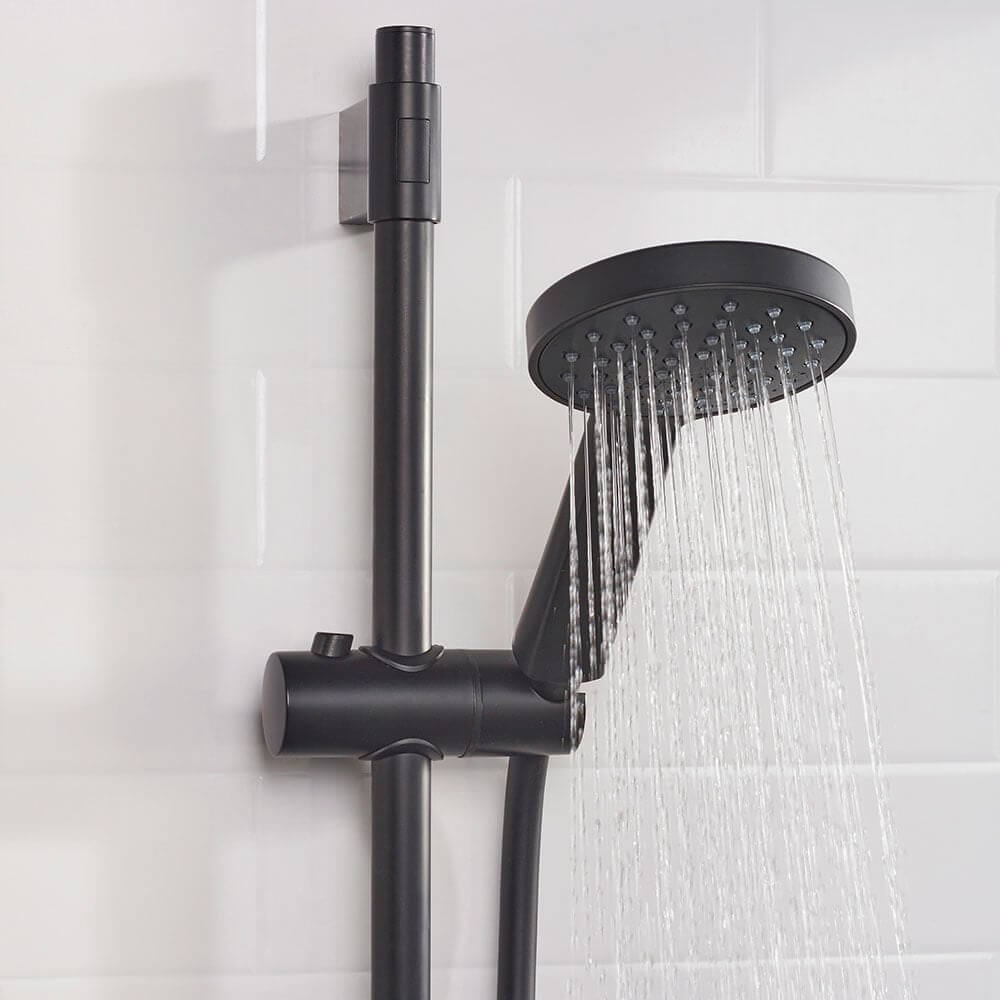

Rub-Clean Handset: Limescale and Debris Build-Up is Quickly and Easily Removed by Rubbing a Finger or Cloth Over the Nozzles
Easy Installation with Adjustable Elbow Inlets, Which Enable You to Use On Existing Pipework Centres Between 110mm and 155mm
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome And Black
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass, ABS, Stainless Steel
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Sequential Cartridge
⤷ Inlet Centres
: 110-115
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Hose Included
: Yes

⤷ Hose Length
: 1500
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: WRAS, TMV2, NSF
⤷ Plumbing System Compatibility
: Exposed
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Valve Size
: 90 Depth
⤷ Rail Length
: 650
⤷ Hose Retainer Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Onza Exposed Thermostatic Shower Valve with Riser Rail Kit

£161.82

RRP: ~~£279.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

12 Features Included In This Product Explained

Easy Fit Installation

The product is designed for fast and easy installation.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Decor Smart

In an attempt to keep your decor as neat as before, the unit has a design that will easily fit into the existing holes and fixings as your old shower.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Anti-Limescale

Anti-limescale bathroom accessories are specifically designed to resist or reduce the buildup of limescale, which is a common issue in areas with hard water. These products are designed with special materials or coatings less prone to limescale buildup.
