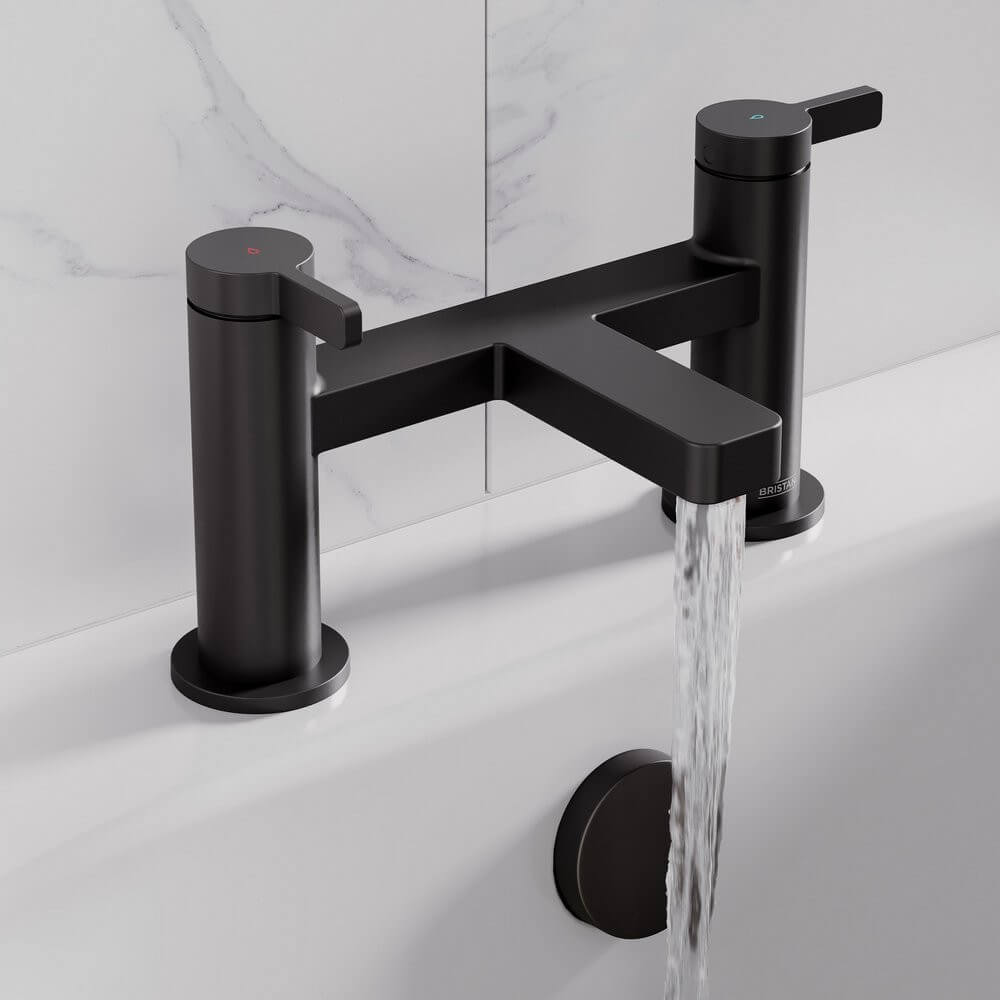

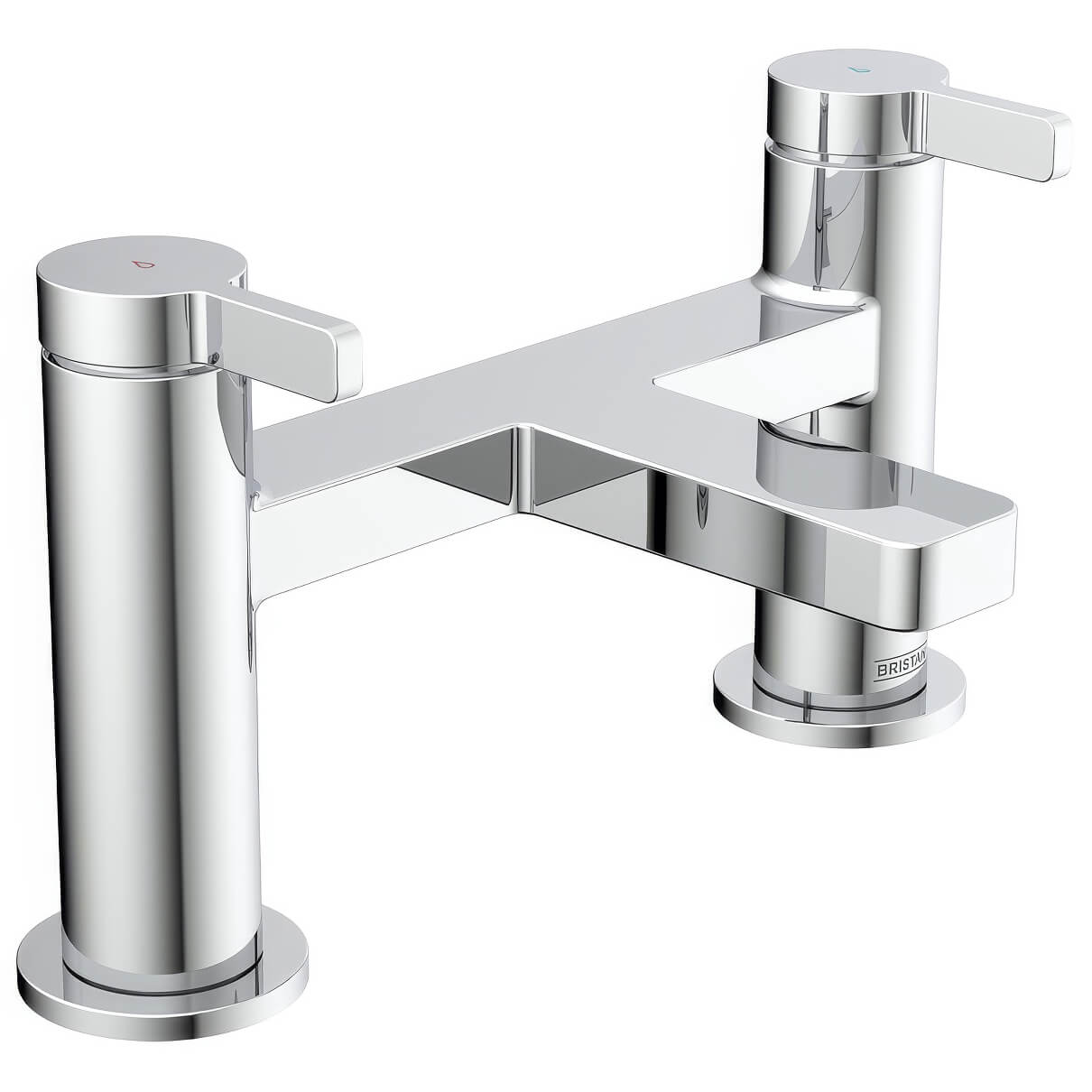

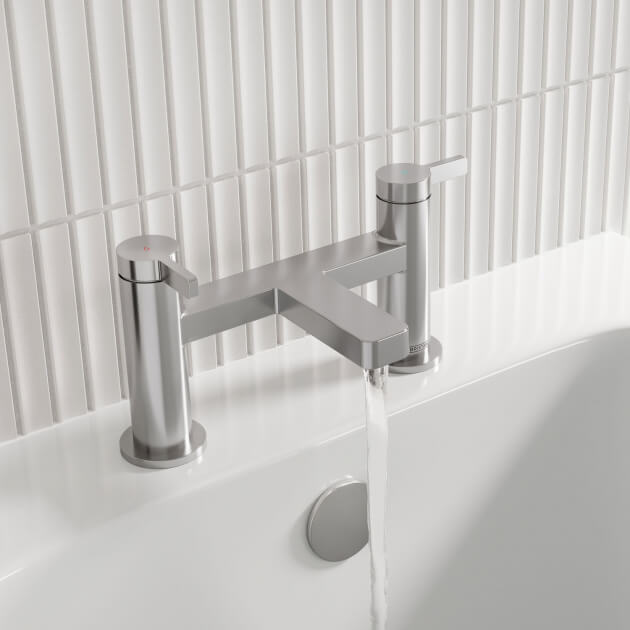

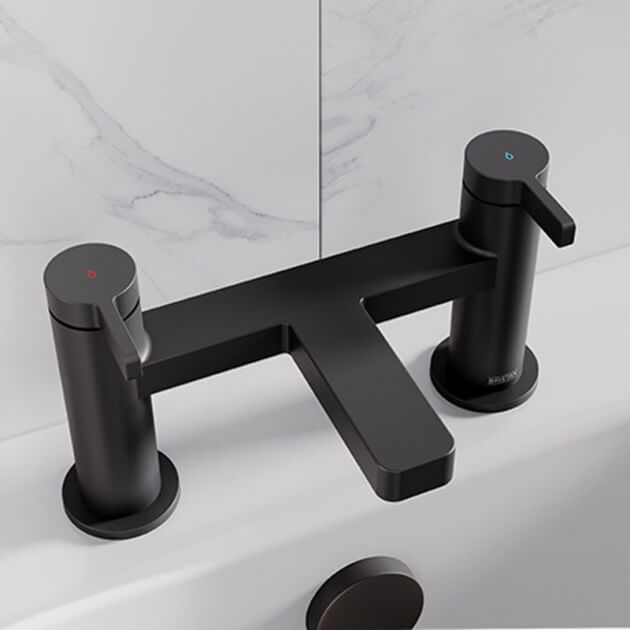

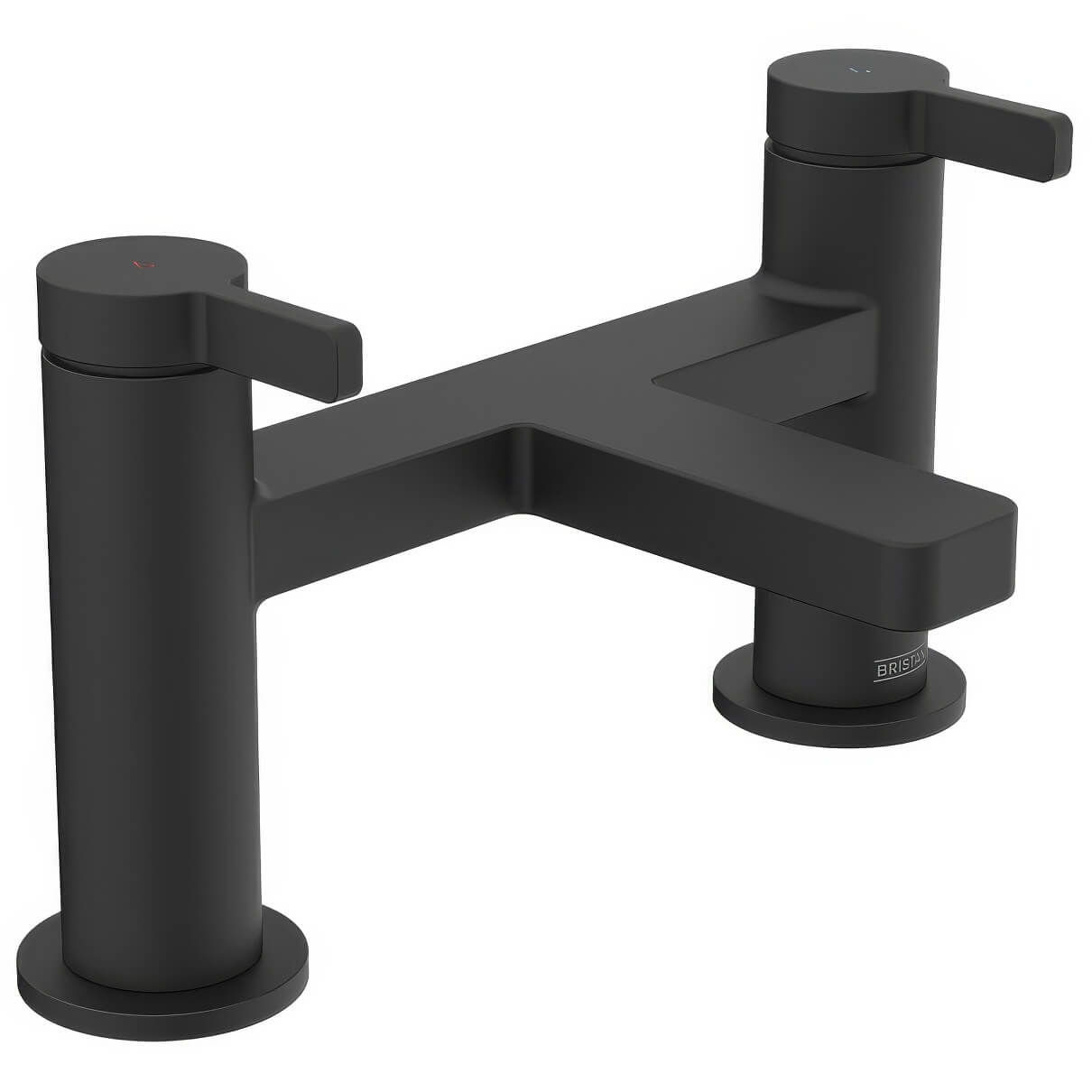

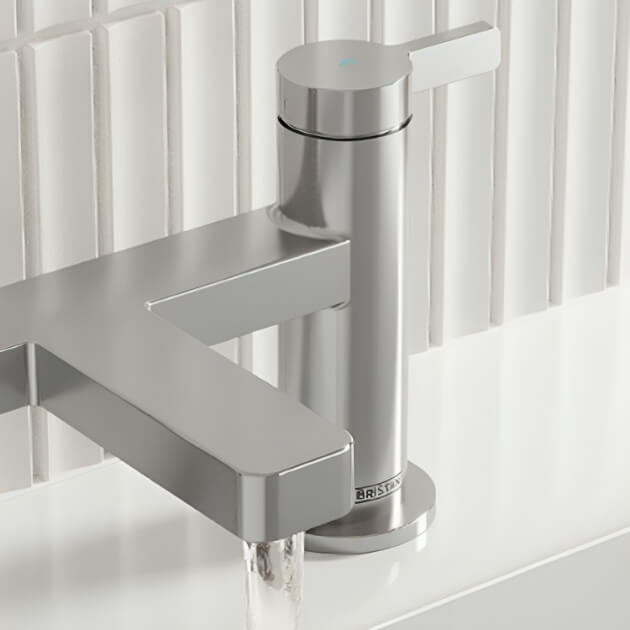

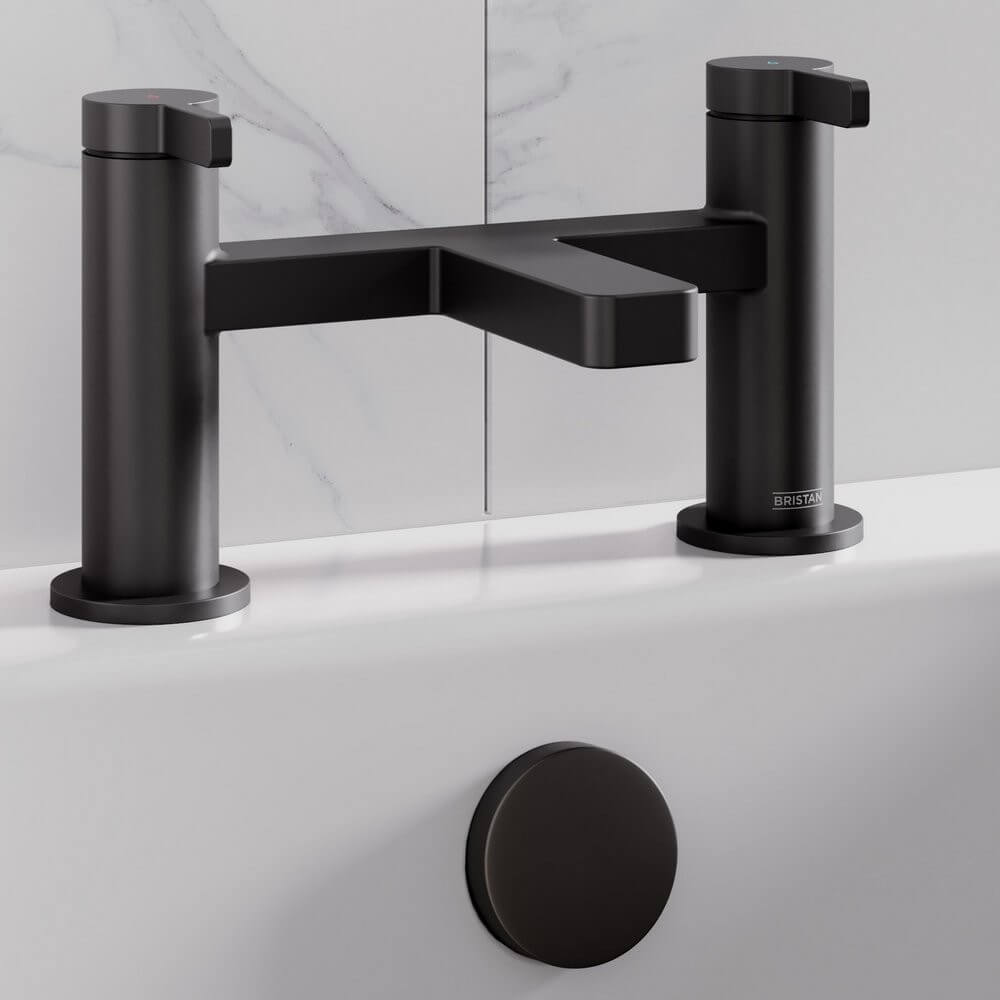

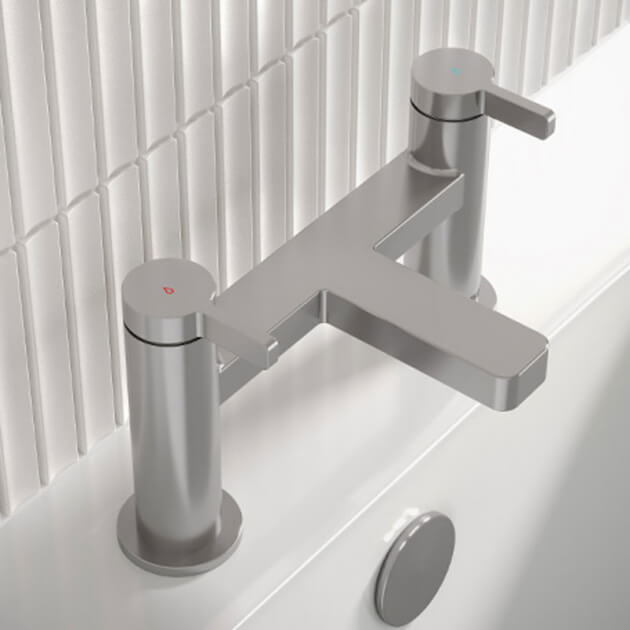

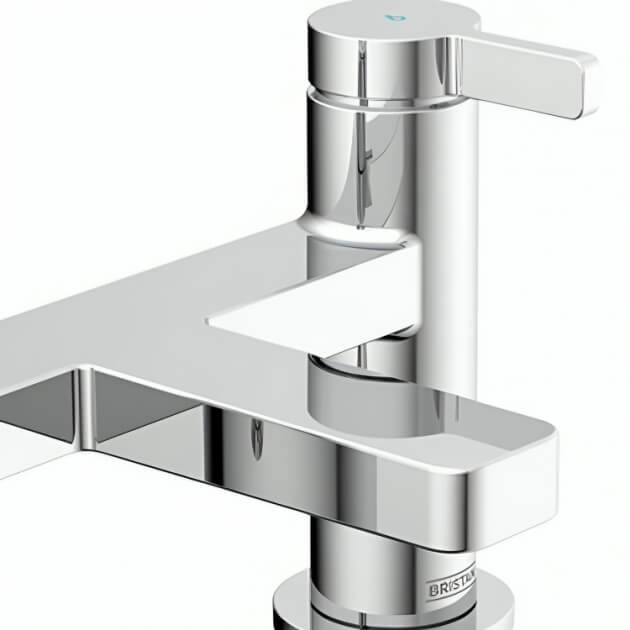

Bristan Elevar Contemporary Deck Mounted Bath Filler Tap

Elevar Details

MFC: ELE BF C

Bristan Elevar Contemporary Deck Mounted Bath Filler Tap - Lever Handles

Key Features

✔1/4 Quarter Turn Mechanism
✔Manufactured Using Brass Material
✔Salt Spray Tested to Ensure Added Durability
✔10 Years On Parts and 1 Year On Labour Guarantee for Peace of Mind from Bristan

Available in 2 Finishes: Chrome and Black
Size [mm]: 231 x 131 x 129mm [Width x Depth x Height]
Size [cm]: 23.1 x 13.1 x 12.9cm [Width x Depth x Height]
Base to Spout: 70mm [7cm]
Centre of Inlet to Centre of Outlet: 90mm [9cm]
Inlet Centres: 180mm [18cm]
Flow Type: Single
Number of Tap Holes: 2
Mount Type: Deck Mounted
Handle Type: Paddle Lever
Valve/Cartridge Type: 3/4 Inch Ceramic Disc Valve -
Plumbing System Requirements: Suitable for All Plumbing Systems
Maximum Hot Water Temperature: 60°C
Maximum Static Pressure: 10 Bar
A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish that Lasts for Years
Long Life 1/4 Turn Ceramic Disc Valves for Added Durability and Smooth Control
Robust Metal Fixing Nut to Secure the Tap in Place, Reducing the Risk of Loosening Over Time
Suitable for Low and High Water Pressure Systems
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section
Details of Bath Filler Tap:
WRAS Approved
Base to Spout: 70mm [7cm]
Connection Inlet: 3/4 Inch BSP
Connection Outlet: M24 Recessed Honeycomb Aerator
Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure

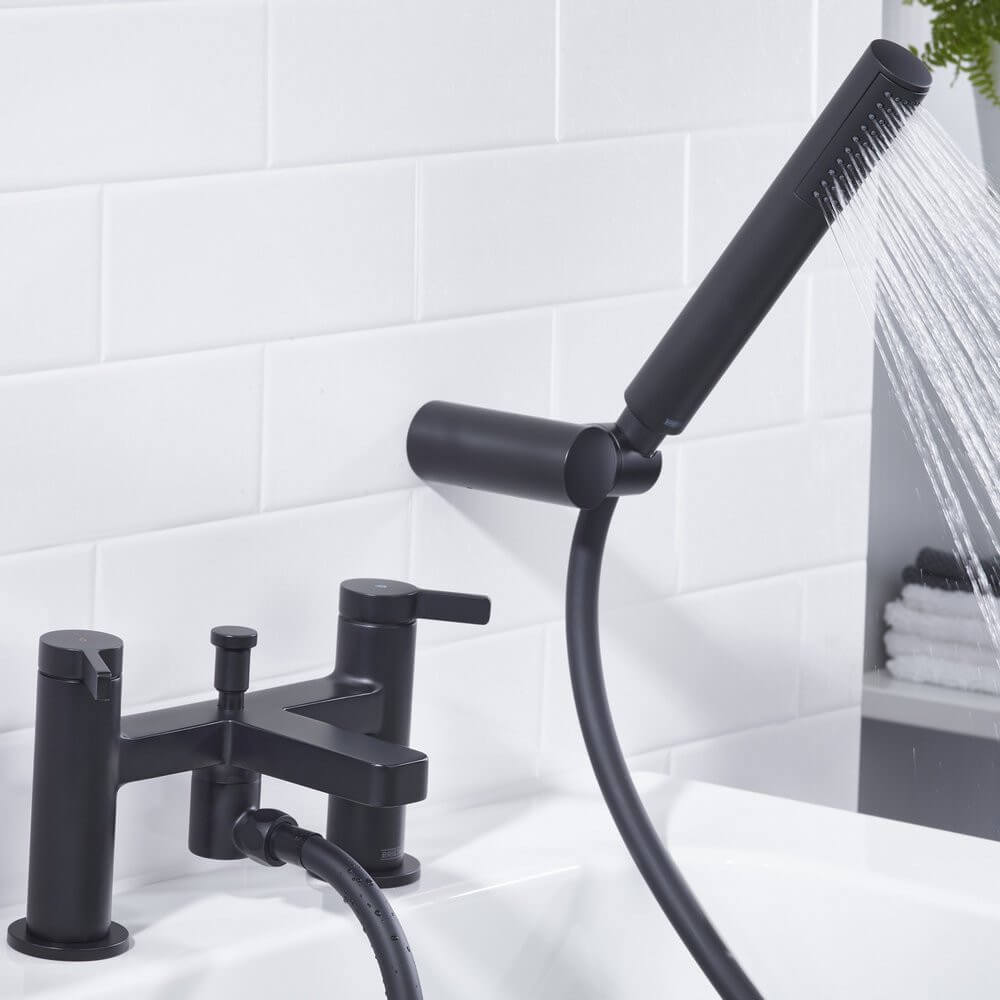

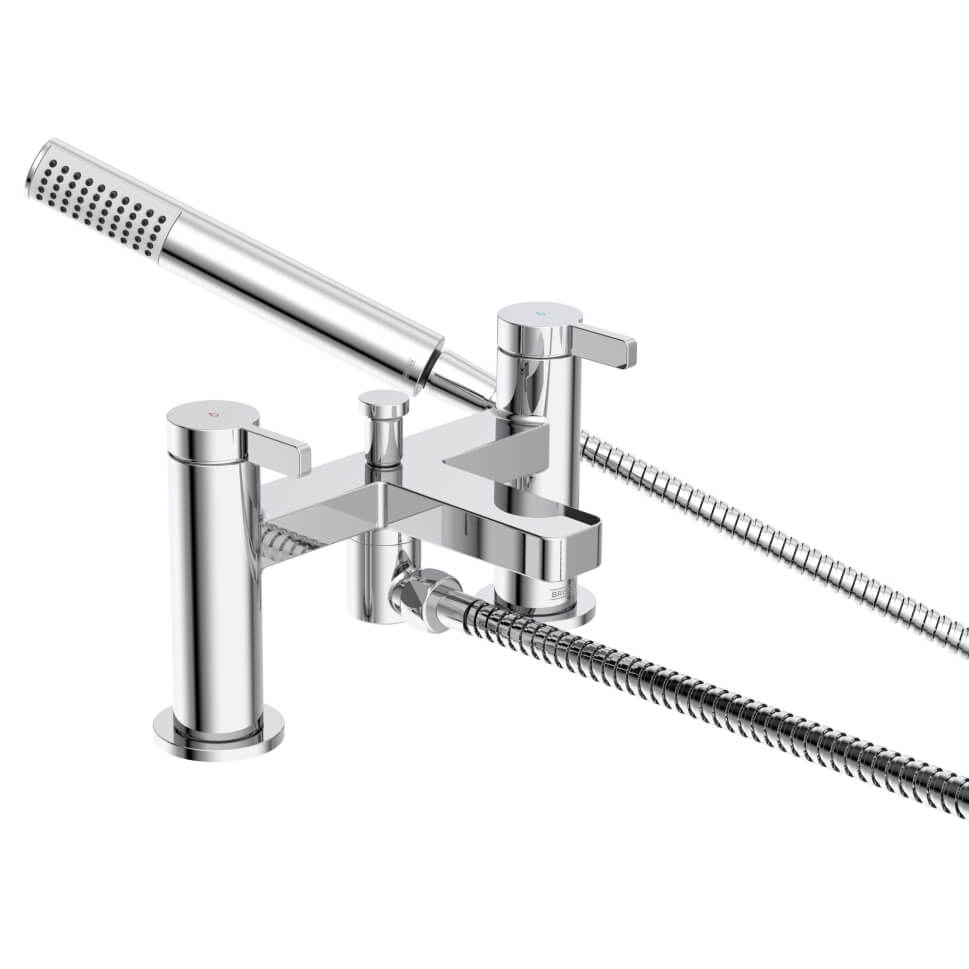

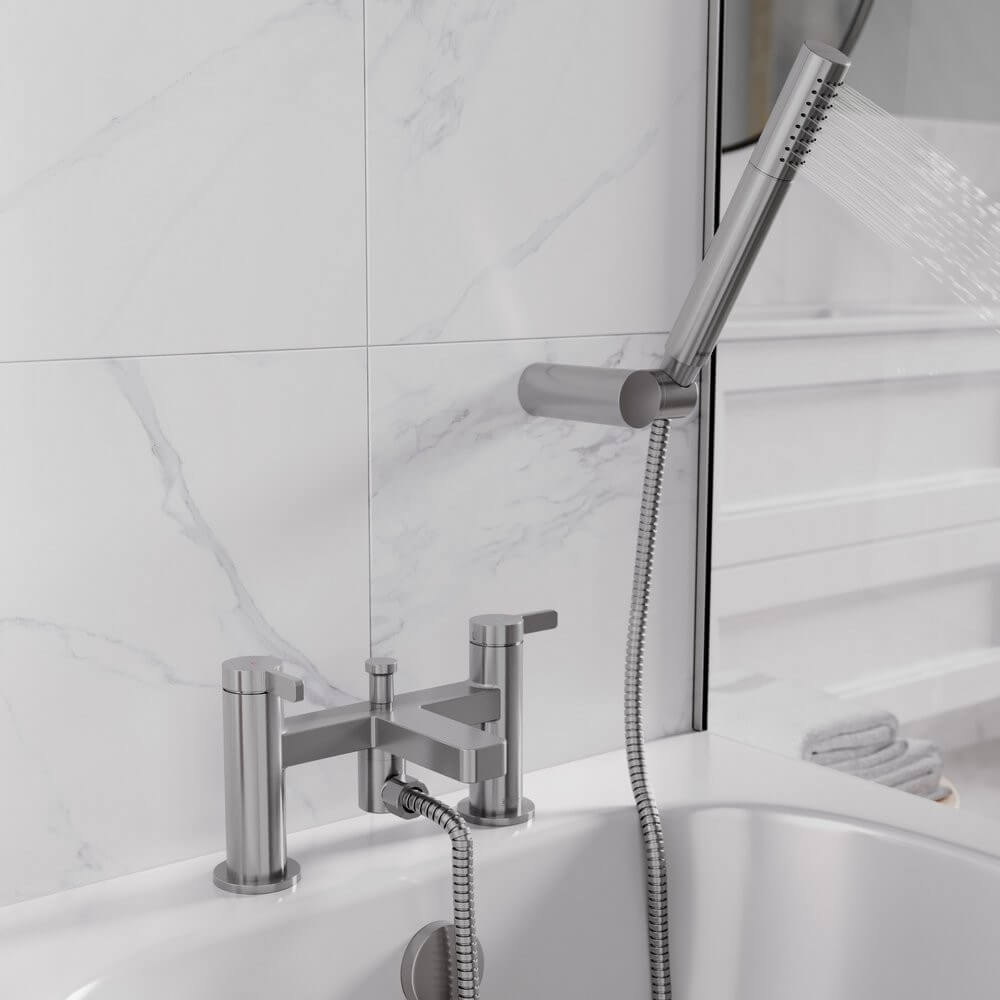

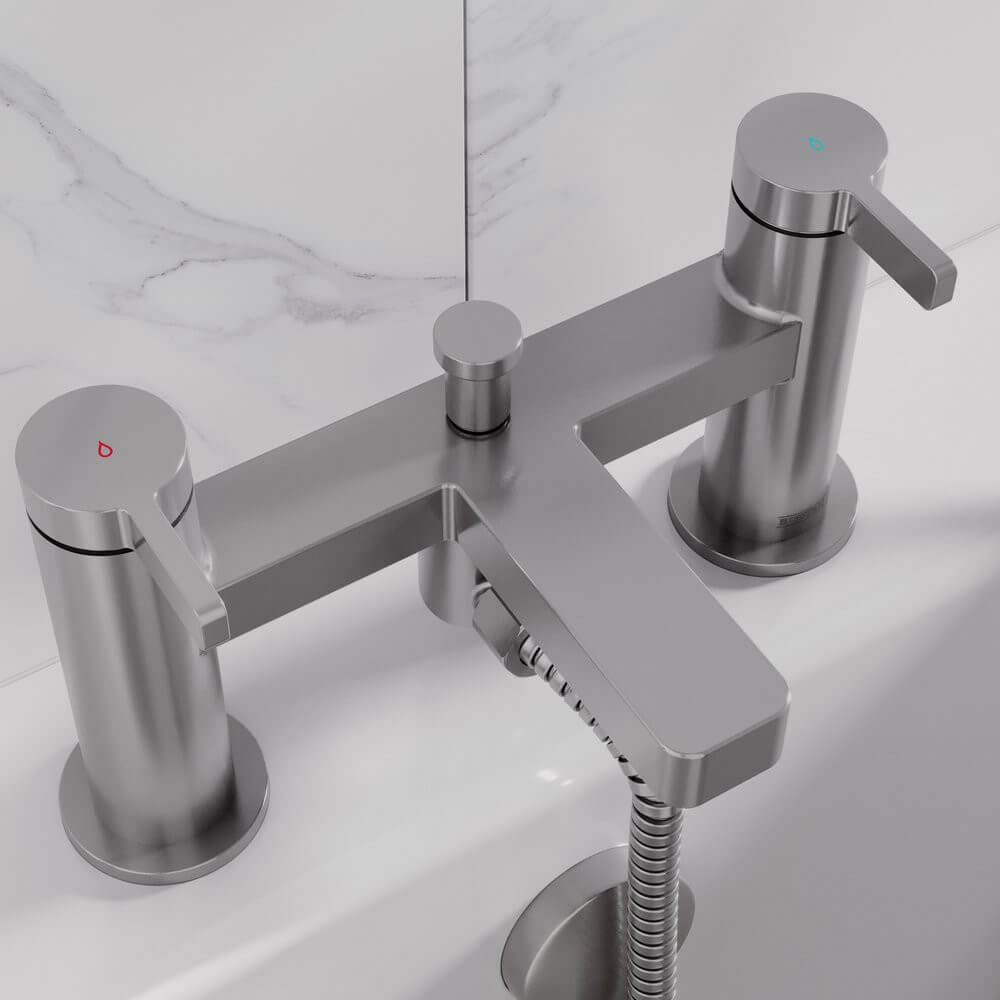

Details of Bath Filler Tap with Kit:

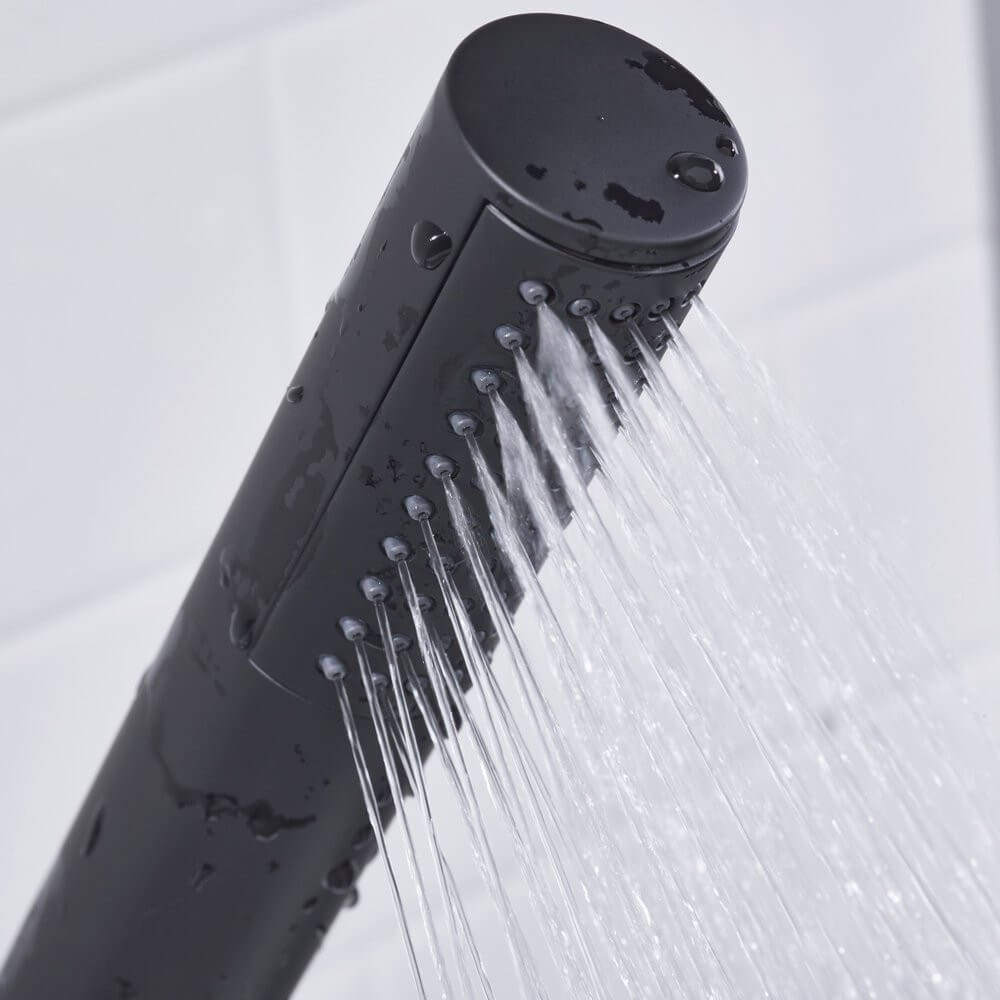

Size of Handset [mm]: 30 x 30 x 222mm [Width x Depth x Height]
Size of Handset [cm]: 3 x 3 x 22.2cm [Width x Depth x Height]
Base to Spout: 68mm [6.8cm]
Size of Handset Holder [mm]: 95 x 73 [Width x Depth]
Size of Handset Holder [cm]: 9.5 x 7.3 [Width x Depth]
Connection Inlet: 3/4 Inch BSP
Connection Outlet: G1/2 Inch
Hose Length: 1500mm
Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Elevar
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome, Black
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc Valve
⤷ Base To Spout
: 70

⤷ Spout Reach
: 90
⤷ Inlet Centres
: 180
⤷ Overall Height
: 129
⤷ Width
: 213
⤷ Inlet Connections
: 3/4 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Hand-Shower Included
: Yes
⤷ Handle Style
: Peddle Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868086606
⤷ Product Type
: Bath Filler Tap

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Technical Images

Bristan Elevar Contemporary Deck Mounted Bath Filler Tap - Lever Handles

£121.00

RRP: ~~£197.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.
