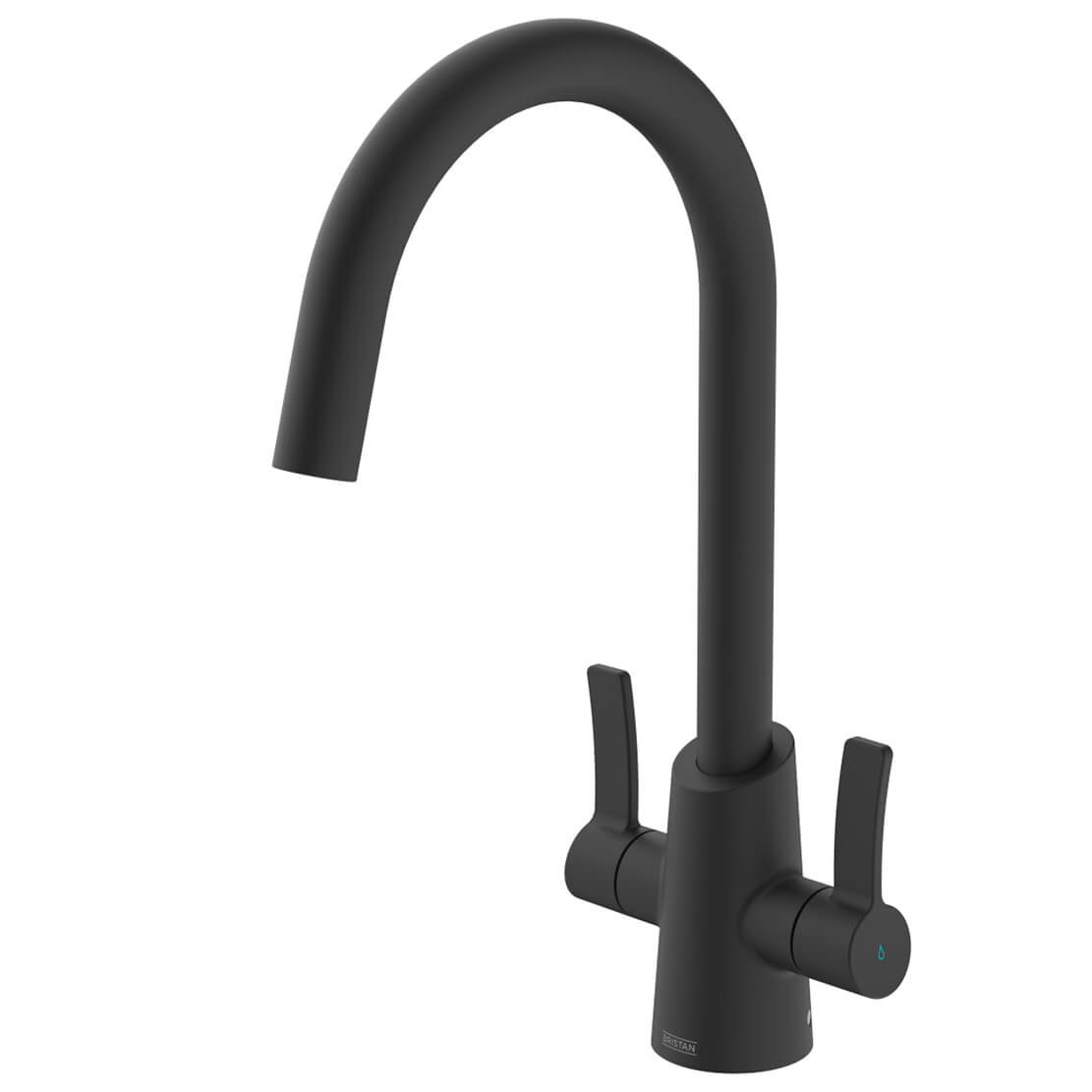

Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap

Acorn Details

MFC: ACR EFSNK C

Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout and Paddle Lever Handles

Key Features

✔WRAS Approved
✔Features Swivel Spout
✔Manufactured Using Brass Material
✔10 Years of Guarantee Against any Manufacturing Defect

Available in 3 Finishes: Chrome, Black and Stainless Steel
Includes: Allen Key, Isolation Valves, Top Fix Easyfit Base, Easyfit tool and Flexi Tails
Size [mm]: 137 x 220 x 355mm [Width x Depth x Height]
Size [cm]: 13.7 x 22 x 35.5cm [Width x Depth x Height]
Base to Spout: 230mm [23cm]
Centre of Inlet to Centre of Outlet: 180mm [18cm]
Mount Type: Deck Mounted
Handle Type: Paddle Lever
Connection Inlet: 1/2 Inch BSP Flexible Tails
Connection Outlet: Housed M22 8L/M Aerator
Number of Tap Holes: 1
Maximum Fitting Depth: 35mm
Valve/Cartridge Type: 1/2 Inch Ceramic Disc Valves
Maximum Hot Water Temperature: 65°C
Maximum Static Pressure: 10 Bar
Flow Type: Single Flow
Isolation Included: Yes
High-Quality Metal Fixings for Security and Durability
Includes Ceramic Disc Valves for Added Durability and Ease of Use
Unique Patented Top Fix Design for Simple Installation from Above the Sink
Suitable for Low and High Water Pressure Systems
Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure
Plumbing System Requirements: Suitable for All Plumbing Systems
Push the Tap onto the Base and Secure it into Position with the Supplied Easyfit tool and Screws
Drop and Twist the Top Fix Base into the Tap Hole from Above, and Lock it into Place with the Allen Key Provided
Supplied with Two Isolation Valves and Flexi Tails means You Can Connect to the Water Supply at this Point and isolate the Base
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Acorn
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome, Black, Stainless Steel
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/2 Inch Ceramic Disc Valves

⤷ Spout Swivel
: Yes
⤷ Base To Spout
: 230
⤷ Spout Reach
: 180
⤷ Overall Height
: 355
⤷ Width
: 137
⤷ Inlet Connections
: 1/2 Inch BSP Flexible Tails
⤷ Minimum Operating Pressure (Bar)
: 0.3
⤷ Handle Style
: Paddle Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868083766
⤷ Product Type
: Kitchen Sink Mixer Tap

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Acorn Easyfit Mono Kitchen Sink Mixer Tap - Swivel Spout and Paddle Lever Handles

£99.16

RRP: ~~£166.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Quick Change

The product can be simply removed and another one fixed in its place. All you need to do is turn off the water supply.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Easyfit

Step1: Fitting the Base The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position, indicated by the word FRONT facing forward. Now tighten the fitting to the surface with a hex key, and replace the plain barrel. Step 2: Fitting the Tails Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves. Step 3: Fitting the Tap Body Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.
