Vado Axbridge Mono Bidet Mixer Tap With Pop-Up Waste

Vado Axbridge Details

MFC: BC-AXB-110-CP

Vado Axbridge Mono Bidet Mixer Tap With Pop-Up Waste

Key Features

✔WRAS Approved
✔Choice of Finishes: Chrome and Bright Nickel

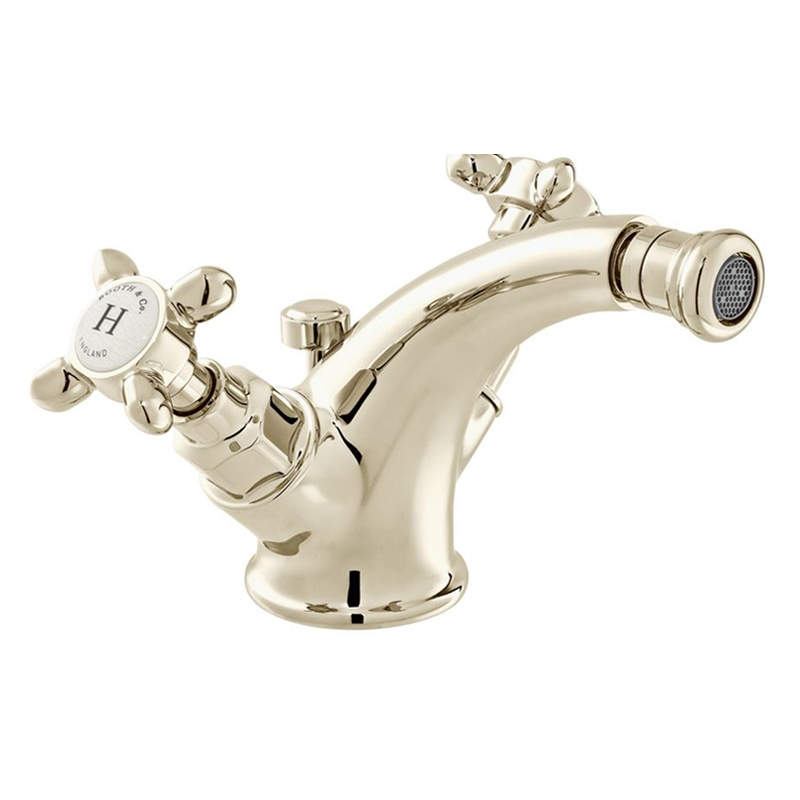

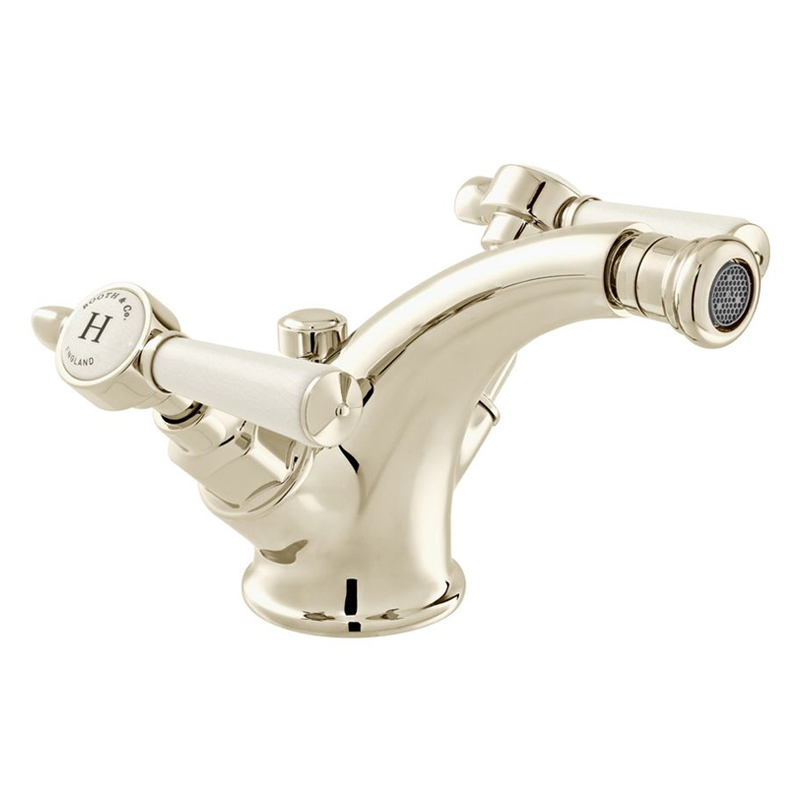

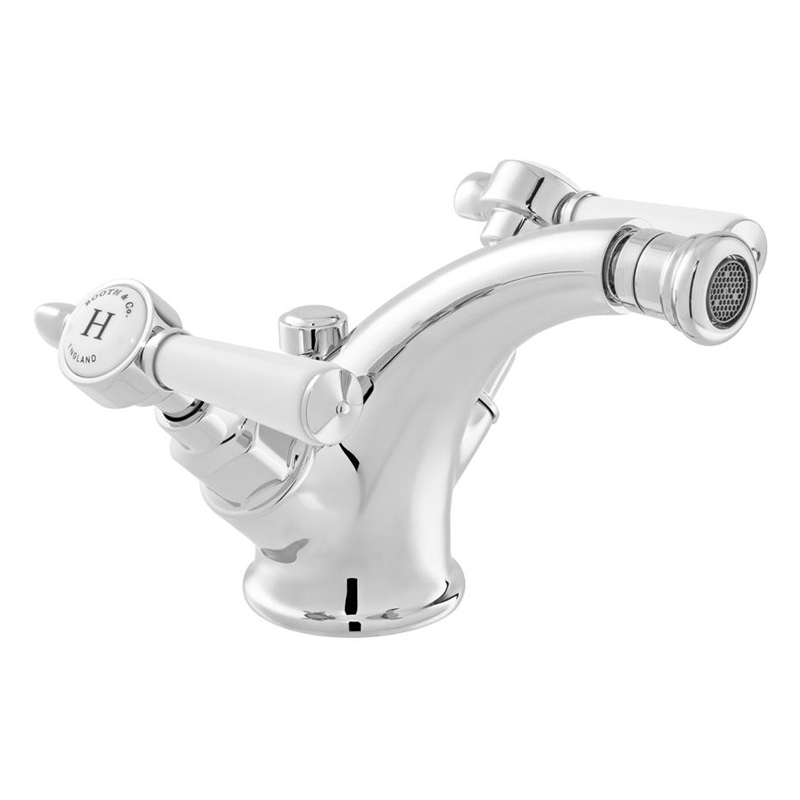

✔Choice of Handles: Crosshead and Lever
✔15-Year Guarantee from the Manufacturer
✔Plumbing System Compatibility: Gravity, Pumped, Combination Boiler, Pressurised System

Traditional Design
Installation Type: Deck Mounted
Supplied with Pop-Up Waste
Deck Hole Drill Diameter: Ø35mm
Size of Crosshead Handle Tap: 182 x 160 x 113mm [Width x Depth x Height]
Size of Lever Handle Tap: 166 x 160 x 113mm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 118mm
2 x 1/2" 400mm Flexipipe Connections
Cold Ceramic Cartridge - FL-501-RTC
Hot Ceramic Cartridge - FL-501-LTC
Suitable for High Water Pressure System
Minimum Water Pressure Recommended for Smooth Working is 0.2 Bar and Maximum of 5.0 bar

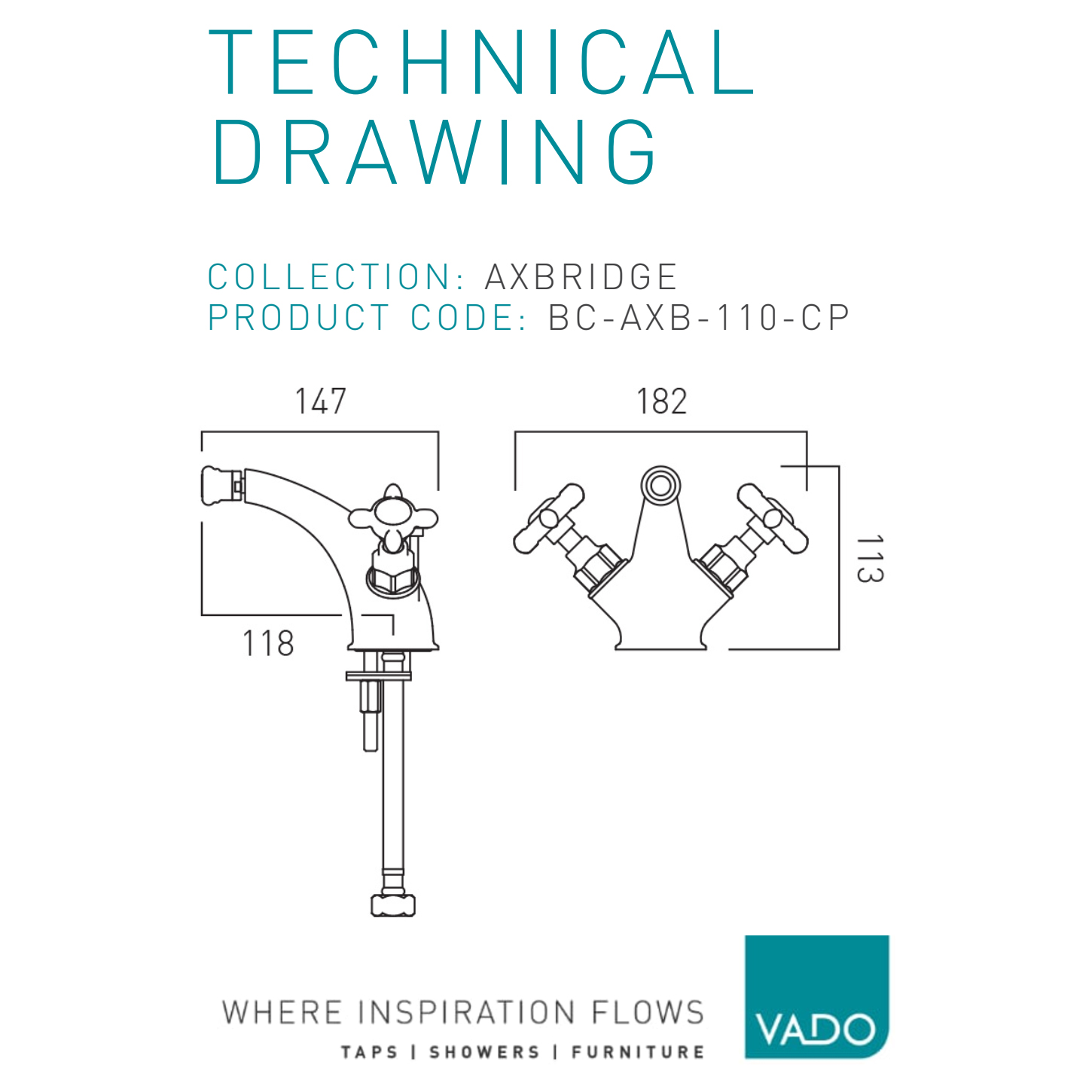

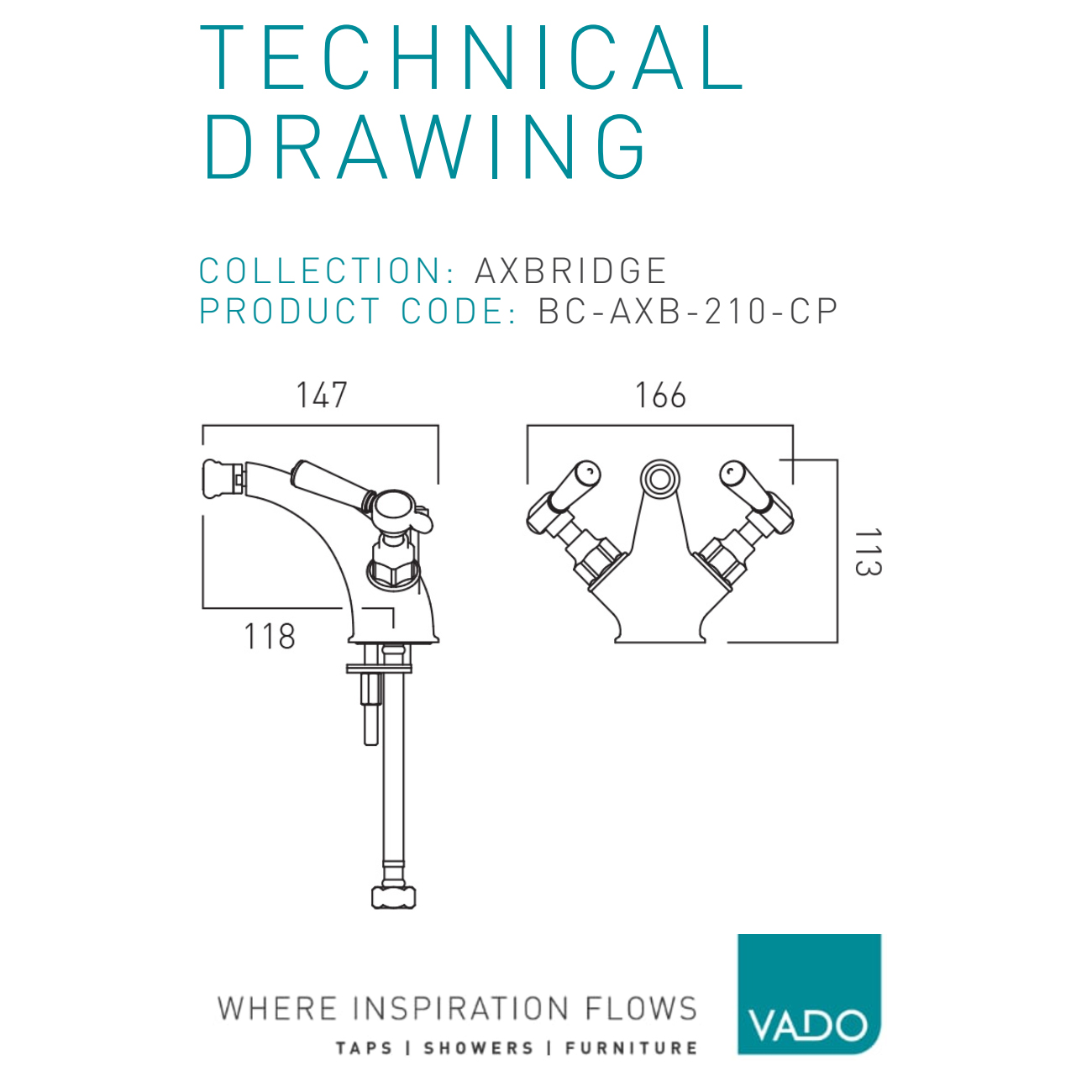

Refer Technical Drawing for Complete Size Details
Download the Installation Instruction and User Guide PDF File From The Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axbridge
⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left & Right
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout Reach
: 118

⤷ Overall Height
: 113
⤷ Width
: 182
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Pop-Up
⤷ Handle Style
: Crosshead
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Waste Included
: Yes
⤷ Product Type
: Bidet Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the User Guide Pdf File

Vado Axbridge Mono Bidet Mixer Tap With Pop-Up Waste

£151.25

RRP: ~~£275.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
