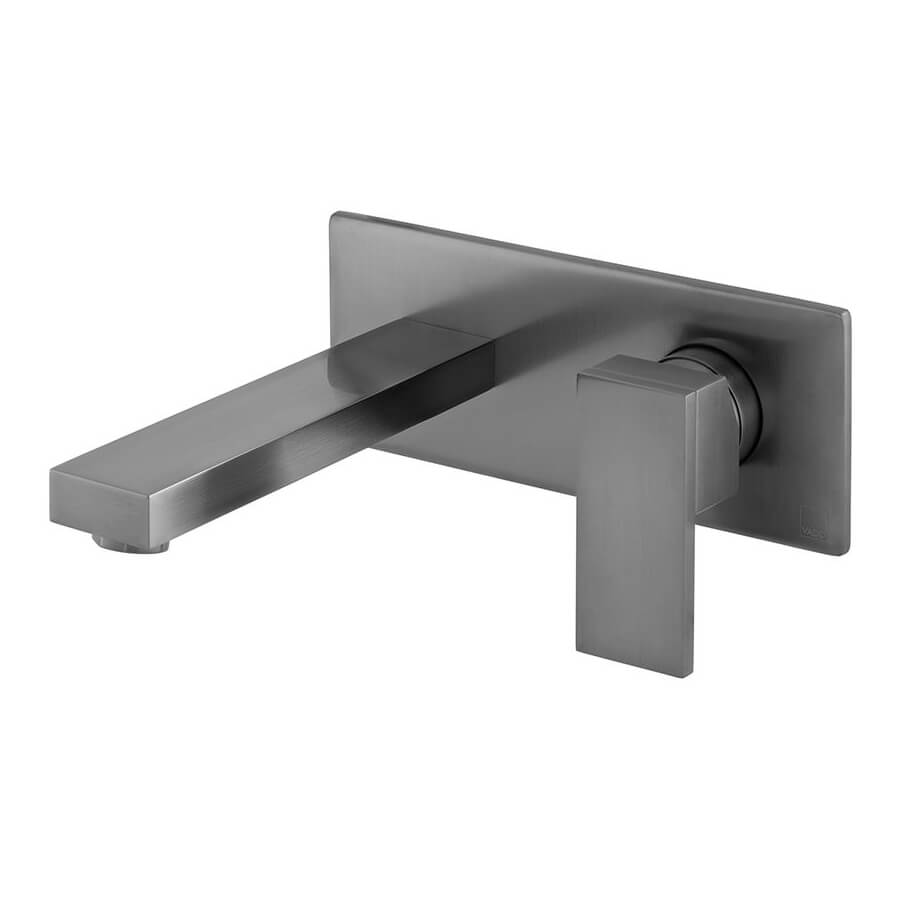

Vado Individual Notion Wall Mounted Single Lever Basin Mixer Tap

Vado Individual Notion IND-NOT109FS/A-BRG Details

Single lever handle.
Wall-mounted installation.
Size [mm]: 200mm x 180mm x 80mm [Width x Depth x Height].
Size [cm]: 20cm x 18cm x 8cm [Width x Depth x Height].
Min-Max wall mount 53-73mm (5.3-7.3cm).
Water flow aerator included.
5 l/m flow regulator fitted as standard.

Suitable for low water pressure system.
Required Min 0.2 Bar operating pressure.
2 x 1/2" Inlets.
Inlet centres: 100mm (10cm).
Comes with ceramic cartridge - [CAR-K35B].
Refer to the technical drawing for complete size details.
Download the User Guide and Installation Instruction PDF File from the Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Notion
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Square
⤷ Colour
: Brushed Gold
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2

⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Inlet Centres
: 100
⤷ Width
: 200
⤷ Min-Max Wall Mount
: 53-73
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instructions Pdf File Download the User Guide Pdf File

Total: £487.50 5-7 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
