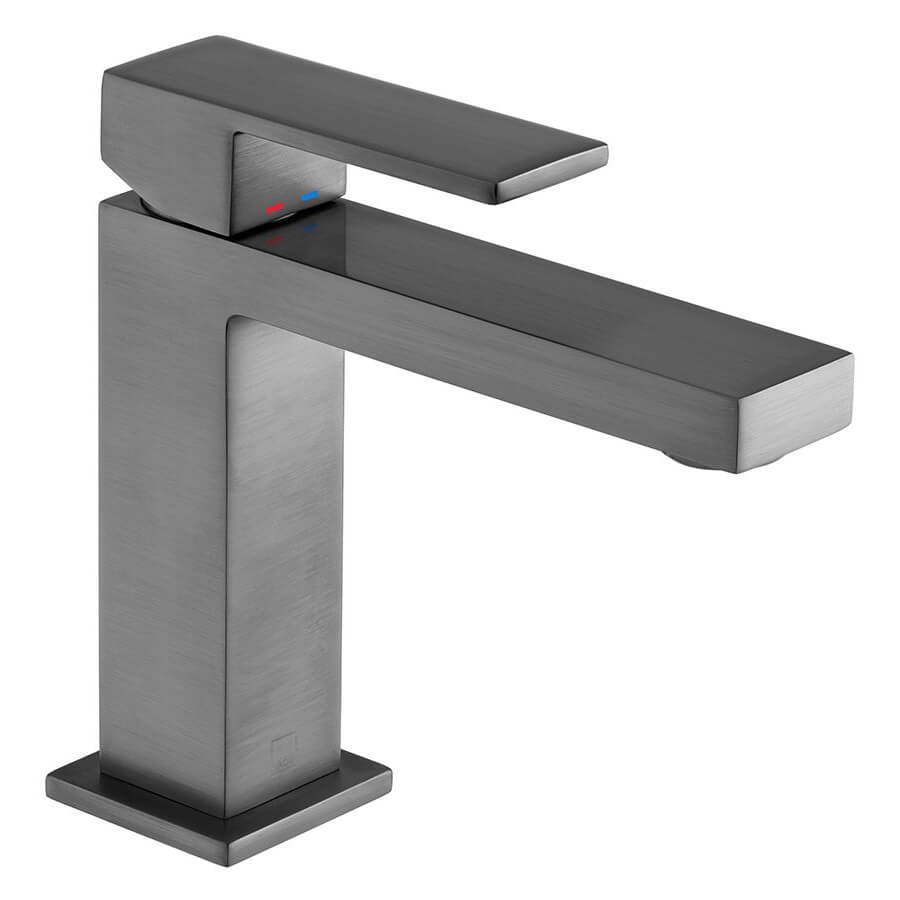

Vado Individual Notion Deck Mounted Single Lever Mono Basin Mixer Tap

Vado Individual Notion IND-NOT200/SB-BLK Details

Slimline mono basin mixer tap.
Single lever handle.
Deck mounted installation.
Size [mm]: 48mm x 152mm x 148mm [Width x Depth x Height].
Size [cm]: 4.8cm x 15.2cm x 14.8cm [Width x Depth x Height].
Centre of inlet to centre of outlet: 120mm (12cm).
Base to spout: 105mm (10.5cm).
Water flow aerator included.

5 l/m flow regulator fitted as standard.
Suitable for high water pressure system.
Required Min 1.0 Bar and Max 5.0 Bar operating pressure.
2 x 1/2" 400mm (40cm) flexipipe connections.
Comes with ceramic cartridge - [C-010-N25].
35mm (3.5cm) Deck hole drill diameter.
Download the User Guide and Installation Instruction PDF File from the Additional Info Section.
Refer technical drawing for complete size details.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Notion
⤷ Tap Body Shape
: Square
⤷ Handle Position
: Upwards
⤷ Colour
: Brushed Black
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Base To Spout
: 105
⤷ Spout Reach
: 120
⤷ Overall Height
: 148
⤷ Width
: 48
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the User Guide Pdf File Download the Installation Instructions Pdf File

Total: £318.76 5-7 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...
