Duravit Qatego 1800 x 800mm Double Ended Built In Acrylic Bath

Duravit Qatego 700614000000000 Details

Duravit Qatego 1800 x 800mm Double Ended Built In Acrylic Bath.

Two backrest slope.
Depth: Internal 460mm (46cm) and External 480mm (48cm).
It comes in a White Alpin finish.
Water level capacity - 365mm.
Weight: 26kg.
Waste Outlet Position - Middle.
Supplied with an Overflow.
Overflow Position - Middle.

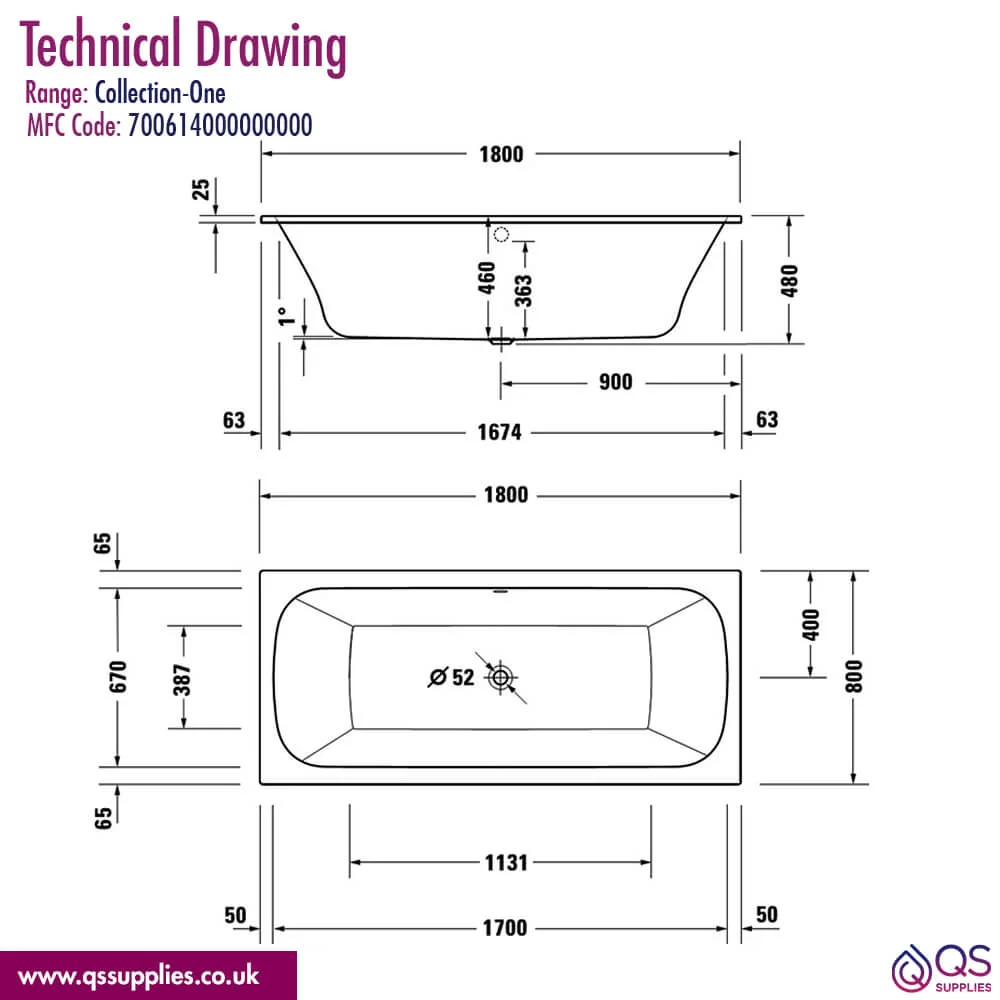

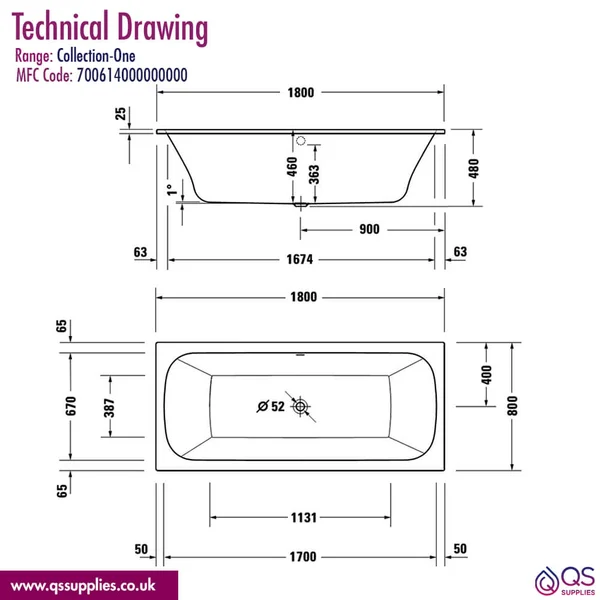

Refer technical drawing for more technical specification.
Water Capacity of Bath - 280 Litres.
Download Customer datasheet and Installation Instruction PDF from the Additional Info section.

The waste shown in the image is not included.
Available optional product.
Bathtub Anchor.
Rubber profile.
Support Frame.
Styrene Support for Bath.
Quadroval waste and overflow.
Quadroval waste and overflow with water inlet.
Quadroval waste and overflow with base inlet.
Noise reduction gasket.

Please Note: Noise reduction gasket #791368 can not be combined with Bathtub support. All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in mm and are non-binding. Exact measurements, in particular for customised installation scenarios, can only be taken from the finished ceramic piece.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Bath Type
: Double Ended
⤷ Position of Drain
: Middle
⤷ Range
: Qatego
⤷ Interior Shape
: Rounded Rectangular
⤷ Coating
: Standard
⤷ External Length
: 1800
⤷ External Width
: 800
⤷ Tub Depth
: Internal: 460 | External: 480
⤷ Colour
: White Alpim
⤷ Internal Bottom Length
: 1131
⤷ Internal Bottom Width
: 387
⤷ Internal Top Length
: 1700
⤷ Internal Top Width
: 670
⤷ Height of Rim
: 25

⤷ Distance Tub edge to centre of drain hole
: 900
⤷ Distance Top edge to centre of overflow hole
: 97
⤷ Diameter of Drain hole
: 52
⤷ Rim Width
: 65 | 50
⤷ Weight in kg
: 26
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 280
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Acrylic
⤷ No. of Bathers
: 2
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Barcode
: 4067116068924

Total: £376.74 3-4 Weeks Approx QS Supplies

1 Features Included In This Product Explained

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.
