Hudson Reed Juno 1205 x 390mm 4 Drawer Wall-Hung Vanity Unit And Double Basin

Hudson Reed Juno JNU2224F Details

Hudson Reed Juno 1205 x 390mm 4 Drawer Wall-Hung Vanity Unit and Double Basin is the perfect storage solution designed to meet the needs of the modern homeowner. It gives your bathroom a spanking clean look by helping you organise your sentinels, and looks fine too. The unit comes with four soft-close drawers and a new-age solid MFC construction.

To save space, this vanity unit will deliver exemplary long-term performance. With this, you get a choice of different finishes for the Vanity and materials for the basin. Buy this and refresh your bathroom for a bit of money.

Key Features

✔FSC Certified
✔Construction Method: Cam and Wood Dowel
✔Cabinet and Fascia Finish: MFC Textured Woodgrain
✔Five years guarantee from Hudson Reed against manufacturing defects

Choice of different finish: Graphite Grey, Coastal Grey, Midnight Blue, Autumn Oak and Metallic Slate - [Optional].
Available in different basin variants: Twin Ceramic Basin and Twin Poly-Marble Basin - [Optional].
Overall size: Width 1205mm (120.5cm) x Depth 390mm (39cm) x Height 579mm (57.9cm).
Weight: 72kg.
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.
Refer to the technical diagram for the complete technical dimension.
Details For Vanity Unit:.
Size: Width 1200mm (120cm) x Depth 385mm (38.5cm) x Height 539mm (53.9cm).
Drawer Type: 80mm (8cm) High Metal S/C Inc Galler.
Contemporary D-shape chrome finish handle included.
Suitable for wall-hung installation.
Cabinet And Fascia Thickness: 18mm (1.8cm).
Construction Type: Rigid.
Supplied rigid for easy installation.

Details For Ceramic Basin:.
Manufactured using ceramic material.
Size: Width 1205mm (120.5cm) x Depth 390mm (39cm).
Pre-drilled single central tap-hole on each bowl.
Overflow and cover included.
Profile: 40mm (4cm).
Details For Polymarble Basin:.
Manufactured using poly marble material.
Size: Width 1205mm (120.5cm) x Depth 390mm (39cm).
Pre-drilled single central tap-hole on each bowl.
Overflow and cover included.
Profile: 40mm (4cm).
The tap shown in the image is not included.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Sink Width
: 1205
⤷ Sink Projection
: 390
⤷ Handle Finish
: Chrome
⤷ Range
: Juno
⤷ Colour
: Graphite Grey
⤷ Weight in kg
: 72
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall-Hung
⤷ Width
: 1200
⤷ Depth
: 385
⤷ Height
: 539
⤷ Fixings included
: Yes
⤷ No. of Tap Holes
: 1 On Each Bowl
⤷ Overflow Included
: Yes

⤷ Compliance/Approvals/Standard
: FSC
⤷ Barcode
: 5056462673523
⤷ Handle Included
: Yes
⤷ Product Type
: Double Basin Vanity Unit
⤷ Furniture Material
: MFC
⤷ Pre-assembled
: Yes
⤷ Sink Included
: Yes
⤷ Sink Colour
: White
⤷ Number Of Drawers
: 4
⤷ Soft-Close Drawer
: Yes
⤷ Sink Material
: Ceramic
⤷ Number Of Sinks
: 2
⤷ Sink Shape
: Rectangular
⤷ Sink Type
: Inset

Additional Info & Downloads

Download the Customer Data Sheet For Vanity Unit And Double Basin Pdf File Download the Installation Instruction Pdf File

Technical Images

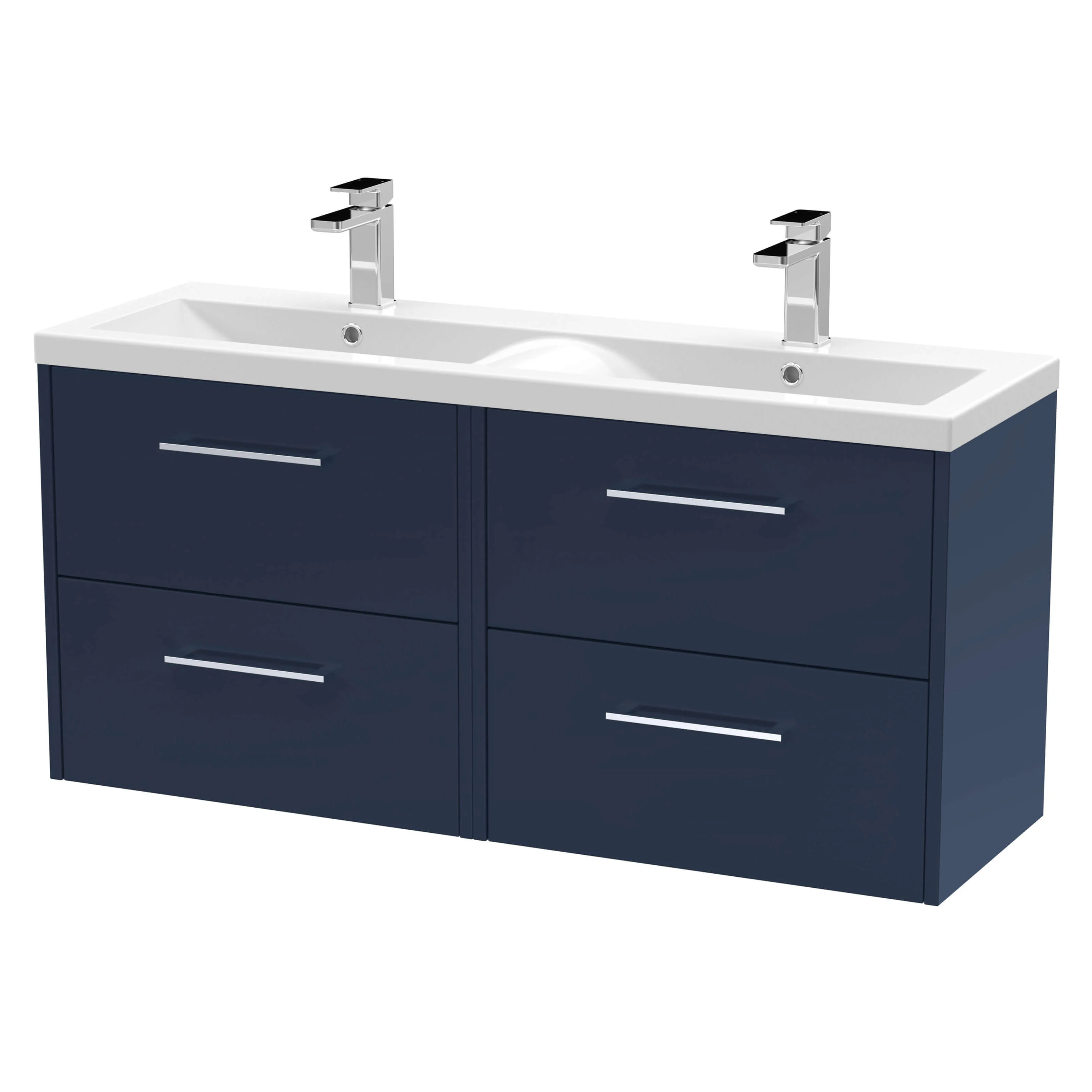

Hudson Reed Juno 1205 x 390mm 4 Drawer Wall-Hung Vanity Unit And Double Basin

Total: £507.35 5-7 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it waterproof, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.
