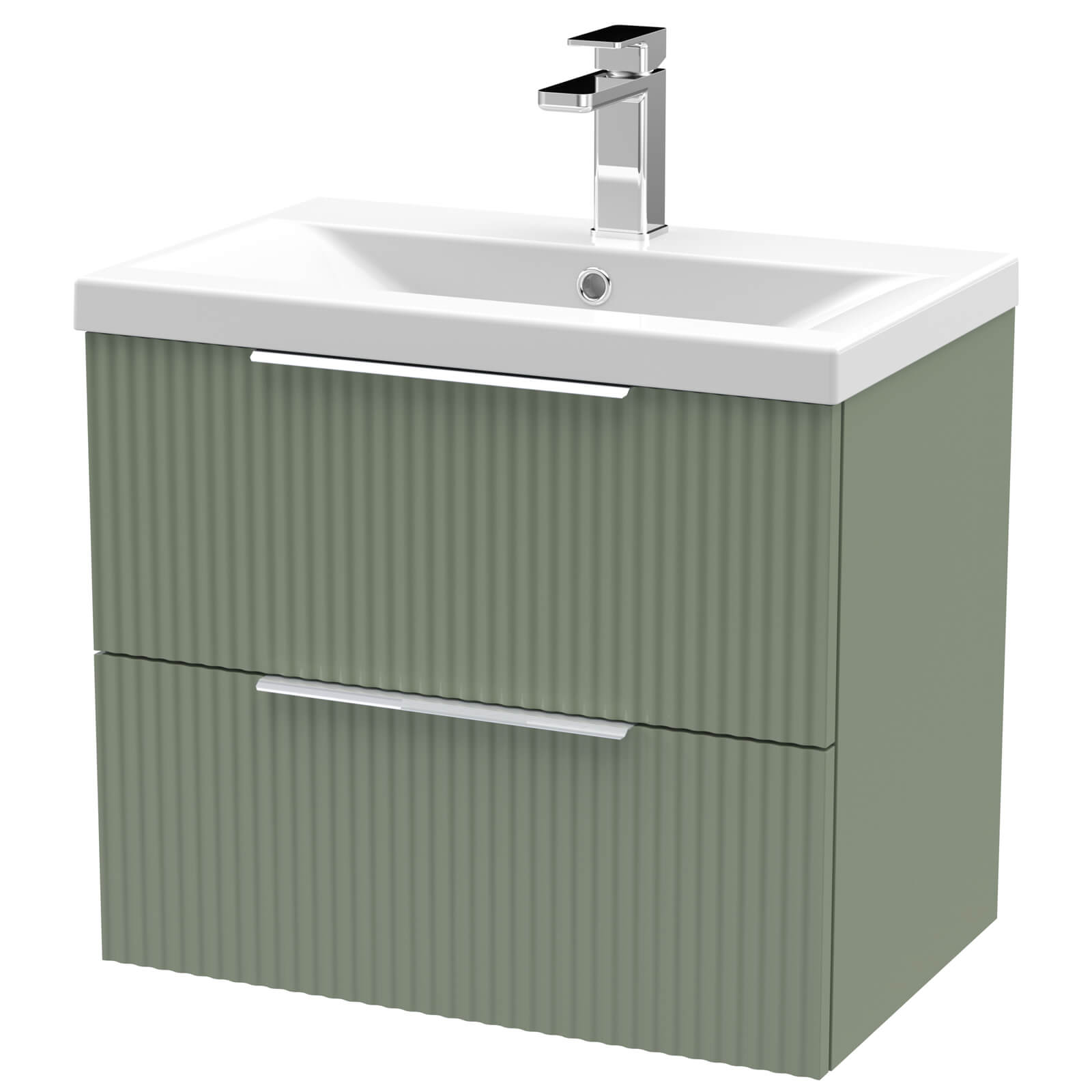

Hudson Reed Fluted Wall Hung Vanity Unit with Basin & Handle, DFF192B

Hudson Reed Fluted Details

MFC: DFF192B

Hudson Reed brings the Fluted Wall-Hung 2 Drawer Vanity Unit and Basin to elevate the style quotient of contemporary bath areas. Consisting of a wall-mounted vanity unit and Furniture Washbasin, it offers optimum convenience. The unit comes with two drawers which provide sufficient storage for neatly organising your bathroom space. Classic chic meets modern design in this attractively finished expression of minimalism. The rectangular centrepiece has high quality construction with a soft close mechanism. Delightful details add to the glamorous look, making this masterpiece the perfect choice for elegant bathrooms.

Key Features

✔Construction Method: Cam and Wood Dowel
✔Cabinet Material Finish: MFC-Painted Matt
✔Fascia Material Finish: MDF-Painted Matt
✔5-Years Guarantee from Hudson Reed Against Manufacturing Defects

Choice of Finishes: Satin White, Satin Grey, Satin Blue, Satin Green and Soft Black
Choice of Widths: 500mm, 600mm and 800mm
Choice of Basin Types: Minimalist, Mid-Edge and Thin-Edge
Overall Size [mm]: 395 x 518mm [Depth x Height]
Overall Size [cm]: 39.5 x 51.8cm [Depth x Height]
Weight: 43.4kg
Leg Set - [Optional]
Download the Customer Data Sheet and Installation Instructions PDF File from the Additional Info Section
Refer to the Technical Drawing for Complete Technical Details
Detail for Vanity Unit:
2-Drawers Vanity Unit
Size [mm]: 383 x 500mm [Depth x Height]
Size [cm]: 38.3 x 50cm [Depth x Height]
Suitable for Wall-Hung Installation
Cabinet and Fascia Thickness: 18mm (1.8cm)
Construction Type: Rigid
Drawer Type: 80mm (0.8cm) High Metal Soft-Close
Finger Pull Handle Design
Chrome Finish Modern Drop-Type Handle included
Supplied with Fixings
Supplied Rigid for Easy Installation
Waste Shroud
FSC Certified
Detail for Minimalist Basin:
Size [mm]: 395 x 175mm [Depth x Height]
Size [cm]: 39.5 x 17.5cm [Depth x Height]
Inner Bowl Depth: 120mm (12cm)
18mm (1.8cm) Basin Profile
Per-Drilled 1 Taphole Ceramic Basin
Material: Vitreous China
Overflow and Cover included
Detail for Mid-Edge Basin:
Size [mm]: 390 x 180mm [Depth x Height]
Size [cm]: 39 x 18cm [Depth x Height]
Inner Bowl Depth: 125mm (12.5cm)
40mm (4cm) Basin Profile
Per-Drilled 1 Taphole Ceramic Basin
Material: Vitreous China
Overflow and Cover included
Detail for Thin-Edge Basin:
Size [mm]: 395 x 190mm [Depth x Height]
Size [cm]: 39.5 x 19cm [Depth x Height]
Inner Bowl Depth: 125mm (12.5cm)
50mm (5cm) Basin Profile
Per-Drilled 1 Taphole Ceramic Basin
Material: Vitreous China
Overflow and Cover included
The Tap Shown in the Image is not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Sink Height
: 175
⤷ Sink Projection
: 395
⤷ Sink Width
: 510
⤷ Handle Finish
: Chrome
⤷ Range
: Fluted
⤷ Colour
: Satin White
⤷ Weight in kg
: 43.4
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Hung
⤷ Width
: 500
⤷ Depth
: 383
⤷ Height
: 500
⤷ Fixings included
: Yes

⤷ No. of Tap Holes
: 1
⤷ Overflow Included
: Yes
⤷ Barcode
: 5056462677378
⤷ Handle Included
: Yes
⤷ Product Type
: Vanity Unit | Basin
⤷ Furniture Material
: MDF | MFC
⤷ Sink Included
: Yes
⤷ Sink Colour
: White
⤷ Number Of Drawers
: 2
⤷ Soft-Close Drawer
: Yes
⤷ Sink Material
: Vitreous China
⤷ Number Of Sinks
: 1
⤷ Sink Shape
: Rectangular
⤷ Sink Type
: Inset

Additional Info & Downloads

Download the Customer Data Sheet For 500mm Unit And Basin Pdf File Download the Customer Data Sheet For 600mm Unit And Basin Pdf File Download the Customer Data Sheet For 800mm Unit And Basin Pdf File Download the Installation Instruction Pdf File

This item can also be found in:

Technical Images

Hudson Reed Fluted Wall Hung Vanity Unit with Basin - Finger-Pull Handles

500mm Unit with Minimalist Basin

500mm Unit with Mid-Edge Basin

500mm Unit with Thin-Edge Basin

600mm Unit with Minimalist Basin

600mm Unit with Mid-Edge Basin

600mm Unit with Thin-Edge Basin

800mm Unit with Minimalist Basin

800mm Unit with Mid-Edge Basin

800mm Unit with Thin-Edge Basin

Add-Ons

Decorative Leg Set

Add a modern touch to your wall-hung vanity with these stainless steel decorative legs. They are available in a variety of beautiful finishes and are non-weight bearing. Please note: The image shown is for illustration purpose only.

No Option Selected
OP-243628 - 70 x 260mm Chrome Leg Set + £35.18
OP-243629 - 70 x 260mm Matt Black Leg Set + £35.93
OP-243630 - 70 x 260mm Brushed Brass Leg Set + £37.06

£250.90

RRP: ~~£723.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

6 Features Included In This Product Explained

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.
