Trojan Solarna L Shape Encapsulated Baseboard Shower Bath White

Trojan Solarna B002393 Details

Trojan, one of the most reputed brands for manufacturing innovative and high-quality bathroom products, is out with yet another winner. Its latest Solarna L Shape Encapsulated Baseboard Shower Bath is designed to gift you a spa experience. Constructed using thick lucite acrylic, it is incredibly durable. This bath is also high on hygiene and comes with Timber blocks to offer rim support and fixing points for installation kits. This piece of brilliance comes un-drilled - it can be drilled for bath-mounted taps above the waste and overflow or halfway down the long wall side. The Single-ended, modern bath is a steaming hot purchase.

Key Features

✔Made in the UK from 100% sanitary grade cast acrylic
✔Manufactured using a 4mm thick lucite acrylic sheet
✔Material and Product Standards: EN263, EN198, CE EN 14516:2015 CL.1 PH, BS EN 12150, FSC TT-COC-003576
✔Pair of tubular cradles supplied to provide support to the bath
✔Twenty-five years guarantee from Trojan against manufacturing defects

Different coating available - Trojan bath and trojancast bath [Optional].
Available in different lengths - 1500mm and 1700 [Optional].
Choice of the left hand and right hand available [Optional].
Single-ended, modern-shaped bath.
Size [mm]: 700-850mm x 510mm [Width x Height].
Size [cm]: 70-85cm x 51cm [Width x Height].
It comes with no tap holes.
It comes in a white finish.
Timber blocks to offer rim support and fixing points for installation kits.
Encapsulated baseboard routed and shaped to cover the full base of the bath, including around the plug hole.
Water capacity for 1500mm: 215 litres.
Water capacity for 1700mm: 230 litres.
Front and end panels [Optional].
Bath waste [Optional].
Comes undrilled - can be drilled for bath-mounted taps above the waste and overflow or halfway down the long wall side.
Supplied with bath fittings as standard.

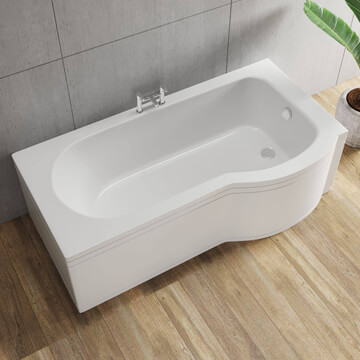

The image shown is for illustration purposes only.
Bath Screen, Waste, and Overflow showed in the image are not included.
Download the Installation Instructions PDF File from the Additional Info Section.
Refer to the technical drawing for more technical specifications.
Features of Trojancast bath.
Incredibly strong reinforced bath.
It comes complete with a luxury fittings pack.
Constructed using the latest technologies by the specialist personnel.
It covers thirty years guarantee from the manufacturer.
Insulating properties - British racing green resin jacket covers the entire underside of the bath.
Additional bath thickness reduces the heat of the water.
Keeps water in the bath hotter for a longer duration.
Traditionally, attributes are only associated with cast iron bath.
Ideal for large families, hotels and commercial purposes.
Made in the UK.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Interior Shape
: L-Shaped
⤷ Bath Type
: Shower Bath
⤷ Range
: Solarna
⤷ Position of Drain
: Waste at Foot End
⤷ Coating
: TrojanCast - Sold Separately
⤷ External Length
: 1500
⤷ External Width
: 700
⤷ Tub Depth
: Internal - 385 | External - 370
⤷ Feets Included
: Yes
⤷ Height Including Feet or Panel
: 510
⤷ Front Panel Included
: Sold Separately
⤷ End Panel Included
: Sold Separately
⤷ Colour
: White
⤷ Internal Bottom Length
: 1100
⤷ Internal Bottom Width
: 450 | 570

⤷ Internal Top Length
: 1330
⤷ Internal Top Width
: 545 | 695
⤷ Height of Rim
: 40
⤷ Rim Width
: 65 | 80 | 90
⤷ Shape
: L Shape
⤷ Capacity in litres
: 215
⤷ Handed Type
: Left Hand
⤷ Country of Origin
: UK
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Lucite Acrylic Sheet
⤷ No. of Bathers
: 1
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Un-Drilled
⤷ Barcode
: 5057199964113

Additional Info & Downloads

Download the Installation Instruction Pdf File

Technical Images

Trojan Solarna L Shape Encapsulated Baseboard Shower Bath White

Customise Your Product

Waste

High flow dedicated waste to flush out the wastewater. Please note the image shown is for illustration purpose only.

No Option Selected
OP-250 - High Flow Chrome Pop-Up Waste Dedicated + £22.79

Total: £258.43 5 Working Days Approx QS Supplies

11 Features Included In This Product Explained

Significant Reinforcement

All of Trojan’s standard acrylic baths can be strengthened by Trojancast. This intensive reinforcement process makes every bath hard-wearing and incredibly strong.

Added Insulation

To keep your bath water hotter for longer, Trojancast’s resin jacket stops heat from escaping through the side walls. The distinctive British racing green jacket covers the underside of the bath, not only adding extra insulation but strengthening the bath too.

Available For All Ranges

You can add Trojancast to any standard Trojan Bath, and it’s suitable for all models.

The Reassurance You Need

Trojancast ensures that every bath is more robust and has extra rigidity, just like a cast iron bath. This extra strength makes Trojan baths ideal for Bread & Breakfasts, hotels, rented accommodations and larger families.

Proudly English

Trojan baths are made in Yorkshire, England, and great care is taken in their manufacture to give you complete peace of mind. It’s important not to confuse Trojancast with imported baths that make the same claims about their manufacturing processes. If it’s not made in England by Trojan, the standard is not the same.

30 Years Guarantee

Every Trojancast bath has a 30-year guarantee. Standard Trojan baths already come with a 25-year guarantee.

Lucite Acrylic

It is a high-quality acrylic resin developed by DuPont in 1937 and is one of the top-quality materials available in today's market. It replaced glass as it is less breakable, offers high strength and resistance to UV rays, moisture and wind, and is easy to clean. It is also incredibly flexible and can create the best products.

FSC Certified

Any product with this logo is made of wood from well-managed, sustainable forests. Its full form is certified by the Forest Stewardship Council. By buying such products, you are supporting responsible forestry.

Encapsulated Base Board

The encapsulated base board has been coated with Glass Reinforced Plastic (GRP) to strengthen it and add a sealing quality to the construction while protecting it from water damage. It goes around the tub and the drain hole, supports the tub, and assists in sealing the underside from moisture.

Optional: Front Panel

A front bath panel is a decorative accessory that is used to cover the front-facing side of a bathtub for a neat and polished look. It also conceals plumbing and framework and comes in different sizes, textures and materials.

Optional End Panel

End Panels serve an aesthetic purpose to cap-off the exposed end of a bathtub and come in different sizes, shapes, designs, and finishes.
