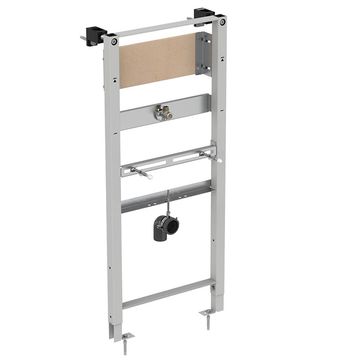

Duravit DuraSystem Standard Toilet Frame For Wall Mounted Toilet

Duravit DuraSystem Standard Toilet Frame For Wall Mounted Toilet
Technical drawing QS-V104713 / WD1011000080
QS-V104713 small Image 1
QS-V104713 small Image 2

£267.67

STOCK AVAILABILITY

5-7 Working Days Approx

Not Yet Rated No Rating

Shipping: £20.00

Key Features
  • ✔Self-supporting for drywall construction
  • ✔Powder-coated frame
  • ✔Flattenings for optimal access of press tools, metre tear and centre marker
  • ✔Five years of warranty against any manufacturing defects
SKU Code: QS-V104713

MFC Code: WD1011000080

DuraSystem WD1011000080 Details

The Duravit DuraSystem Toilet Frame For Wall-Mounted Toilet is a class in itself. This captivating artistry is a high quality hand-finished presentation brought to you by Duravit. The frame measures 500mm in width and 1012mm in height and is suitable for panelling with plasterboards. Self-supporting for drywall construction, it is crafted from high quality materials and Is ideal for WC ceramics with a projection of 625 mm. Check out our wall hung wc units at our online store that comes with great bargains.

  • Manufacturing code of this product: WD1011000080.
  • Size : 500mm [50cm] x 1012mm [101.2cm] [Width x Height].
  • Self-supporting for drywall construction.
  • Suitable for panelling with plasterboards.
  • For WC ceramics with a projection of <= 625 mm [62.5cm].
  • Adjustable feet 0–240 mm [24cm], SensoWash ready, mechanical front actuation.
  • Tool-free assembly of the transparent service opening plate.
  • Requirements of the leading standards of noise protection DIN 4109 and VDI 4100 can be achieved (in combination with noise reduction set (WD6015 000 000).
  • Refer to the technical diagram for the complete technical dimension.

Info / Size (mm)

  • Frame
  • Width: 500 mm
  • Height: 1012 mm

Customise Your Product

Extension Set
Extension Set

Duravit Extension Set for use with Urinals. This extension set is for extended height adjustment up to max. 480mm. Please Note: The image shown is for illustration purpose only.

Actuator Plate
Actuator Plate

The A1 actuator plates for toilets in plastic white or plastic chrome high-gloss can be mounted either? Flush except wet installation or on the surface for flush mounting, a special mounting frame is required. For all other models.

Connecting Set
Connecting Set

The Connecting set in combination with the SensoWash shower toilet seat, for in-wall carriers, with conduit pipe for connection inside the tank. Please Note: The image shown is for illustration purposes only.

Noise Reduction Set
Noise Reduction Set

Duravit produces a Self-adhesive Noise reduction set for structure-borne sound isolation between installation frame and building. Please Note: The image shown is for illustration purpose only.

Total: £267.67 5-7 Working Days Approx QS Supplies

2 Features Included In This Product Explained

DIN 4109:1989 and VDI 4100 Standard

DIN 4109:1989 and VDI 4100 Standard

The standards specify requirements for sound insulation to protect inhabitants in buildings from extremely loud noise levels that can come with the transmission of sound. The method on how to check if the degree of sound insulation needed has been complied with is also specified.

Drywall

Drywall

Drywall, or wallboard, also called plasterboard or gypsum board, is a common building material used in interiors for constructing walls and ceilings. Drywall is gypsum plaster in the middle with layers of paper or fiberglass mats on either side. Drywalls do not need mortar or plaster. The gypsum core is rigid, and the other surface is smooth.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Nicole Asked :

Which flush plates are compatible with this frame?

Answered By QS Team Answered by the QS Technical Team

Please refer to the options given in the "Customise Your Product" section in the product for suitable flush plates.
