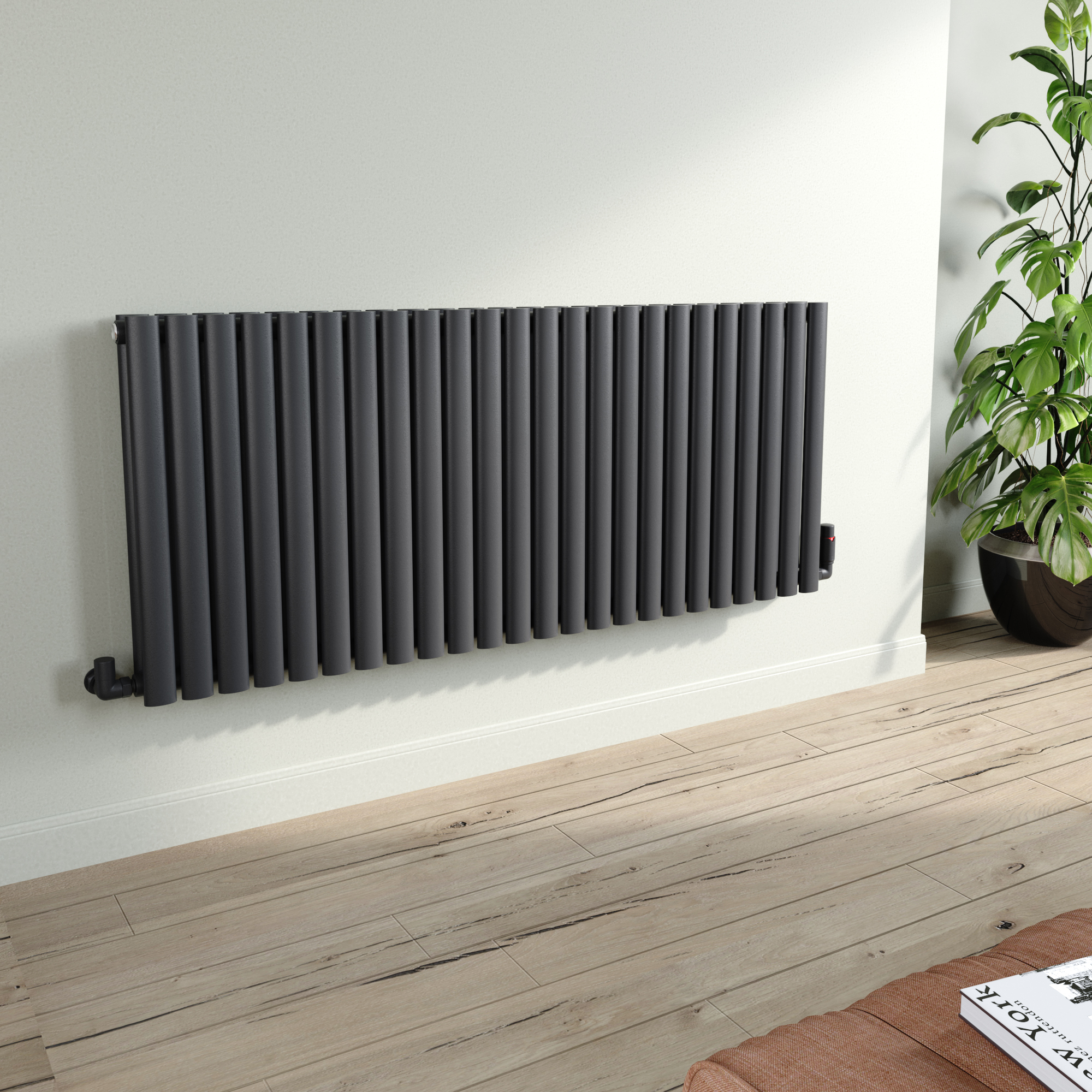

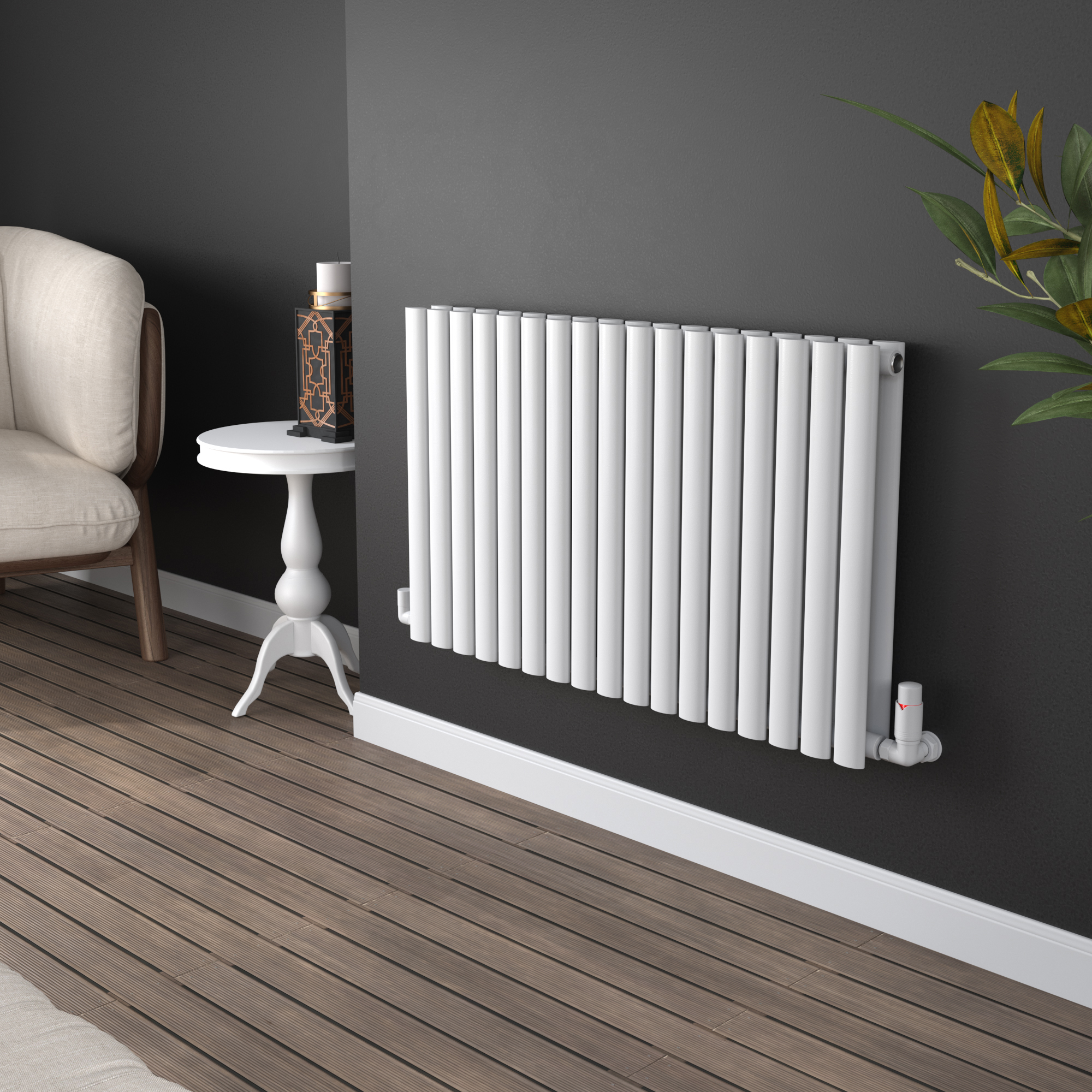

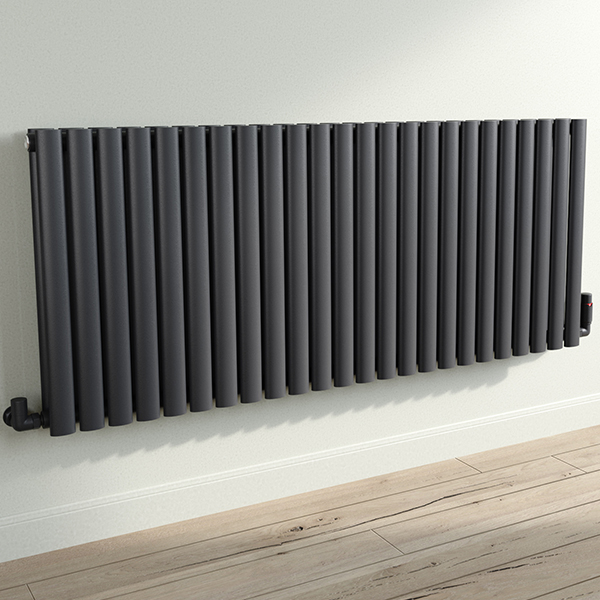

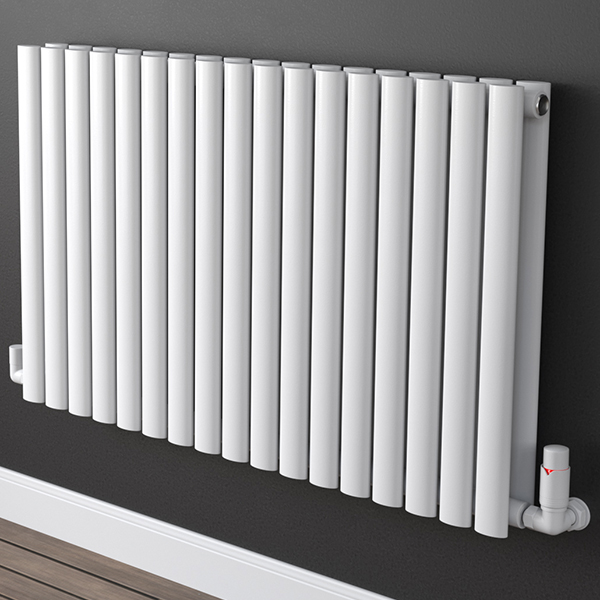

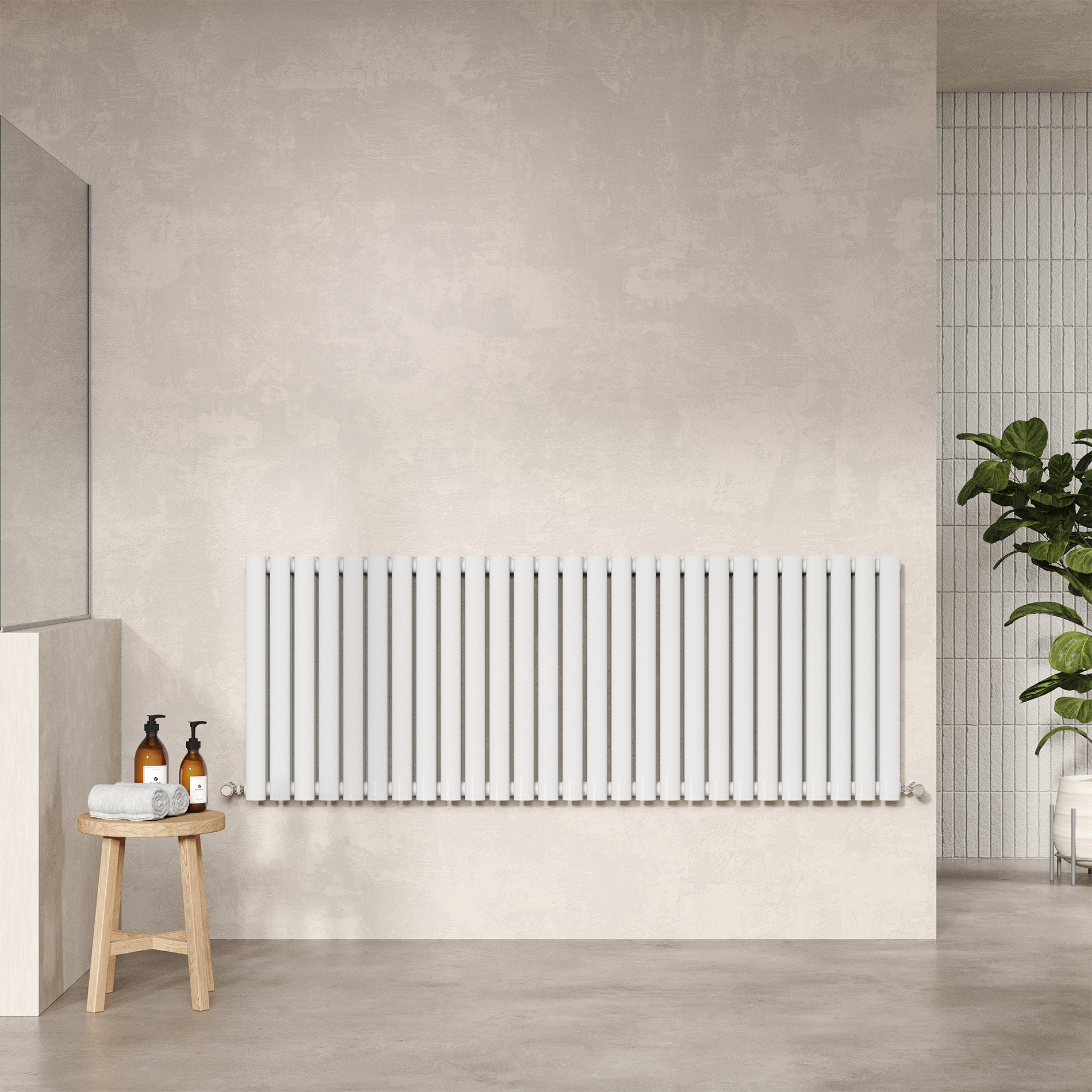

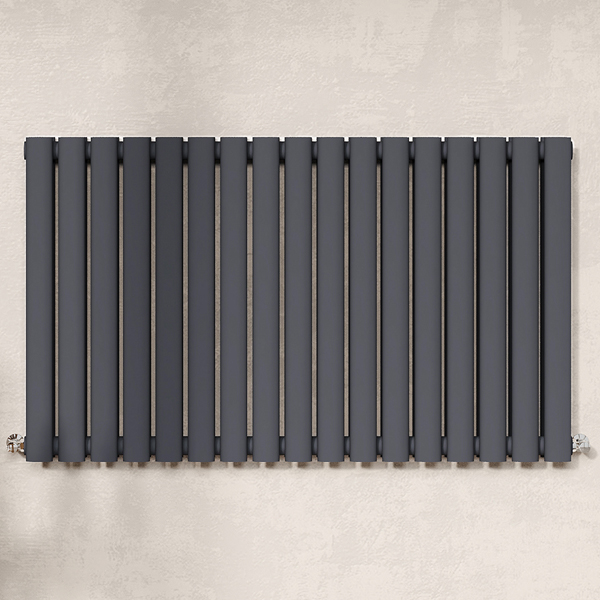

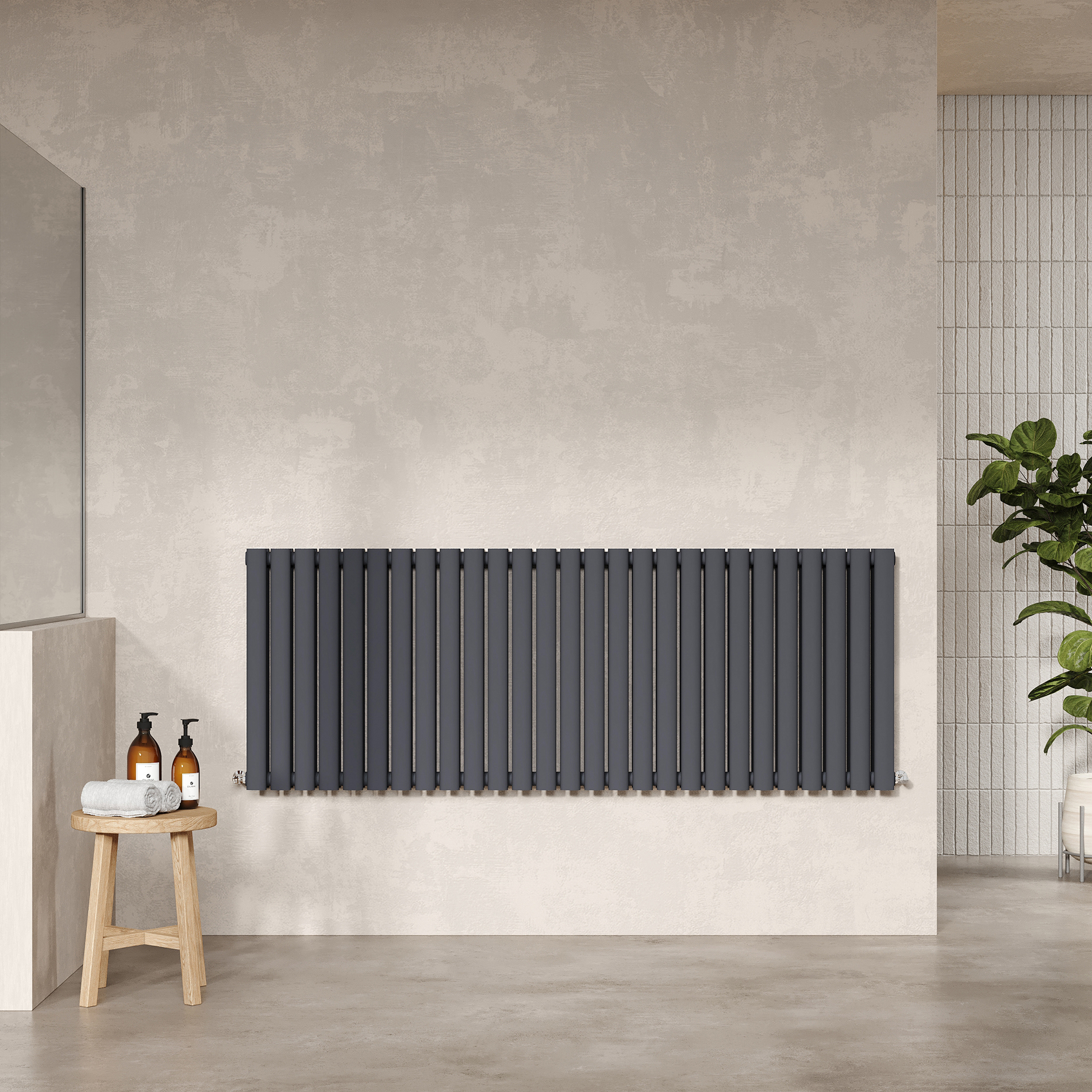

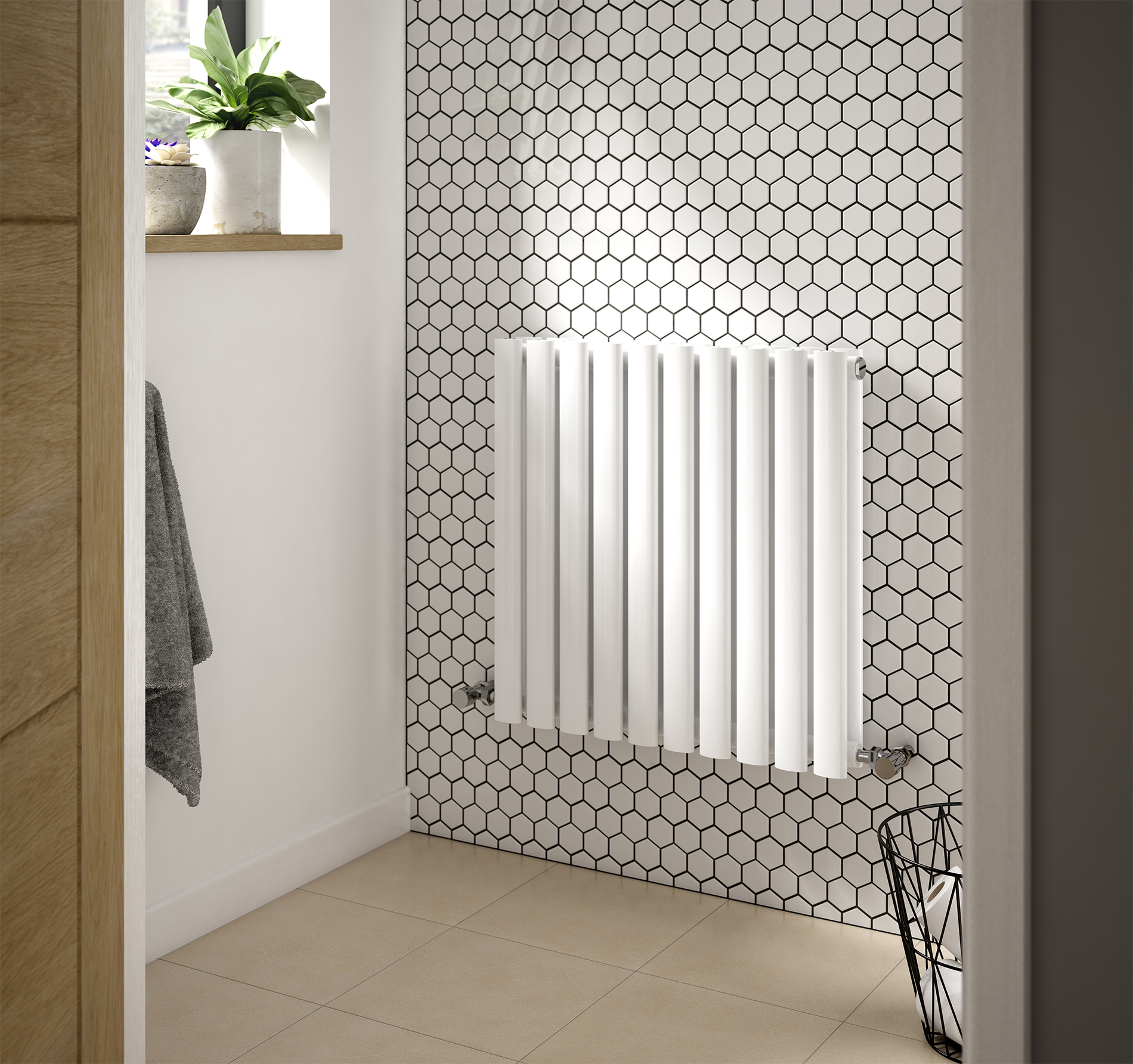

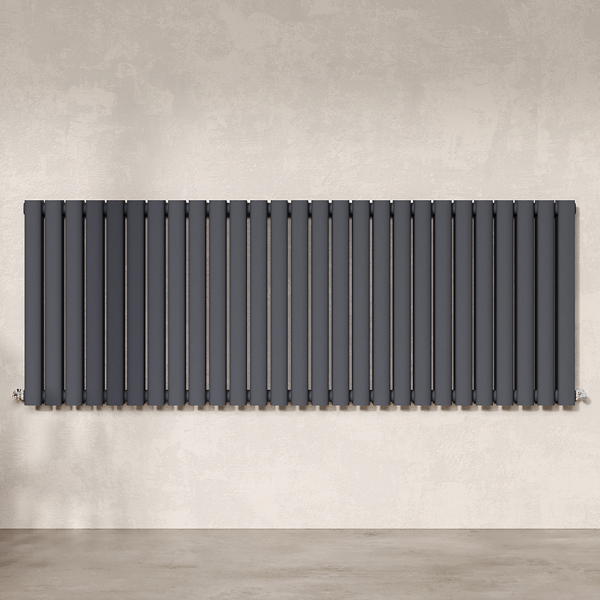

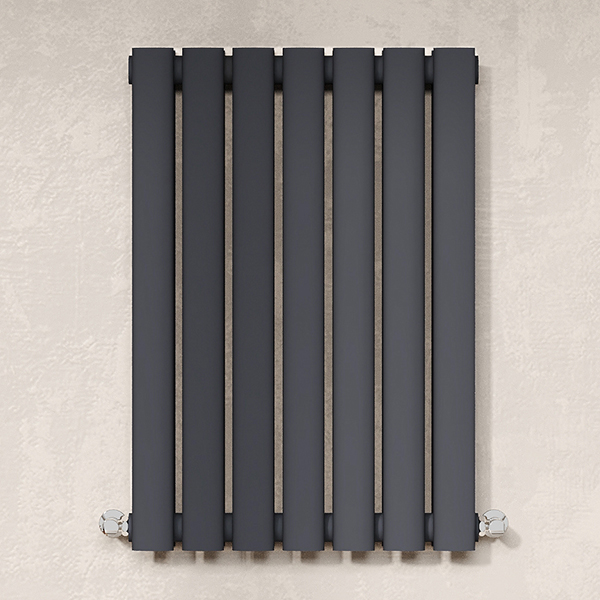

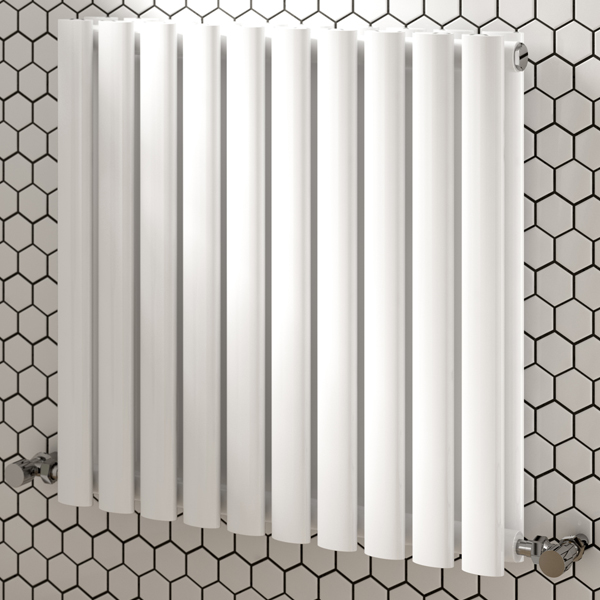

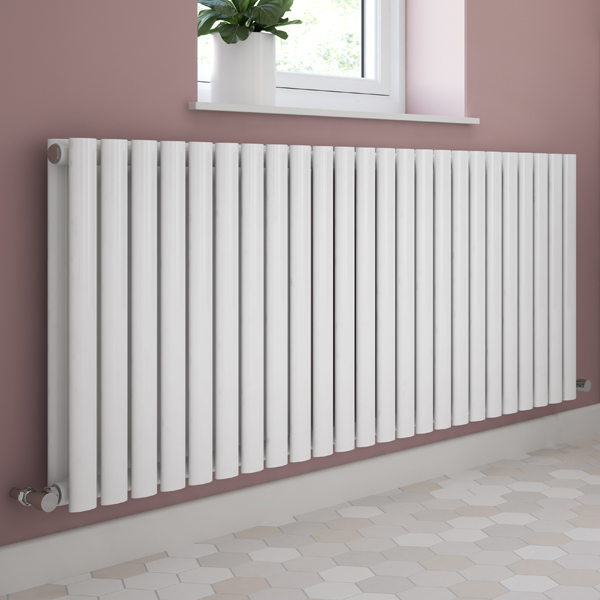

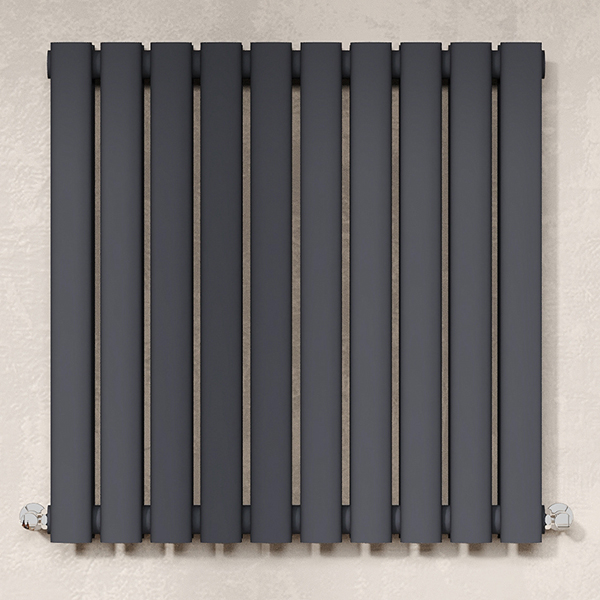

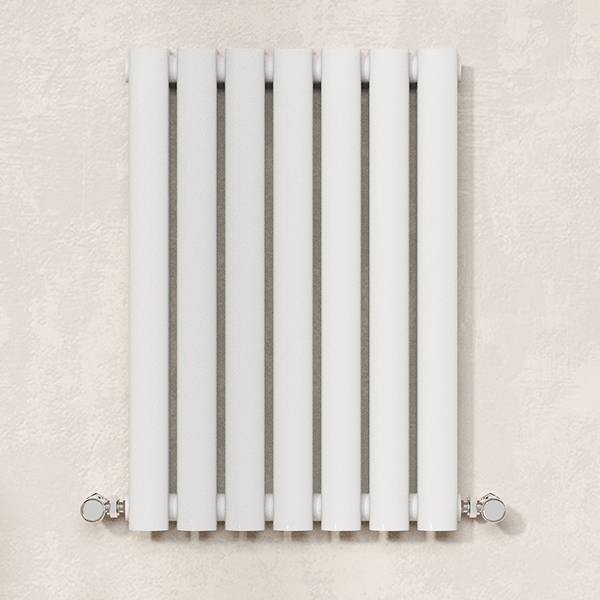

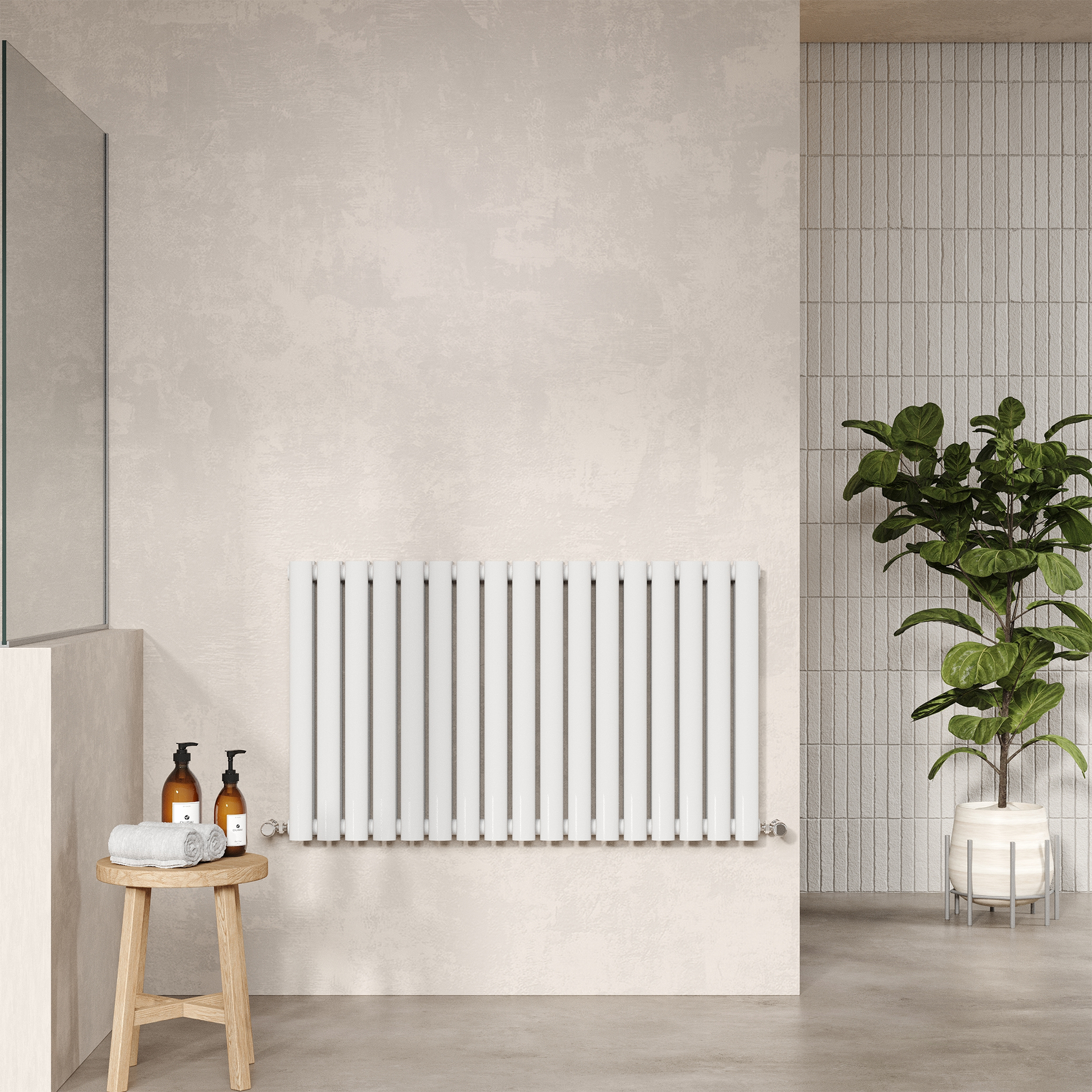

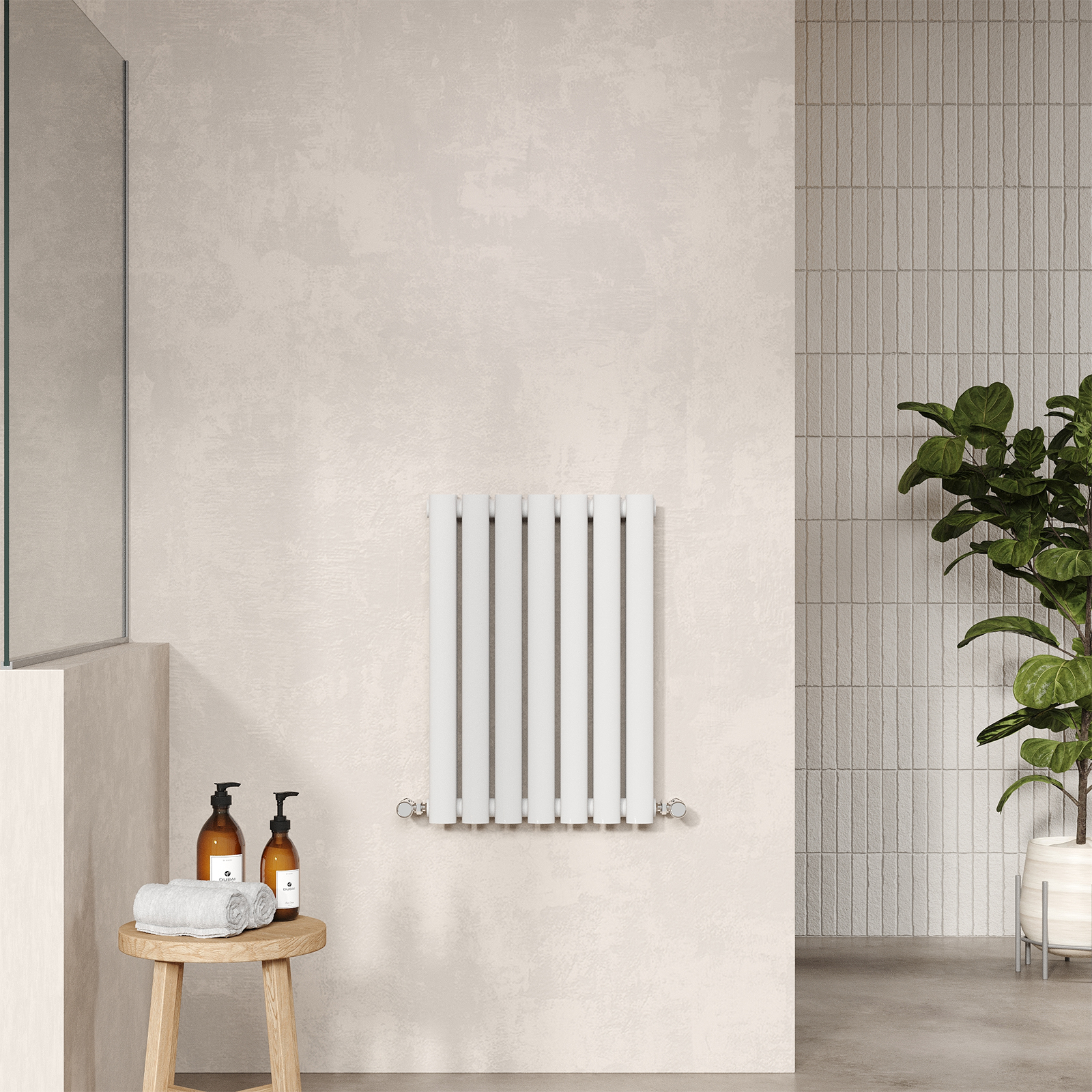

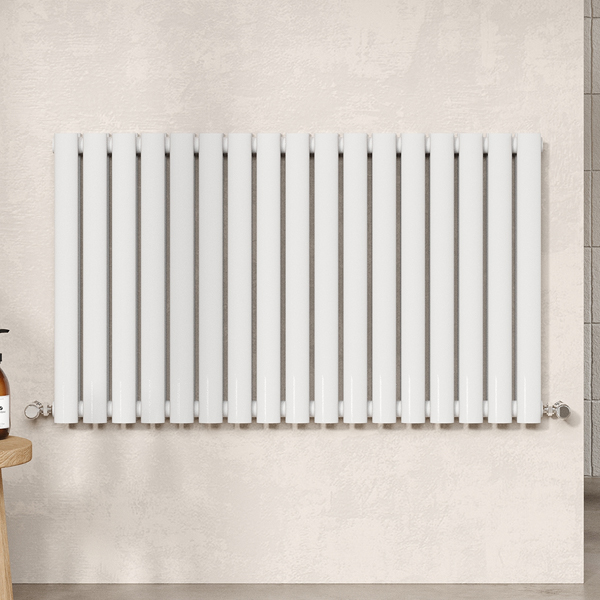

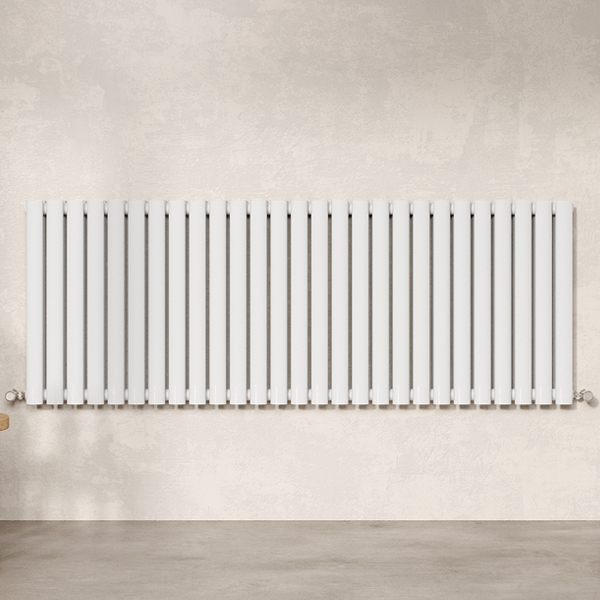

Hudson Reed Revive 600mm High Horizontal Double Panel Radiator

£86.38

STOCK AVAILABILITY

3-4 Working Days Approx

Not Yet Rated No Rating

Shipping: £20.00

Product Variants
Select Width Step 1
Select Finish Step 2
SKU Code: QS-V93932

MFC Code: HL337D

Hudson Reed Revive HL337D Details

Hudson Reed introduces the best in class Revive 600mm High Horizontal Double Panel Radiator to keep you warm during the chilly weather. The well-designed horizontal steel radiator comes in a choice of attractive finishes to give it a clean look. It can be comfortably placed on any load-bearing wall, which gives a decorative look to your house. It has a Depth 78mm and Height of 600mm and comes included with fixing screws and brackets for your convenience. Suitable for wall mounted installation, it is backed by five years guarantee from Hudson Reed against manufacturing defects.

Key Features
  • Material: Steel
  • Supplied with fixing screws and brackets
  • All tappings are 1/2" British standard pipe
  • Finishes: High Gloss White - RAL No. 9016 and Anthracite - RAL No. 7016
  • Five years guarantee from Hudson Reed against manufacturing defects
  • Available in different finishes: White and Anthracite - [Optional].
  • Available in different widths: 412mm, 586mm, 992mm, 1398mm and 1572mm - [Optional].
  • Size [mm]: 78mm x 600mm [Depth x Height].
  • Size [cm]: 7.8cm x 60cm [Depth x Height].
  • Suitable for wall-mounted installation.
  • Wall to the centre of tappings: 51.
  • Type of heat: water.
  • No. of heat setting: 1.
  • Projection from wall: 110mm (11cm).
  • After installing any new radiators, when refilling the system, it is recommended a suitable inhibitor is used.
  • Valves shown in the image are not included - sold separately.
  • Suitable valve available in Compatible Valves tab below [Optional].
  • Robe hook for rail [Optional].
  • For more details, refer Production Variation Info & MFC Code tab shown below.
  • Refer technical drawing for more details.
  • Download Customer Datasheet And Installation Instruction PDF File from the Additional Info Section.

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.


Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Revive
  • ⤷ Colour
  • : High Gloss White
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Steel
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Width
  • : 412
  • ⤷ Projection (Depth)
  • : 78
  • ⤷ Height
  • : 600
  • ⤷ Orientation
  • : Horizontal
  • ⤷ Barcode
  • : 5056211885177
  • ⤷ BTU Output
  • : 30°C - 800 | 50°C - 1546 | 60°C - 1958
  • ⤷ Watts
  • : 30°C - 235| 50°C - 453 | 60°C - 574
  • ⤷ Valves Included
  • : Sold Separately
  • ⤷ Fuel Type
  • : Central Heating
  • ⤷ Panel Configuration
  • : Double

Additional Info & Downloads

Download PDF Download the Customer Datasheet Pdf File Download PDF Download the Installation Instructions Pdf File


Technical Images


Customise Your Product

Radiator Accessories
Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

Total: £86.38 3-4 Working Days Approx QS Supplies

Product Variations Info & MFC Code
Details For 600mm High Horizontal Double Panel Radiator
Radiator Sizes 412mm Wide 586mm Wide 992mm Wide 1398mm Wide 1572mm Wide
High Gloss White Finish - RAL Number: 9016 HL337D HL338D HL339D HL340D HL342D

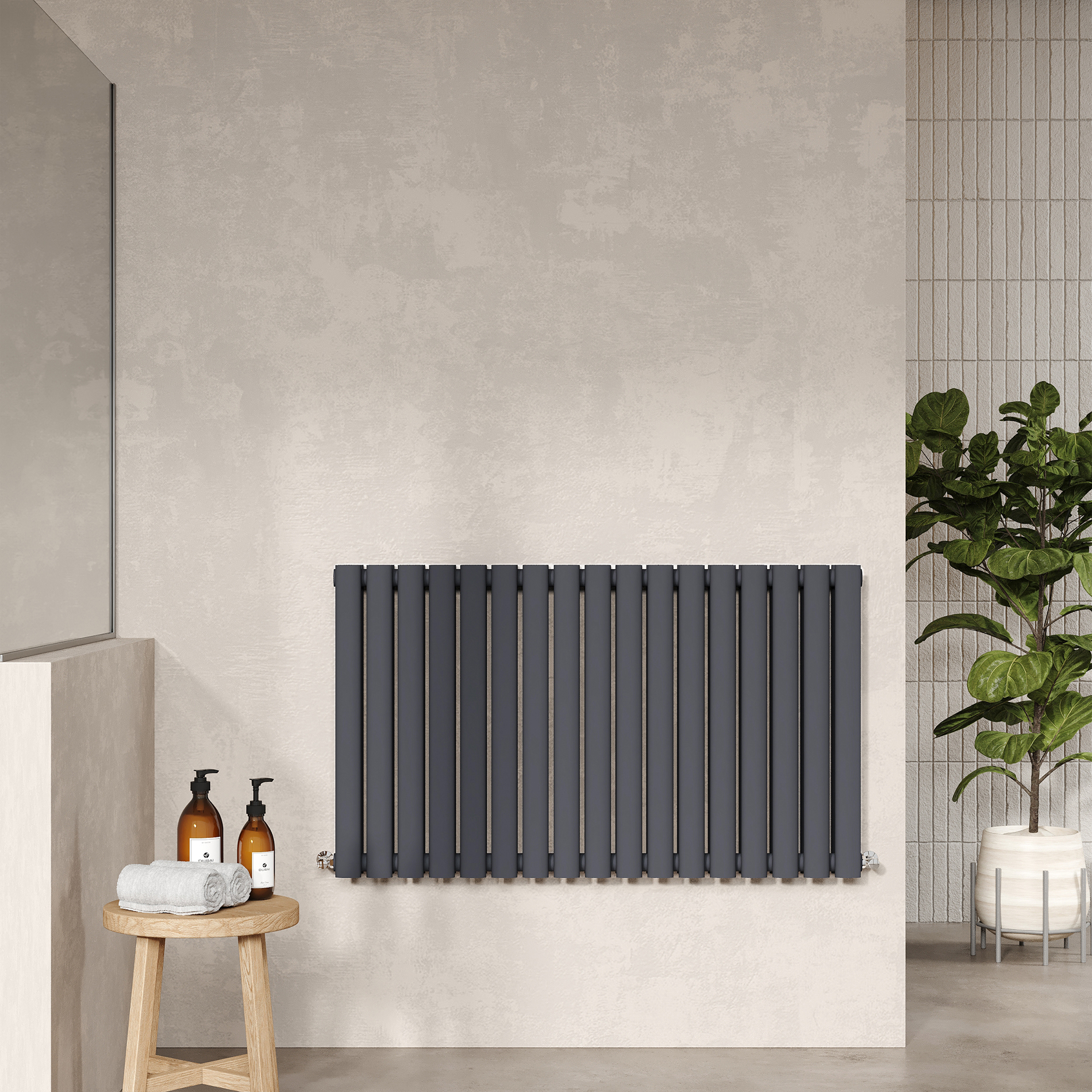

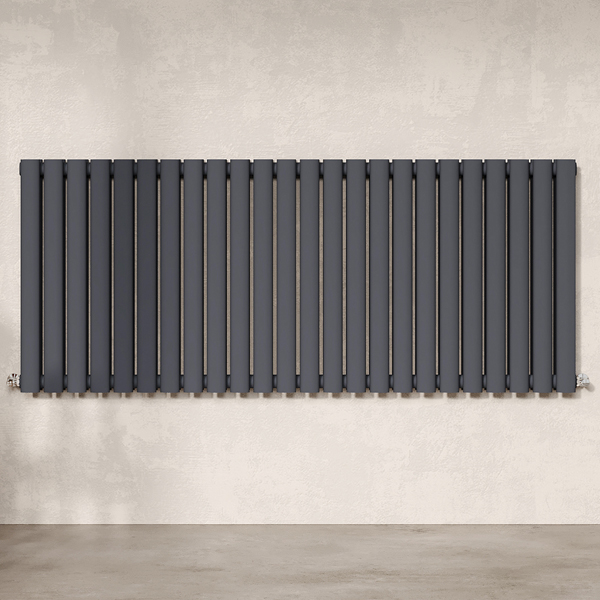

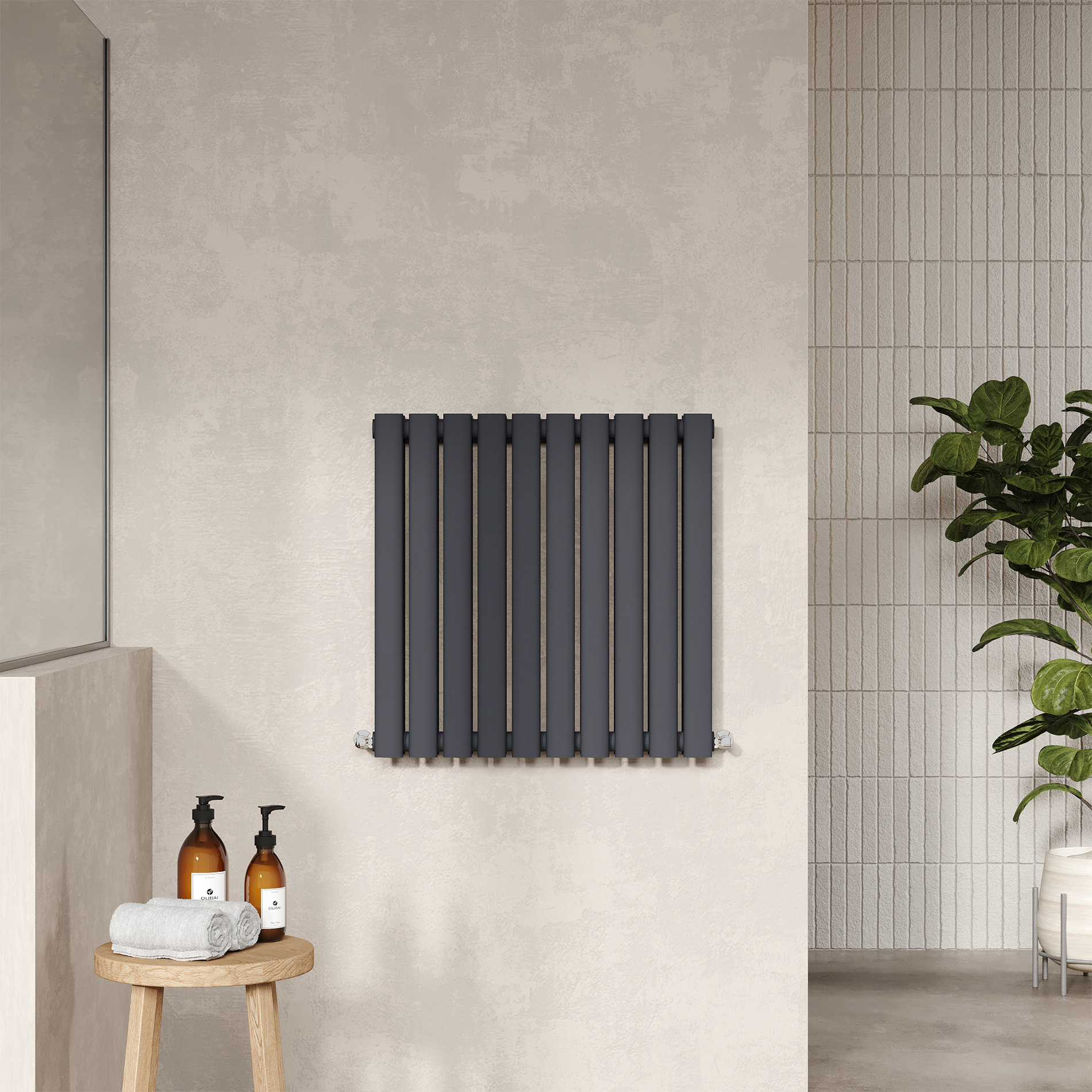

Anthracite Finish - RAL Number: 7016 HLA37D HLA38D HLA39D HLA40D HLA42D
Number Of Sections / Panels 14 20 34 48 54
BTU @ 30 Deg. C 800 1144 1944 2744 3088
Thermal Output @ 30 Deg. C - Watts 235 335 570 804 905
BTU @ 50 Deg. C 1546 2209 3755 5300 5963
Thermal Output @ 50 Deg. C - Watts 453 647 1100 1554 1748
BTU @ 60 Deg. C 1958 2798 4756 6714 7553
Thermal Output @ 60 Deg. C - Watts 574 820 1394 1968 2214

2 Features Included In This Product Explained

RAL Colours

RAL Colours

It refers to a European colour-matching system which defines colours for coatings, paints, and plastics. The colour standard is administrated by the RAL Deutsches Institut für Gütesicherung und Kennzeichnung.
Read more...

Double Panel Radiators

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.
