Hudson Reed Coast Wall Hung Open Shelf Unit And Basin

£232.94

STOCK AVAILABILITY

3-4 Working Days Approx

4.3 out of 5 4.3 out of 5

Based on 12 Ratings.

Shipping: £34.95

Product Variants
Select Width Step 1
Select Finish Step 2
Select Basins Step 3
Worktop Finish Step 4
SKU Code: QS-V98032

MFC Code: CST986LBG

Hudson Reed Urban CST986LBG Details

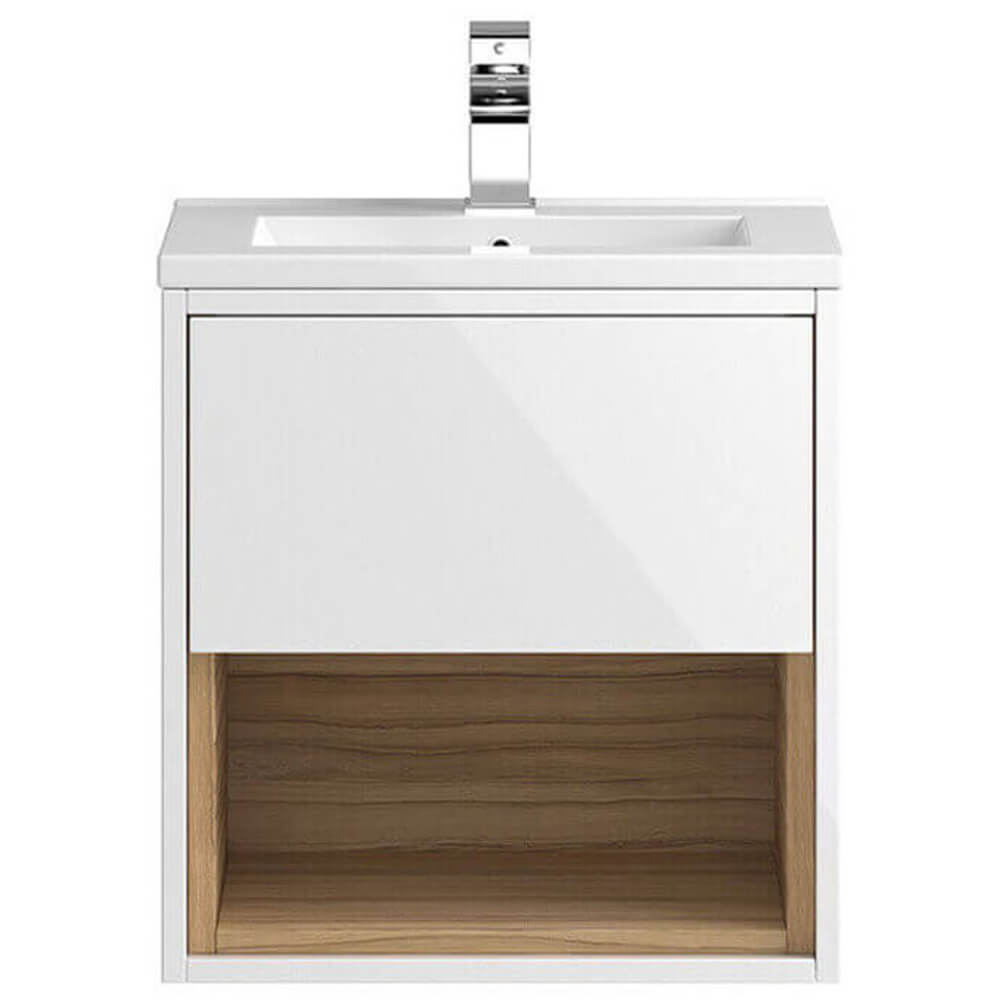

Transform your bathroom in terms of style and functionality with the Hudson Reed Coast Wall Hung Open Shelf Unit with Basin. The unit features a soft-closing minimalistic drawer that rests just above the open shelving area for additional storage of items you want easy access to. On top of the cabinet storage is a white basin that measures a total size of 395 mm in depth by 170 mm in height and is manufactured out of high-quality vitreous china. The MFC gloss cabinet measures 400mm in depth by 500 mm in height.

Key Features
  • The product consists of Unit and Basin
  • Handle-less Design - push open drawers
  • Supplied rigid
  • Fixing included
  • Available in 3 Different Width [Optional].
  • Choice of finishes available [Optional].
  • Choose from Mid-edge, Minimalist or Thin-Edge basin [Optional].
  • The tap shown in the image is not included.
  • The images shown are for illustration purposes only.
  • Refer to technical drawing for complete size details.
  • Download Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.
  • Five years guarantee from Hudson Reed against manufacturing defects.
  • Details of Unit:.
  • 1 Soft close drawer.
  • 1 Open shelf unit.
  • Size: Depth 400mm x Height 500mm.
  • Colour co-ordinating cabinet.
  • Open shelf offers a stylish storage solution.
  • Suitable for wall-hung installation.
  • Material: MFC gloss.
  • Construction method: glue and dowelled.
  • Cabinet and fascia thickness: 18mm.
  • Drawer type: blum tip-on (Push To Open).
  • Completes with waste shroud.
  • Details of Minimalist Basin:.
  • 18mm profile basin.
  • Size: Depth 395mm x Height 170mm.
  • The inner bowl depth of 500mm and 600mm basin is 220mm.
  • The inner bowl depth of the 800mm basin is 210mm.
  • Material: Vitreous china.
  • 1 Central taphole.
  • Overflow and cover included.
  • Details of Mid-Edge Basin:.
  • 40mm profile basin.
  • Size: Depth 395mm x Height 170mm.
  • The inner bowl depth of the basin is 220mm.
  • Material: Vitreous china.
  • 1 Central taphole.
  • Overflow and cover included.
  • Details of Thin-Edge Basin:.
  • 50mm profile basin.
  • Size: Depth 395mm x Height 170mm.
  • The inner bowl depth of the basin is 125mm.
  • Material: Vitreous china.
  • 1 Central taphole.
  • Overflow and cover included.

Please Note: The colours on our website do not always show the true colour due to lighting in the studio when photos are taken for our website.


Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : Gloss White And Natural Oak
  • ⤷ Country of Origin
  • : Germany
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Width
  • : 500
  • ⤷ Depth
  • : 400
  • ⤷ Height
  • : 500
  • ⤷ Fixings included
  • : Yes
  • ⤷ Barcode
  • : 5056462612058
  • ⤷ Product Type
  • : Vanity Unit
  • ⤷ Furniture Material
  • : MFC
  • ⤷ Pre-assembled
  • : No
  • ⤷ Sink Included
  • : Sold Separately
  • ⤷ Number Of Drawers
  • : 1
  • ⤷ Soft-Close Drawer
  • : Yes
  • ⤷ Number Of Sinks
  • : 1

Additional Info & Downloads

Download PDF Download the Customer Data Sheet For 600mm Unit And Basin With Worktop Pdf File Download PDF Download the Customer Data Sheet For 500mm Unit And Basin Pdf File Download PDF Download the Customer Data Sheet For 800mm Unit And Basin With Worktop Pdf File Download PDF Download the Installatio Instruction Pdf File

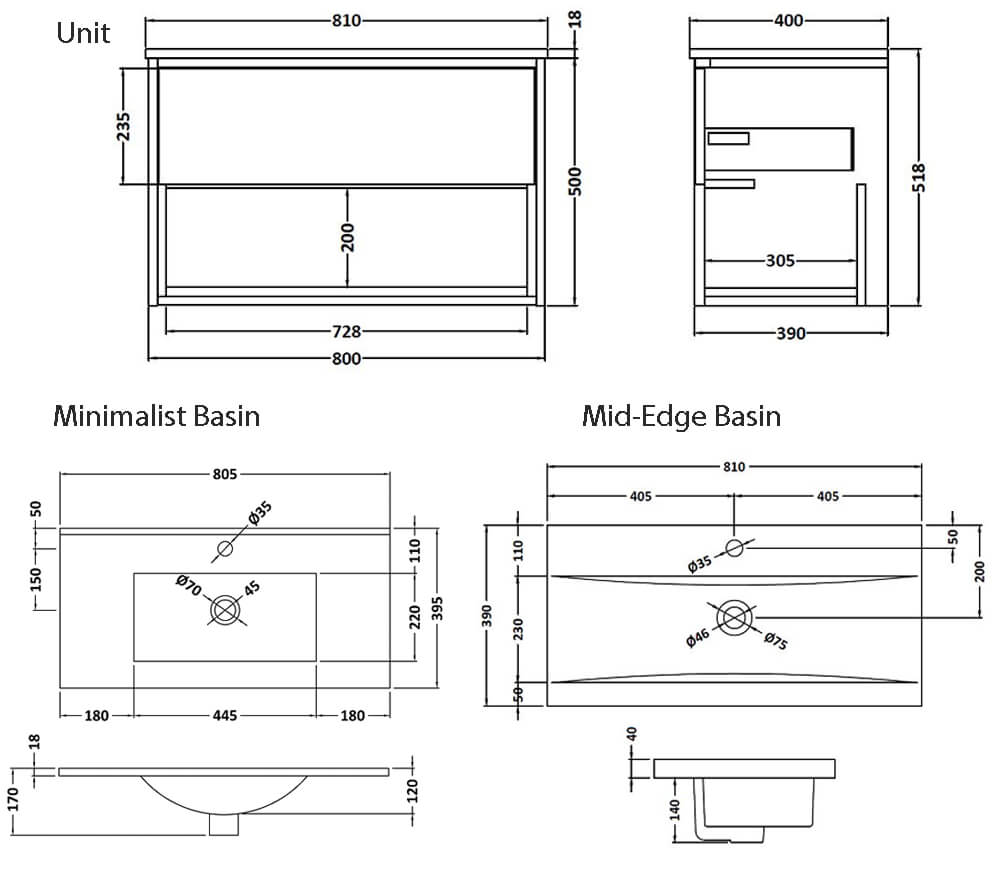

Technical Images


Total: £232.94 3-4 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Soft-Close Opening

Soft-Close Opening

This product has a mechanism for doors and drawers to open or close slowly, silently and without loud slamming.

Rigid Furniture - Pre-Assembled

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

With / Without Overflow

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.

Vitreous-China Material

Vitreous-China Material

It is a compound of glass and silica-based materials applied as a coat on porcelain products such as WC pans, urinals, baths and basins to protect them from scratches and stains as an anti-vandal measure.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Deborah Asked :

Do I need to get a bottle waste and bottle trap with this basin vanity?

Answered By QS Team Answered by the QS Technical Team

Yes, these parts are sold separately, The waste would come with the tap, and a bottle trap would be required.

Was this answer helpful?
Suzanne Asked :

How is this unit fitted? Does it require a concealed frame?

Answered By QS Team Answered by the QS Technical Team

It comes with hanging brackets to fit on the wall.
