Geberit Sigma30 Touchless Urinal Flush Plate 130 x 130mm, Battery Operated

Geberit Sigma30 Details

MFC: 116.036.GH.1

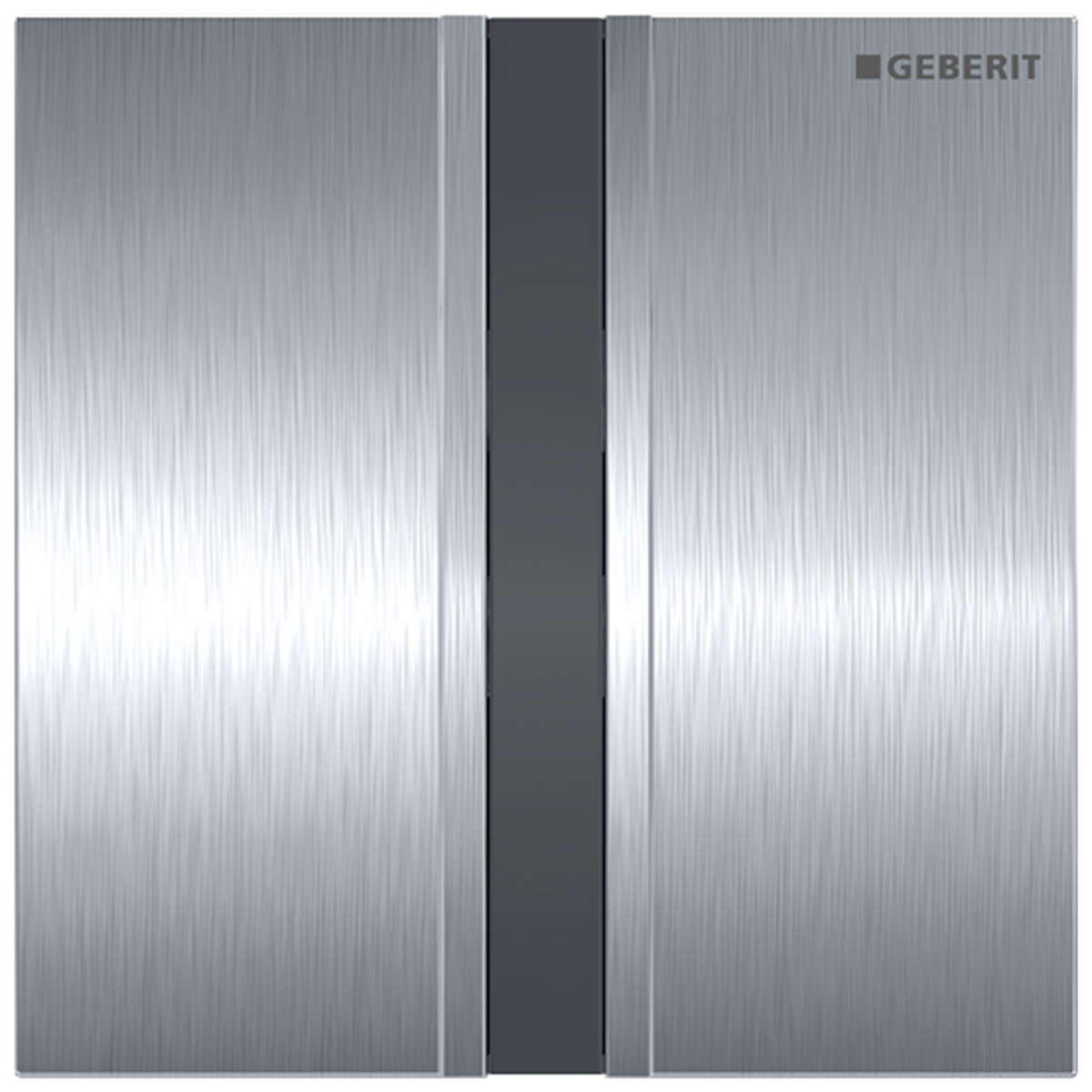

Bring a touch of modern technology into your bathroom with this Sigma Type 30 HyTronic Infra-Red Urinal Flushing Control. Battery operated, this premium quality fixture is finished in brushed chrome and is most suited to contemporary decor.

Key Features

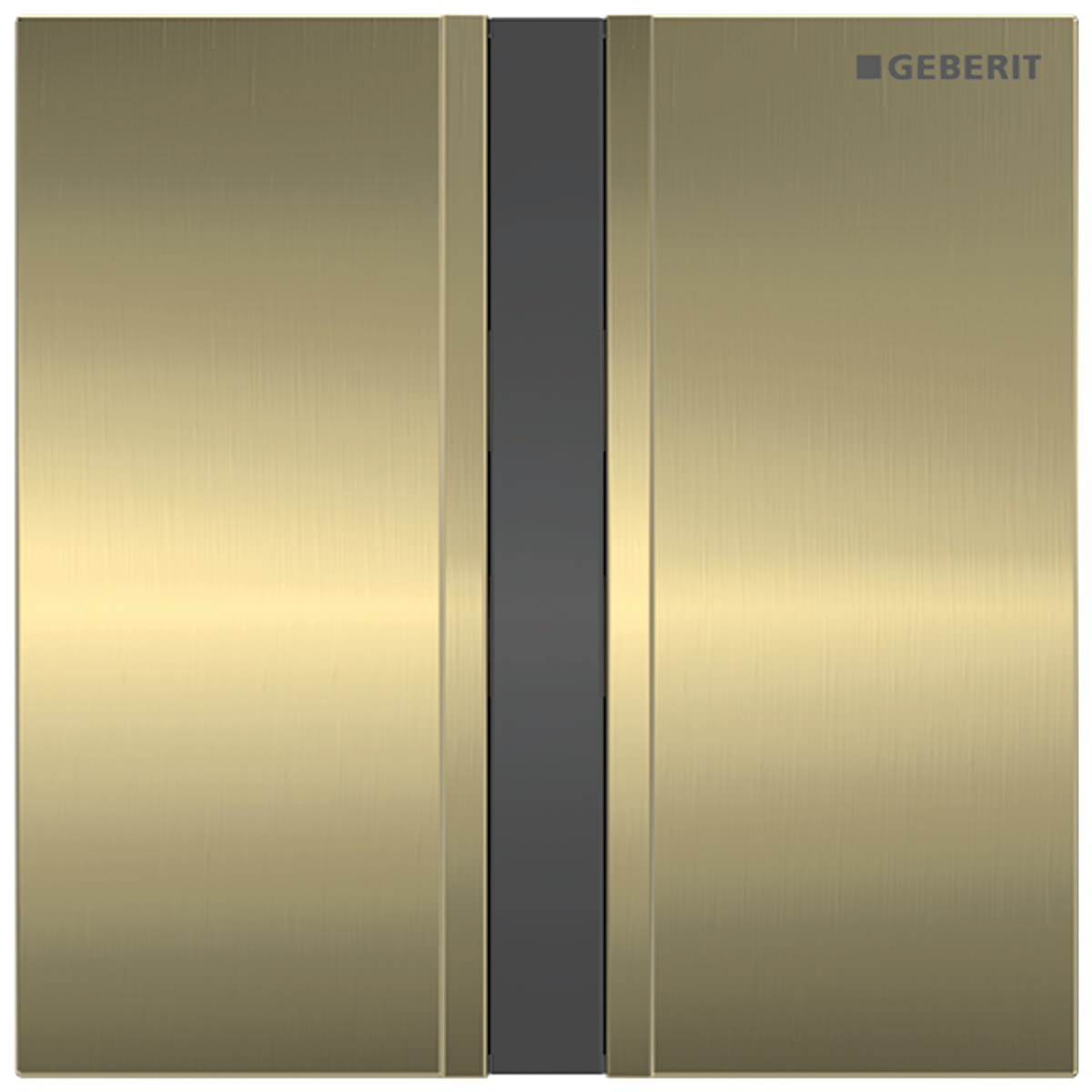

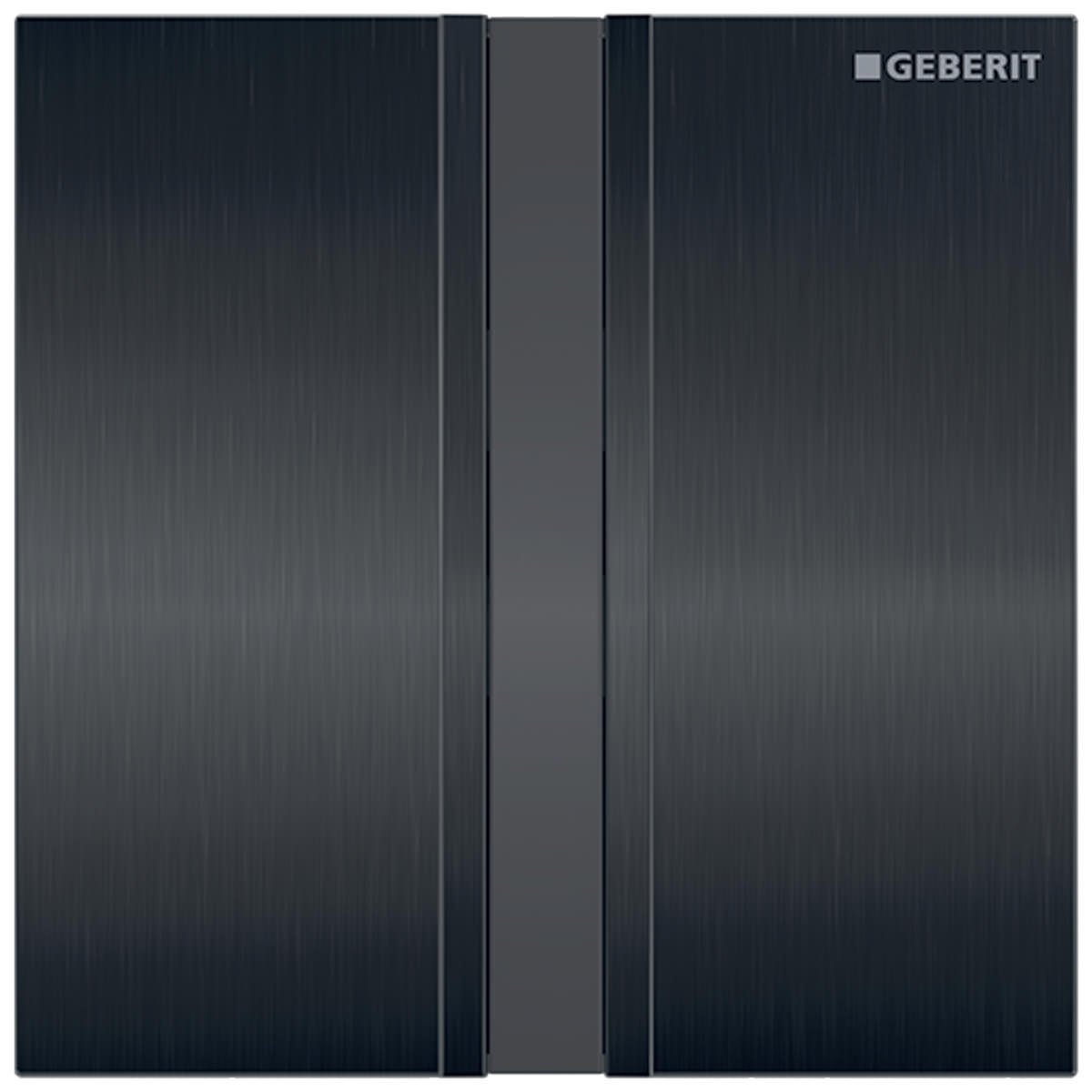

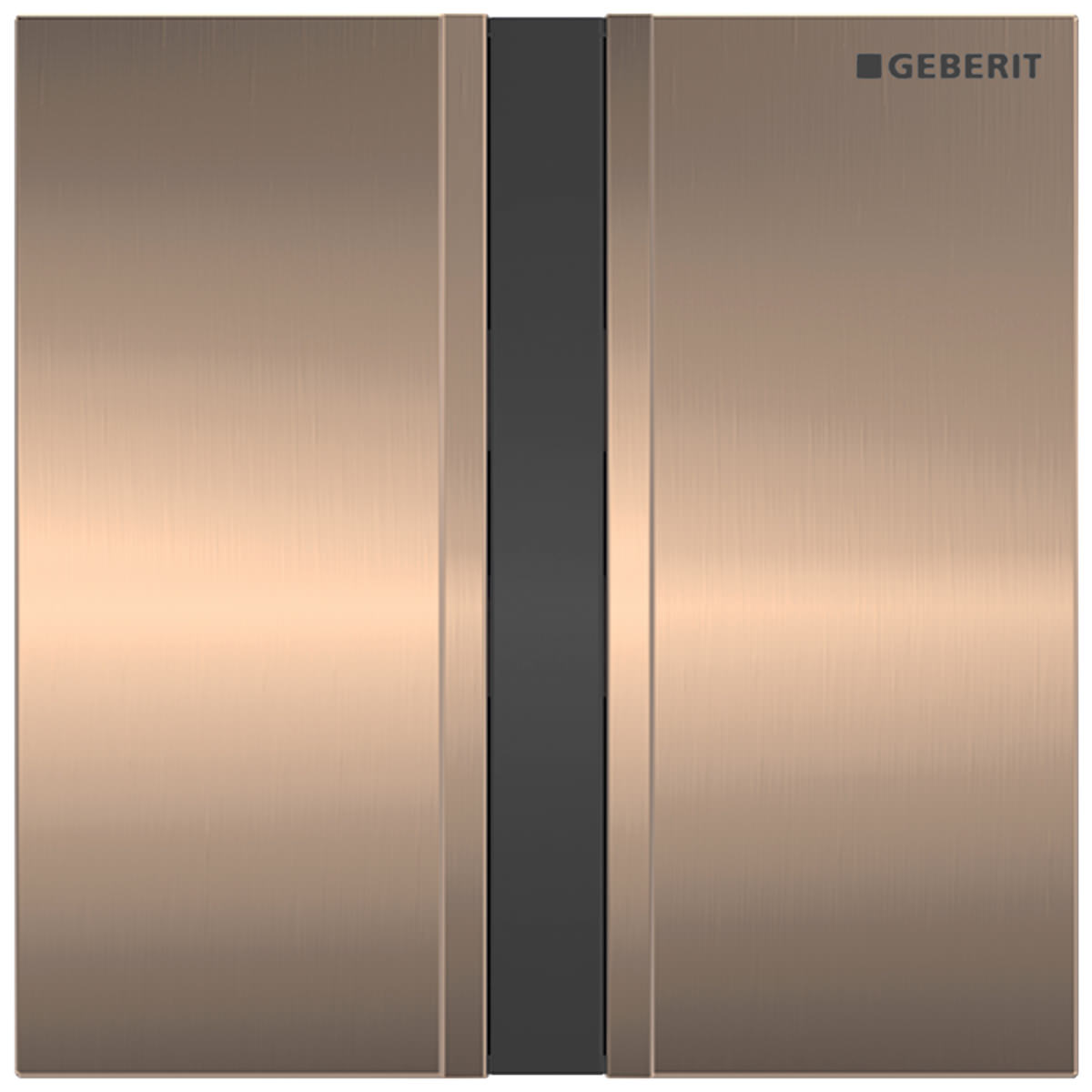

✔Choice of Finishes: Brushed Chrome, Brushed Black Chrome, Brushed Brass and Brushed Red Gold
✔Comes with Easy-to-Clean Coating
✔Concealed Urinal Flush Controls with Electronic Flush Actuation
✔2-Year Guarantee from Geberit against Manufacturing Defects

Can be used for Automatic Flush Actuation of Urinals
Suitable with Geberit Frames for Urinal with Front Actuation
Compatible for Installation in Installation Sets for Geberit Urinal Flush Controls
Material: Die-Cast Zinc
Cover Plate with Securing Bar
Reliable Infrared Distance Detection
Self-Adjusting Infrared Sensor
Infrared User Detection with Background Fade-Out
Water-Saving Hybrid Mode can be set
Flush Time can be set
Adjustable Interval Flush
Dynamic Flushing Time Adjustment
Preflush can be set
Can be switched to Operation with a Covered Urinal
One-Time Flush after Activation of the Power Supply
Functions can be set and Queried with the Geberit Service Handy
Device Settings and Operation with a Mobile Device via the Integrated Bluetooth Interface
Compatible with Geberit Control App
Wired Networkable with Geberit gateway via GEBUS Converter
Wirelessly Connectable with Geberit Gateway via Bluetooth
Compatible with Geberit Connect
Warning when the Battery is Low
Valve-Closing Function when the Battery is Flat
Flush Actuation can be Deactivated
Flush Volume can be Reduced to 0.5 l Per Flush with Regulating Screw of Installation Set
Power Consumption: ≤ 0.5 W
Battery Type: 1.5V AA Alkaline
Supplied Battery Service Life: 2 Years
Protection Degree: IP-45 Rated
Operating Voltage: 3V DC
Flow Pressure: 1-8 Bar
Maximum Test Pressure of Water: 16 Bar
Maximum Test Pressure of Air / Inert Gas: 3 Bar
Maximum Operating Water Temperature: 30° Celsius
Flow Rate at 1 Bar without Flow Limiter: 0.3 l/s
Flow Rate at 1 Bar with Flow Limiter: 0.18 l/s
Minimum Flow Pressure: 1 Bar
Relative Humidity: ≤ 100 %
Calculated Flow Rate: 0.23 l/s
Interval Flush Adjustment Range: 1-168 H
Interval Flush Factory Setting: 24 H
Interval Flush Time Adjustment Range: 3-180s
Interval Flush Time Factory Setting: 5s
Detection Time Adjustment Range: 3-15s
Detection Time Factory Setting: 7s
Flush Time Adjustment Range: 1-15s
Flush Time Factory Setting: 7s
Refer to the Technical Drawing for More Details

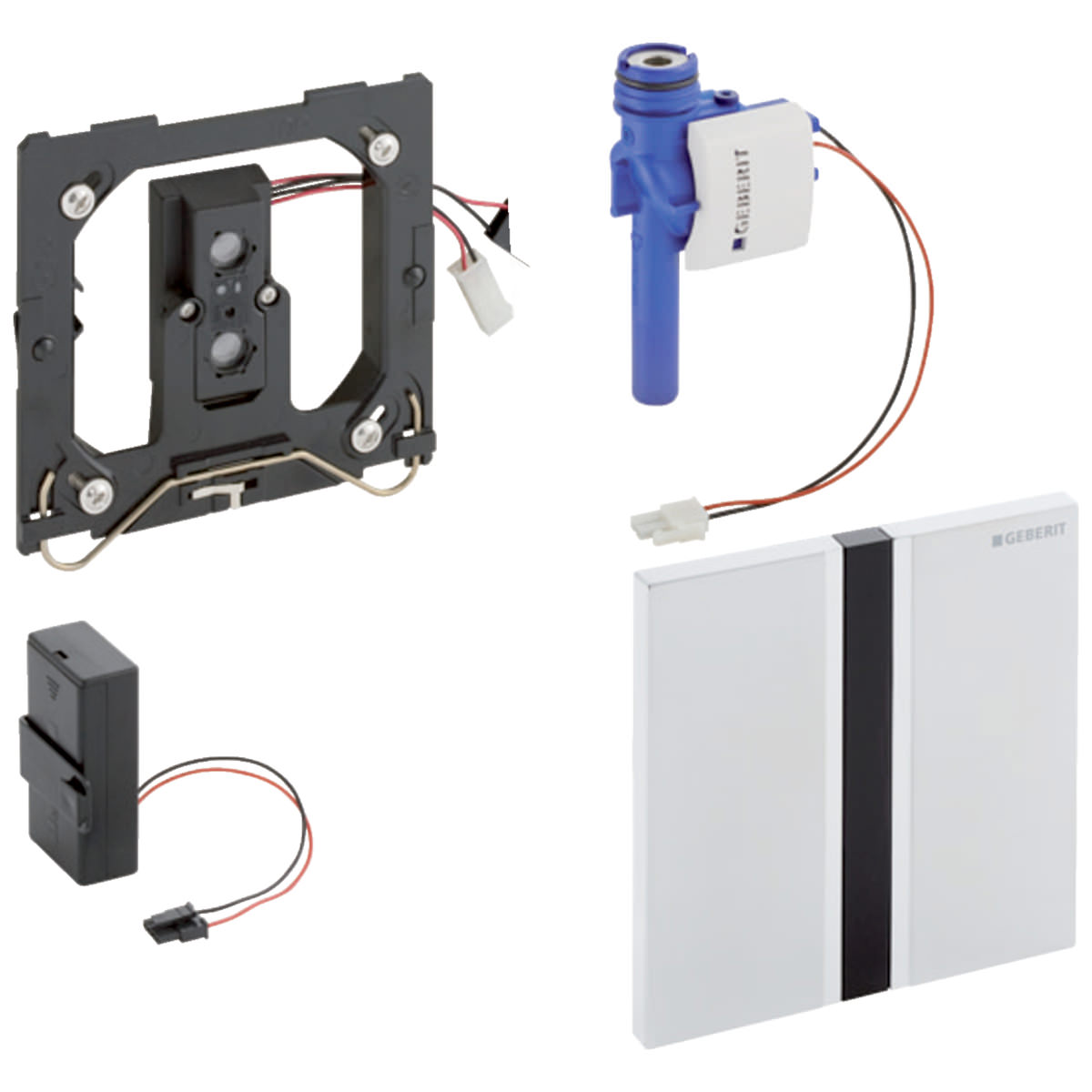

Scope of Delivery:
Sigma Type 50 Cover Plate with Infra-Red Window
Infrared Control, Premounted on Mounting Frame
Solenoid Valve
Battery Compartment
2x Type AA 1.5V Alkaline Manganese Batteries
Fastening Material
