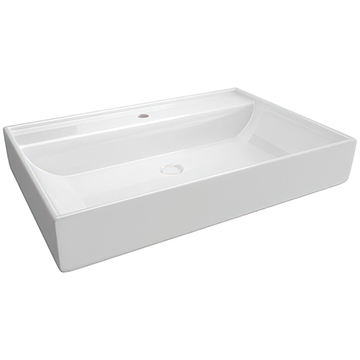

Grohe Bau 646 x 468mm Alpine White Ceramic Wash Basin

Grohe Bau 39420000 Details

The Grohe Bau Ceramic Wash Basin is a simple yet spacious design for any bathroom washbasin anywhere. A smooth and sleek style sure to stand out and provide ample space for any use; this unit is suitable for wall installation, which is especially great for saving floor space in the room. Manufactured using a vitreous china material and available in a classic alpine white finish, this product comes supplied with one tap hole as well as an overflow for the full functionality you expect from a unit like this.

Manufacturing code of this product: 39420000.
It comes in a white alpine finish.
Suitable for wall-hung installation.
Size In [mm]: 646mm x 468mm [Width x Depth].

Size In [cm]: 64.6cm x 46.8cm [Width x Depth].
Refer to the technical diagram for complete technical dimensions.
Download the Installation Instruction PDF File From The Additional Info Section.

Info / Size (mm)

Basin
Width: 646 mm
Depth: 468 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Bau
⤷ Colour
: Alpine White
⤷ Shape
: D-Shape
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Projection (Depth)
: 468
⤷ Width
: 646
⤷ Height
: 153
⤷ Distance rear edge to centre of waste hole
: 202
⤷ Fixing Holes Centre
: 280
⤷ Distance top edge to centre of fixing hole
: 57

⤷ Distance rear edge to centre of tap hole
: 65
⤷ Number of bowls
: 1
⤷ No. of Tap Holes
: 1
⤷ Tap Hole Position
: Centre
⤷ Overflow Included
: Yes
⤷ Tap Hole Size
: 35
⤷ Barcode
: 5057199865434
⤷ Distance from floor to centre of fixing hole
: 800
⤷ Distance finished floor level to top edge
: 857
⤷ Distance finished floor level to bottom edge
: 679
⤷ Floor to centre of drain hole wall connection
: 500
⤷ Distance hot/cold water inlet
: 150
⤷ Product Type
: Wall Hung Basin

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £79.07 2 Working Days Approx QS Supplies

1 Features Included In This Product Explained

Vitreous-China Material

It is a compound of glass and silica-based materials applied as a coat on porcelain products such as WC pans, urinals, baths and basins to protect them from scratches and stains as an anti-vandal measure.
