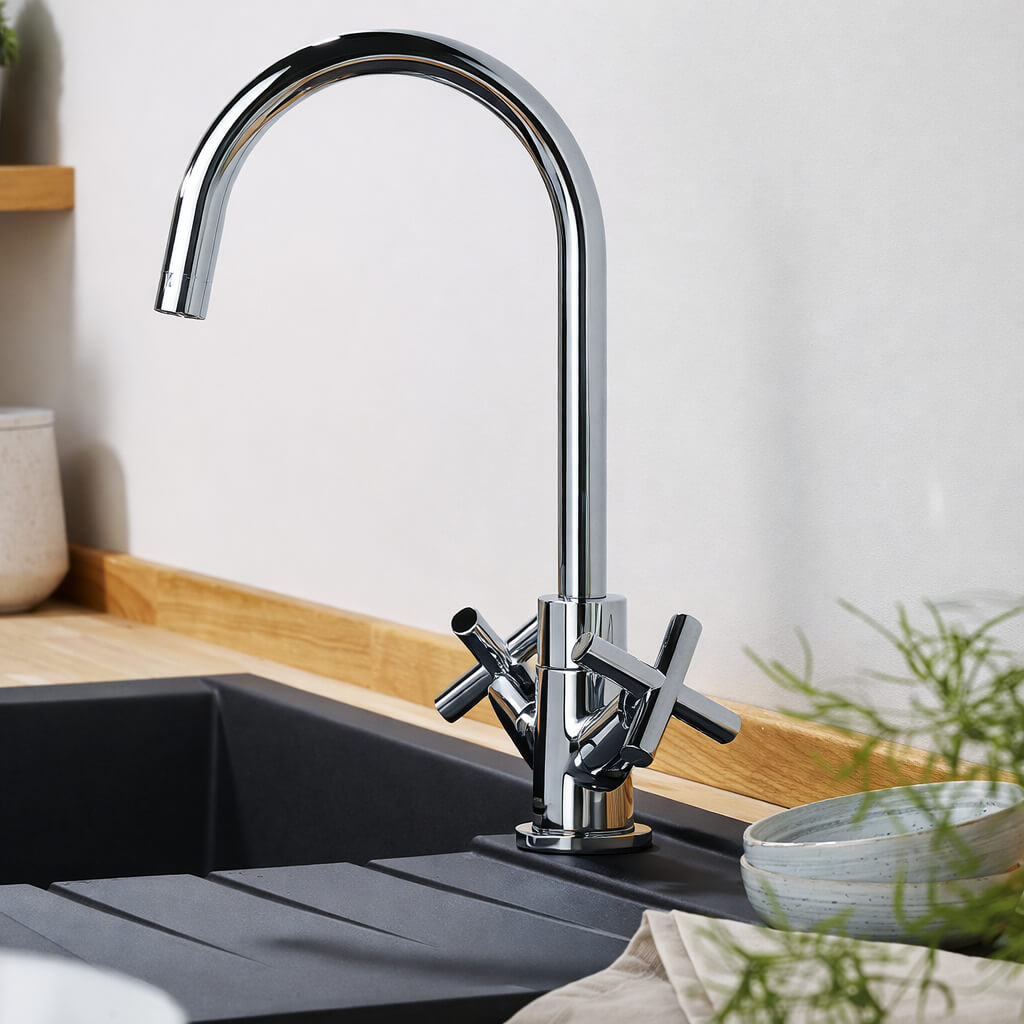

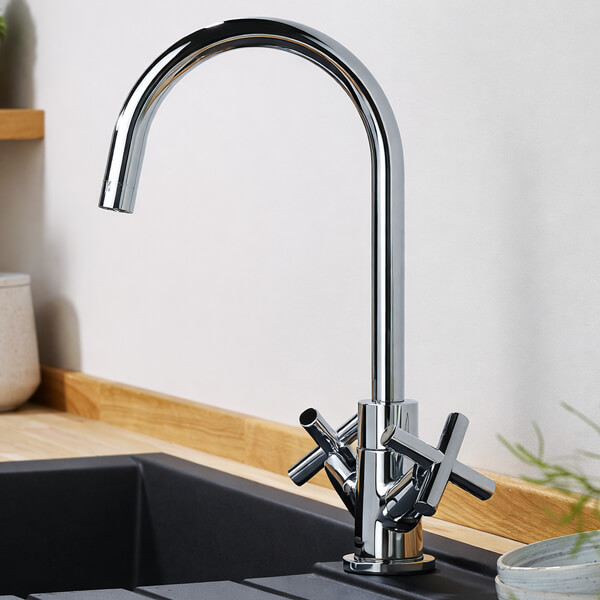

Bristan Tangerine Kitchen Sink Mixer Tap With EasyFit Base

Variation Available: With Or Without Easyfit Base

QS-V7753

MFC CODE: TNG EFSNK C

£82.91

RRP: £135.00 You Save £52.09 on RRP

STOCK AVAILABILITY

2 Working Days Approx

Shipping: £5.95

Description
Technical

Give your washing and cleaning chores the perfect mix of hot and cold water, by installing this swank Kitchen Sink Mixer Tap from the fancy Tangerine range of Bristan. Constructed using high quality brass, this aqua adornment will please you with years of impeccable service. This unit is suitable for low water pressure system and works with all plumbing systems. It is supplied with flexible connecting pipes and easy to use metal lever handle. A 5 year manufacturer guarantee against any manufacturing faults accompanies this unit.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour Chrome
Warranty/Guarantee 5 Years
Material Brass
Theme Modern
Installation Type Deck Mounted
Valve Type 1/2 inch ceramic disc valves
Handle Material Metal
Base To Spout 250
Spout Reach 195
Overall Height 380
Inlet Connections G1/2 inch
Minimum Operating Pressure (Bar) 0.3
Flow Rates (l/min) 41.5 (l/min) at 3 bar
Handle Style Crosshead
WRAS Approved Yes
Optional Feature


Bristan Tangerine TNG EFSNK C DETAILS
  • Tap
  • Pipe Centre: 195 mm

  • Manufacturing code of this product is TNG EFSNK C
  • Comes in chrome finish
  • Tap supplied with EasyFit base
  • Tap without EasyFit base - [Optional] - TNG EFSNK C TO
  • Height : 380mm
  • Centre of inlet to centre of outlet : 195mm
  • Contemporary and stylish design
  • Constructed using high quality brass
  • Valve type : 1/2 inch ceramic disc valves
  • Suitable for low water pressure system
  • Required minimum 0.3 bar to maximum 5.0 bar water pressure
  • Inlet connections : 1/2 inch BSP flexible tails
  • Suitable for all plumbing systems
  • Maximum hot water temperature : 65°c
  • Maximum dynamic pressure : 5 bar
  • Maximum static pressure : 10 bar
  • Flow type : single flow
  • Unique patented technology
  • Supplied with easy to use metal lever handle
  • Refer technical diagram for complete technical dimension
  • Download installation instruction PDF from technical tab
  • 5 year of guarantee from the manufacturer against any manufacturing defects.


FEATURES INCLUDED IN THIS PRODUCT EXPLAINED
Bristan Easyfit? How To Install Easyfit?

Step1 Fitting the Base
The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position which is indicated by the word ‘FRONT facing forward. Now tighten the fitting to the surface with a hex key. Lastly, the plain barrel must be replaced.
Step 2 Fitting the Tails
Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves.
Step 3 Fitting the Tap Body
Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.
