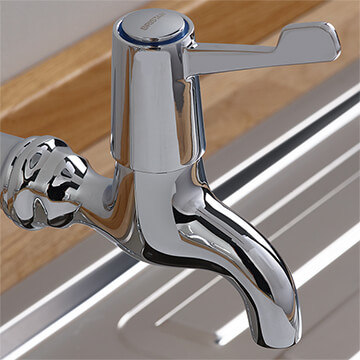

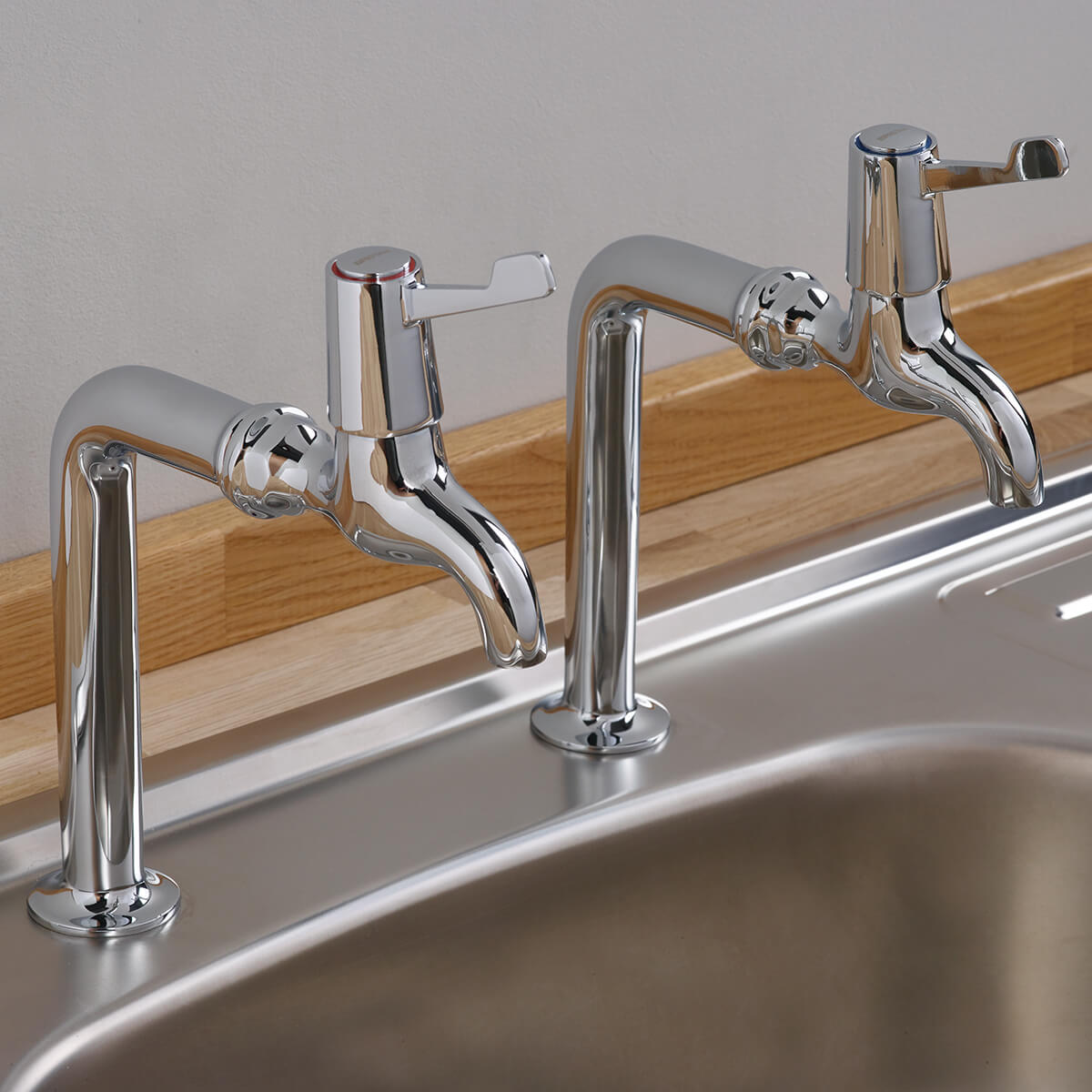

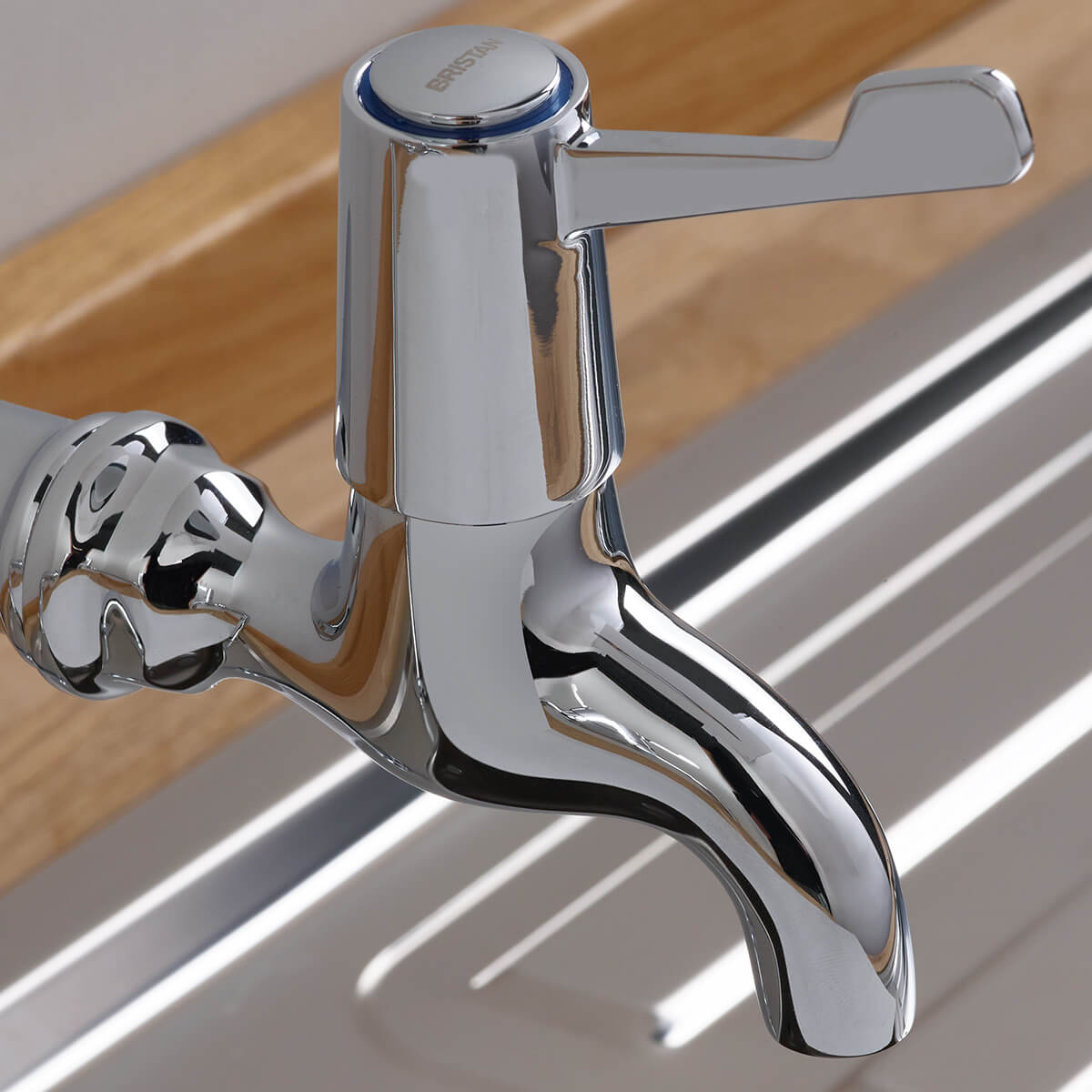

Bristan Value Lever Bib Taps With 3 Inch Metal Lever

Technical drawing QS-V52316 / VAL BIB C CD

Bristan Value Lever Bib Taps With 3 Inch Metal Lever - VAL BIB C CD

QS-V52316

MFC CODE: VAL BIB C CD

£37.67

STOCK AVAILABILITY

2 Working Days Approx

No Rating

Review this Product

Shipping: £5.95

Description

Technical

Combined with quality and functionality, the Value Lever from Bristan would be ideally luxurious additions to your garden. Designed under strict quality control measures, the stunning pair is constructed from brass, ensuring durability. Finished in attractive chrome, the fashionable creation is supplied with 6 inches metal levers, to provide ease of action. Brilliant in functioning and practical to use, these taps come with a 5 year guarantee from Bristan.

+ Read what's included..

Please Note all the measurements are in 'mm'

Colour	Chrome
Warranty/Guarantee	5 Years
Material	Brass
Theme	Modern
Installation Type	Wall Mounted
No. of Holes Required	2
Valve Type	Ceramic Disc
Handle Material	Metal
Spout Reach	93
Width	54.5
Inlet Connections	1/2"
Minimum Operating Pressure (Bar)	0.2
Flow Rates (l/min)	0.2 bar - 7.8
Handle Style	Lever
WRAS Approved	Yes

INFO / SIZE (mm)

+ Other Sizes & Variations Available

Tap
Pipe Centre: 93 mm

QTY

Bristan Value VAL BIB C CD DETAILS

Supplied in pair pair
Complete with 3 inches (76mm) Metal Levers
Centre of inlet to centre of outlet is 93mm
Manufacturing code of this product : VAL BIB C CD.
Body of this product is crafted from high quality of brass
Comes in attractive chrome finish
Chrome plated to BS EN 248
Contemporary and stylish design

1/4" quarter turn 1/2" inch ceramic disc valve
Suitable for all plumbing systems
1/2" inch BSP of Inlet connection
Require Min 0.2 bar, Max 7.0 bar operating water pressure
Suitable for low water pressure system
WRAS Approved product - Certificate No. 0909011
Refer technical diagram for technical detail
5 years of guarantee from Bristan

FEATURES INCLUDED IN THIS PRODUCT EXPLAINED

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.

OTHER SIZES / FINISHES

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V52321	-	With 6 Inch Lever	VAL BIB C 6 CD

Back to QS-V52316 / MFC CODE: VAL BIB C CD

ADDITIONAL INFO

Download the Fitting Instructions / Contents List Pdf File

Total: £37.67 2 Working Days Approx QS Supplies

You've Selected which adds to a total of

You May Also Require

REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Mark Alderley Edge Date: January 11, 2017

Good quality taps

Clean and simple modern lines on these taps and they are very easy to use with the lever action. They only require a 90 degree turn from on to off, you just need to be aware of this to avoid splashing.

Helpful? Hands Up Hands Down

OVERALL RATING 4 Stars

Quality:
Value For Money:
Style:

Peter Norwich Date: June 13, 2015

Seem a good pair of taps for the price

Good price and items seem to be good quality. However, I have not yet fitted them so do not know their operational performance and therefore cannot rate them further than a 4.

Helpful? Hands Up Hands Down

OVERALL RATING 4 Stars

Quality:
Value For Money:
Style:
