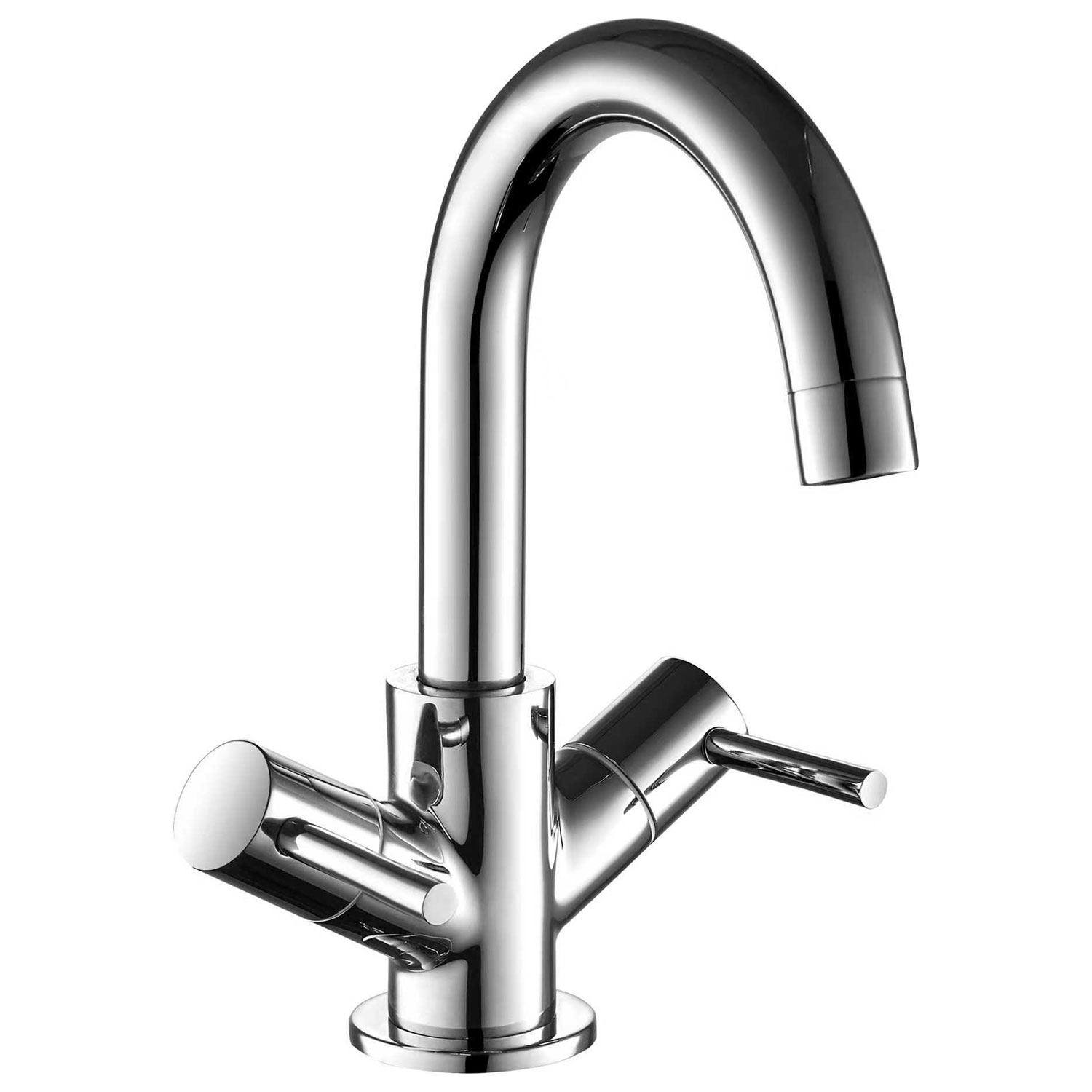

Nuie Series-2 Chrome Basin Mixer Tap with Swivel Spout and Waste, Stick Handles

Nuie Series 2 Details

MFC: FJ317

With curves as stylish as functional, the Nuie Series 2 Economy Mono Basin Mixer Tap is all set to delight the user. This lovely tap has slim round twin levers to easily grip and control the hot and cold water flows. It has a swivel spout that facilitates easy cleaning. The curved brass ware comes with a 5-year guarantee from its manufacturer. The chrome finishing and ceramic disc technology make it efficient and elegant. Pair it with a cloakroom basin or wall hung basin to give your bathroom a stylish look.

The Manufacturing Code of the Product is FJ317
It comes in a Chrome Finish
Height: 220mm (22cm)
The Centre of the Inlet to the Centre of the Outlet: 125mm (12.5cm)
Base to Spout: 143mm (14.3cm)
Suitable for Deck-Mounted Installation
Ceramic Disc Technology for a Long-Life and Smooth Operation
Cartridge Material: Brass
Supplied with Waste
Pipe Size: 15mm - 1/2 Inch BSP
Suitable for Low-Pressure Water System
Requires 0.2 Bar Operating Water Pressure
Flow Rates (1/min): 0.1 Bar - 5, 0.5 Bar - 7, 1 Bar - 9, 2 Bar - 12, 3 Bar - 14
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Details

Info / Size (mm)

Tap
Pipe Centre: 134 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Handle Position
: By Rotating
⤷ Water Activation
: Left | Right
⤷ Tap Body Shape
: Round
⤷ Range
: Series 2
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Spout Swivel
: 120 Degree

⤷ Base To Spout
: 143
⤷ Spout Reach
: 162
⤷ Overall Height
: 220
⤷ Width
: 142
⤷ Max. Deck Thickness
: 50
⤷ Inlet Connections
: G 1/2 inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Push Button
⤷ Flow Rates (l/min)
: 0.1 bar - 5 | 0.5 bar - 7 | 1 bar - 9 | 2 bar - 12 | 3 bar - 14
⤷ Handle Style
: Lever
⤷ Waste Included
: Yes
⤷ Barcode
: 5055146185598
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Nuie Series-2 Chrome Monobloc Basin Mixer Tap with Swivel Spout and Push Button Waste - Stick Handles

£49.24

RRP: ~~£147.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

5 Features Included In This Product Explained

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Reviews & Ratings

By: charlie From : brighton Overall Rating: Date: August 7, 2015 bit flimsy but it works

Bought this 4 years ago I think when I redid the bathroom. Easy to install and no problems so far. The only criticism I have is that the spout is a flimsy.

Helpful?

Quality:

Style

Value for Money

By: Nigel From : Thatcham Overall Rating: Date: December 14, 2020 Nuie Premier series 2, mono mixer, basin tap

Good value for money have had this tap fitted to lots of bathrooms and it works well and is durable at a good price.

Helpful?

Quality:

Style

Value for Money

By: johnny From : Paisley Overall Rating: Date: November 17, 2021 Replacement

Easy to fit does the job

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Derek Asked :
Please give me details of the flexible hoses to Premier Series 2 Economic Mono Basin Mixer Tap FJ317? My hose has a leek due to a pinhole/crack and needs replacing. Thanking you in advance.

Answered By QS Team

The part you need is SXR19.

Was this answer helpful?

Sarah Asked :
Can I get this with an alternative plug, leaving the pop-up waste off?

Answered By QS Team

The FJ317 goes out with the waste, but you do not have to use the waste to use any different waste as long as it fits the basin.
