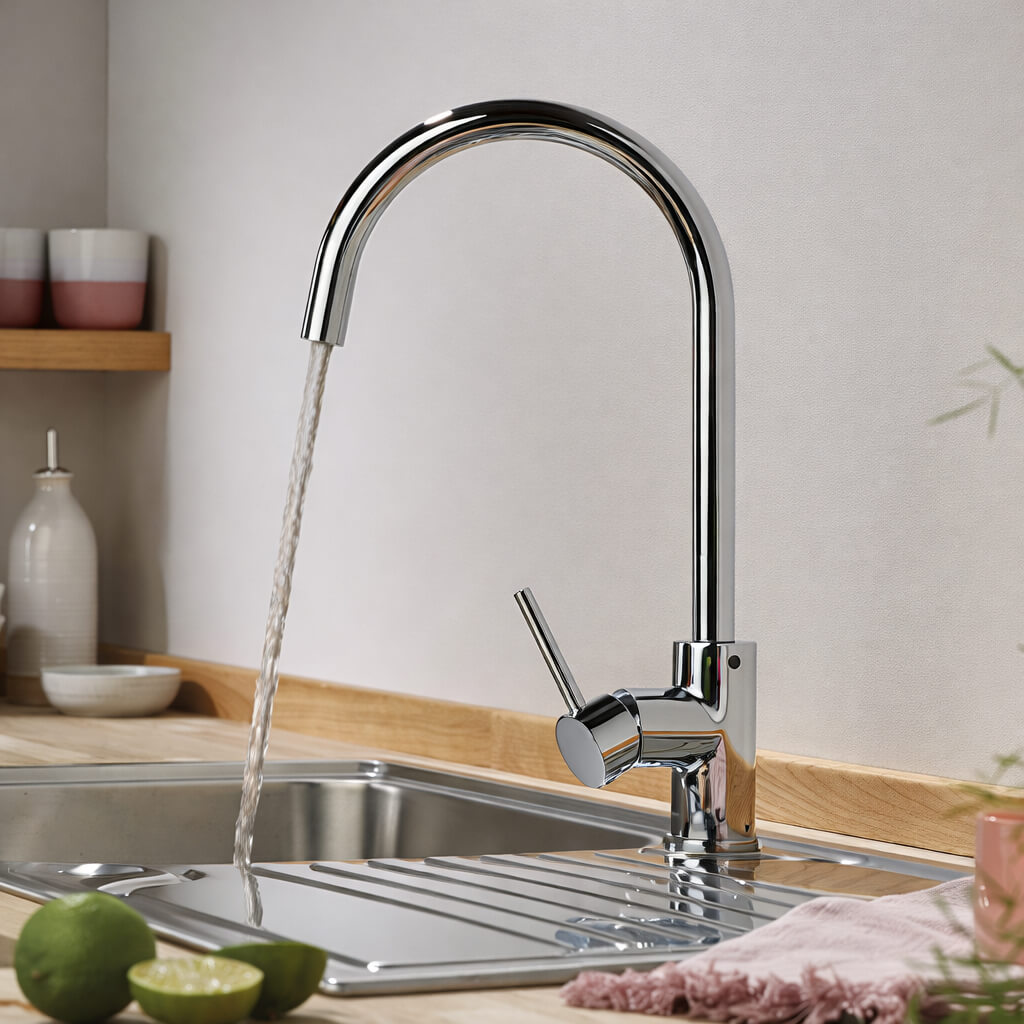

Bristan Pistachio Kitchen Sink Mixer Tap With Easyfit Base

Technical drawing QS-V79201 / PST EFSNK C

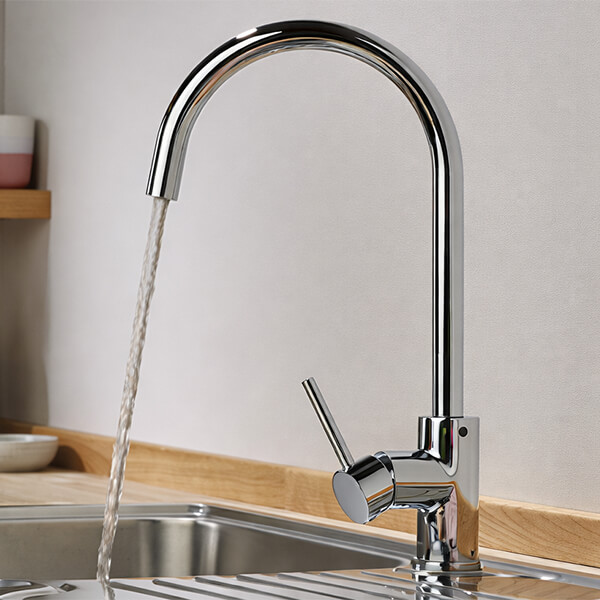

Additional image of Bristan Pistachio Kitchen Sink Mixer Tap With Easyfit Base

Additional image for QS-V79201 Bristan - PST EFSNK C

Bristan Pistachio Kitchen Sink Mixer Tap With Easyfit Base

Finishes Available : Chrome / Brushed Nickel

QS-V79201

MFC CODE: PST EFSNK C

£113.96

RRP: ~~£190.00~~

STOCK AVAILABILITY

2 Working Days Approx

3.9 out of 5

14 out of 14 customers rated 79%

Review this Product

Shipping: FREE* Check Postcodes

Variations

Technical

Select Finishes Available

OP-145605 - Chrome

+ Read what's included.. & options available

Please Note all the measurements are in 'mm'

Colour	Chrome, Brushed Nickel
Warranty/Guarantee	10 Years
Material	Brass
Theme	Modern
Installation Type	Deck Mouted
No. of Holes Required	1
Valve Type	35mm Cartridge
Handle Material	Metal
Base To Spout	275
Spout Reach	225
Overall Height	420
Inlet Connections	G1/2 inch
Minimum Operating Pressure (Bar)	0.3
Flow Rates (l/min)	24.3 (l/min) at 3 bar
Handle Style	Lever
Tails	Flexible Tails

INFO / SIZE (mm)

Tap
Pipe Centre: 225 mm

QTY

Bristan Pistachio PST EFSNK C Details

You will have ample time on your hands after you finish your washing and cleaning chores in minimum time by adorning your kitchen with this Kitchen Sink Mixer Tap from the exclusive Pistachio range of Bristan. This unit is produced from top quality brass for pleasing you with years of impeccable service and is suitable for a medium water pressure system. The stylish spout will impart a designer appeal. This unit comes in gleaming chrome finish. The manufacturer backs this unit with a 10 year guarantee against any manufacturing defects.

Available in 2 finishes : Chrome And Brushed Nickel
Tap supplied with EasyFit base
Contemporary and stylish design
Manufactured using top quality brass material
Deck mounted installation
Images shown is for illustration purpose only
Height : 420mm
Centre of inlet to centre of outlet : 225mm
Base to spout : 280mm
Flow type : single flow
Valve cartridge type : 35mm cartridge
Suitable for low water pressure system

Required minimum 0.3 bar to maximum 5.0 bar water pressure
Inlet connections : 1/2 inch BSP flexible tails
Suitable for all plumbing systems
Maximum hot water temperature : 60°c
Maximum static pressure : 10 bar
Easyfit base included
Long life ceramic cartridge for added durability and ease of use
Metal fixing nut for added durability
Refer technical diagram for complete technical dimension
Download installation instruction PDF from technical tab
10 year of guarantee from the manufacturer against any manufacturing defects.

Features Included In This Product Explained

Step1 Fitting the Base
The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position which is indicated by the word ‘FRONT facing forward. Now tighten the fitting to the surface with a hex key. Lastly, the plain barrel must be replaced.
Step 2 Fitting the Tails
Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves.
Step 3 Fitting the Tap Body
Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.

Additional Info

Download the Installation Guide Pdf File

Product Variations Info & MFC Code

Available Finishes:
Chrome Tap With Easy Fit Base - PST EFSNK C
Brushed Nickel Tap With Easy Fit Base - PST EFSNK BN.

Total: £113.96 2 Working Days Approx QS Supplies

Add-on Selected: Total Price Now:

You May Also Require

Reviews & Ratings

Rate this Item.:

Write a Review

Questions & Answers

Submit Your Questions 2 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Charles Asked :

Would it be possible to know the flow rate of this tap at 1bar pressure? https://www.qssupplies.co.uk/bathroom-furniture-shower-taps/82414.htm

Answered By QS Team :
The flow rate of the PST EFSNK C at 1 bar is 14 litres per minute.

Was this answer helpful? -

Emmanuel Asked :

Hi, I would like to get some technical info on your Bristan Pistachio Easyfit Kitchen Sink Mixer Tap Chrome, I would like to know the required tap hole size needed to install this tap. Thanks

Answered By QS Team :
Hi Emmanuel, we have already provided the installation PDF. Please download from the technical tab or refer to this URL (https://images.alt.qssupplies.co.uk/2013-7-25--8-41-58-747.PDF) you will get all the technical information about this tap in this PDF.

Was this answer helpful? -
