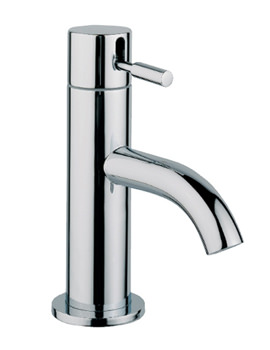

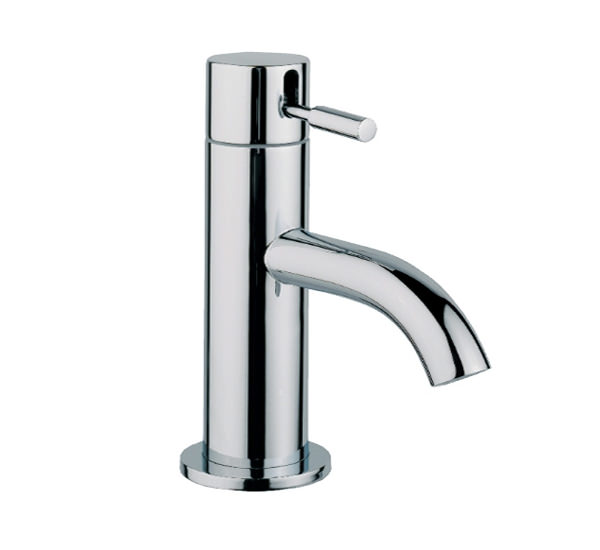

Crosswater Design Deck Mounted Monobloc Basin Mixer Tap

Crosswater Design Details

MFC: DE114DNC

This marvellous yet simplistic piece is a classic rendering in chrome polish. The central part of the mixer has a gently curving spit that offers a delicate flow. The tap is mounted on a compatible ceramic basin, available separately to enhance the lustre of the bathroom, thanks to the unique contrast. Crafted and created by Crosswater for single hole basins, this Mini Monobloc Basin Mixer Tap from the Design collection looks small but has extensive features. It performs beautifully with low-pressure water systems and comes with a solid brass body. The brand offers a 15-year guarantee as an assurance of its quality, against any manufacturing defects.

Key Features

✔It Comes in a Chrome Finish
✔Features Single Lever Operation
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Taps: Mini Tap, Standard Tap, Tall Tap
Choice of Variations: Without Waste, With Waste
Choice of Heights: 135mm, 163mm, 322mm
The Manufacturing Code is DE114DNC
Height of Mini Tap - 135.5mm - (13.55cm)
Height of Standard Tap - 163mm - (16.3cm)
Height of Tall Tap - 322mm - (32.2cm)
Suitable for Low-Pressure Water System
The Minimum Water Pressure Recommended for Smooth Working is 0.2 Bar [LP-Low Pressure]
Refer to the Technical Drawing for Size Details

Info / Size (mm)

Tap
Pipe Centre: 87.2 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Design
⤷ Tap Body Shape
: Square
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Base To Spout
: 49.9
⤷ Spout Reach
: 87.2
⤷ Overall Height
: 135.5
⤷ Width
: 54
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Barcode
: 5014869105337
⤷ Product Type
: Basin Mixer Tap

Crosswater Design Deck Mounted Chrome Monobloc Basin Mixer Tap - Stick Handle

£160.30

RRP: ~~£229.00~~

STOCK AVAILABLITY: 7 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Reviews & Ratings

By: Peter From : Welling Overall Rating: Date: September 16, 2015 High pressure only

Used this on a low pressure system with a 2 metre head of water. Very poor flow rate. Slightly improved flow rate on full cold or full hot. Mid position appears to close cartridge slightly

Helpful?
