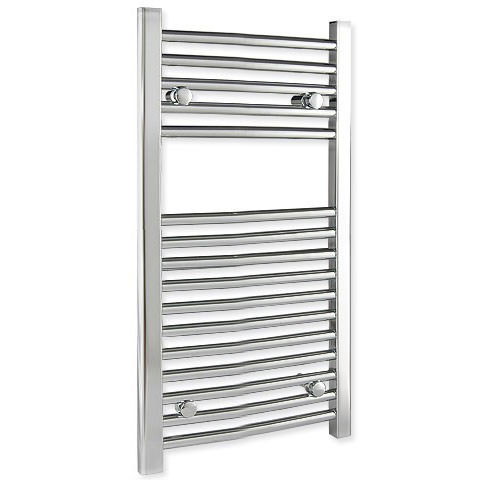

Tivolis Cabra 300mm Wide Straight Towel Rail

Tivolis Cabra 510-SND1KR25113000600 Details

This Towel Rail is meticulously designed with a pleasing curve shape and efficient heating capacity. Besides offering a warm towel after a bath or shower, the towel rail delivers a cosy ambience inside your bathroom to keep you warm and comfortable. The flat multi-rail warmer is an indulgence that carries an excellent chrome finish, to instantly glam up your bath interior. This heating element from Tivolis has been manufactured and tested in accordance with the necessary quality and safety standards.

Designed for use with central heating systems and compatible radiator valves, available separately, it is backed by a 5-year guarantee against any manufacturing defects. Ideally placed next to a shower enclosure or a bathroom vanity unit for ease of use.

Available in different heights: 600mm, 800mm, 1200mm and 1600mm - [Optional]
Width: 300mm (30cm)
Flat Shape
Suitable for central heating system
25mm (2.5cm) Tube
Pipe Centres: 255mm (25.5cm)
Wall to pipe centres: 75-90mm (7.5-9cm)
Distance from Wall: 90-105mm (9-10.5cm)
Installation Type: Wall Mounted
For more information on BTU and Watts, please refer to PRODUCT VARIATIONS INFO and MFC CODE below
The radiator valve shown in the image is not included - [Optional]
Can be used as dual fuel in combination with T-Piece and Heating Elements - [Optional]
All Fittings are supplied with the product with a simple instruction manual
All Radiators from Tivolis are securely packed and protected with a Bubble Wrap
All Radiators from Tivolis have been manufactured and tested by EN442
Please Note - Image is for just illustration purposes; the original product may differ from the image provided

Please Note : There is one important thing, you should know before installing a heated towel rail. The surface of Towel rails has a higher temperature than radiators. If you have infants in your house, you may need to consider the position of towel rail in bathroom

Radiator Calculator

Info / Size (mm)

Towel Rail
Width: 300 mm
Height: 600 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Cabra
⤷ Colour
: Chrome
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 300
⤷ Height
: 600
⤷ Fixings included
: Yes
⤷ Orientation
: Vertical

⤷ Compliance/Approvals/Standard
: EN442
⤷ Barcode
: 5057199029843
⤷ BTU Output
: 447
⤷ Watts
: 131
⤷ Tapping / Pipe Centres
: 255
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating and Dual Fuel
⤷ Wall to Centre of Inlet
: 75-90
⤷ Tube Diameter
: 25
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic

Add-Ons

Radiator Valves

Listed below are the compatible valves that works well with Tivolis towel rail and radiator. It is available in Angled, Straight and Corner version in Sphere, Square and TMV Modal. Please Note: Images shown are for illustration purpose only.

No Option Selected
OP-212085 - Sphere Angled Radiator Valve + £27.26
OP-212087 - Square Angled Radiator Valve + £44.41
OP-212089 - TRV MODAL - Angled Radiator Valve + £50.64
OP-212088 - Square Straight Radiator Valve + £52.82
OP-212090 - TRV MODAL - Straight Radiator Valve + £60.30

Heating Element

Standard and Thermostatic Heating elements are available to make the towel rail or Radiator a Dual Fuel. Appropriate wattage elements will be send as per the towel rail selected. T-Piece connection is essential to make a dual fuel towel rail.

OP-212092 - T Piece Connection + £16.36
OP-212093 - Standard heating Element + £112.97
OP-212094 - Thermostatic heating Element + £145.69

Tivolis Cabra 300mm Wide Straight Towel Rail

£77.20

RRP: ~~£145.20~~

STOCK AVAILABLITY: 4 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

Height	Width	Pipe Centres	Wall Distance	BTU @Delta 50C	Watts @Delta 50C	Wall To Pipe Centres
600mm	300mm	255mm	90-105mm	447	131	75-90mm
800mm	300mm	255mm	90-105mm	581	170	75-90mm
1200mm	300mm	255mm	90-105mm	872	256	75-90mm
1600mm	300mm	255mm	90-105mm	1141	334	75-90mm

2 Features Included In This Product Explained

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Reviews & Ratings

By: Marc From : Bromley Overall Rating: Date: January 28, 2019 Plumbermarc

Fitted this in a ground floor wc. Perfect for a small space, just right for hand towel. Customer really pleased with it.

Helpful?

Quality:

Style

Value for Money

By: Tom From : York Overall Rating: Date: July 25, 2015 Easy to use website

Very easy web site to view and order from. Product arrived quickly and well packaged

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Patty Asked :
Are any of your heated towel racks compatible with United States electrical standards? You've got a much better selection than I can find here.

Answered By QS Team

We only stock products that are compatible with British Standards. I understand that you can convert the electrical to United States Standards; however, you will need to ask a qualified electrician about this.
