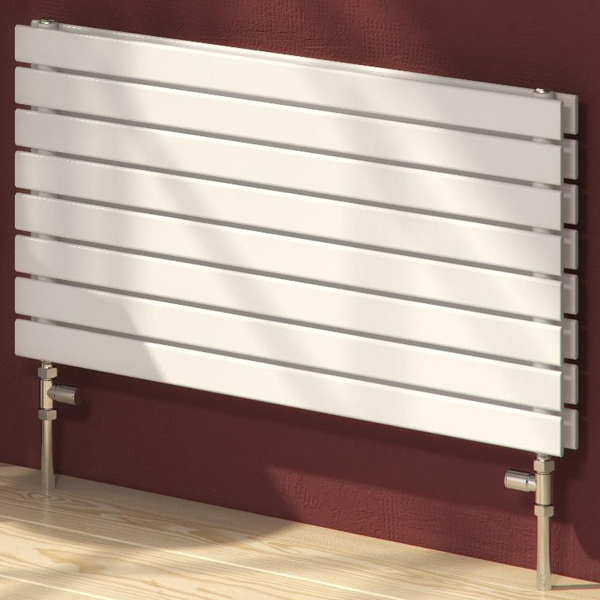

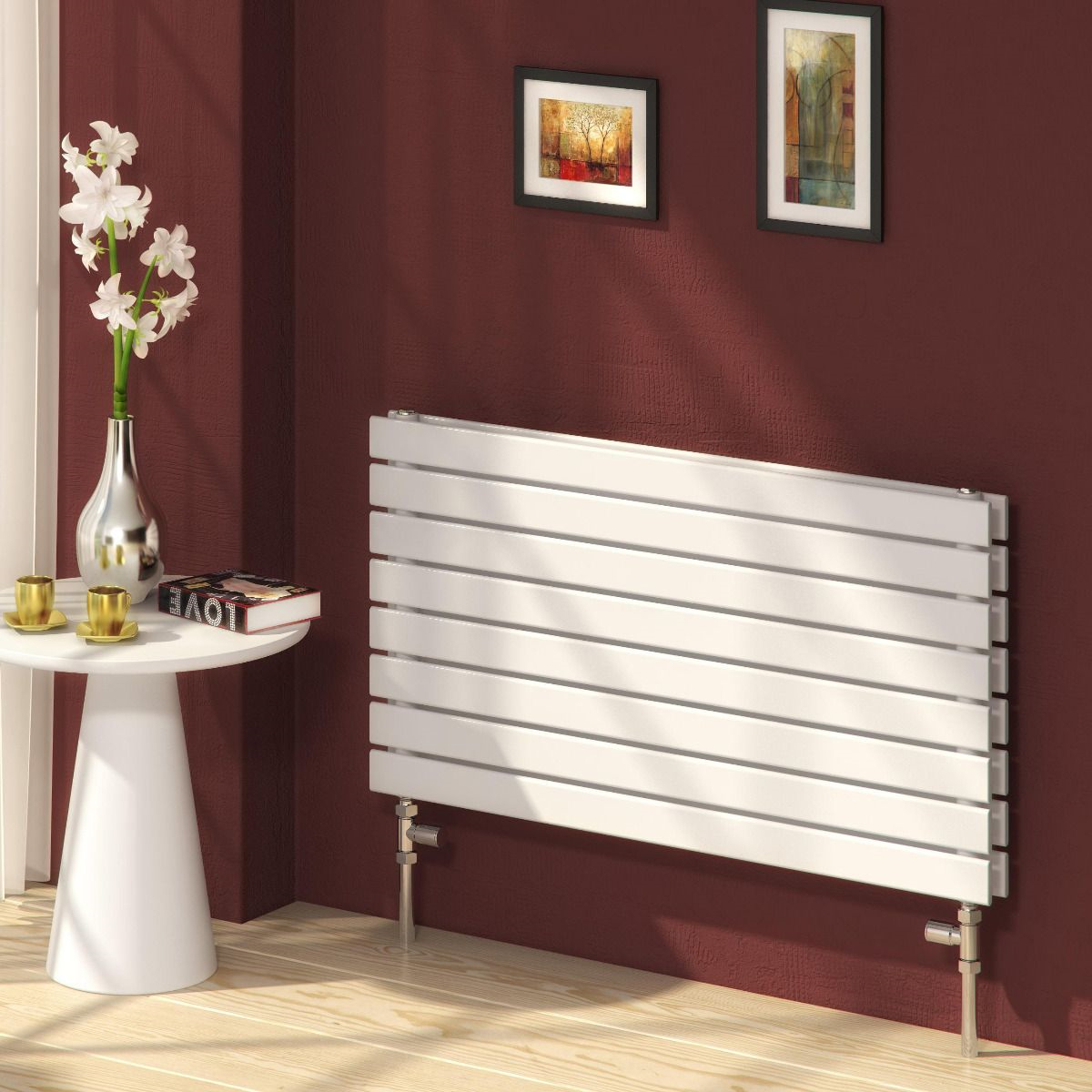

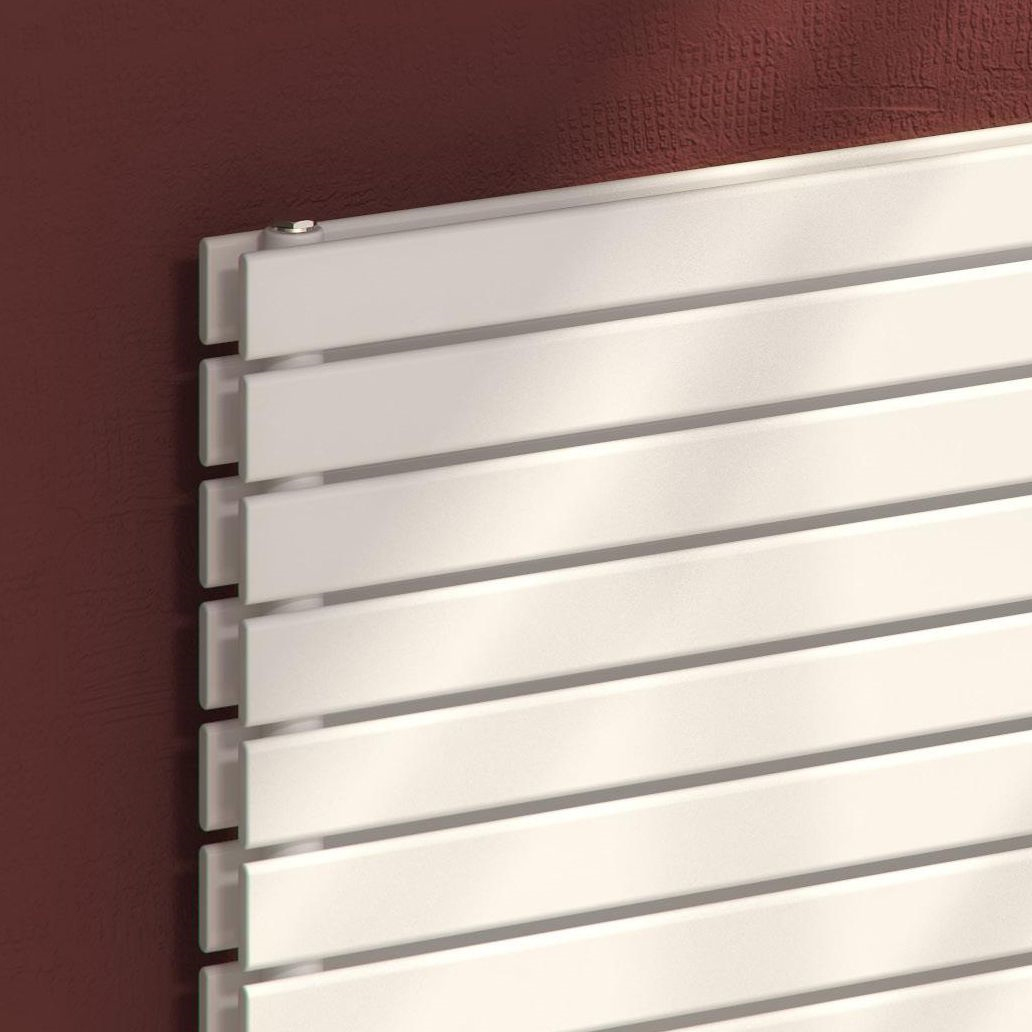

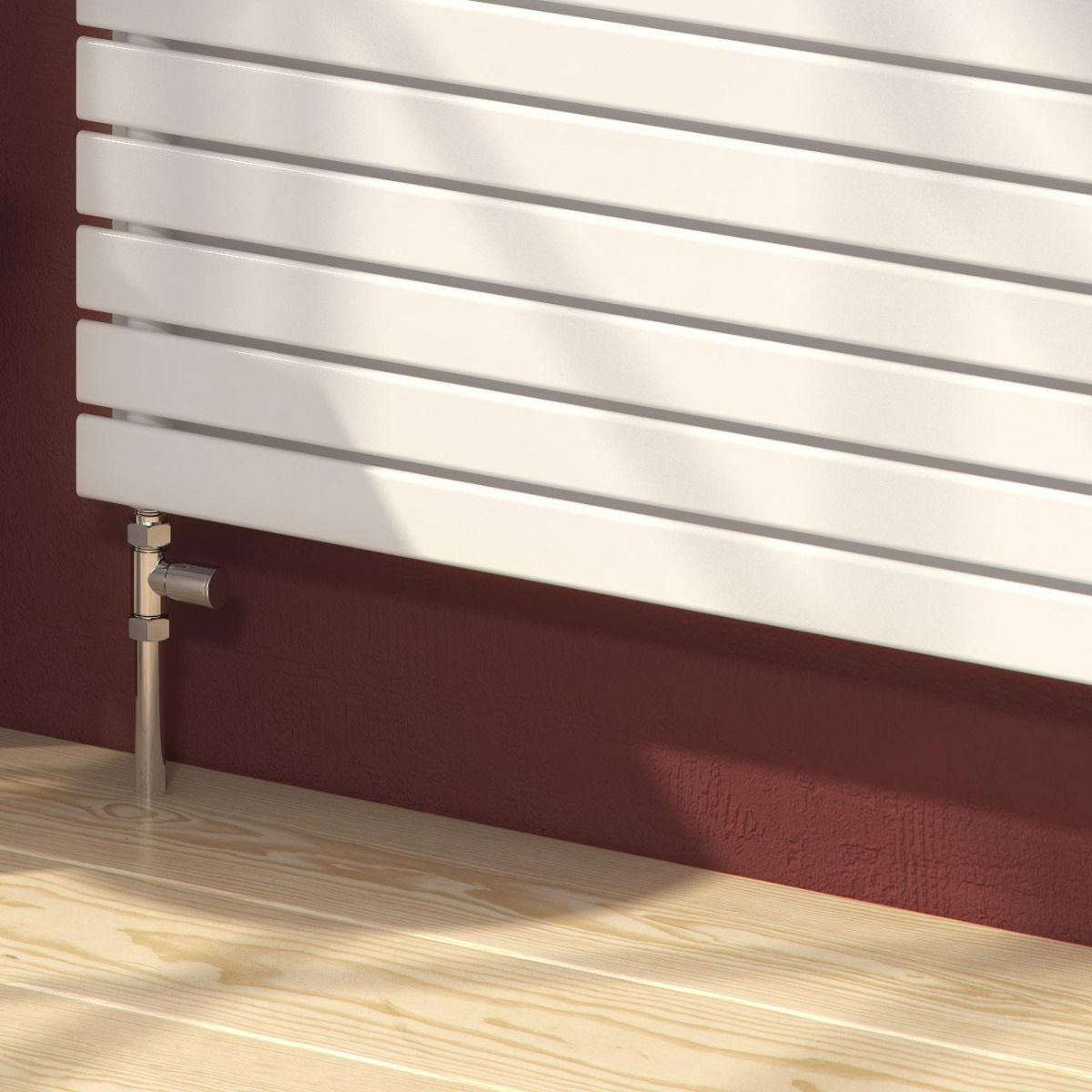

Reina Rione 550mm High White Double Panel Designer Radiator

£158.86

STOCK AVAILABILITY

5 Working Days Approx

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Product Variants
Select Width Step 1
Select Radiator Type Step 2
Select Heating Element Step 3
Select Essential Accessories Step 4
SKU Code: QS-V20795

MFC Code: RND-RNE400D

Reina Rione RND-RNE400D Details

If you are looking for a practical and stylish radiator, look no further than the Reina Rione Double Panel Designer Radiator. Arranged in a minimalist but effective manner, this fixture uses delicate horizontal lines and exudes a charming appearance that integrates an efficient heating system. Mounted to the wall, it quickly warms up the room without compromising on the existing decor of your interiors.

Finished with a soothing white finish, this radiator will brighten up your living space and have a calming effect on the surrounding area. Suitable for all heating systems, this appliance is not constrained by the system installed in your home. Having high quality steel construction puts it miles ahead of machines which come without the quality. Besides keeping it low on maintenance, it lasts years without the sweat.

Key Features
  • Brackets for radiator included
  • Manufactured using steel material
  • Supplied with Air vent and End plug
  • Five-year guarantee from Reina against manufacturing defects
  • Available in different widths: 400mm, 600mm, 800mm, 1000mm, 1200mm and 1400mm - [Optional].
  • Available variants: Central heating, Dual Fuel and Electric - [Optional].
  • Heating element type: Standard, On/Off Touch, LST Mini Round Thermostatic, Mini Round, Touch Thermostatic, LST Weekly Thermostatic and Weekly Thermostatic - [Optional].
  • Double panel designer radiator.
  • It comes in a white finish.
  • Height: 544mm.
  • Wall to pipe centres: 78mm.
  • Distance from wall: 107mm.
  • Tube Quantity: 16.
  • Suitable for central, electric and dual fuel heating systems.
  • EN 442 compliant product.
  • For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece.
  • For Electric models, Optional Liquid Filling is required with the heating element.
  • Valves and chrome pipes shown in the image are not included.
  • Valves - [Optional].
  • Sleeving kit and chrome pipe kit - [Optional].
  • For BTU and Watts, Please refer to the Product Variations Info and MFC Code section.
  • Refer to the technical diagram for complete technical dimensions.
  • Download the Heating Element PDF Files from the Additional Info section.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Rione
  • ⤷ Colour
  • : White
  • ⤷ Country of Origin
  • : Turkey
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Steel
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted | Floor Mounted
  • ⤷ Width
  • : 400
  • ⤷ Height
  • : 550
  • ⤷ Orientation
  • : Horizontal
  • ⤷ Barcode
  • : 5057199126238
  • ⤷ BTU Output
  • : 70°C - 2110
  • ⤷ Watts
  • : 70°C - 619
  • ⤷ Valves Included
  • : Sold Separately
  • ⤷ Fuel Type
  • : Central Heating |Dual Fuel | Electric
  • ⤷ Wall to Centre of Inlet
  • : 78
  • ⤷ Panel Configuration
  • : Double

Additional Info & Downloads

Download PDF Download the Heating Element Manual Instructions Pdf File Download PDF Download the Details Of Heating Elements Pdf File


Technical Images


Customise Your Product

Optional Accessories
Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

Total: £158.86 5 Working Days Approx QS Supplies

Product Variations Info & MFC Code
Details Of 550mm High Radiator
Width 400mm 600mm 800mm 1000mm 1200mm 1400mm
Pipe Centres 355mm 555mm 755mm 955mm 1155m 1355mm
Wall To Pipe Centre 68mm 68mm 68mm 68mm 68mm 68mm
Wall Distance 97mm 97mm 97mm 97mm 97mm 97mm
Tube Quantity 16 16 16 16 16 16
Watts - Delta-70 619 928 1238 1547 1857 2167
BTU - Delta-70 2110 3166 4221 5276 6334 7389
BTU - Delta-60 1730 2595 3460 4325 5192 6057
BTU - Delta-50 1361 2043 2723 3404 4086 4767
BTU - Delta-45 1185 1779 2371 2964 3558 4151
BTU - Delta-40 1024 1537 2049 2561 3075 3587
BTU - Delta-35 858 1287 1716 2145 2575 3004
BTU - Delta-30 696 1045 1393 1741 2090 2439
BTU - Delta-25 271 407 543 678 814 950
MFC RND-RNE400D RND-RNE600D RND-RNE800D RND-RNE1000D RND-RNE1200D RND-RNE1400D

4 Features Included In This Product Explained

Central Heating

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

Optional: Dual Fuel

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Optional Sleeving Kit

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.

Double Panel Radiators

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Nicola Asked :

Could you tell me what the BTU is of the horizontal double radiator (dual fuel) 550 x 800 (in my basket)?

Answered By QS Team Answered by the QS Technical Team

The Reina Rione 550 800mm High White Double Panel Designer Radiator delivers 1238 Watts at 70°C and 4221 BTU at the same temperature. For detailed insights on BTU and Watts, please consult the informative chart in the Product Variations Info & MFC Code Section.

Was this answer helpful?
Darrell Asked :

Hi, Looking at Reina Rione 550mm High White Double Panel Designer Radiator (400mm wide). I don't understand the option to add 'brackets'. Does this radiator not come with wall brackets included? Do I need to add brackets to the order separately? Thanks Darrell

Answered By QS Team Answered by the QS Technical Team

We can confirm that all radiators and towel rails we sell come with brackets. Option for brackets in the products is for those who require additional brackets.

Was this answer helpful?
Accepted Answer 1 Thumbs Down 0
