Joseph Miles Unique Rimless Back To Wall WC Pan with Seat, JMQS117073

Joseph Miles Unique Details

MFC: JMQS117073

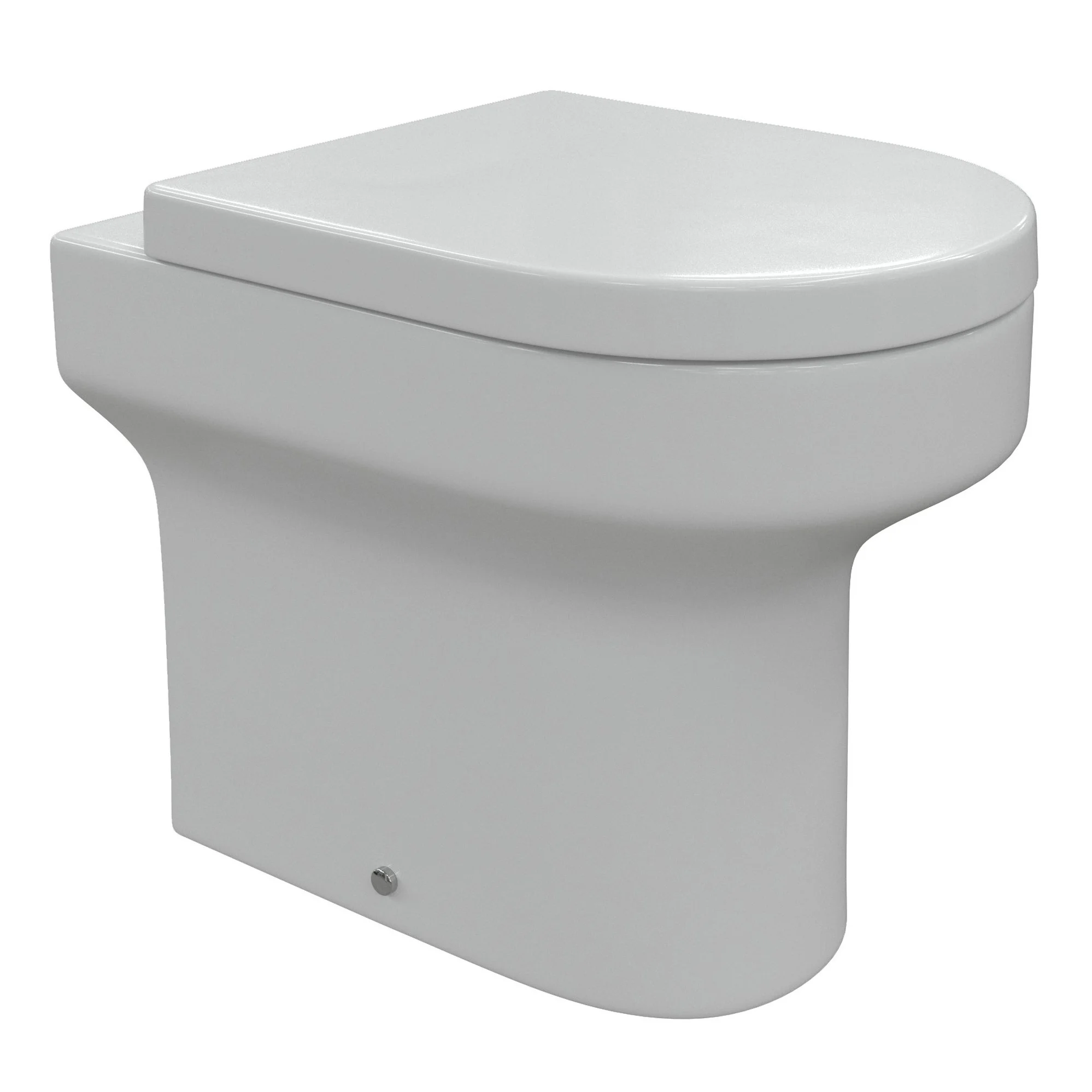

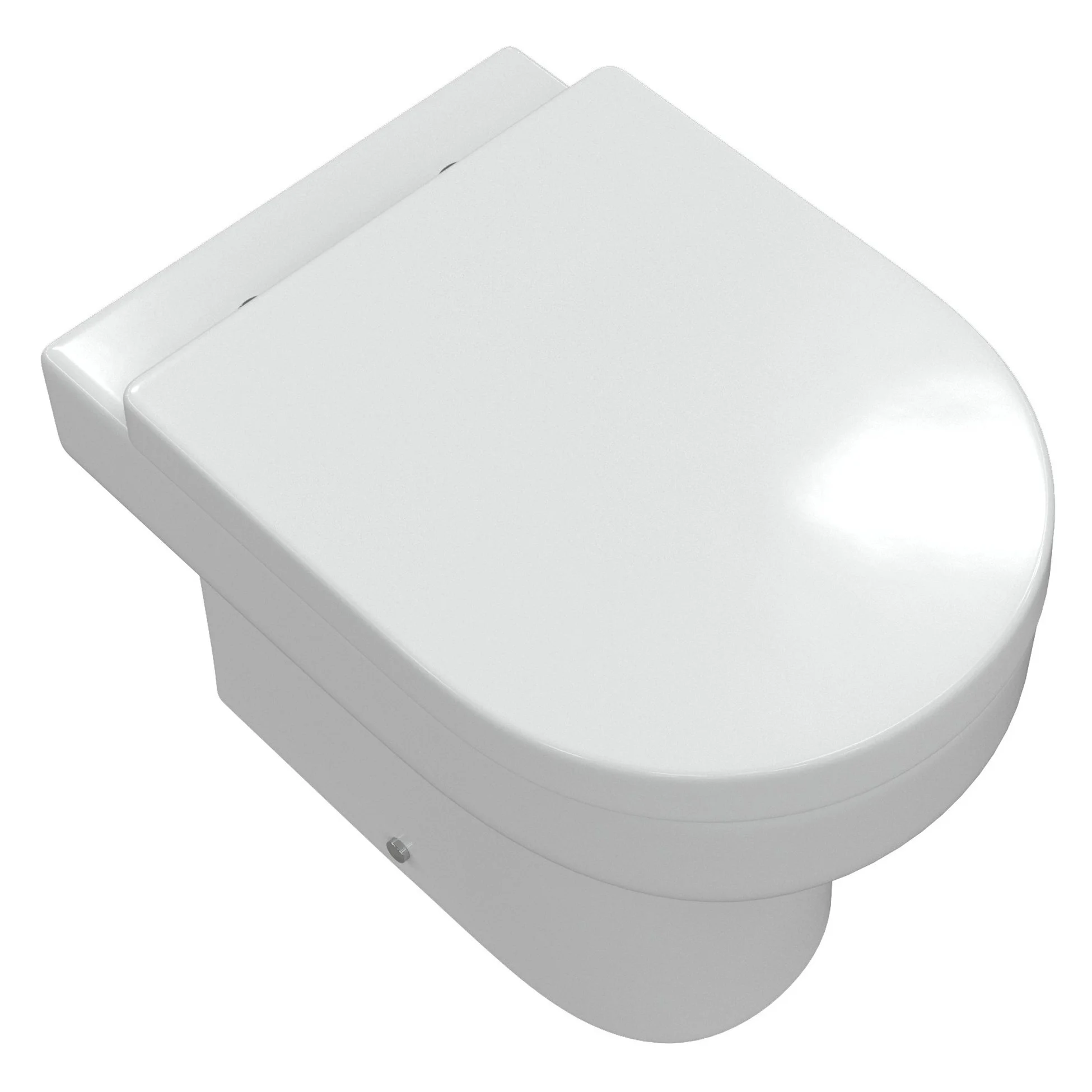

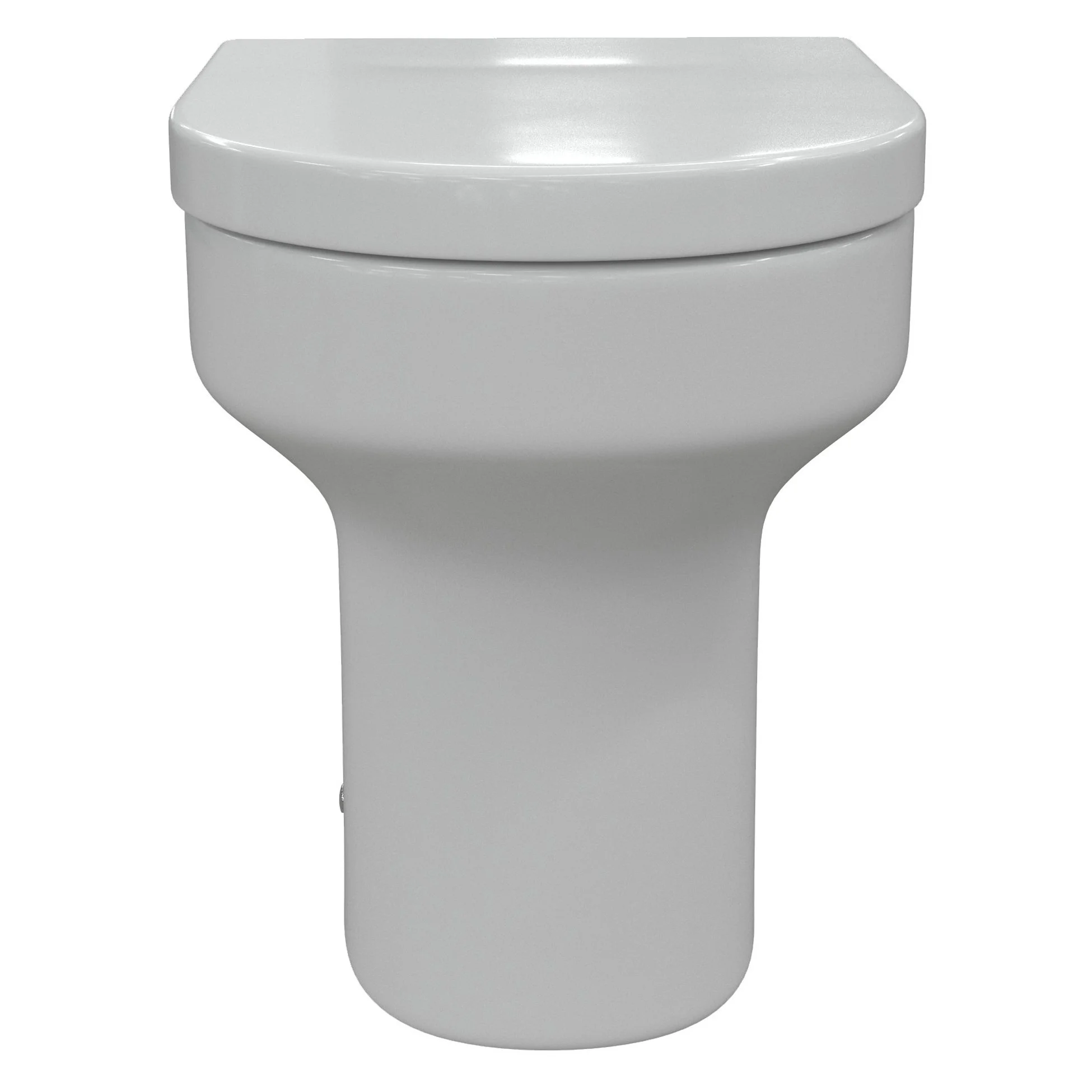

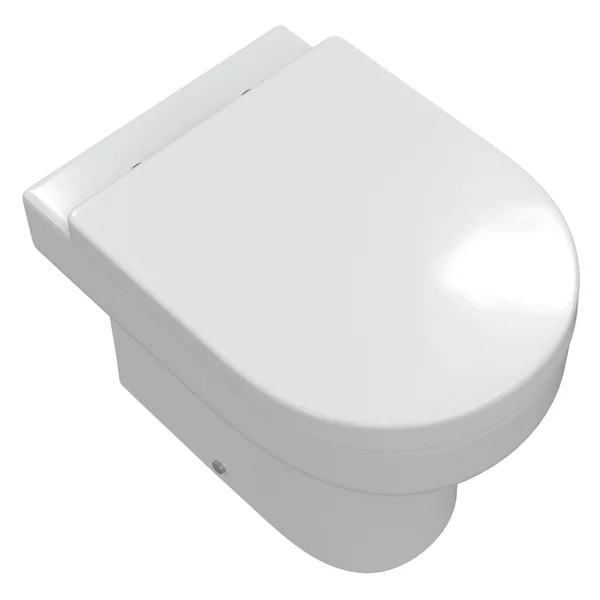

Joseph Miles Unique Rimless Back To Wall WC Pan with Soft Close Seat

Manufacturing Code of this Product: JMQS117073
It Comes in a White Finish
Size [mm]: 360 x 515 x 405mm [Width x Depth x Height]
Size [cm]: 36 x 51.5 x 40.5cm [Width x Depth x Height]
Lift Off the Seat for Easy Cleaning
Coupling to Soil Stack: Straight Out
Distance Soil Pipe Spigot To Wall: 110mm

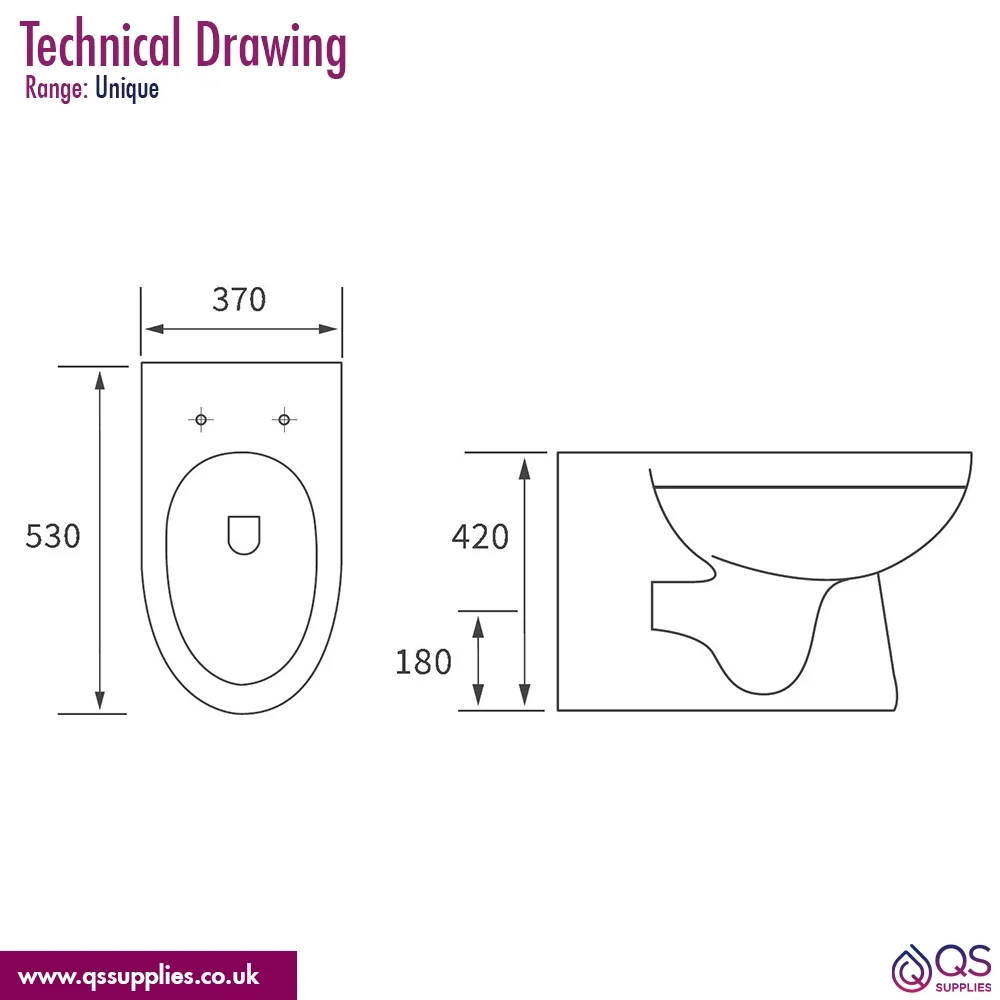

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction PDF File from the Additional Info Section
Note: Please Allow a Tolerance of +/-2% on Dimensions Over 75mm and a Tolerance of +/-4% on Dimensions Under 75mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Unique
⤷ Colour
: White
⤷ Warranty/Guarantee
: Lifetime [WC Pan], 2 Year [Seat]
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Pan Width
: 360
⤷ Pan Height
: 405
⤷ Projection (Depth)
: 515
⤷ Rimless Bowl
: Yes
⤷ Outlet
: Horizontal

⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5054913612220
⤷ Bowl Shape
: Oval
⤷ Seat Post Hole Centers
: 150
⤷ Front Of Bowl To Centre Of Seat Holes
: 432
⤷ Base width
: 225
⤷ Base Depth (projection)
: 430
⤷ Outlet Diameter
: Ø102
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

This item can also be found in:

Rimless Toilets

Joseph Miles Unique Rimless Back To Wall WC Pan with Soft Close Seat

£180.00

RRP: ~~£225.00~~

Stock Availablity: 10 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Top And Bottom Fix

Using hinges, the toilet seat can be fixed to the Pan from above or below. A top has two bolts fed into the toilet pan. The bottom fixing is a traditional style fixing, with two bolts which fix to the pan and can be tightened from below.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards their edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.
