Roper Rhodes Edit Vanity Unit with Back To Wall Toilet Furniture, DC12036|DC12037.

Roper Rhodes Edit Details

MFC: DC12036|DC12037

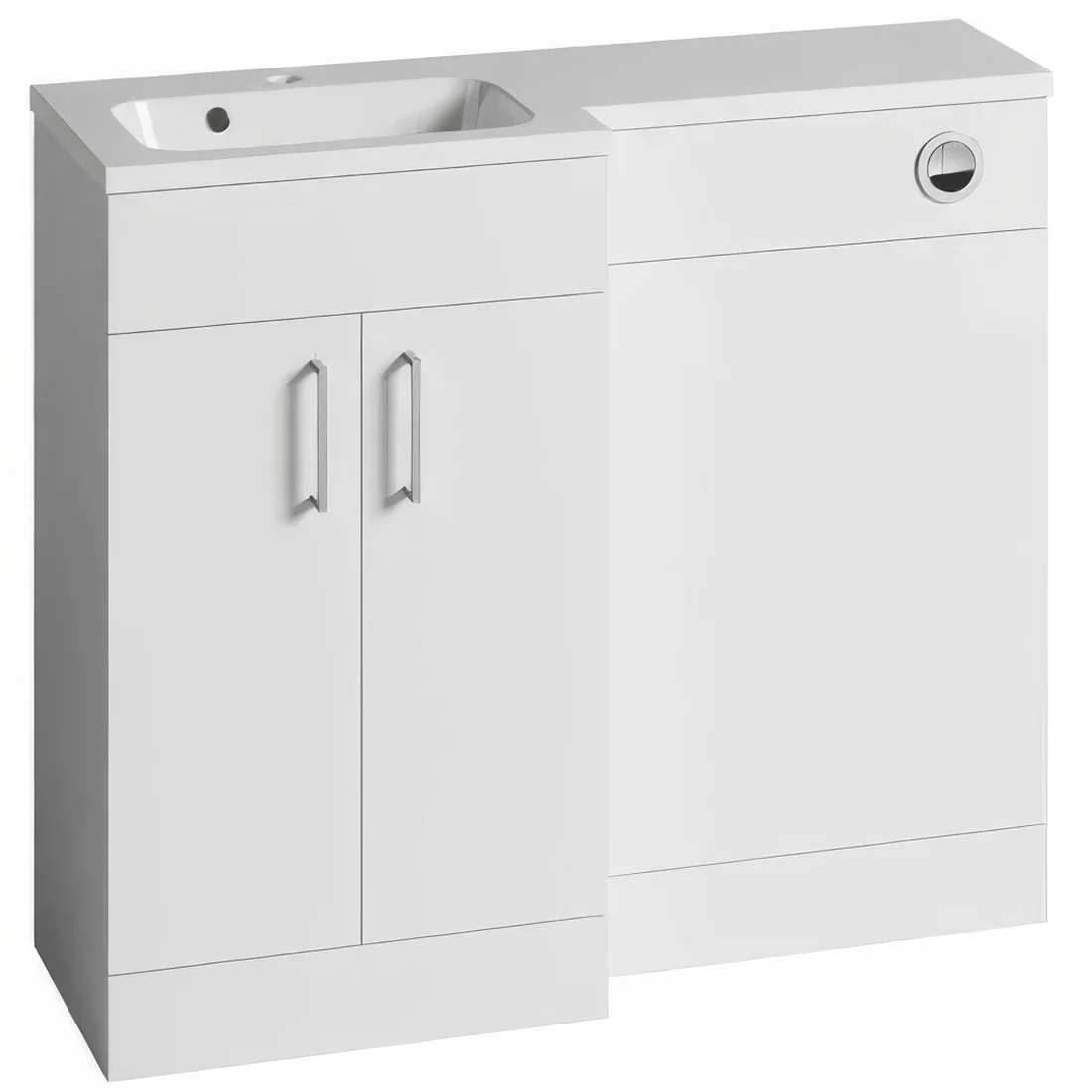

Roper Rhodes Edit L-Shaped Floorstanding Vanity Unit with Back To Wall Toilet Furniture - 2 Doors.

Key Features

✔It Comes with Sleek Chrome Handles
✔1 Removable Shelf and a Base Within the Unit
✔10-Year Guarantee from Roper Rhodes Against Manufacturing Defects

The Product Includes a Vanity Unit and a WC Unit
Choice of Finish: Gloss White and Gloss Light Grey
Choice of Width: 1000mm, 1100mm and 1200mm
Choice of Handed Type: Left or Right
Suitable Isocast Basin with an Integrated Worktop is Available as an Option
Basin Available in Both Left and Right Configurations
Size in [mm]: 250-340 x 860mm [Depth x Height]
Size in [cm]: 25-34 x 86cm [Depth x Height]
Weight: 15.75 Kg
Suitable for Floorstanding Installation
Plumbing Void: 75mm (7.5cm)
The Doors can be Adjusted as Detailed in the Supplied Instructions
The Interior of the Unit is the Same Finish as the Exterior
Handle Upgrade Available [See Options Below]
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Diagram for Complete Technical Details
Detail of Basin:
Features a Single, Pre-Drilled Central Tap Hole
Comes with an Overflow
Easy to Install
Durable and Scratch Resistant
Tap Ledge: 91mm (9.1cm)
Taphole Centre to Waste Centre: 145mm (14.5cm)
Inner Bowl Depth: 106mm (10.6cm) Up to the Overflow
Taphole Basin Waste: British Standard (BS EN 31)
Diameter of the Central Tap Hole = 35mm : +2/ -1mm
Bore of the Waste Outlet Hole = 46mm : +2 / - 3mm
Diameter of the Base for the Seal Between the Waste Outlet Hole and the Waste Fitting = ≥ 60 mm

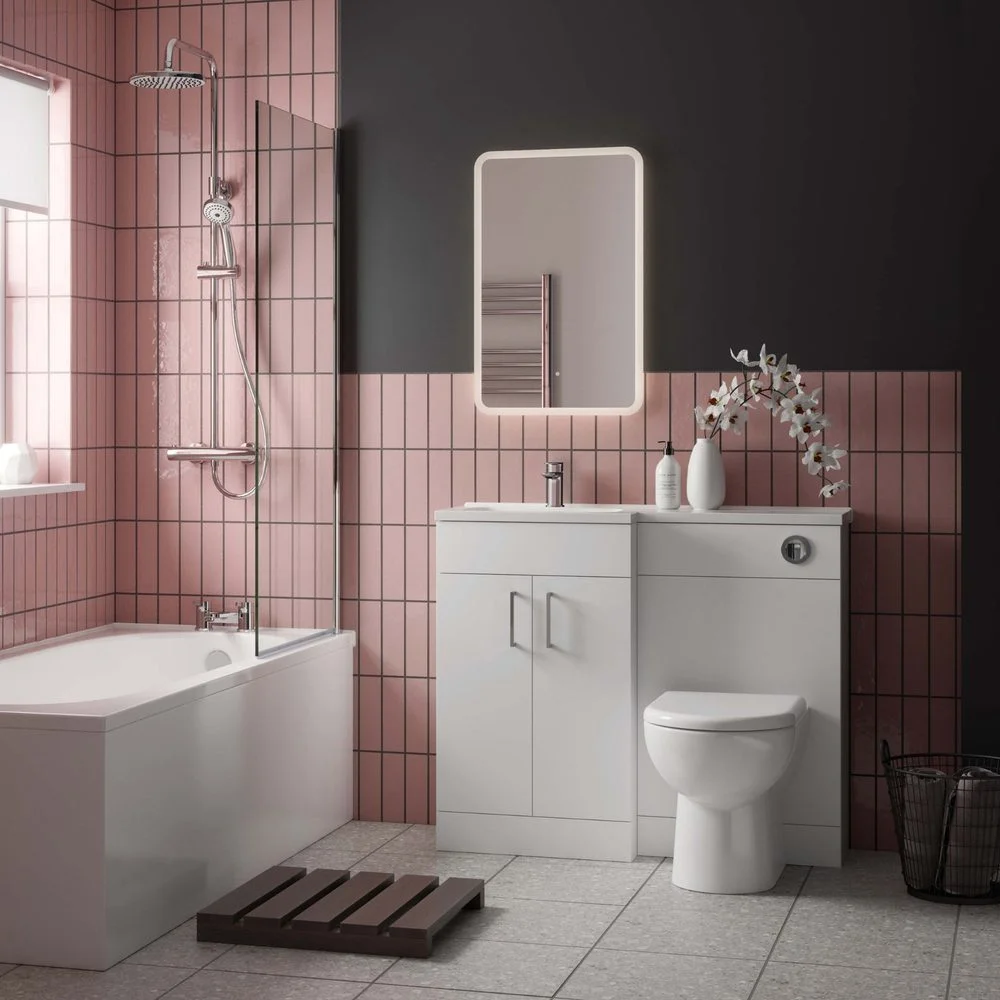

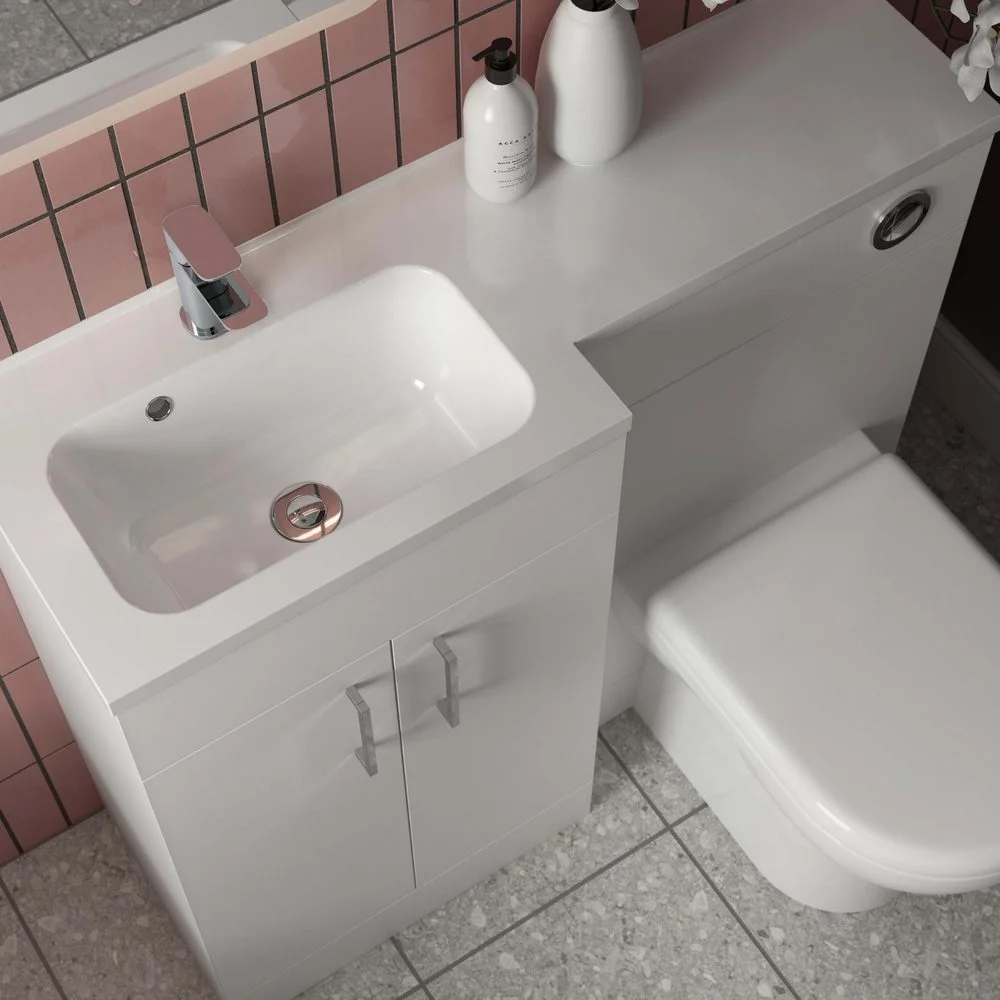

The Basin, WC Pan, Seat, Cistern and Flush Button Shown in the Image are Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Edit
⤷ Colour
: Gloss White
⤷ Warranty/Guarantee
: 10-Year
⤷ Theme
: Modern
⤷ Installation Type
: Floorstanding
⤷ No. of Tap Holes
: 1
⤷ Barcode
: 5016519452037
⤷ Number Of Doors
: 2

⤷ Handle Included
: Yes
⤷ Sink Included
: Yes
⤷ Sink Colour
: White
⤷ No. Of Internal Shelves
: 1
⤷ Soft-Close Door
: Yes
⤷ Sink Material
: Isocast
⤷ Number Of Sinks
: 1

Additional Info & Downloads

This item can also be found in:

White Bathroom Furniture

Technical Images

Roper Rhodes Edit Floorstanding Vanity Unit with Back To Wall Toilet Furniture - 2 Doors

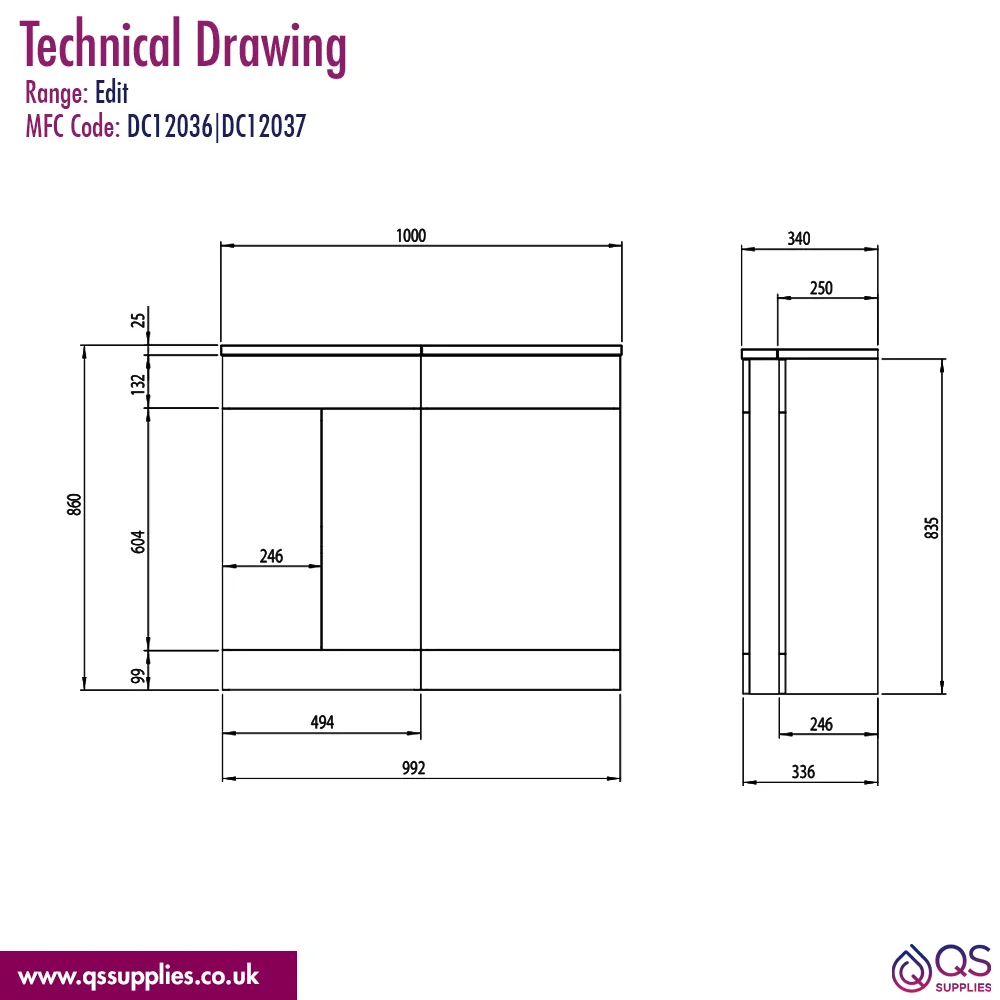

1000mm Unit

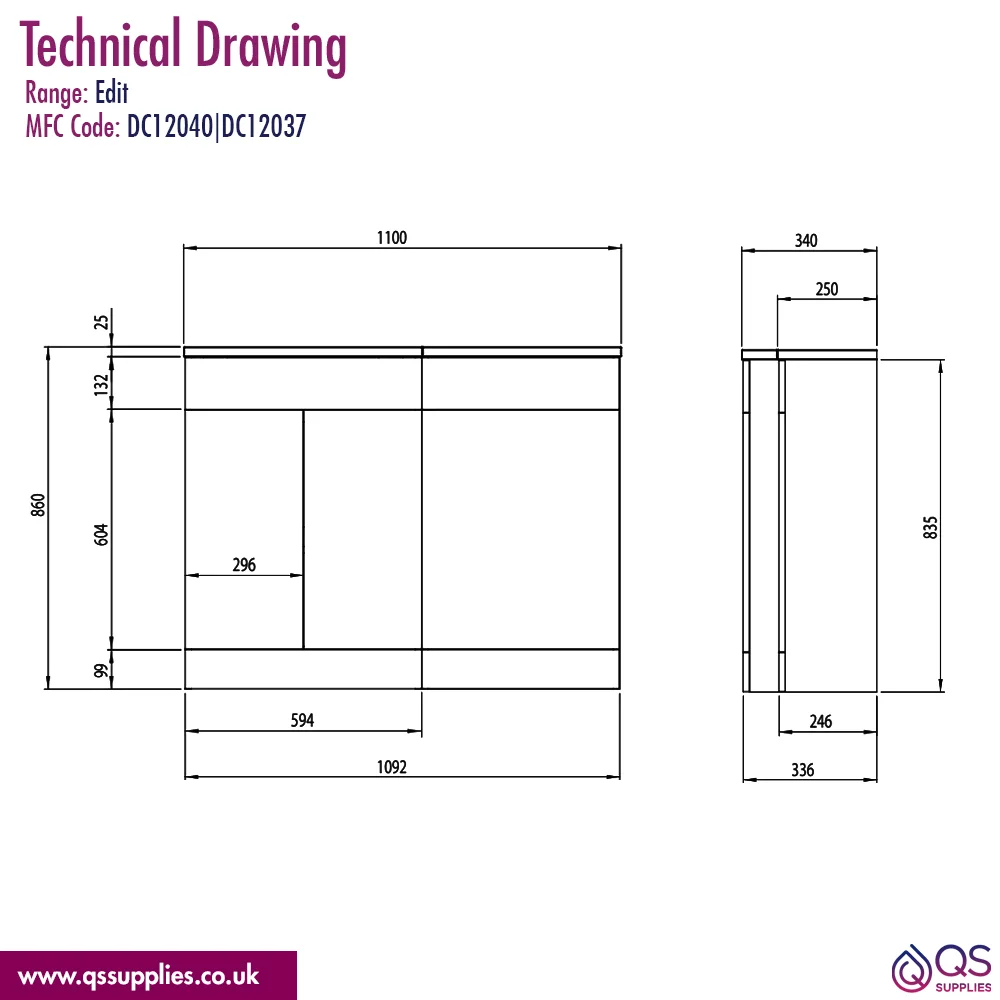

1100mm Unit

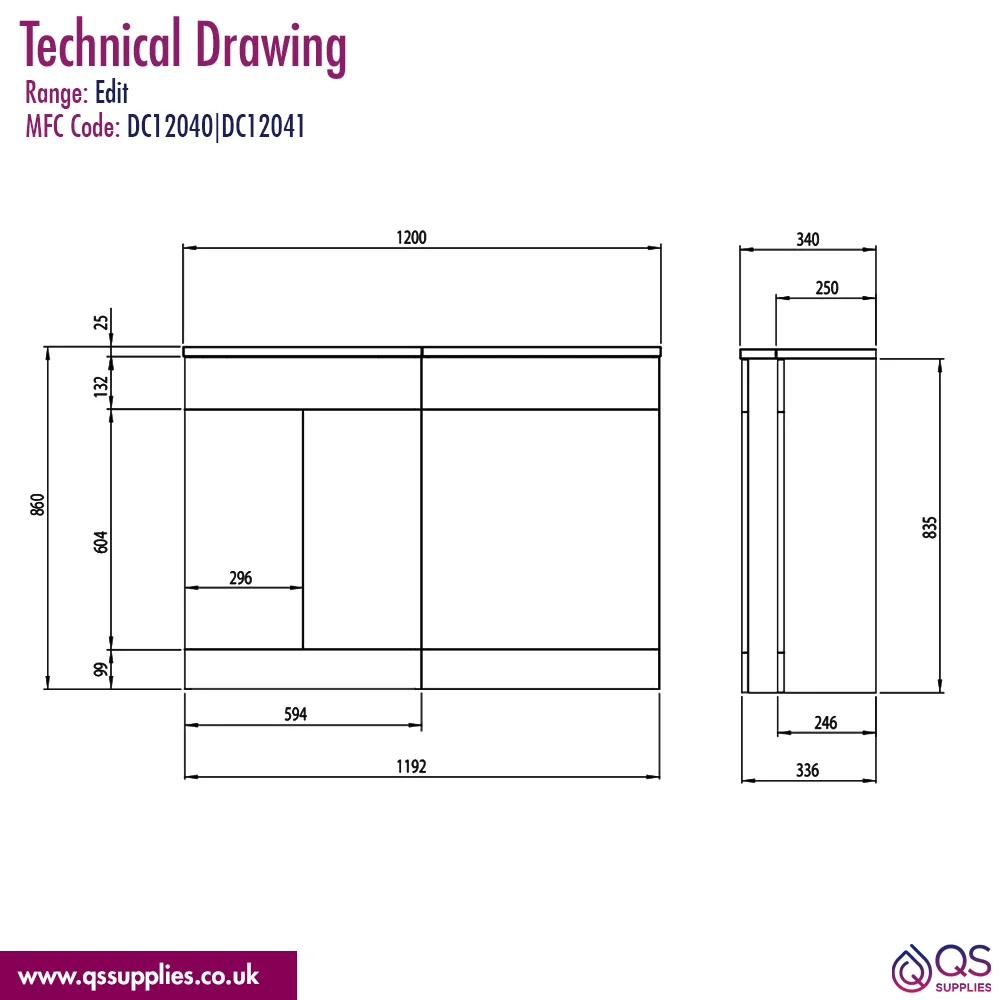

1200mm Unit

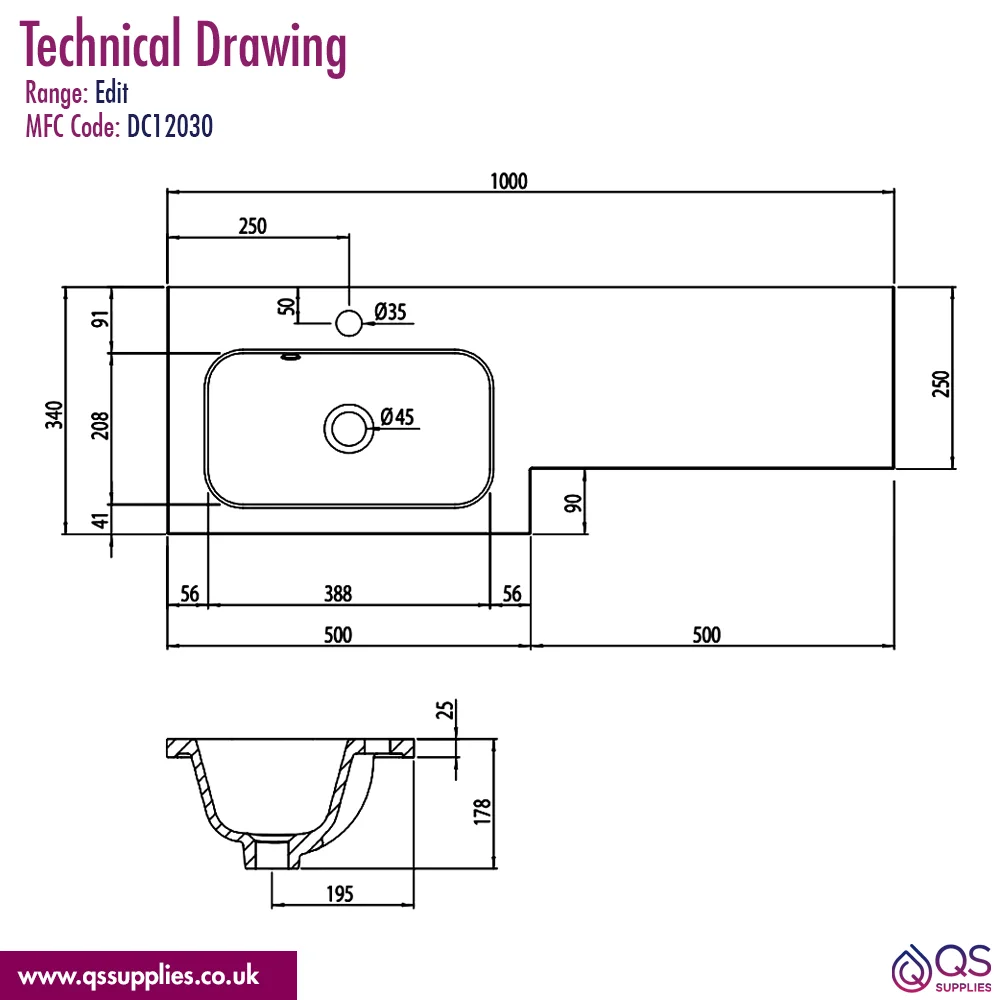

1000mm LH Basin

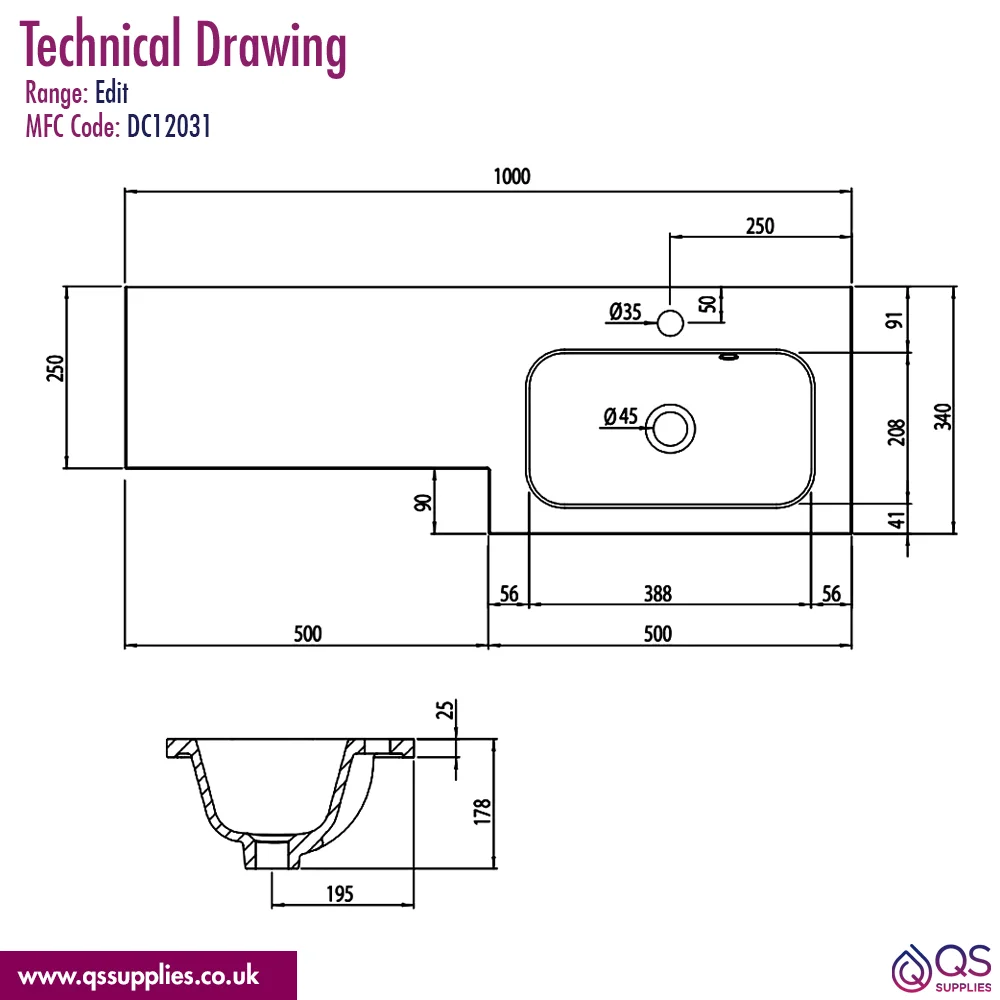

1000mm RH Basin

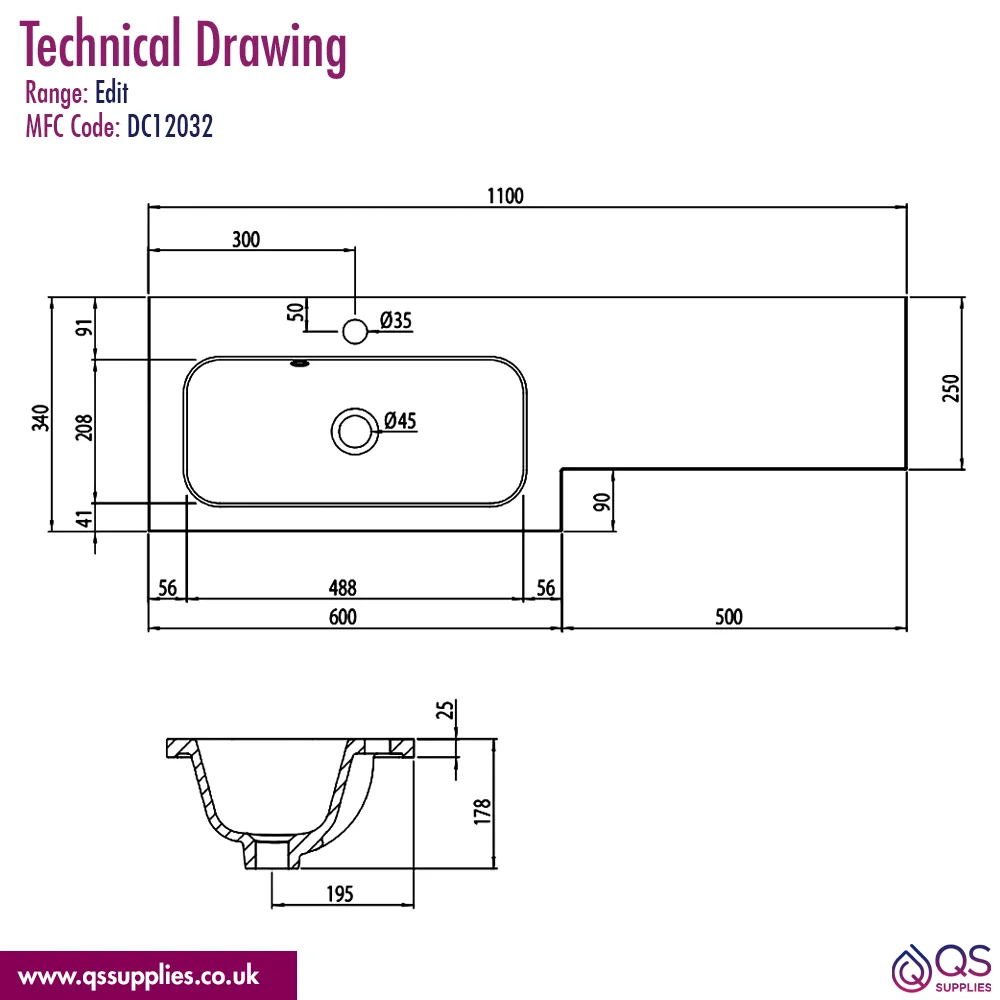

1100mm LH Basin

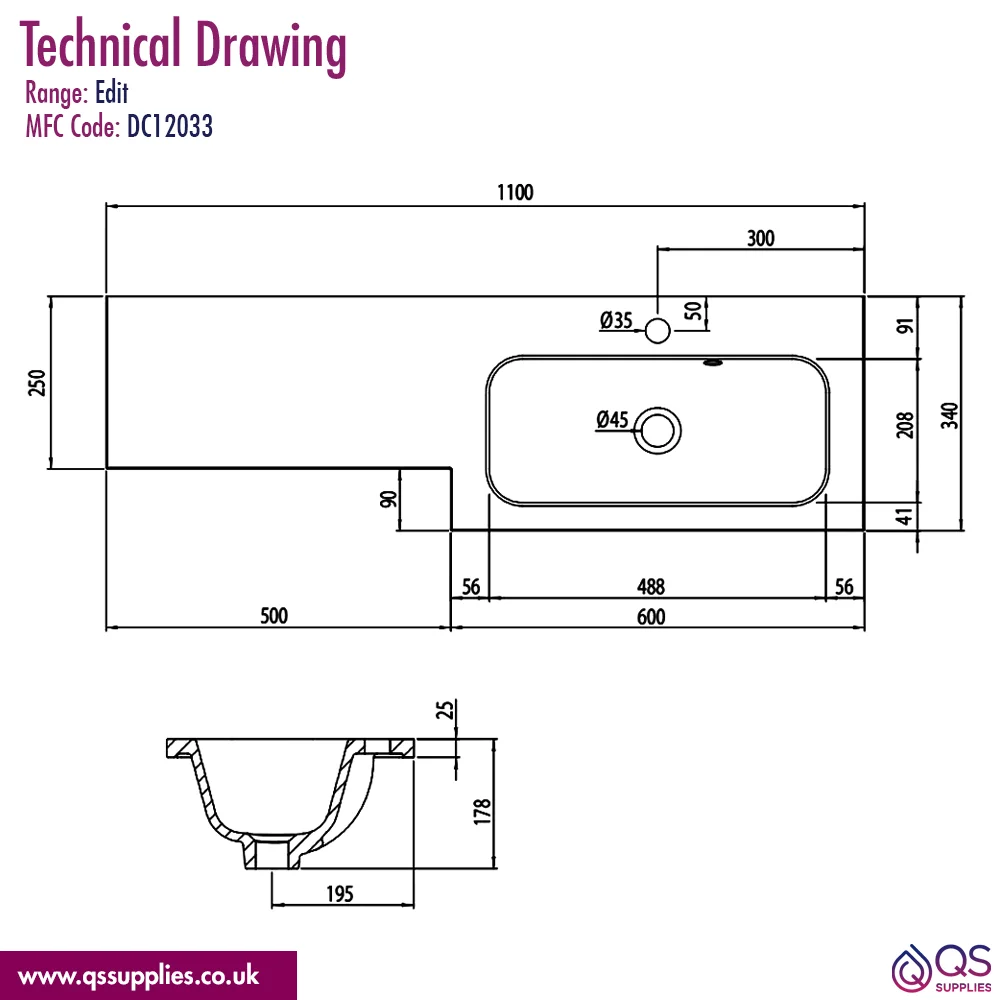

1100mm RH Basin

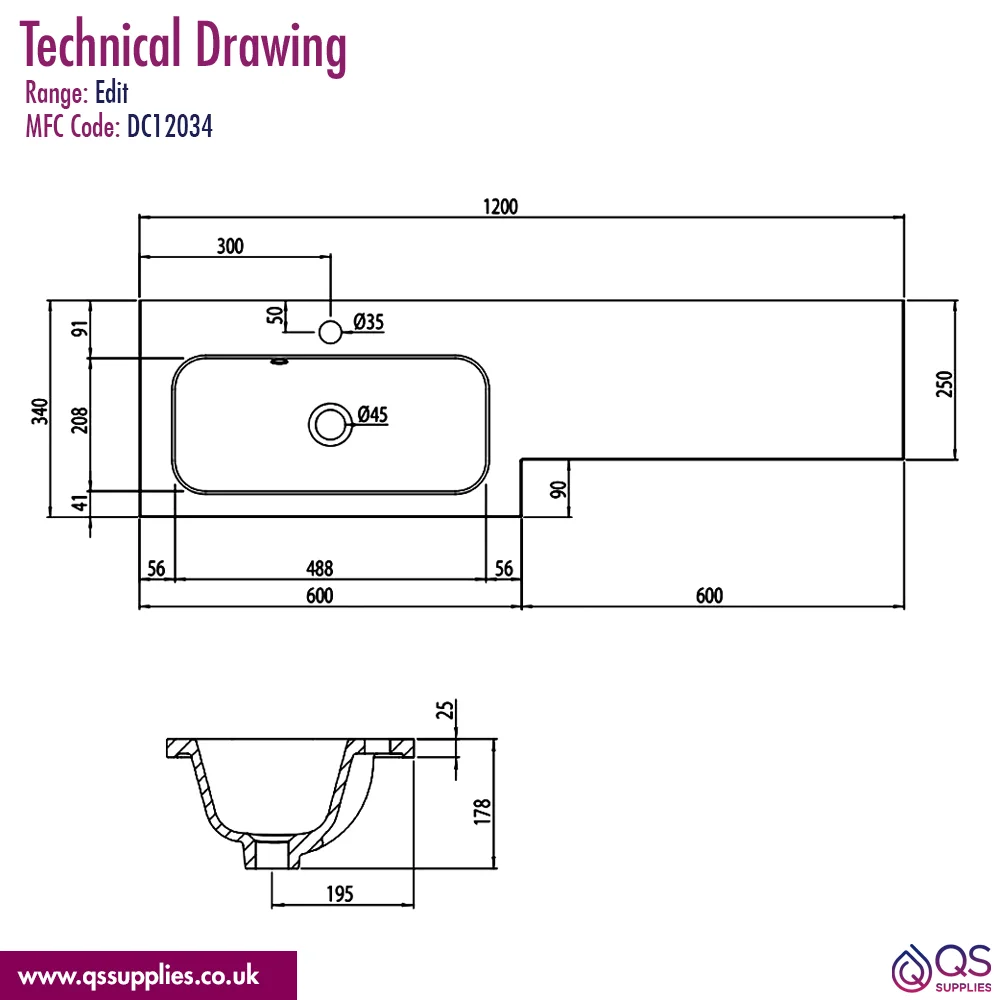

1200mm LH Basin

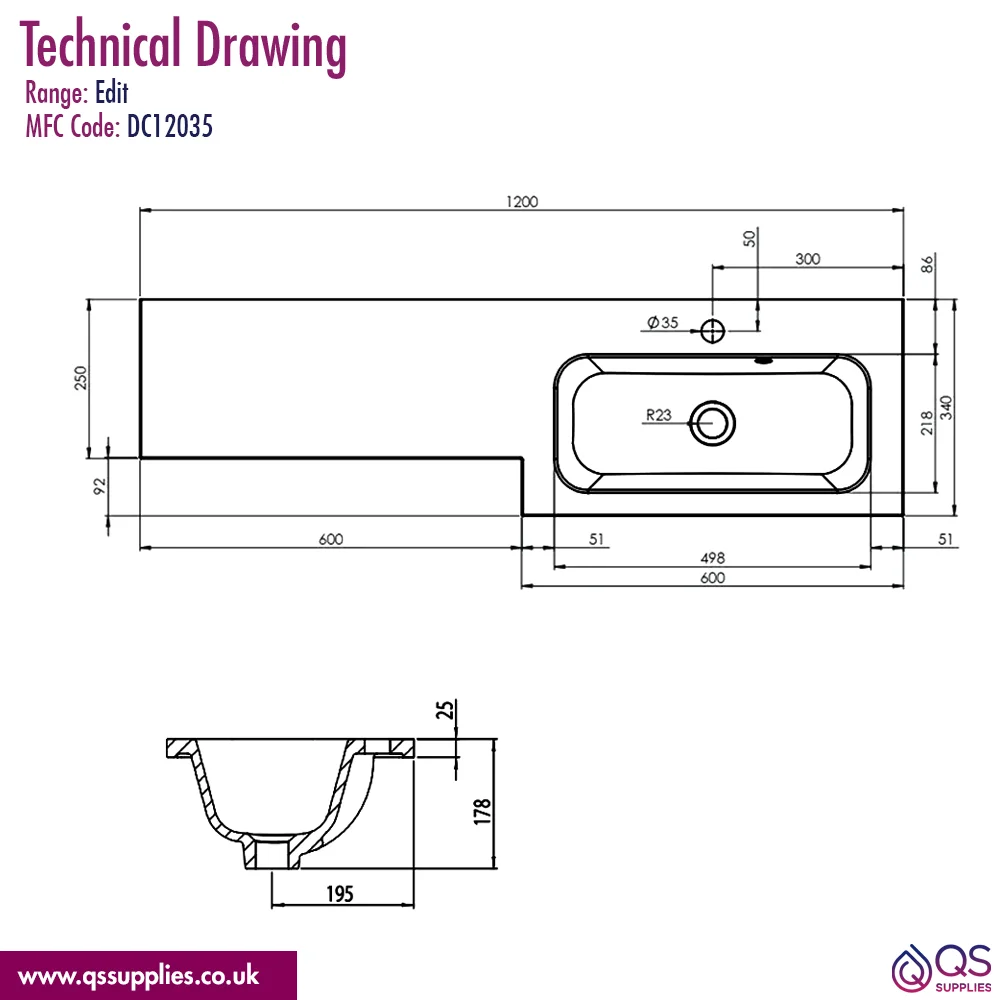

1200mm RH Basin

Add-Ons

Furniture Handles

To provide an exclusive look and feel to your furniture, Roper Rhodes presents furniture handle as an optional. Please select the appropriate handle of your choice. Please Note: Image shown is for illustration purpose only.

No Option Selected
OP-257740 - Matt Black Pull Handle - 128mm Centres + £11.62
OP-257741 - Brushed Brass Pull Handle - 128mm Centres + £11.62
OP-257742 - Matt Black Pull Handle - 160mm Centres + £11.62
OP-257743 - Brushed Brass Pull Handle - 160mm Centres + £11.62

£329.04

RRP: ~~£595.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it waterproof, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.
