Roper Rhodes Dana Close Coupled WC Pan & Cistern, Seat, 358 x 625mm, DC14065

Roper Rhodes Dana Details

MFC: DC14065

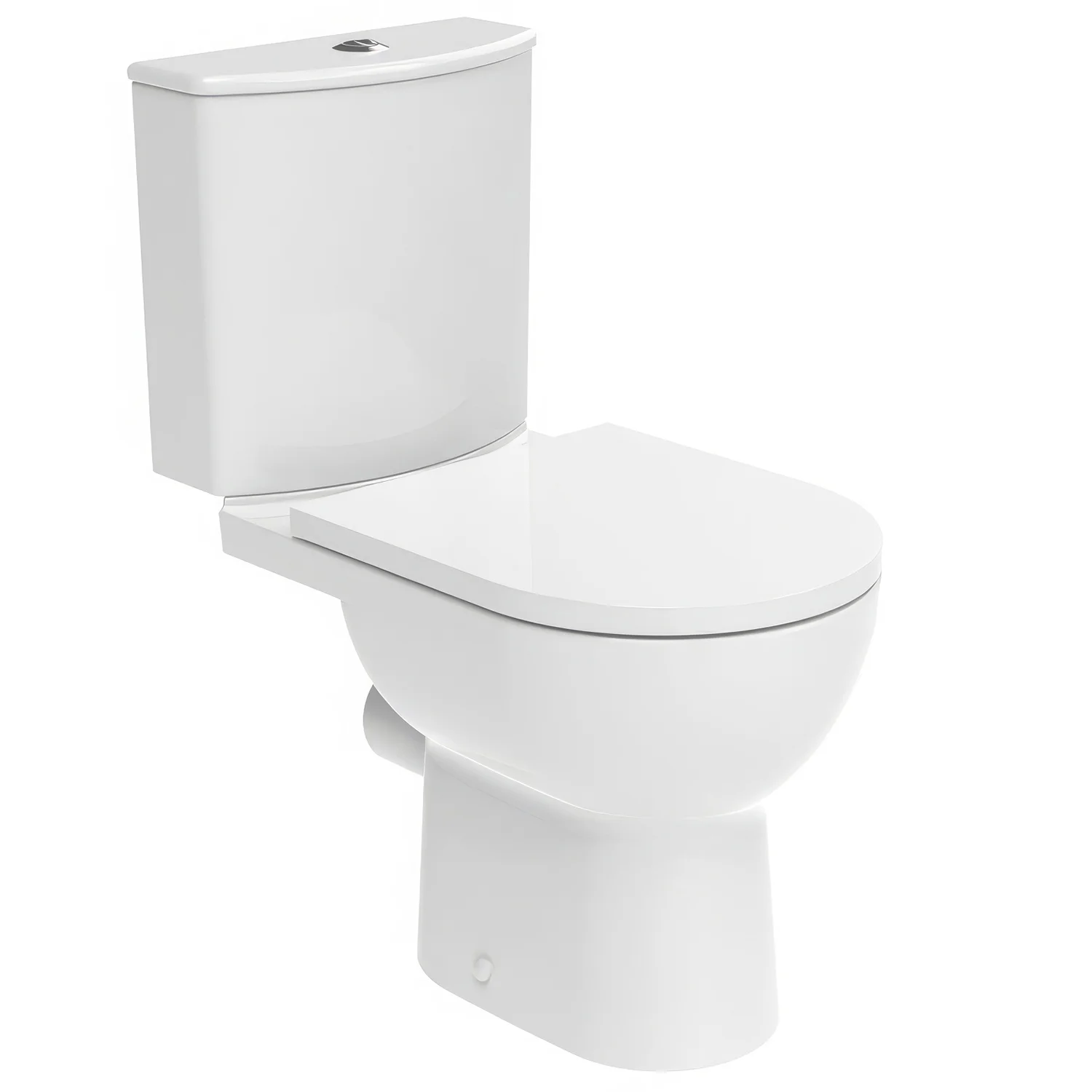

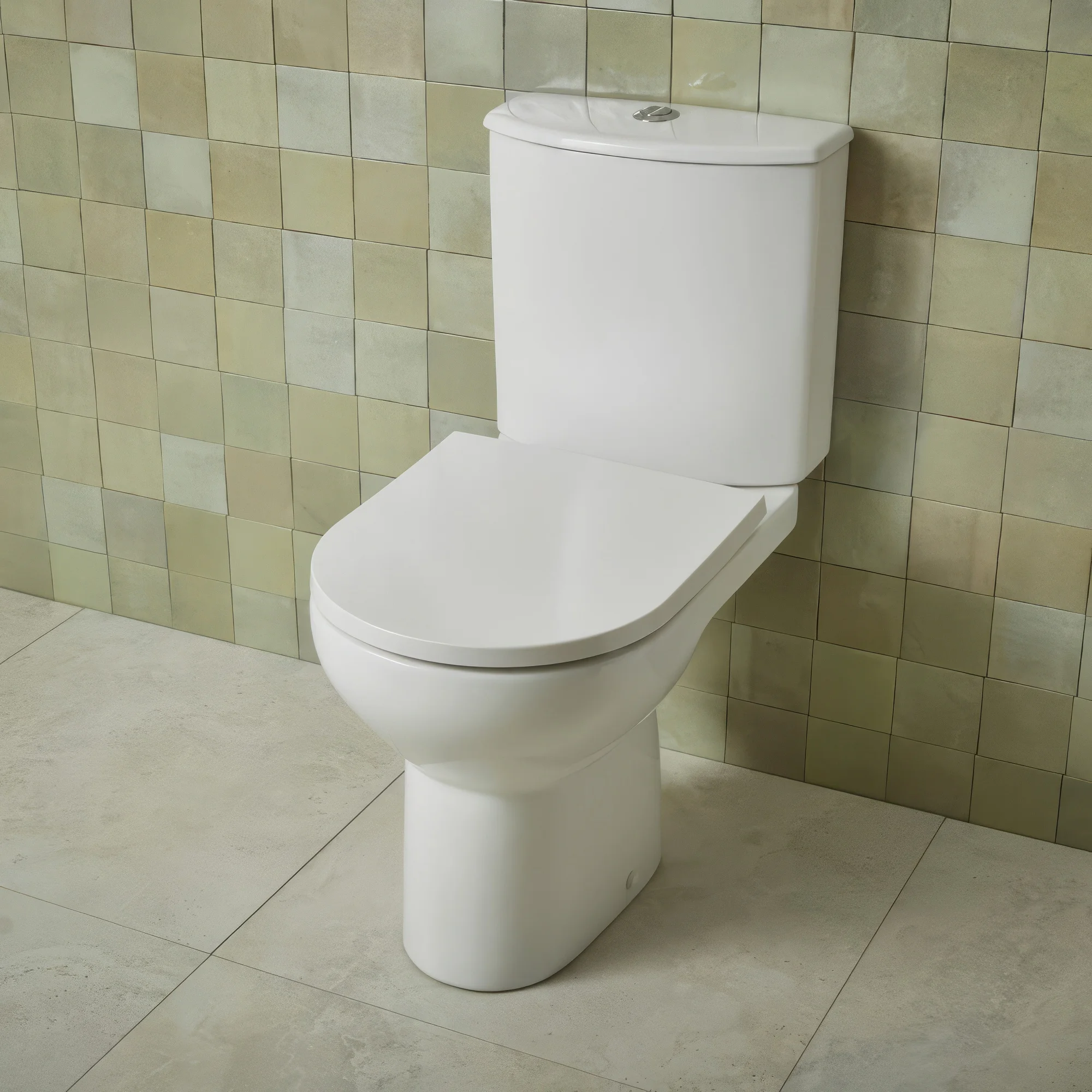

Roper Rhodes Dana Close Coupled WC Pan and Cistern with Thermoset Soft Close Seat - 358 x 625mm.

The Manufacturing Code of this Product is DC14065
It Comes in an Alpine White Finish
Fixings Included
Overall Height: 770mm (77cm)
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Diagram for Complete Technical Details

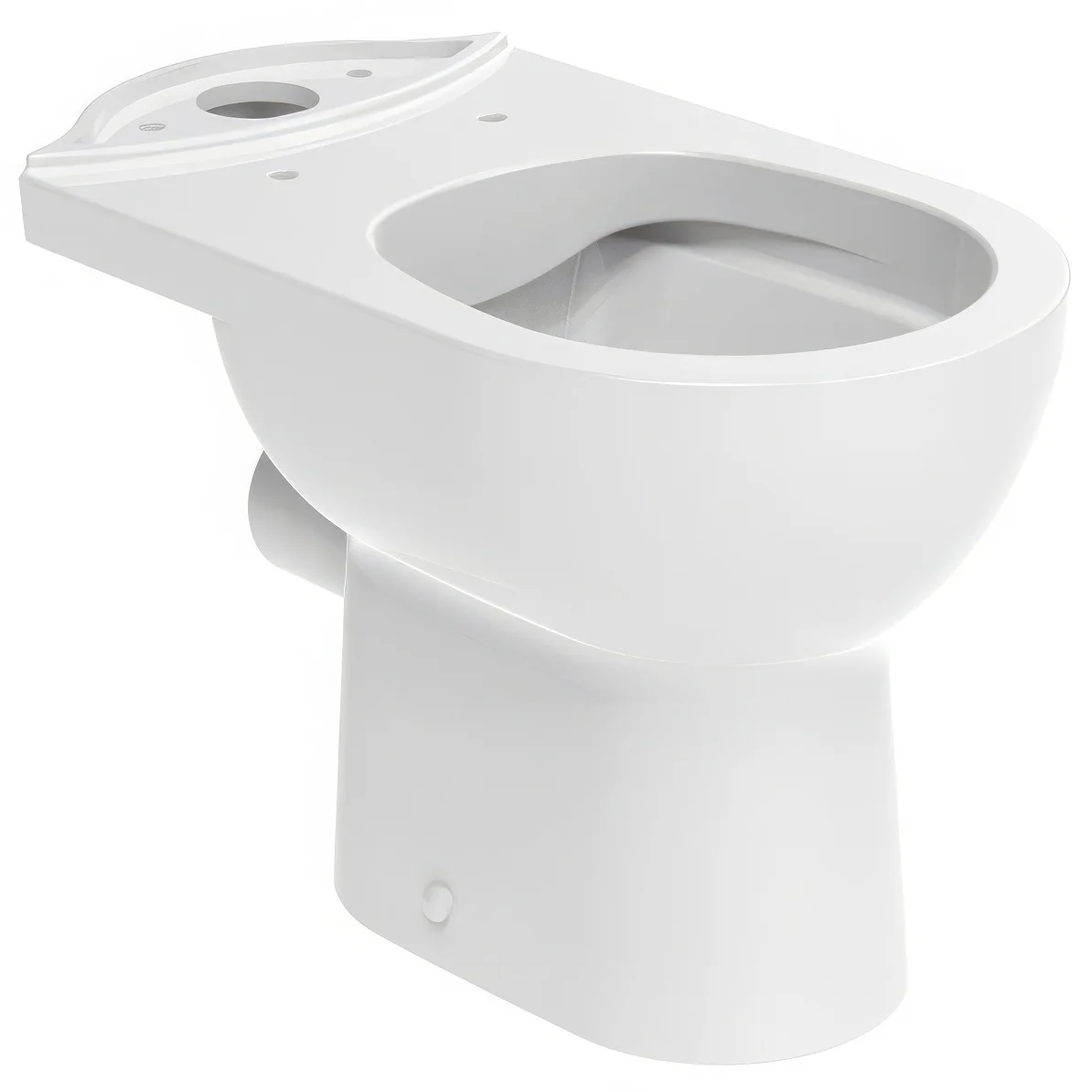

Detail of WC Pan:
Size [mm]: 358 x 400mm [Width x Height]
Size [cm]: 35.8 x 40cm [Width x Height]
Projection from the Wall: 625mm (62.5cm)
Weight: 25 Kg
WC is Supplied with a blanking Plug for the Hole that is not Used
10 Years of Guarantee from the Manufacturer Against any Manufacturing Defect
Detail of Cistern:
Size [mm]: 376 x 160 x 360mm [Width x Depth x Height]
Size [cm]: 37.6 x 16 x 36cm [Width x Depth x Height]
Weight: 13 Kg
A Full Flush of 6 Litres and a Short Flush of 4 Litres
Flush Volume Can be Reduced to 4.5L/3L
Supplied with Chrome Flush Button
Flush Button Upgrades Available [See Options Below]
5 Years of Guarantee On Fittings from the Manufacturer
Detail of Seat:
Size [mm]: 363 x 426mm [Width x Depth]
Size [cm]: 36.3 x 42.6cm [Width x Depth]
Manufactured using Thermoset Plastic Material
Weight: 3 Kg
D-Shaped Toilet Seat
Supplied with Chrome Hinges
Maximum Test Load of the Seat: 150kg
Slim Design
Single Button Quick Release for Ease of Cleaning
Soft-Close Secure-Fix QR Hinges keep Seat Firmly in Place
Top and Under Fixings
Cover Cap Upgrade Available - [See Options Below]
10-Year Guarantee from the Roper Rhodes Against Manufacturing Defect

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Dana
⤷ Toilet Design
: Open Back
⤷ Coating
: Without Coating
⤷ Colour
: Alpine White
⤷ Weight in kg
: 25
⤷ Warranty/Guarantee
: 10-Year | 5-Year
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Pan Width
: 358
⤷ Pan Height
: 400
⤷ Toilet Overall Height
: 770
⤷ Projection (Depth)
: 625
⤷ Rimless Bowl
: Yes
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 376
⤷ Cistern Height
: 360
⤷ Flush Type
: Dual Flush

⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 4
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Configuration
: Pan | Cistern | Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Fixings included
: Yes
⤷ Barcode
: 5016519605570
⤷ Product Type
: Closed Coupled
⤷ Cistern Depth (projection)
: 160
⤷ Seat Post Hole Centers
: 150
⤷ Front Of Bowl To Centre Of Seat Holes
: 432
⤷ Base width
: 215
⤷ Base Depth (projection)
: 360
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction For Seat Pdf File

This item can also be found in:

Add-Ons

Optional Toilet Seat Cover Caps

Crafted from durable material ensure a perfect fit and are available in a variety of stylish finishes. Please Note: The image shown is for illustration purposes only.

No Option Selected
OP-257637 - Brushed Bronze Cover Cap + £25.91

Push Button For Cistern

Quality manufacturing and beautifully crafted with eye catching finishing push button. Image shown is for illustration purpose only.

No Option Selected
OP-258151 - Brushed Bronze Ø38mm Dual Flush Button + £20.32
OP-258152 - Brushed Nickel Ø38mm Dual Flush Button + £20.32

Roper Rhodes Dana Close Coupled WC Pan and Cistern with Thermoset Soft Close Seat - 358 x 625mm

£138.47

RRP: ~~£241.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards their edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.
