Ideal Standard Connect Air Washdown Close Coupled WC Pan & Cistern, E009701|E080801

Ideal Standard Connect Air Details

MFC: E009701|E080801

Ideal Standard Connect Air Washdown Close Coupled WC Pan with Cistern - 365 x 665mm

Key Features

✔Washdown Model
✔AquaBlade Technology
✔Supplied with a Fixing Set
✔Manufactured Using Vitreous China Material
✔Lifetime Guarantee from Manufacturer Against Manufacturing Defects

Manufacturing Code of this Product: E009701|E080801
It Comes in a Gloss White Finish
Size [mm]: 365 x 400mm [Width x Height]
Size [cm]: 36.5 x 40cm [Width x Height]
Projection: 665mm [66.5cm]
Weight: 24.3kg
Designer: Studio Levien
Shape: Rounded/Curved
WC Pan with Horizontal Outlet
Accreditations: DoP, Standards
Certificate Number: DoP = CL1-6/5-VR II, Standards = EN 997

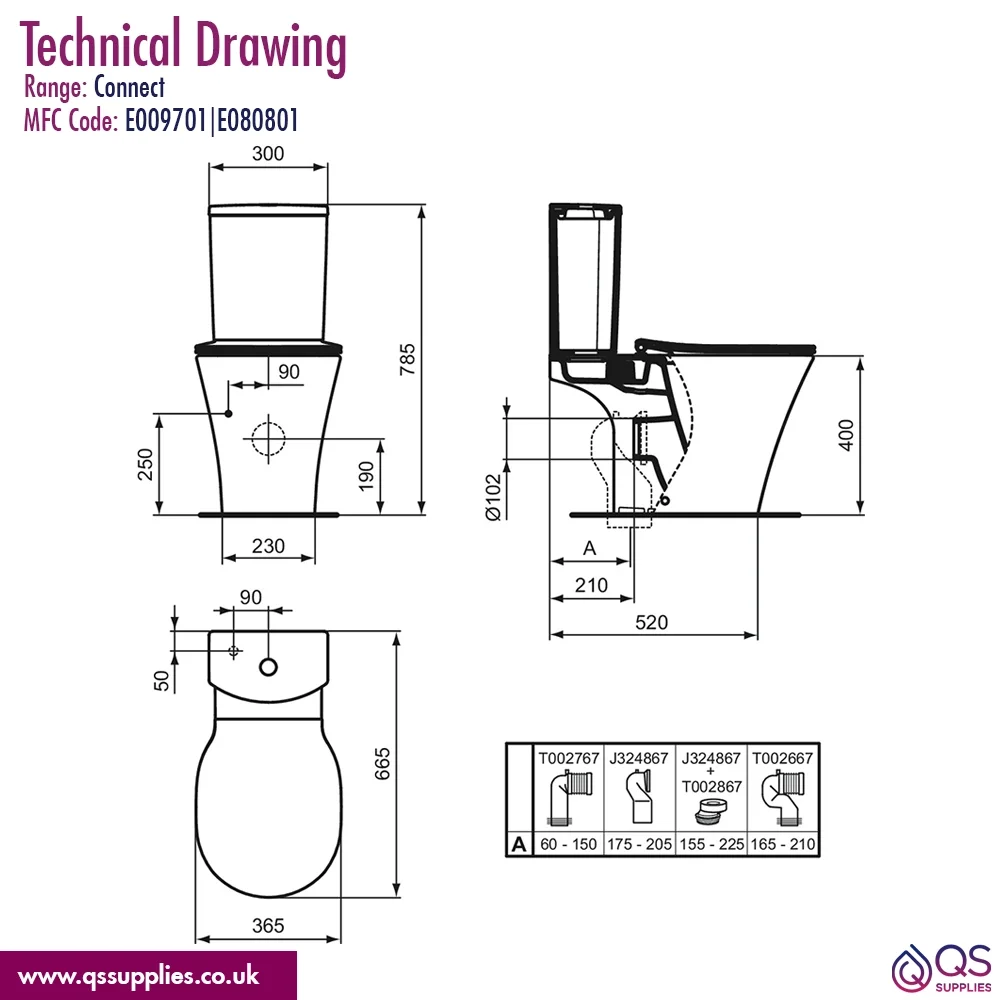

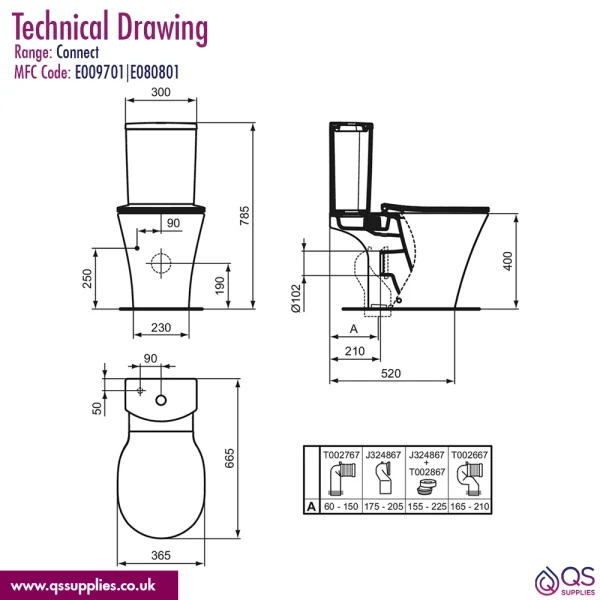

Refer to the Technical Diagram for Complete Technical Dimensions
Details of Cistern:
Water Efficient
Push Button Dual Flush Cistern
Size [mm]: 300 x 178 x 378mm [Width x Depth x Height]
Size [cm]: 30 x 17.8 x 37.8cm [Width x Depth x Height]
Weight: 9.80Kg
Capacity: 4.0/2.6 Litres
Dual Flush Valve
Close Coupled Delay Fill Cistern
Bottom Supply and Internal Overflow

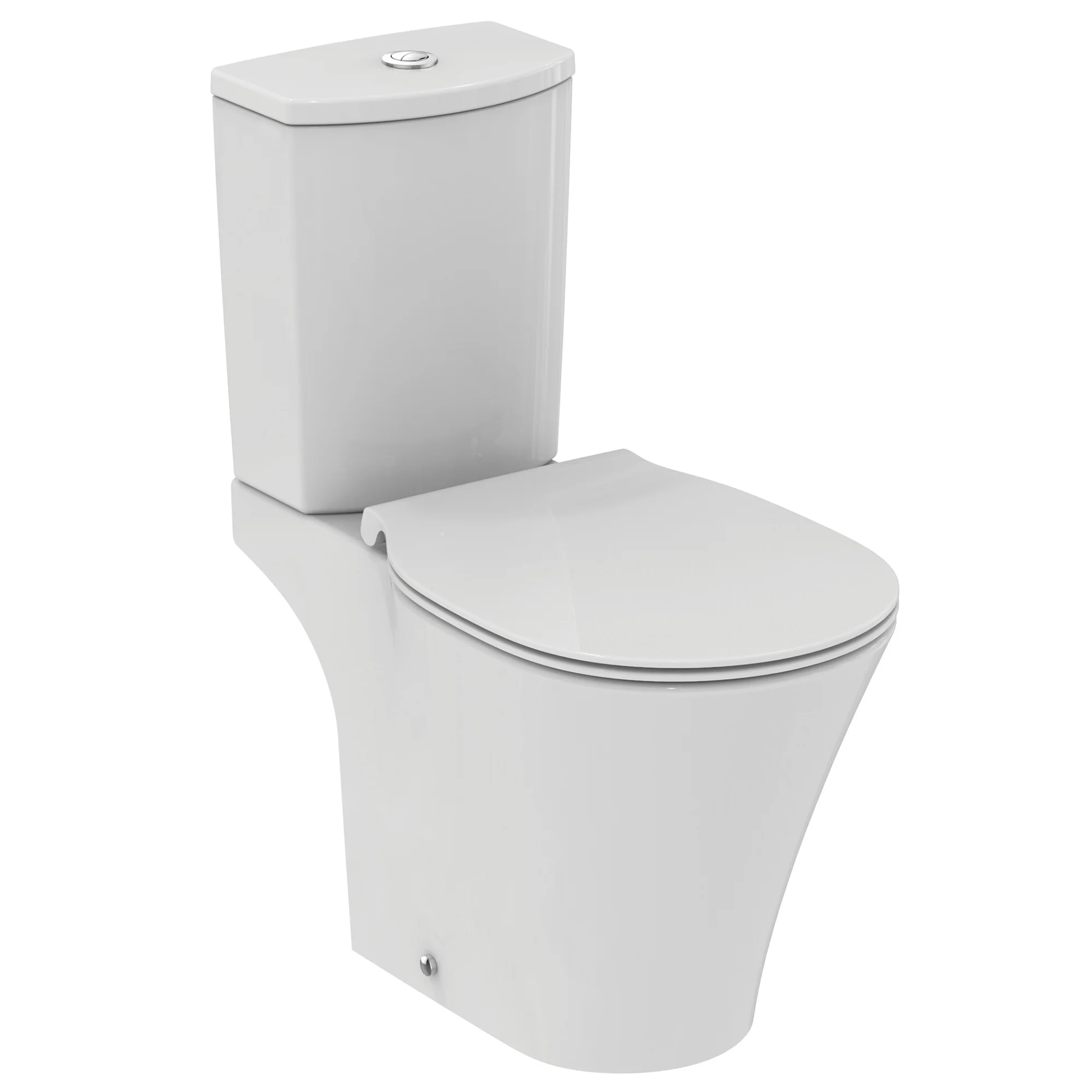

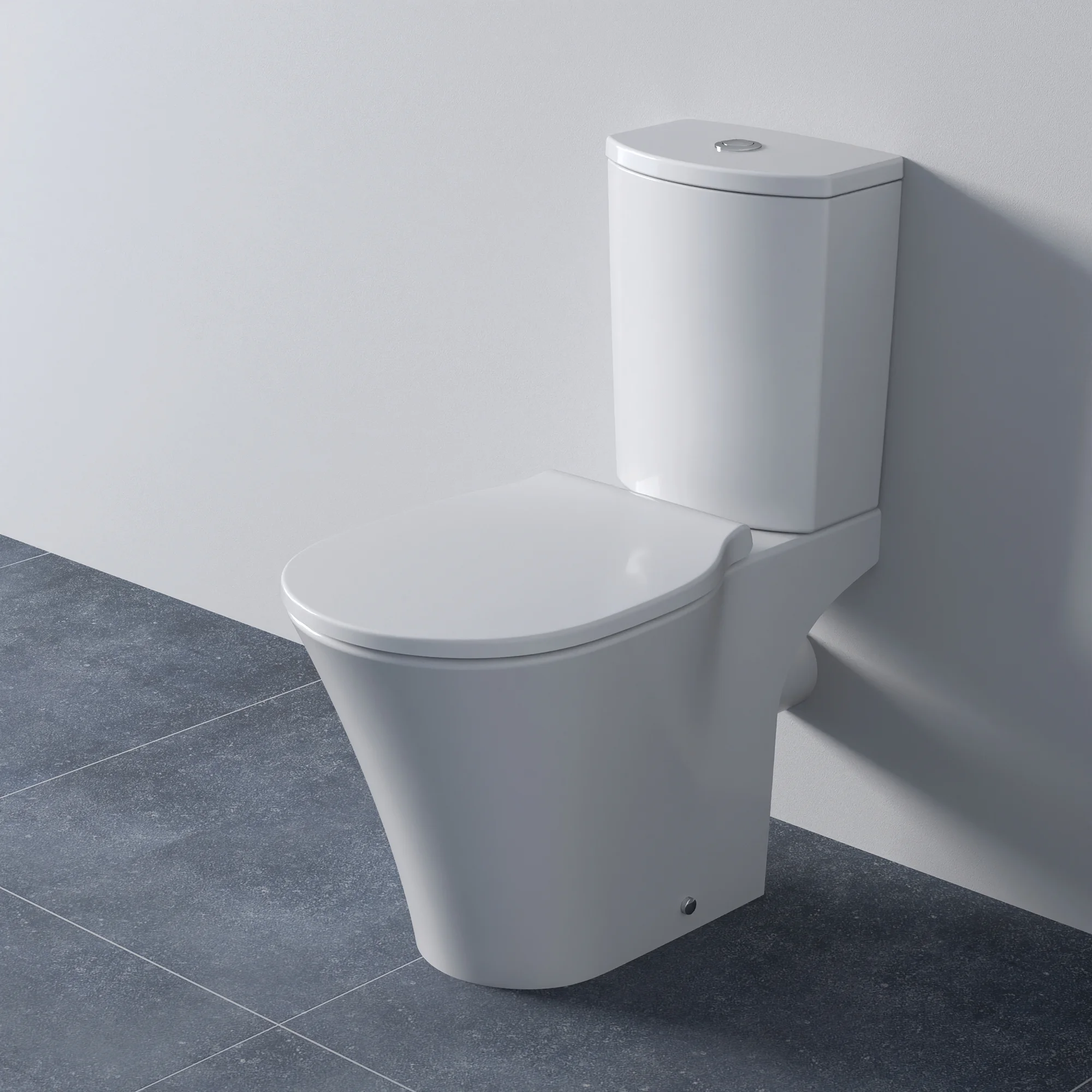

The Seat Shown in the Images is Not Included
Features OF AQUA BLADE® Flush Technology:
Simple, Clean Lines and Contemporary Styling, the Unpleasant, Overhanging Rim is Not Visible -- Only Smooth Curves are Visible
80% of the Consumers Prefer this Technology Over the Standard Box Rim and Rimless Toilet
Offers Superior Flush Performance, Every Time
Its Unique Design Helps Water Flow from the Top of the Bowl, Enabling 90% of the Area to be Rinsed Clean
Internal Channel Generates a Pressurised Cascade of Water That Flows Around the Bowl
2 Strong Jets Merge, as a Result, a Powerful Plume is Formed That drives Solid Matter Easily
Overtakes All Existing WCs When it Comes to Hygiene
Significant Areas of the Traditional Bowls are Left Unwashed, Particularly the Back Bowl
Ensures 100% of the Surface Area Below the Channel is Rinsed Clean
Bacteria Can Harbour Around the Shelf Area in Rimless Toilets, and Also, Water Can Splash Over the Edge of the Bowl, Resulting in Bacteria Particles Being Released Into the Air, Ensuring That the Bacteria are Completely Washed Away with No Splashing

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Closed Couple
⤷ Range
: Connect Air
⤷ Colour
: Gloss White
⤷ Weight in kg
: 34.1
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Water Saving
: Yes
⤷ Pan Width
: 365
⤷ Pan Height
: 400
⤷ Toilet Overall Height
: 785
⤷ Projection (Depth)
: 665
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 300

⤷ Cistern Type
: Dual Flush
⤷ Cistern Height
: 378
⤷ Flush Type
: Dual Flush
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Configuration
: Bowl Only
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: DoP=CL1-6/5-VR II, Standards=EN 997
⤷ Barcode
: 5017830514183
⤷ Bowl Shape
: Oval
⤷ Cistern Depth (projection)
: 178
⤷ Base width
: 230
⤷ Outlet Diameter
: Ø102
⤷ Base to centre of outlet
: 190

Additional Info & Downloads

This item can also be found in:

Open Back Toilets

Ideal Standard Connect Air Washdown Close Coupled WC Pan with Cistern - 365 x 665mm

£507.60

RRP: ~~£634.00~~

Stock Availablity: 10 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

BS EN 997 Standard

This standard specifies the constructional, performance requirements and test methods for close-coupled suites, one-piece and independent WC pans with integral traps used for personal hygiene made using vitreous china or stainless steel. Compliance with this standard aims to ensure reliability, performance and safety.

Push-Button Flush Valve Cistern

Toilets with push-button flush valves are usually dual-flush toilets. One button triggers a liquid, and the other is for solid flushes. Additionally, since these valves are smaller than levers, they use less water than traditional toilets.

Washdown Model

A washdown toilet uses the weight of the water and gravity to push out the toilet waste from the toilet bowl. The washdown toilet is designed with a short and wide trapway, so that waste can quickly enter the trapway using just the force of water from the tank. A washdown model includes a push-button flush and has a skirted design with a smaller water surface area and a short trapway and can easily handle heavy loads without getting clogged.

AQUABLADE FLUSH TECHNOLOGY

AquaBlade is an award-winning, patented flush technology. It offers a superior flushing action, even with low water volume. The AquaBlade system is an intelligent innovation in flushing that gives a cleaner, quieter flush, thanks to a more innovative design, to offer unmatched hygiene. Upon flushing, the system creates a wall of water that cascades from the top of the toilet bowl, along with two powerful plumes of water, for energising flushing action. The toilet is designed so that it flush bacteria away with a powerful flushing system without splashing.

Open-Back Toilet

Open-back toilets are a type of close-coupled toilet with a cistern attached to the back of the toilet, creating one single unit. In the open-back model, there is a space at the back between the toilet bowl and the wall to access pipework at the back, while the closed back does not have a gap.
