Stuart Turner Monsoon Standard S1.5 Bar Twin Black Shower Pump, 46506

Monsoon Details

MFC: 46506

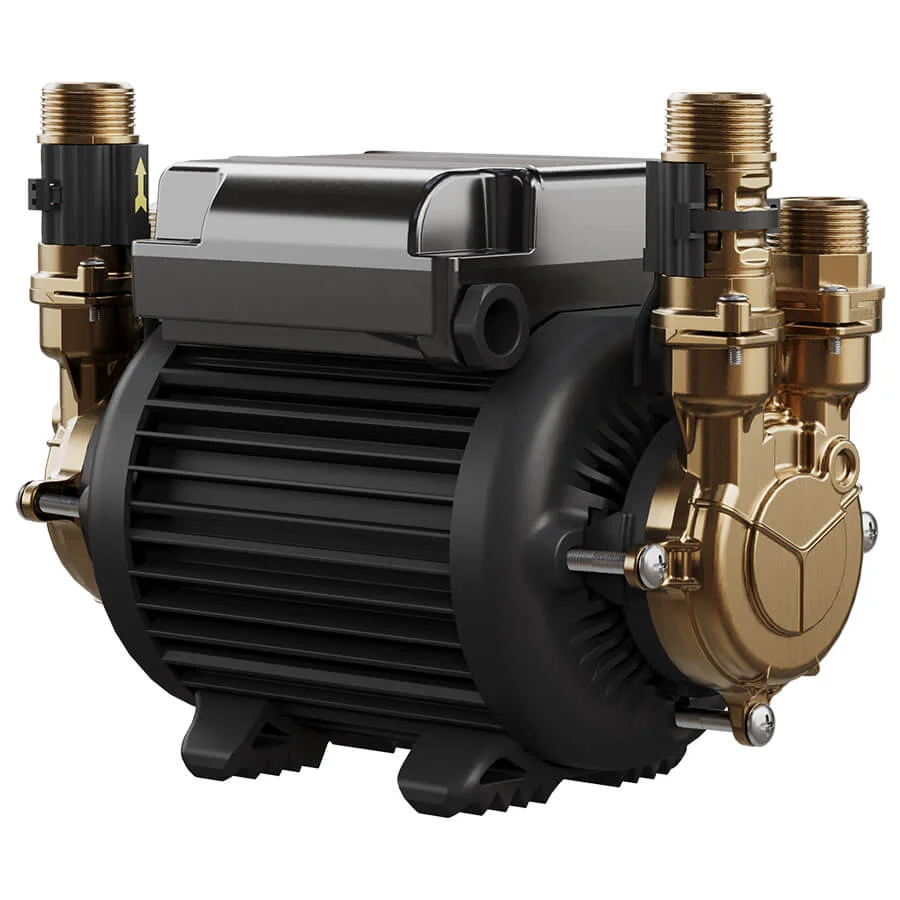

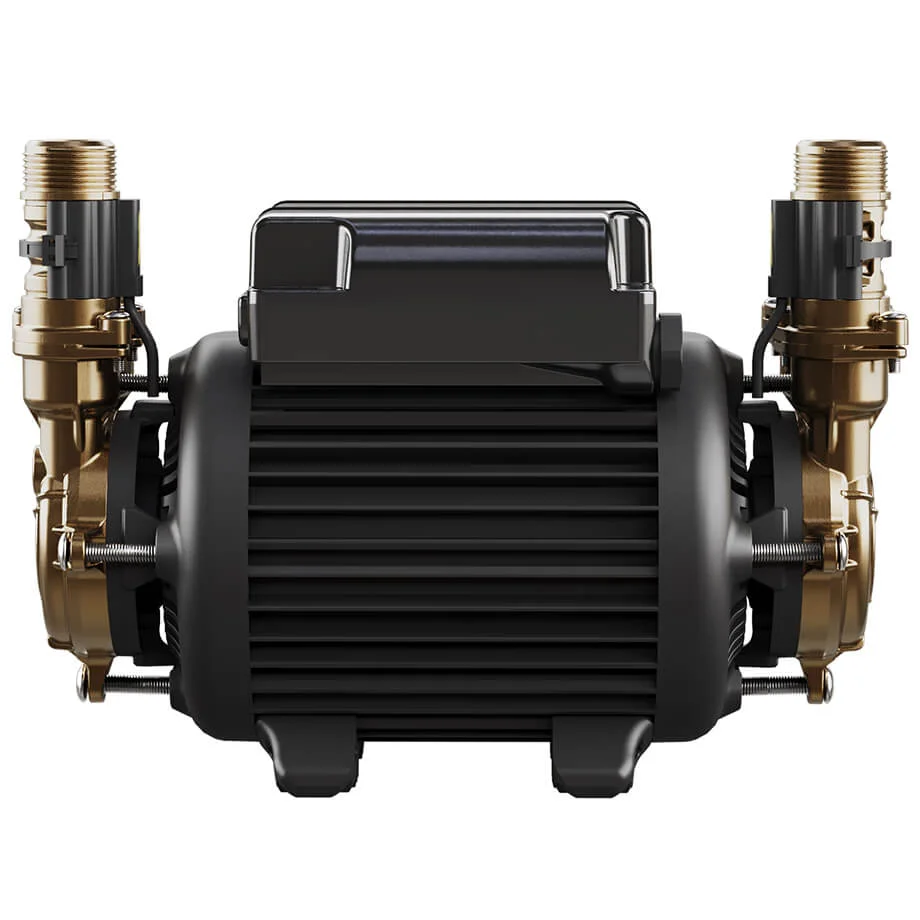

Stuart Turner Monsoon Standard S1.5 Bar Twin Black Shower Pump.

Manufacturing Code of this Item is 46506
Suitable for positive Head Applications
Very Quiet Operation
Continuously Rated
Anti-Vibration Feet
EPDM/PTFE/Al. Oxide Seal
Boosting Water Pressure Within Gravity Fed Domestic Systems
Premium Quality Brass Pump Supplied with Anti-Vibration Hoses
Supplied with 22mm Push-Fit x 310mm Anti-Vibration Flexible Hoses with Integral Isolating Valves
Boosting Hot and Cold Water Supplies to Taps, Showers, a Complete Bathroom or the Whole House in Low Pressure Open-Vented / Gravity Systems
Suitable for Use where there is Already more than 2 litre/min Flow from the Outlet[s] to be Boosted
Features:
Pump Type: Peripheral
Pump Control: Flow Switch
Mechanical Seal: EPDM / PTFE / Al. Oxide
Anti-Vibration Feet
Inlet Strainer[s]
Flexible Hoses: 4
Dry Run Protection
Typical Noise: 48 dB[A]
Performance:
Maximum Head - Closed Valve: 1.5 bar
Performance @ 9 l/min: 1.2 bar
Performance @ 18 l/min: 1.1 bar
Maximum Flow: 49 l/min
Maximum Static Inlet Pressure: 14 Metres
Maximum Working Pressure: 600 kPa [6 bar]
Maximum Ambient Air Temperature: 40°C
Min / Max Water Temperature: Min 4°C / Max 65°C
Flow Switch Sensitivity: 0.6 l/min [Approx]
Constructions:
Enclosure Protection: IPX4
Pump Body / Impeller: Brass
Mechanical Seal: EPDM / PTFE / Al. Oxide
Pump Connections: G3/4 M
Motor:
Type: Induction [Auto-Reset Thermal Trip]
Duty Rating: Continuous [S1] @ 9 l/min and Above
Electrical:
Power Supply [Vac/Ph/Hz]: 230 V a.c. / 1 / 50 Hz
Power Consumption - P1: 345 Watts
Current - Full Load: 1.5 Amps
Fuse Rating: 5 Amps
Power Cable Length: 1.5 metres
Dimensions:
Length: 265mm [26.5cm]
Width: 126mm [12.6cm]
Height Excluding Hoses: 202mm [20.2cm]
Weight Including Fittings: 7.2kg

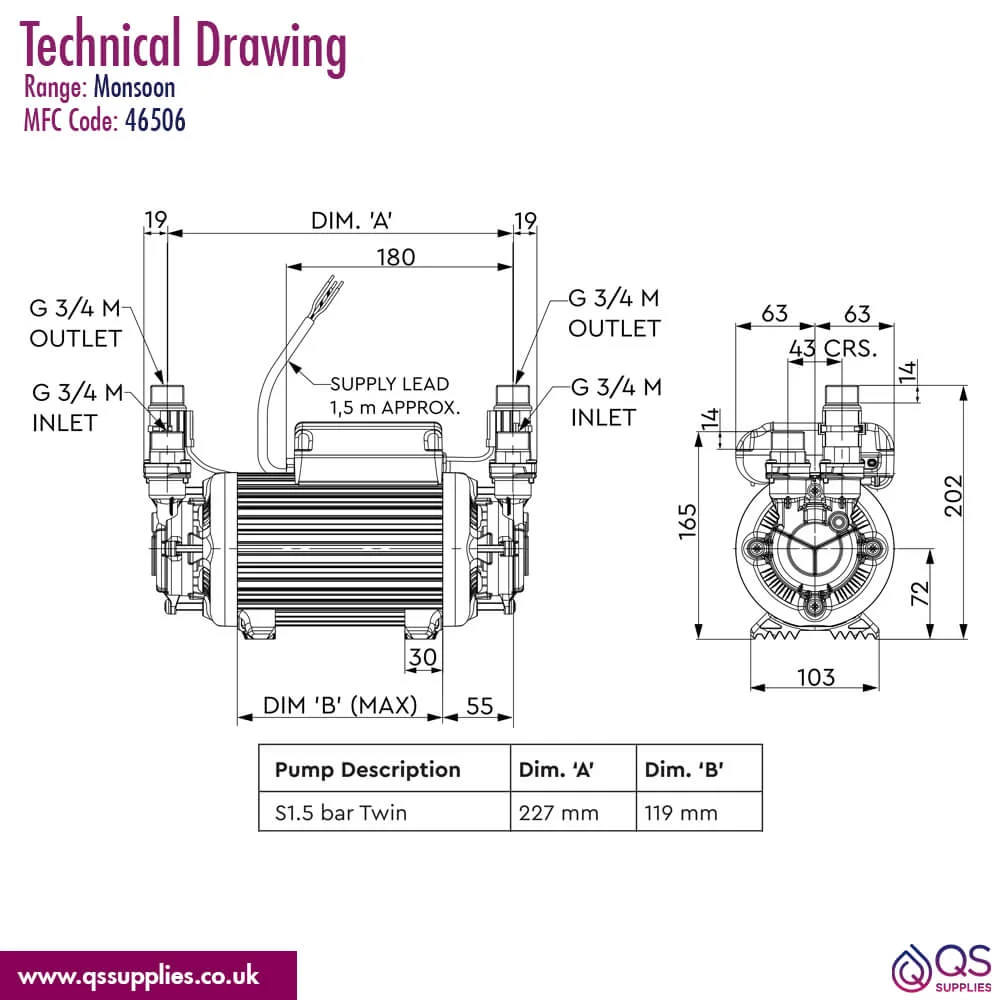

Refer to the Technical Diagram for Complete Technical Dimensions
Download Product Data Sheet and Installation Instructions PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Warranty/Guarantee
: 5 Years
⤷ Width
: 126
⤷ Height
: 202
⤷ Compliance/Approvals/Standard
: Kiwa, WRAS, UKCA
⤷ Product Type
: Twin Pump
⤷ Pump Type
: Peripheral
⤷ Head
: Positive

⤷ Motor Rating
: Continuous (S1) @ 9l/min & Above
⤷ Fuse rating
: 5 Amps
⤷ Closed Head Pressure
: 1.5
⤷ Power Supply
: 230 V a.c. / 1 / 50 Hz
⤷ Power Consumption
: 345 Watts
⤷ Mechanical seal
: EPDM / PTFE / Al. Oxide

Additional Info & Downloads

Download the Product Datasheet Pdf File Download the Installation Instructions Pdf File

Stuart Turner Monsoon Standard S1.5 Bar Twin Black Shower Pump

£456.51

RRP: ~~£768.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.
