Vado Tablet Altitude Concealed Mixer Valve with Head & Rail Kit, TAB-1720/ALT-AS-CP

Vado Tablet Altitude Details

MFC: TAB-1720/ALT-AS-CP

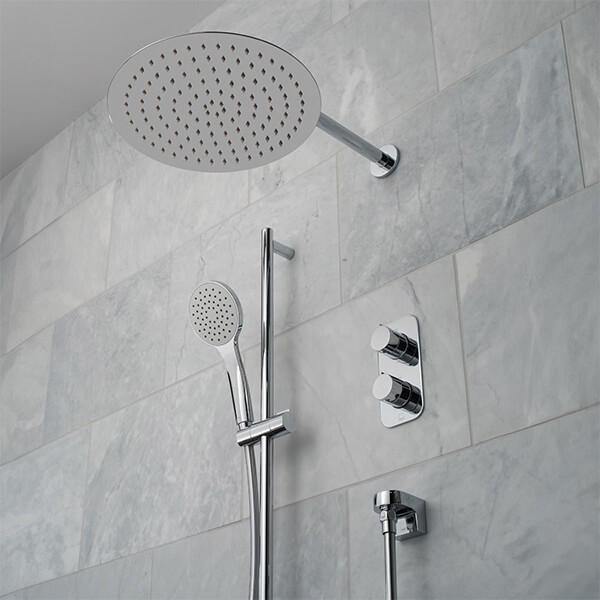

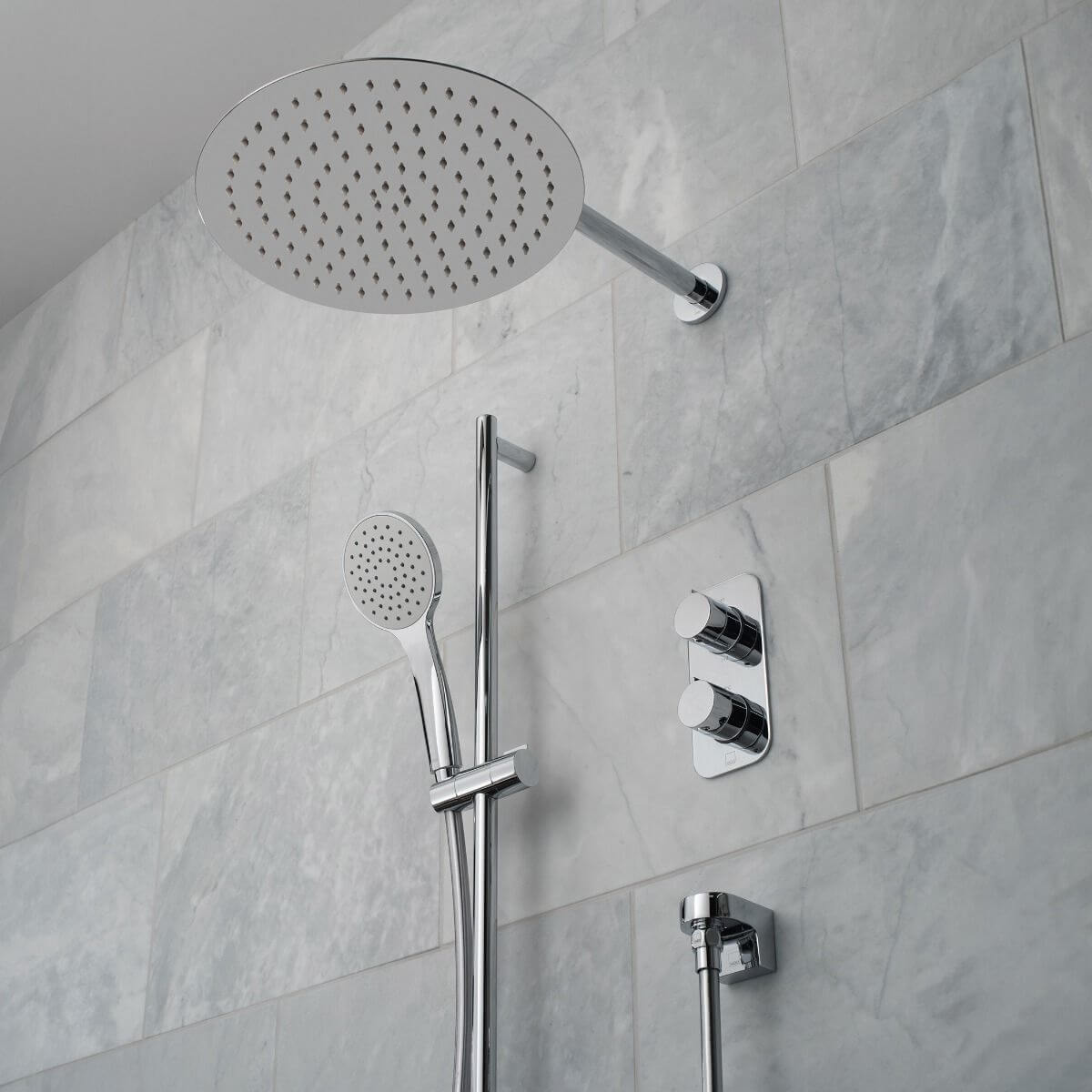

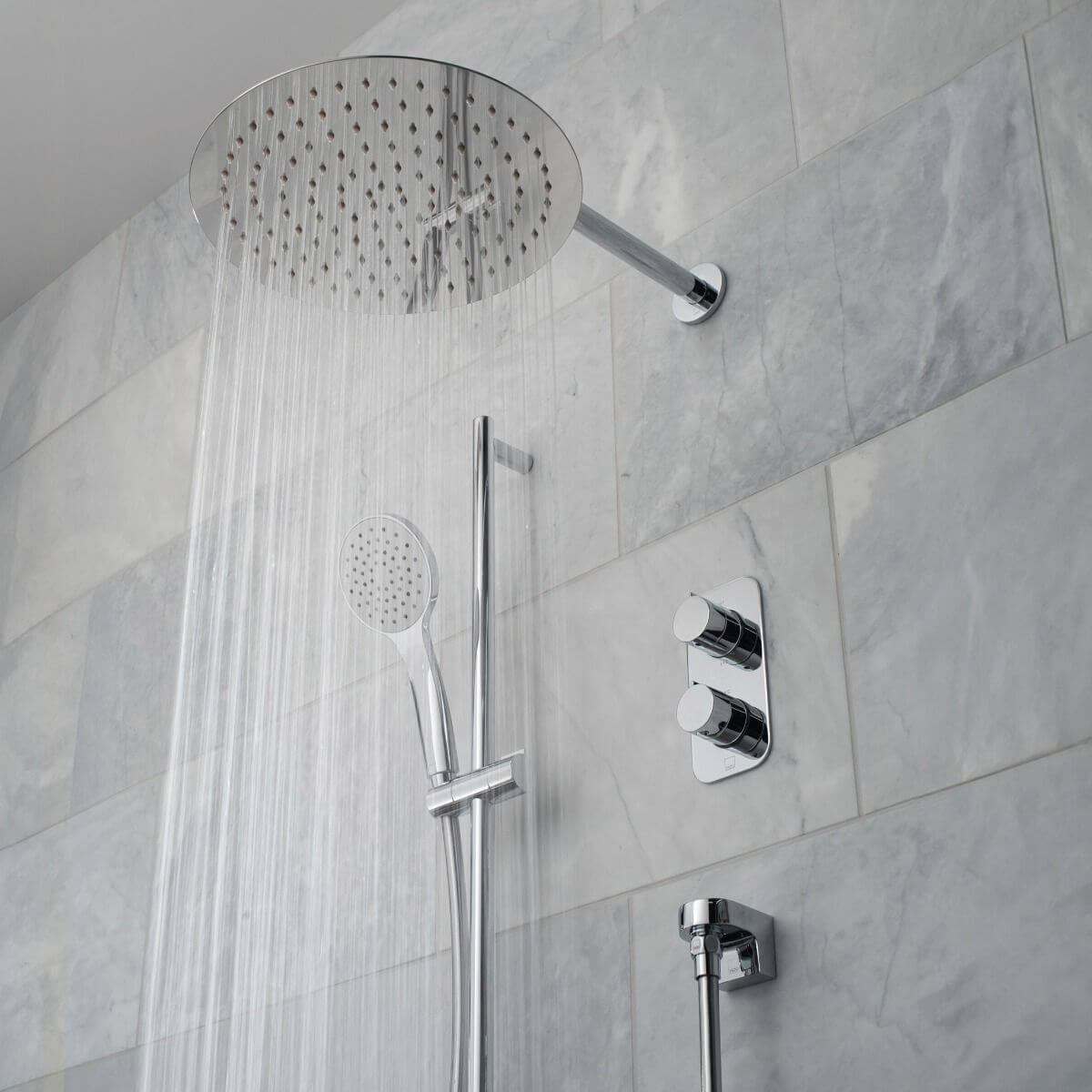

Vado Tablet Altitude Chrome Concealed Mixer Valve with Shower Head and Slide Rail Kit

The Manufacturing Code of the Product is Tab-1720/ALT-AS-CP
Wall-Mounted Installation
It Comes in a Chrome Finish
New Diverter Cartridge that is Resistant to Limescale Build-Up and manages Plumbing Debris More Effectively
The Minimum Operating Pressure Required is 1.0 Bar
Suitable for High Water Pressure System
15-Year Guarantee from Manufacturer Against any Manufacturing Defects
Plumbing System Suitability: Gravity, Pumped, Combination Boiler, Pressurised System
Package Includes:
Concealed Thermostatic Valve with 'All-Flow' Function - Tab-148/2-ALT-C/P
Aquablade 300mm Round Slimline, Easy Clean Shower Head and Arm - AQB-RO/30/SA-C/P
Atmosphere Air-Injected Single-Function Slide Rail Kit - ATM-SFSRK/2-C/P
Life Wall Outlet - LIF-Outlet-C/P
Valve Specifications:
Concealed 2 Outlets 2 Handle Thermostatic Valve
Luxury Soft-Turn Handles
Excellent Flow Rates, Even at Low Pressure
Comes with a Vertical Rectangular Back-Plate
Size: 80 x 170mm [Width x Height]
2 x 3/4-Inch Female Inlets
2 x 3/4-Inch Female Outlets
Includes Fitting for 1/2-Inch and 3/4-Inch Pipework
Features: Thermostatic and Diverter Cartridge
Supplied with Mortar Guard, Complete with Markings to Aid Installation and Tiling
A Flat Back Valve Body Allows for a Solid, Secure Mount
Handles have Multiple Fitting Positions to Allow Perfect Alignment of the Handle and Shroud
25mm Fitting Depth Tolerance: 75-100mm [Minimum - Maximum]
Can Fit Into a 50mm Stud Wall When Using an Optionally Available StudFast Bracket
Screw-On Shrouds and Slide-On Plates Ensure a Rapid and Simple Second Fix
Plate Size Allows for a 10mm Tile-Cutting Tolerance
Optimum Installation Depth: 88mm for Standard Installation
Slide Rail Kit Specification:
Includes Slide Rail, Single Function Air-Injected Handset and Smooth Flex Anti-Twist Shower Hose
Size of Rail: 900 x 66mm [Height x Depth]
Size of Handset: 110 x 251.5mm [Width x Height]
Length of Hose: 1500mm
Flow Rate at 3 Bar Pressure: 14 l/Min
Please Refer to the Technical Drawing For Size Details
Download the Installation and Care Instruction PDF Files from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Concealed
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Spray Setting
: 1
⤷ Configuration
: Valve, Head And Slide Rail Kit

⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Shower Set
⤷ Showerhead Finish
: Chrome
⤷ Hose Type
: Smooth Flex Anti-Twist
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Valve Size
: W 80 x H 170
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø 300

Additional Info & Downloads

Download the Installation Instruction Pdf File

Vado Tablet Altitude Chrome Concealed Mixer Valve with Shower Head and Slide Rail Kit

£792.00

RRP: ~~£1320.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
