Vado Safari Thermostatic Bath Shower Mixer with Diverter, Knob Handles, SAF-223T-CP

Vado Safari Details

MFC: SAF-223T-CP

Vado Safari Thermostatic Bath Shower Mixer Tap with Diverter - Fluted Knob Handles - Wall Mounted

Key Features

✔Made from Brass Material
✔Plumbing System Suitability: Gravity System, Combination Boiler
✔15 Year Guarantee from The Manufacturer

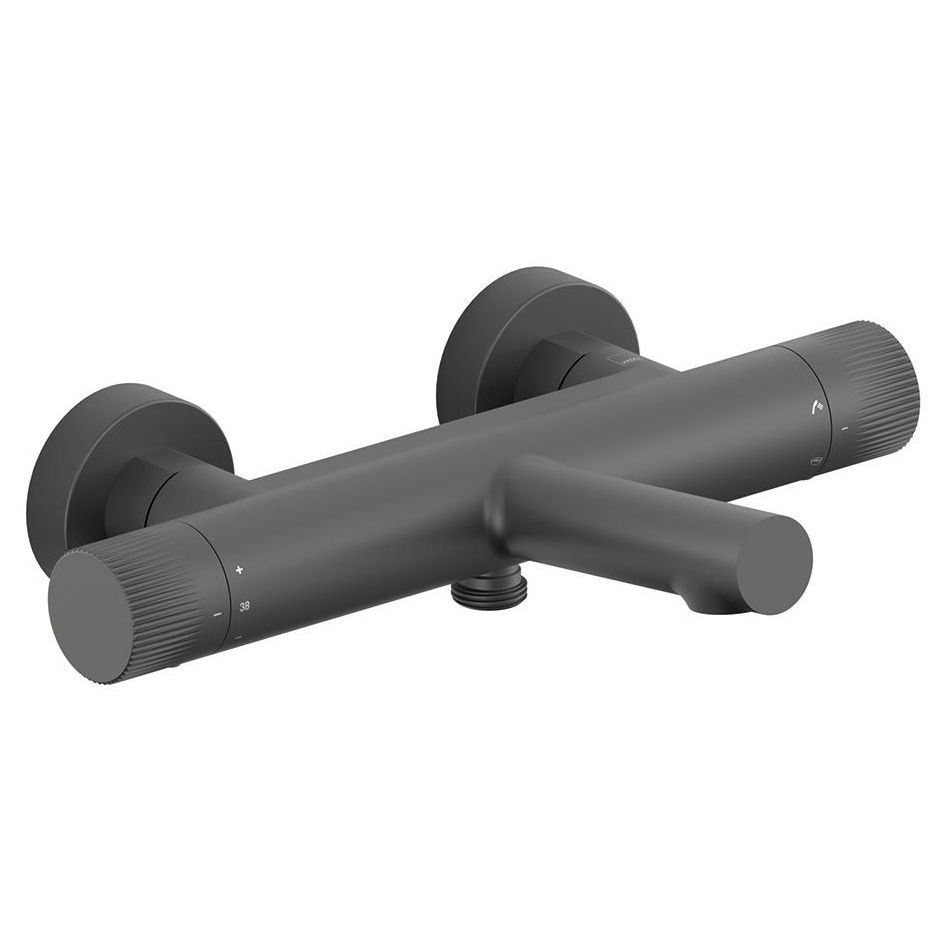

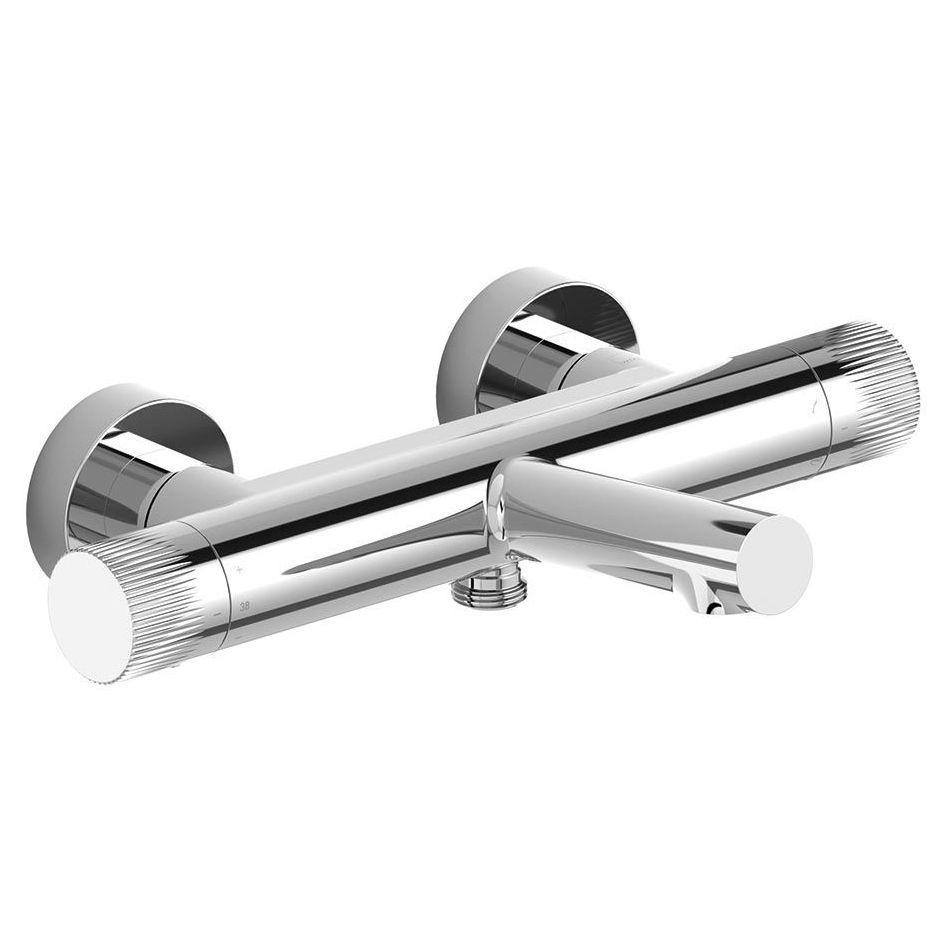

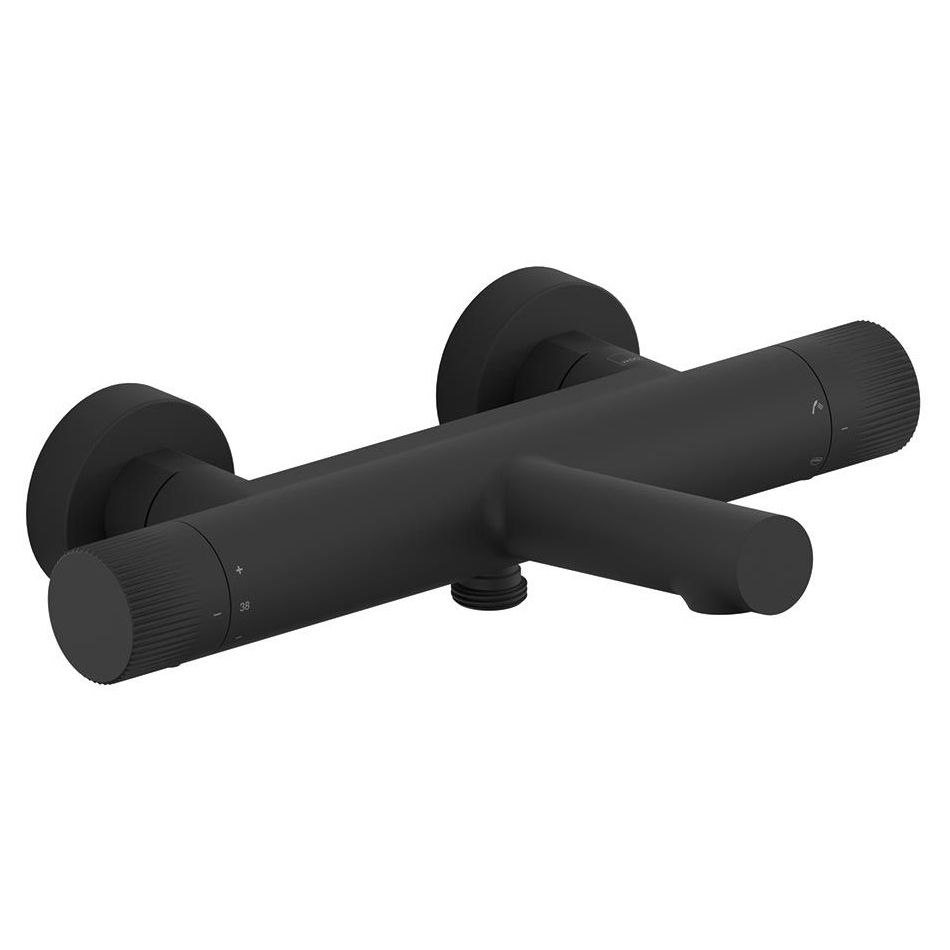

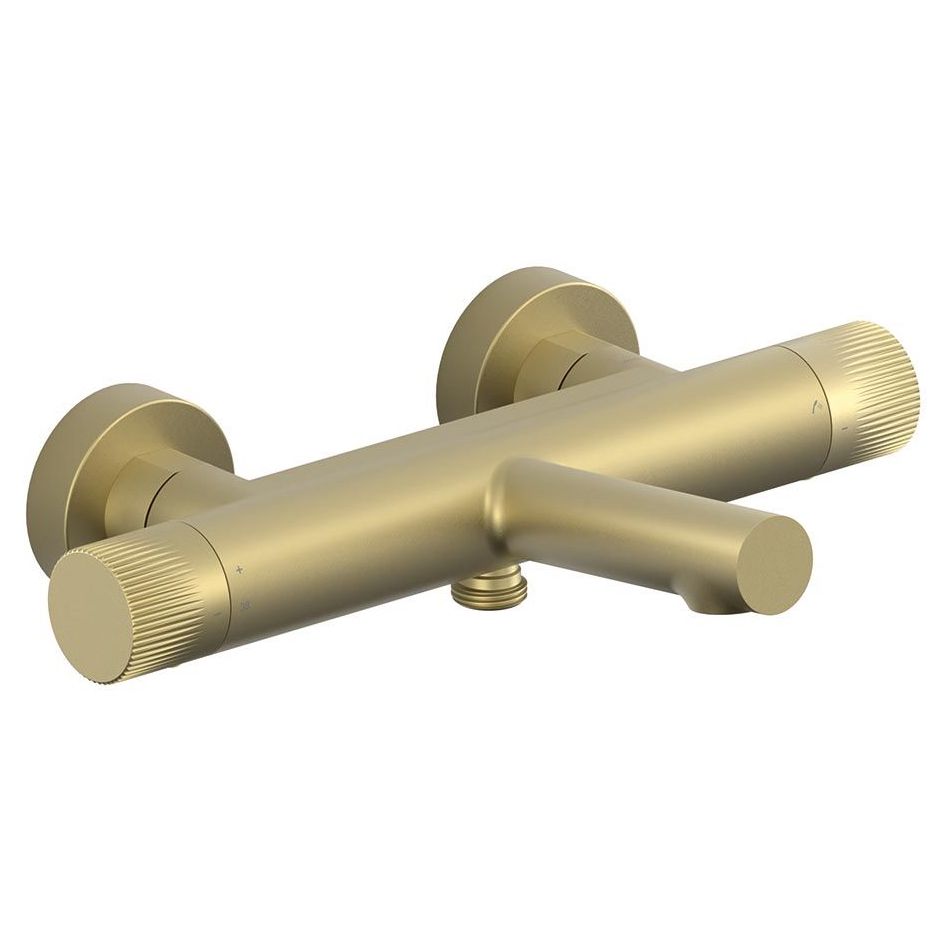

Choice of Finishes: Chrome, Matt Black, Satin Brass and Pewter
Size [mm]: 289 x 198 x 62mm [Width x Depth x Height]
Size [cm]: 28.9 x 19.8 x 6.2cm [Width x Depth x Height]
Wall Mounted Installation
Supplied with Easy-Fit Brackets
Water Flow Straightener Included
Thermostatic Cartridge V-704-34S Regulates the Temperature to Prevent Scalding
Diverter Cartridge C-801-33/2P
Suitable for High Water Pressure System
Requires Minimum 1.0 Bar and Maximum 5.0 Bar

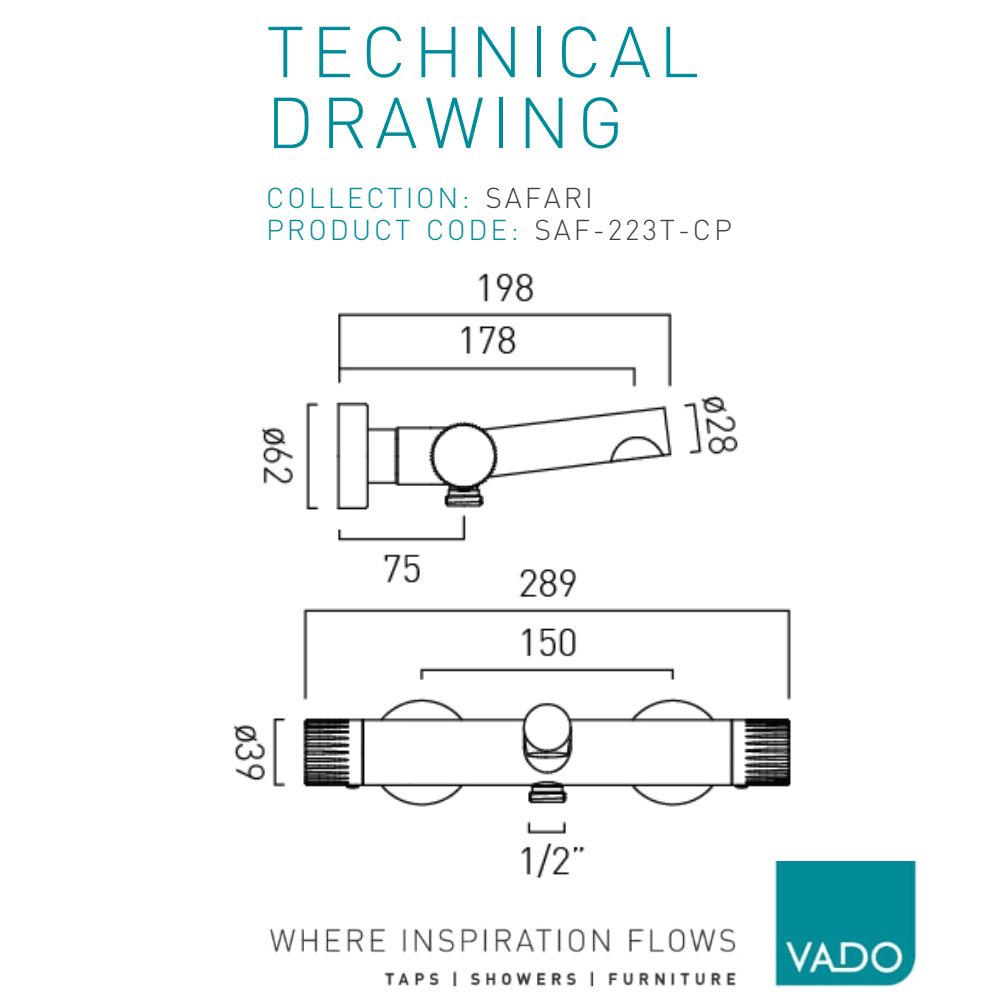

Refer Technical Drawing for Complete Size Details
Download Installation and User Guide PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Tap Body Shape
: Round
⤷ Range
: Safari
⤷ Colour
: Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout Reach
: 178

⤷ Width
: 289
⤷ Handle Style
: Knob
⤷ Depth
: 198
⤷ Height
: 62
⤷ Temperature Control
: Thermostatic
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 2
⤷ Diverter Included
: Yes
⤷ Barcode
: 5052120295014
⤷ Maximum Operating Pressure (Bar)
: 1.0
⤷ Cartridge Type
: Thermostatic

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the User Guide Pdf File

This item can also be found in:

Vado Safari Thermostatic Bath Shower Mixer Tap with Diverter - Fluted Knob Handles - Wall Mounted

£245.00

RRP: ~~£350.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...
