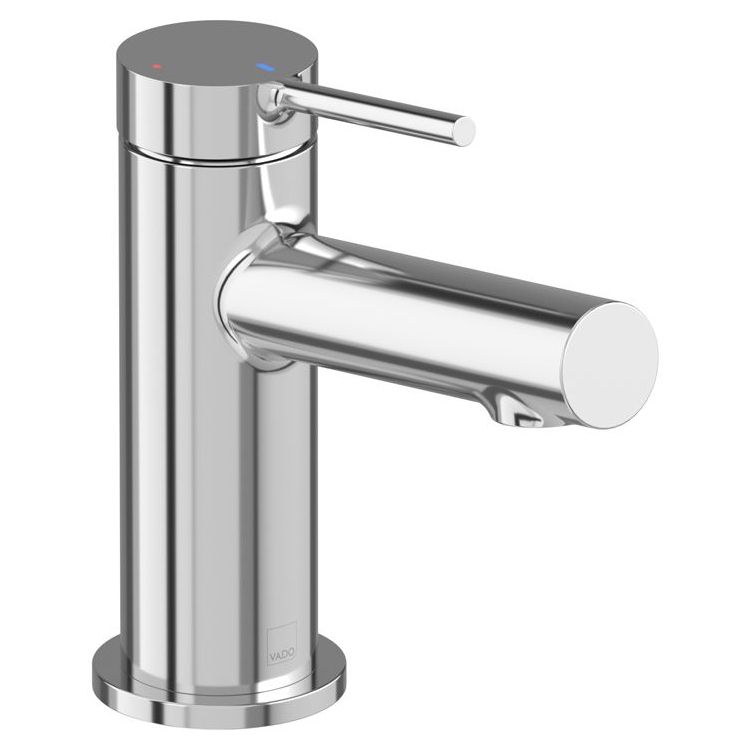

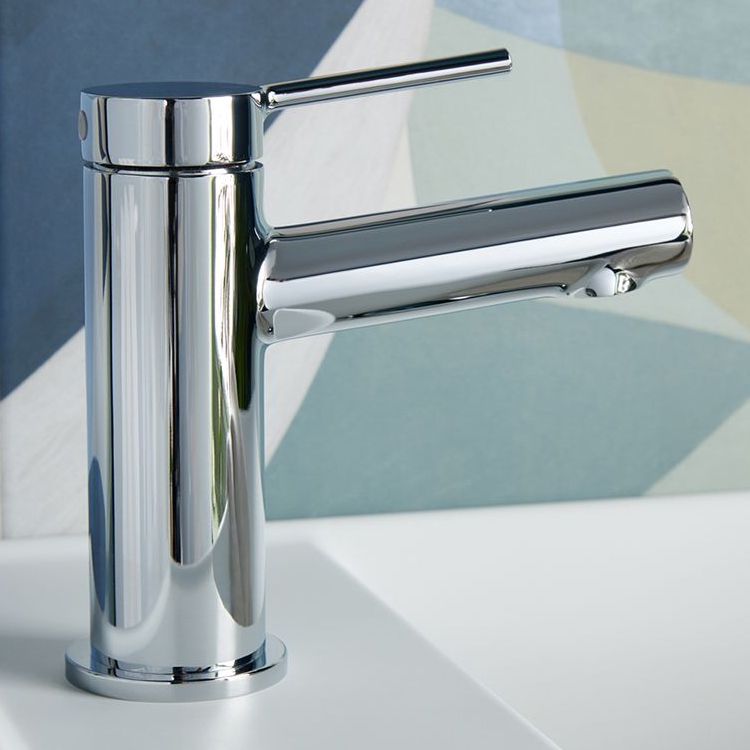

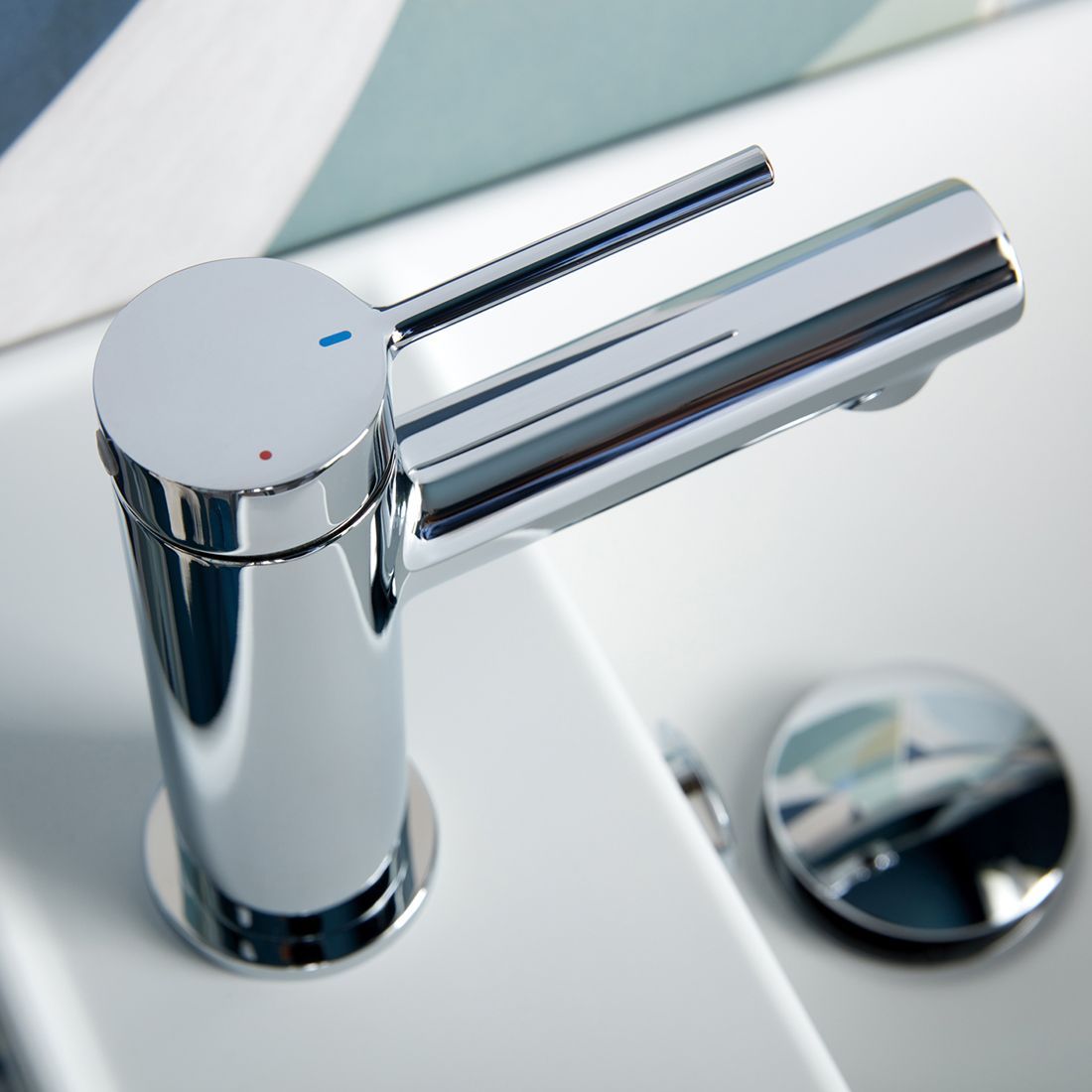

Vado Safari Contemporary Monobloc Basin Mixer Tap with Stick Handle, Deck Mounted

Vado Safari Details

MFC: SAF-100M/SB-CP

Vado Safari Contemporary Monobloc Basin Mixer Tap with Stick Handle - Deck Mounted

Key Features

✔Cold Start Technology Reduces unnecessary Boiler Use, helping you save Energy
✔Delivering Cold Water Only when The Handle is in its Central Position, to Prevent unnecessary Boiler Activation
✔Made from Brass Material
✔WRAS Approved
✔15 Year Guarantee from The Manufacturer

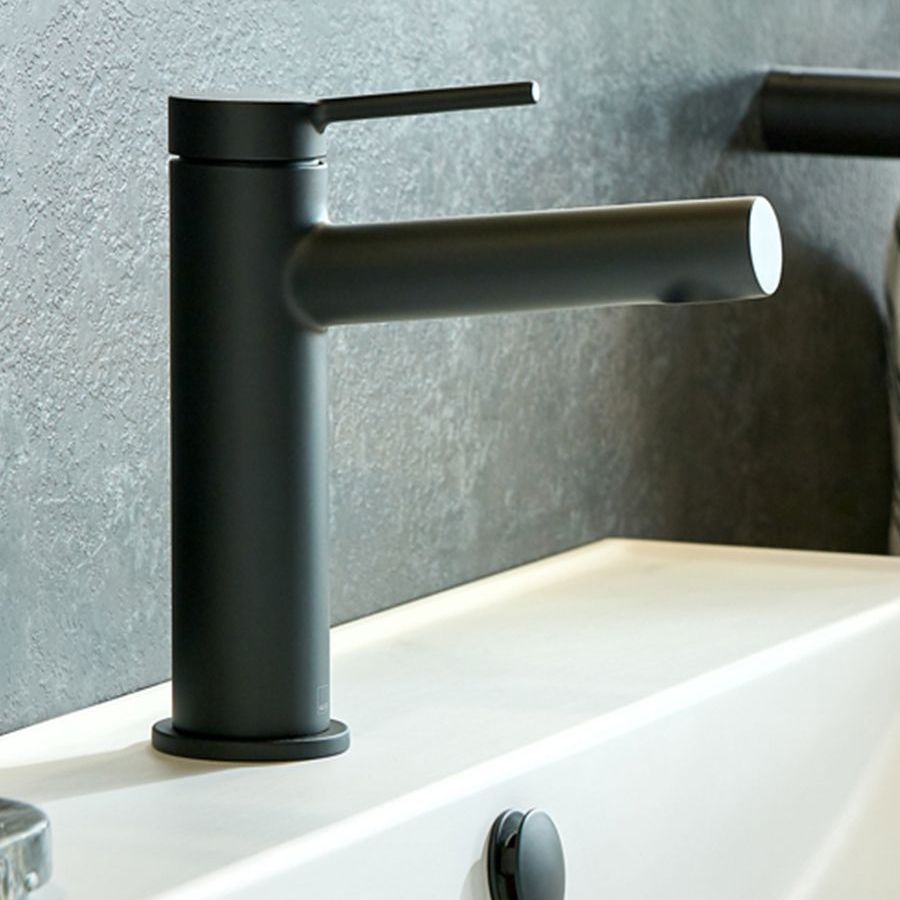

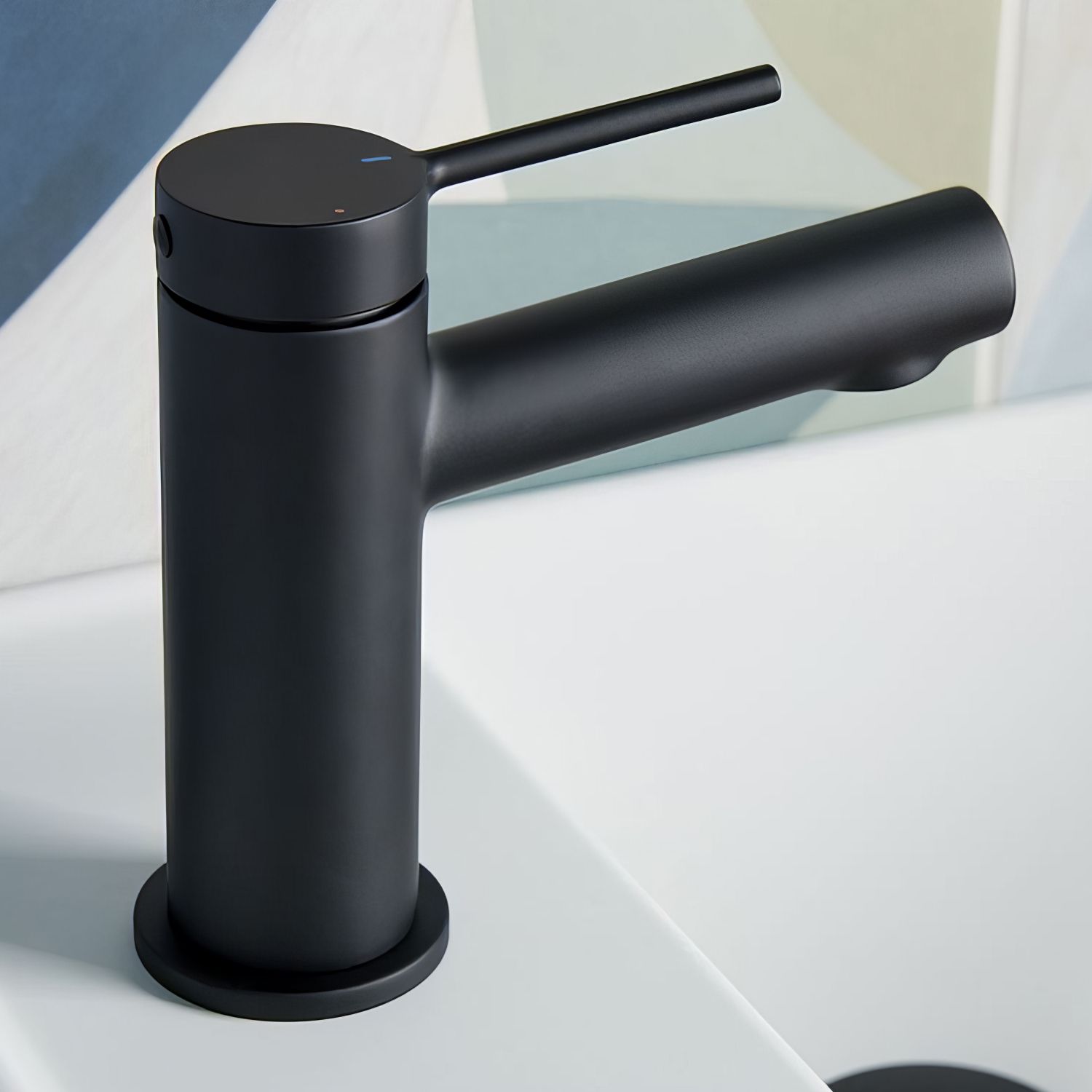

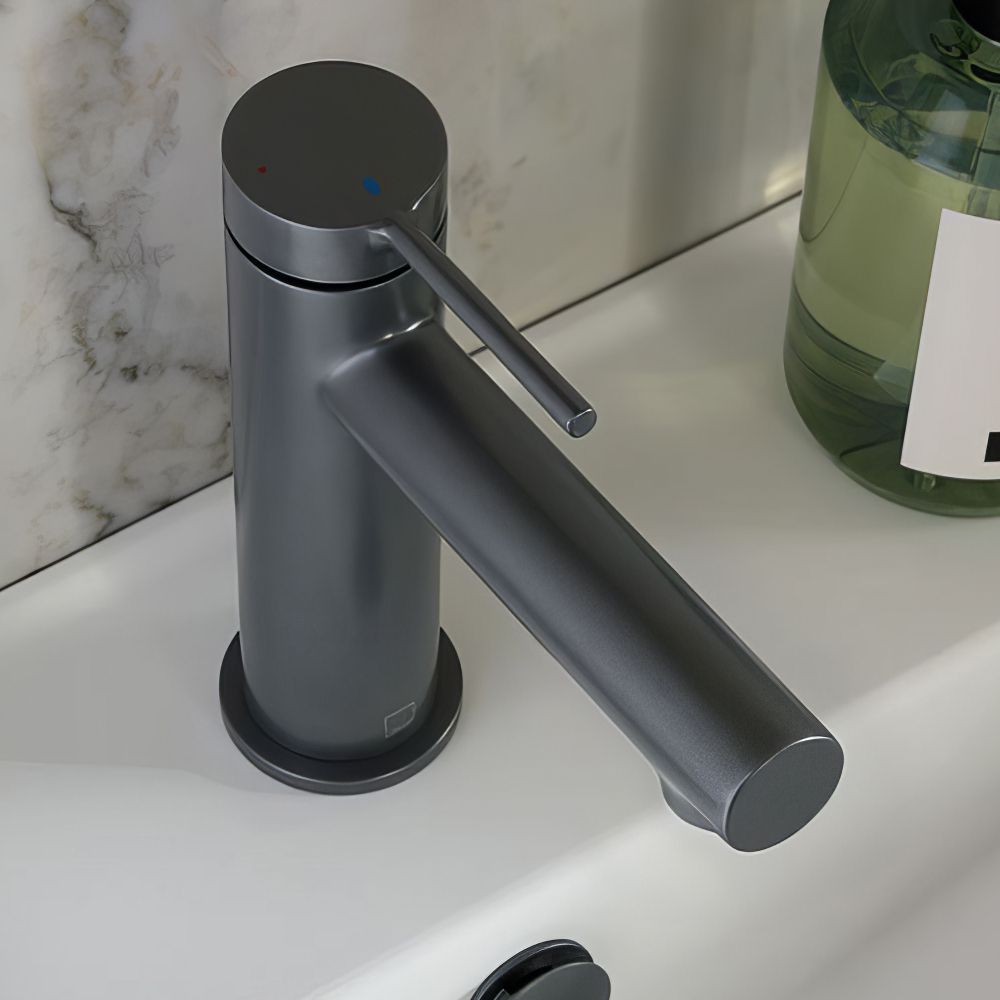

Choice of Finishes: Chrome, Matt Black, Satin Brass and Pewter
Choice of Height: 138mm and 173mm
Choice of Water Pressure: High Pressure, Low Pressure
Clic-Clac Basin Waste [Optional]
Deck Mounted Installation
Minimalist Smooth Stick Lever Handle for Easy, Comfortable Use
Perfect for a Cloakroom Sink or ensuites
2x 1/2" 450mm Flexipipe Connection
Ceramic Cartridge C-001-A30
Specification of 138mm Height Tap without Waste (High Pressure)
Size: 50 x 144 x 138mm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 99mm
Base To Spout: 83mm
Suitable for High Water Pressure System
Minimum Water Pressure Recommended for Smooth Working is 1.0 Bar and Maximum of 5.0 Bar
5L/Min Flow Regulator Fitted as Standard
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Specification of 138mm Height Tap with Waste (High Pressure)
Supplied with Clic-Clac Waste
Size: 50 x 144 x 138mm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 99mm
Base To Spout: 83mm
Suitable for High Water Pressure System
Minimum Water Pressure Recommended for Smooth Working is 1.0 Bar and Maximum of 5.0 Bar
5L/Min Flow Regulator Fitted as Standard
Ceramic Cartridge C-001-A30
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Specification of 138mm Height Tap with Waste (Low Pressure)
Supplied with Clic-Clac Waste
Size: 50 x 144 x 138mm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 99mm
Base To Spout: 83mm
Suitable for Low Water Pressure System
Minimum Water Pressure Recommended for Smooth Working is 0.2 Bar and Maximum of 5.0 Bar
Ceramic Cartridge C-001-A30
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Specification of 173mm Height Tap without Waste (High Pressure)
Size: 50 x 163 x 173mm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 122mm
Base To Spout: 121mm
Suitable for High Water Pressure System
Minimum Water Pressure Recommended for Smooth Working is 1.0 Bar and Maximum of 5.0 Bar
5L/Min Flow Regulator Fitted as Standard
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Specification of 173mm Height Tap with Waste (High Pressure)
Supplied with Clic-Clac Waste
Size: 50 x 163 x 173mm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 122mm
Base To Spout: 121mm
Suitable for High Water Pressure System
Minimum Water Pressure Recommended for Smooth Working is 1.0 Bar and Maximum of 5.0 Bar
5L/Min Flow Regulator Fitted as Standard
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System
Specification of 173mm Height Tap with Waste (Low Pressure)
Supplied with Clic-Clac Waste
Size: 50 x 163 x 173mm [Width x Depth x Height]
Centre of Inlet to Centre of Outlet: 122mm
Base To Spout: 121mm
Suitable for Low Water Pressure System
Minimum Water Pressure Recommended for Smooth Working is 0.2 Bar and Maximum of 5.0 Bar
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Tap Body Shape
: Round
⤷ Range
: Safari
⤷ Handle Position
: Top
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic

⤷ Base To Spout
: 83
⤷ Spout Reach
: 99
⤷ Overall Height
: 138
⤷ Width
: 39
⤷ Depth
: 144
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Technologies
: Cold Start
⤷ Barcode
: 5052120293553

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the User Guide Pdf File

This item can also be found in:

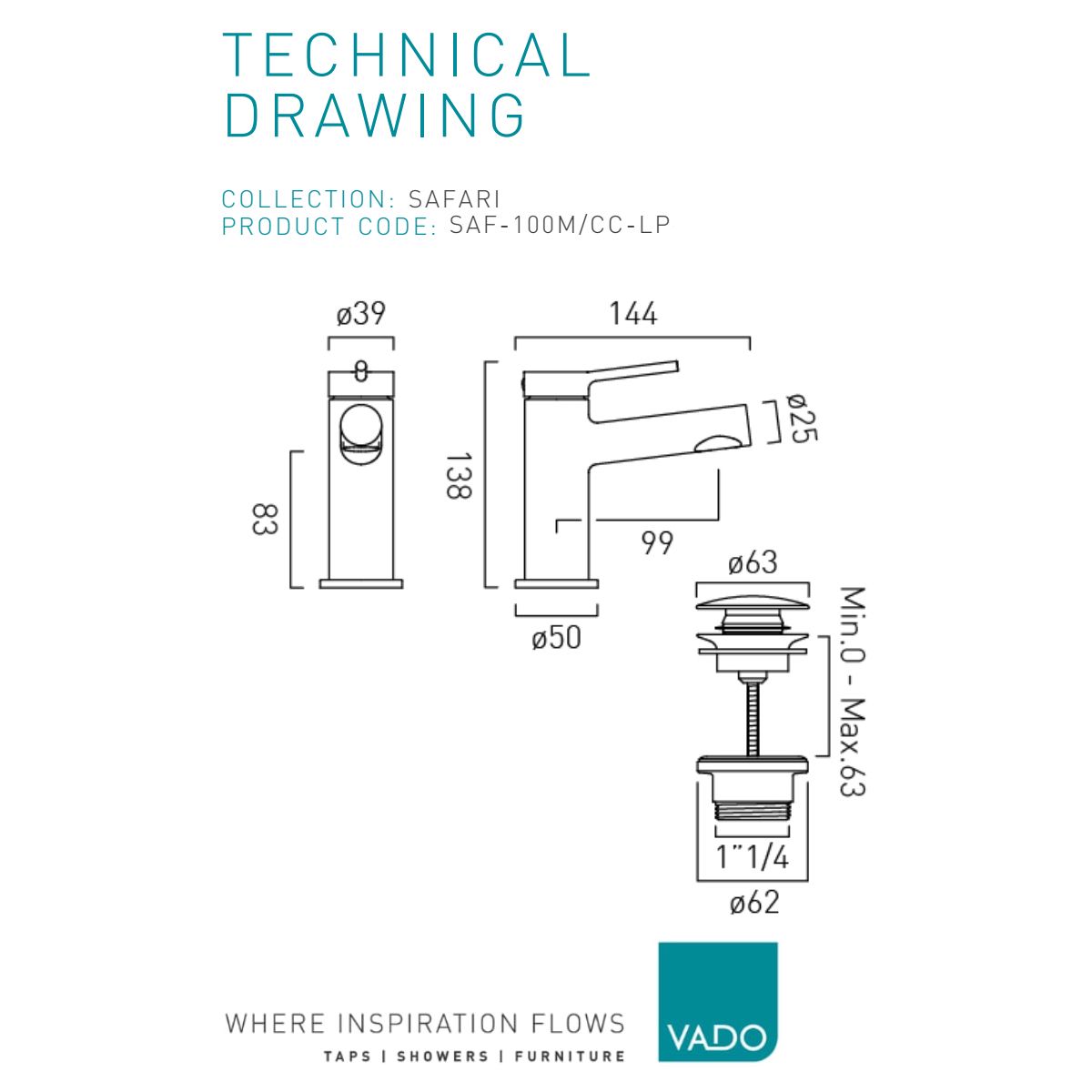

Technical Images

Vado Safari Contemporary Monobloc Basin Mixer Tap with Stick Handle - Deck Mounted

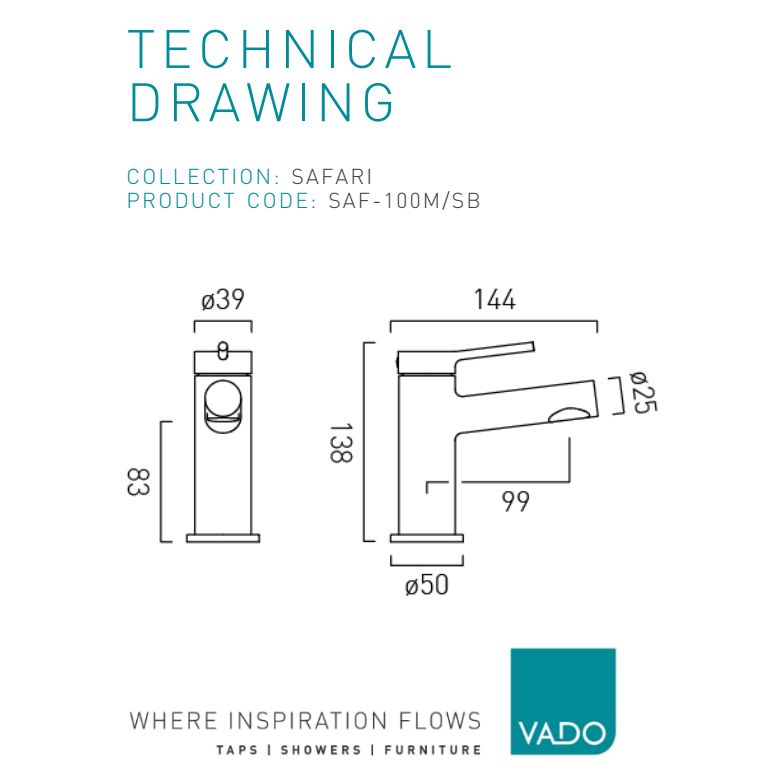

138mm - Without Waste - HP

138mm - With Waste - HP

138mm - With Waste - LP

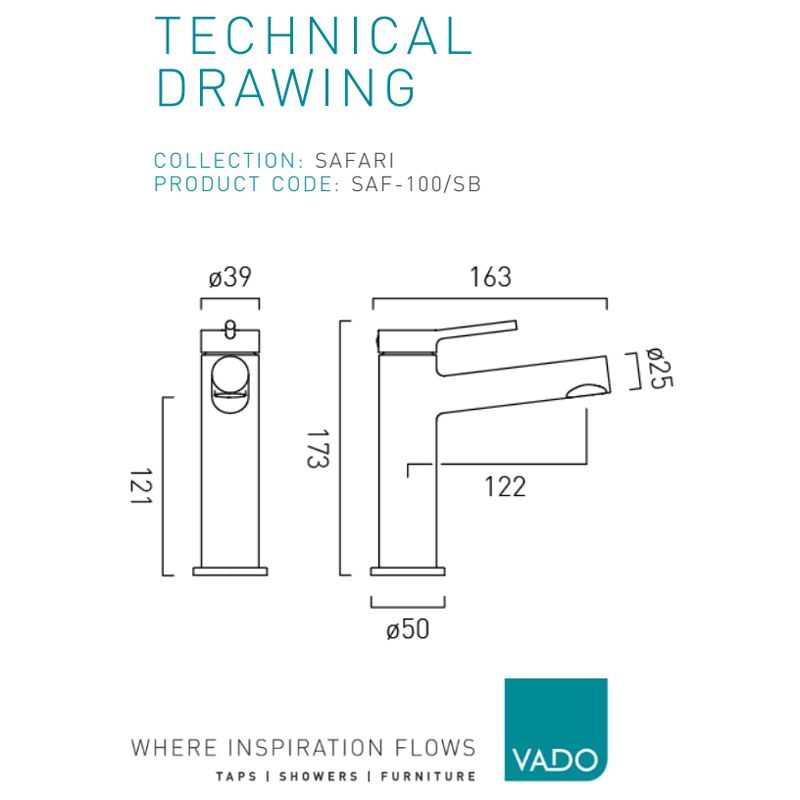

173mm - Without Waste - HP

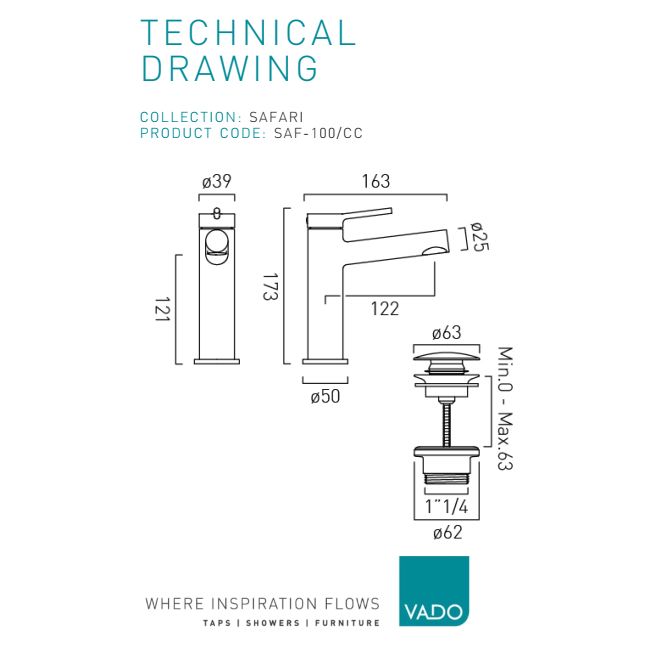

173mm - With Waste - HP

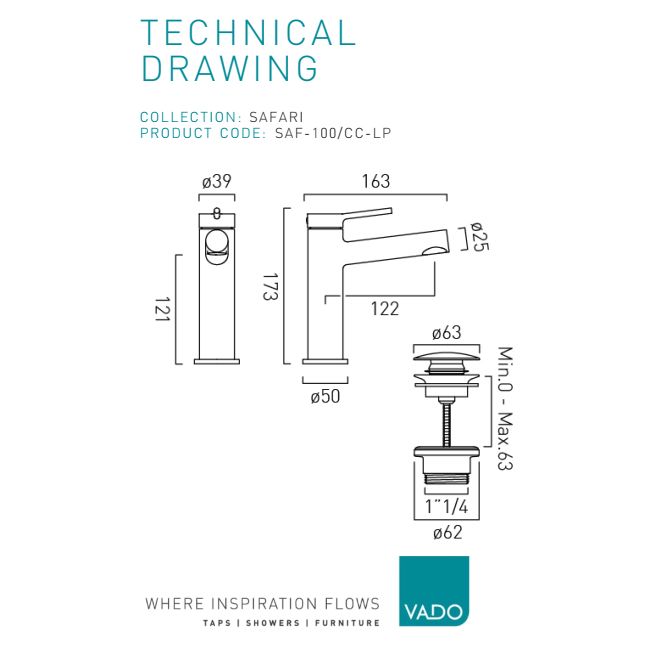

173mm - With Waste - LP

£135.00

RRP: ~~£180.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Cold Start

Tap flow always begins with cold water, and water mixing systems become active only when hot water is needed. The cold start prevents unnecessary energy expenditure.

Click-Clack Waste

Also called the Push button or Sprung waste, this waste needs a push down on the stopper to close and a click to open it back again. It is the most commonly used waste due to the ease of its operation.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
