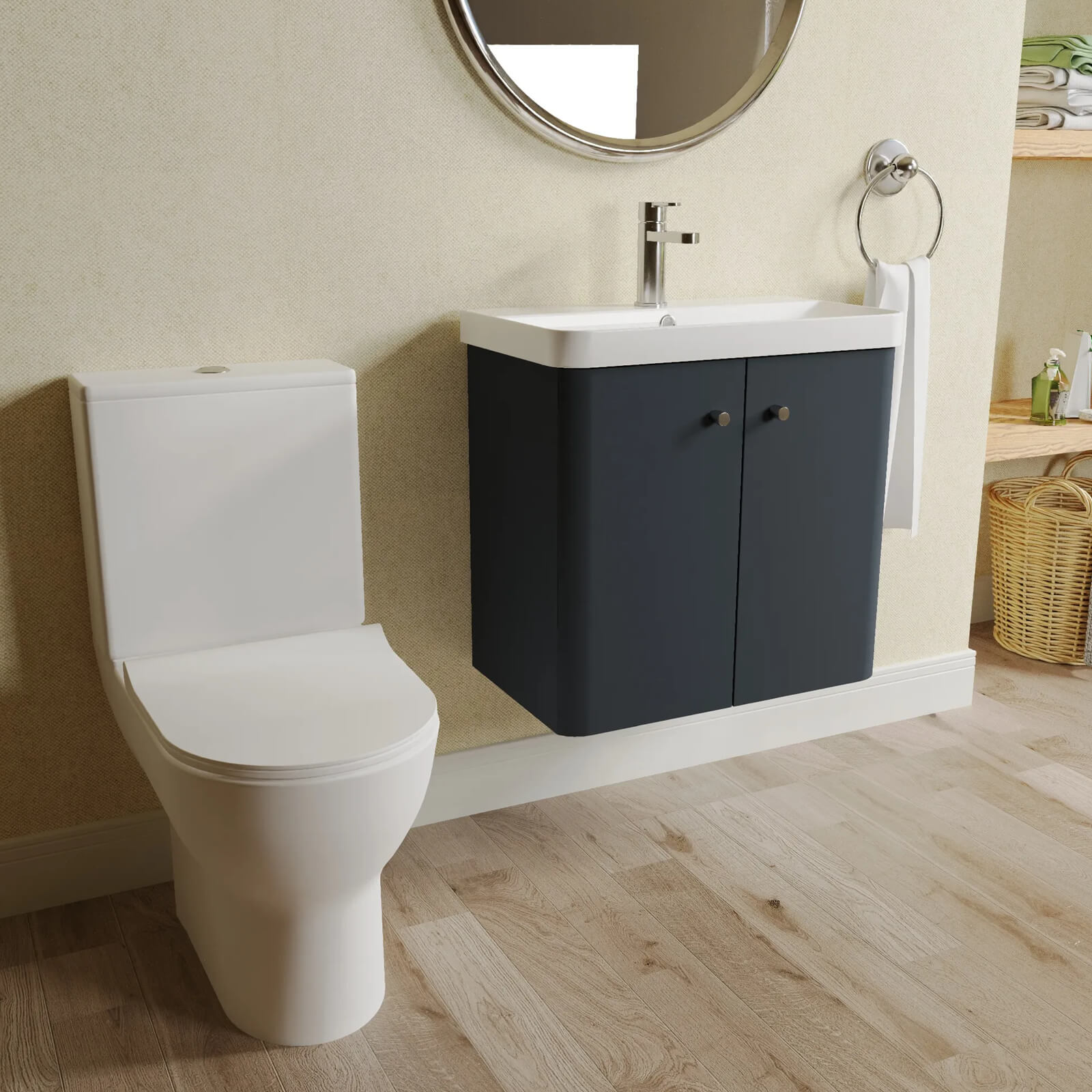

Nuie Deco Contemporary Wall Hung Cloakroom Suite

Not Yet Rated No Rating

£798.40

RRP: £998.00
SKU: QS-V107811
Product Variants
Select Unit Finish Step 1
Select Unit Width Step 2
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

5-7 Working Days Approx.

Nuie Deco Details

MFC: FUZRC004

Nuie Deco Contemporary Wall Hung Cloakroom Suite.

Key Features
  • 5 Year Guarantee from Nuie Against Manufacturing Defects
  • Contemporary Wall-Hung Design Makes Cleaning your Bathroom a Quick and Easy Process

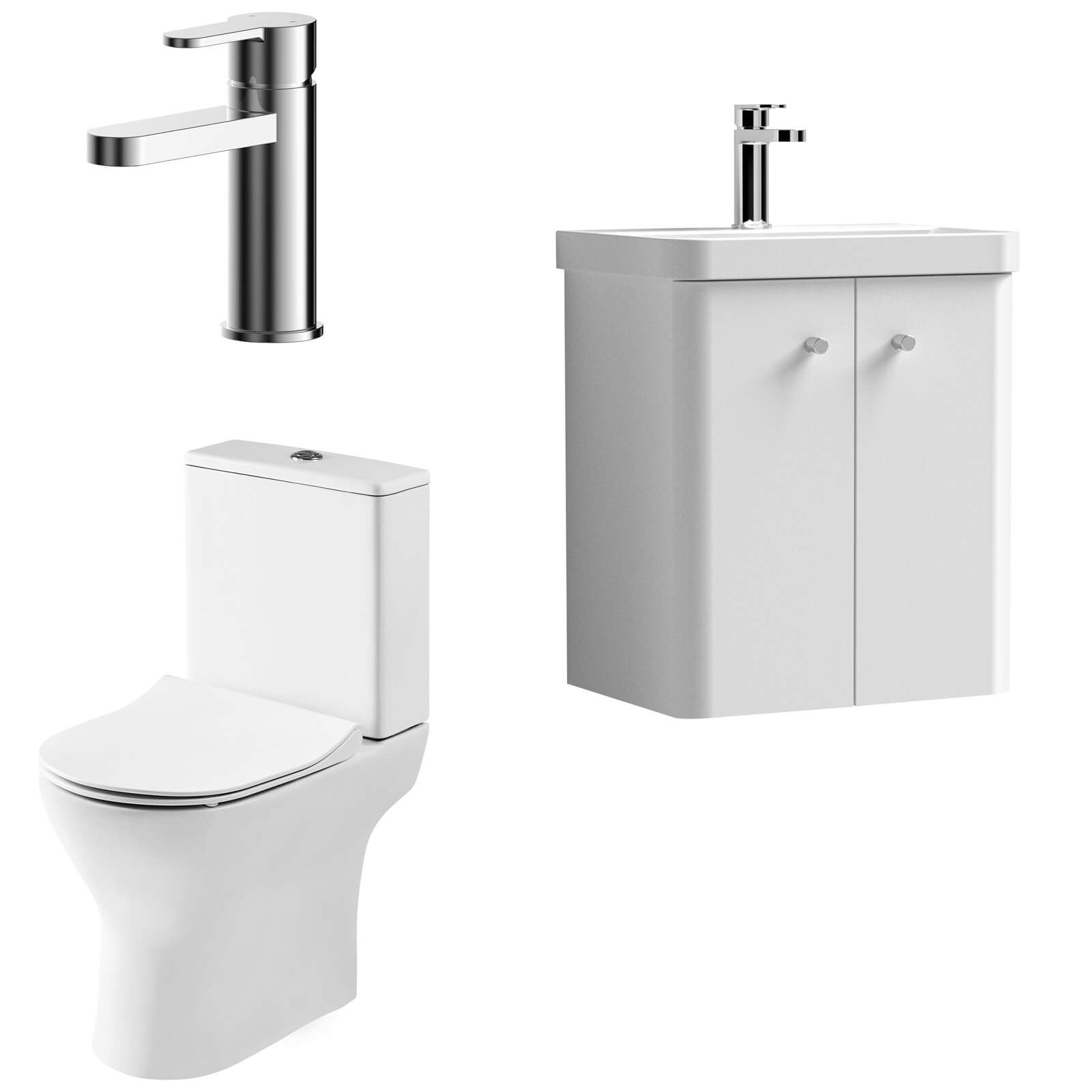

  • Pack Included: 2-Door Vanity Unit and Thin Edge Basin, Rimless Pan, Soft-Close Seat and Cistern, Basin Tap and Waste Included

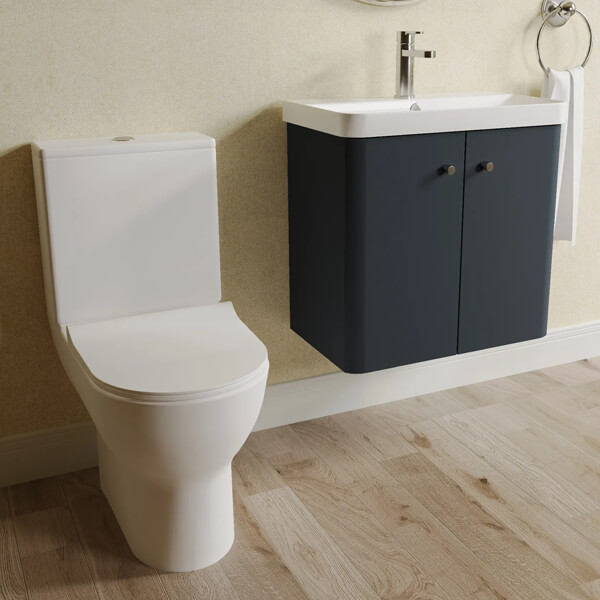

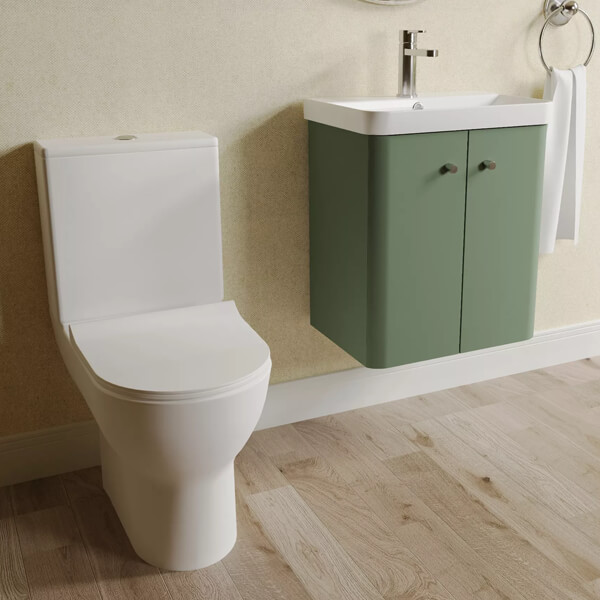

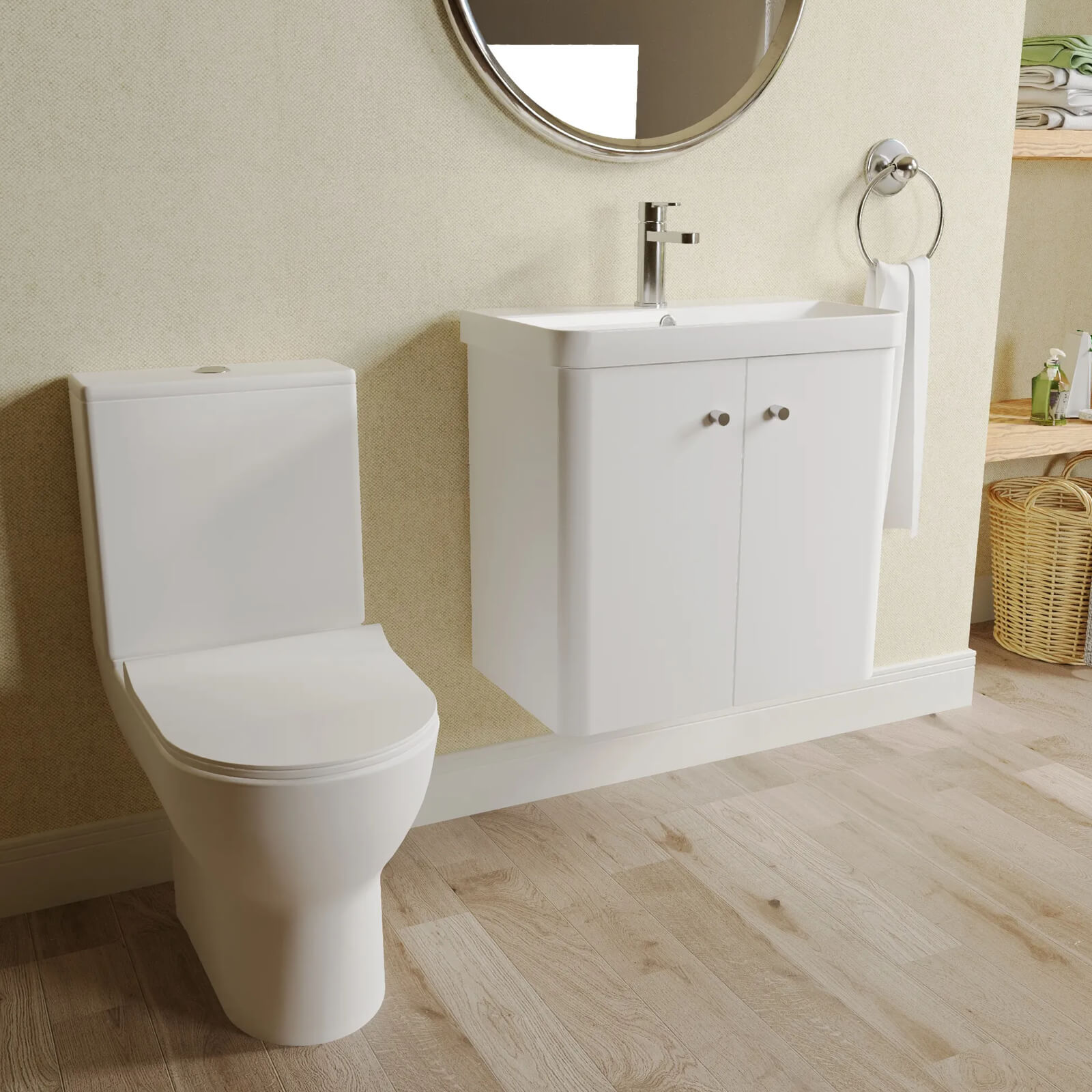

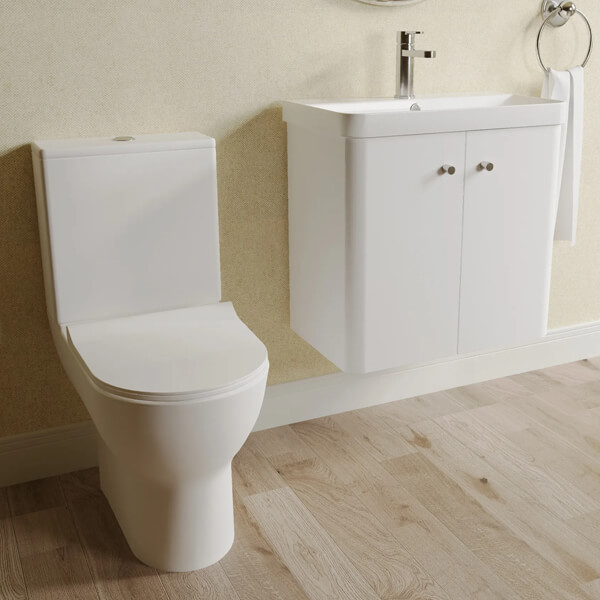

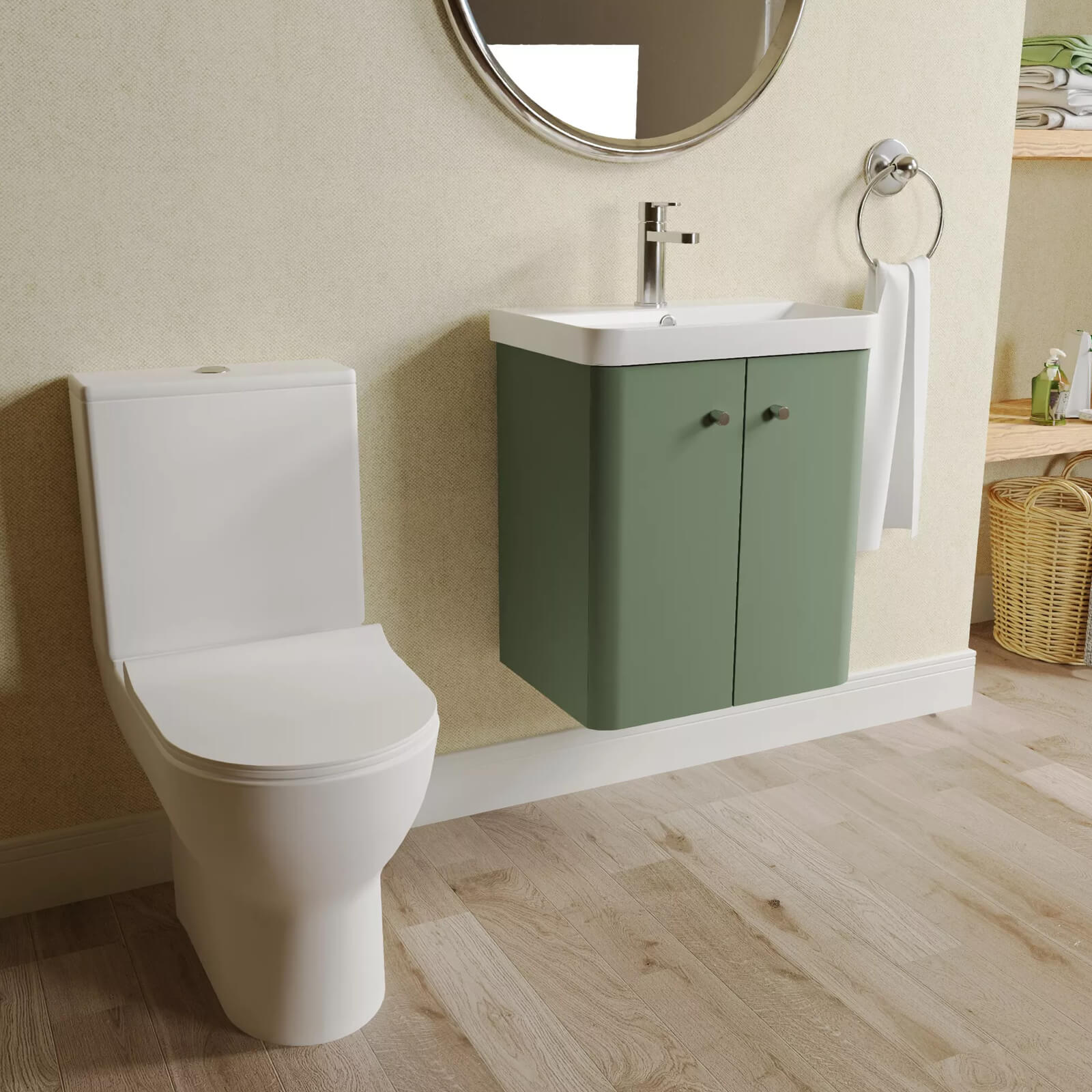

  • Choice of Unit Finish: Gloss White, Soft Black and Satin Green
  • Choice of Unit Width: 479mm and 579mm
  • Download the Customer Data Sheet PDF File from the Additional Info Section
  • Refer to the Technical Diagram for Complete Technical Details
  • Detail for Vanity Unit:
  • Size in [mm]: 342 x 539mm [Depth x Height]
  • Size in [cm]: 34.2 x 53.9cm [Depth x Height]
  • Weight: 15.5kg
  • Cabinet Material: MDF Painted Gloss
  • Cabinet Material Thickness: 16mm (1.6cm)
  • Fascia Material Thickness: 25mm (2.5cm)
  • Construction Method: Cam and Wood Dowel
  • Suitable for Wall-Hung Installation
  • 2-Door Vanity Unit
  • Moisture-Resistant Construction for Bathroom Use
  • Supplied Rigid for Easy Installation
  • Soft-Close Doors Ensures Peace Ensues Throughout your Home
  • Detail for Ceramic Thin-Edge Basin:
  • Manufactured using Vitreous China Material
  • Size in [mm]: 350 x 136mm [Depth x Height]
  • Size in [cm]: 35 x 13.6cm [Depth x Height]
  • Weight: 10kg
  • CE Certified
  • Number of Bowl: 1
  • 1 Taphole Basin
  • Round Bowl Shape
  • Detail for Close Coupled Toilet:
  • It Comes in a White Finish
  • Manufactured using Vitreous China Material
  • Size in [mm]: 375 x 800mm [Width x Height]
  • Size in [cm]: 37.5 x 80cm [Width x Height]
  • Projection [Depth]: 610mm (61cm)
  • Weight: 33kg
  • Round Bowl Shape
  • Ce Certified
  • Pan Trap Style: P-Trap
  • Soft-Close Seat Included
  • Seat Hinge Type: Top Fix
  • Cistern Included
  • Short Projection Design - Ideal for Smaller Bathrooms
  • Detail for Mono Basin Mixer Tap:
  • It Comes in a Chrome Finish
  • Manufactured using Brass and Plastic Material
  • Height: 160mm [16cm]
  • Base to Spout: 101.50mm [10.15cm]
  • Centre of the Inlet to Centre of the Outlet: 110mm [11cm]
  • Pipe Size: 1/2 Inch BSP
  • Weight: 1.75kg
  • Suitable for Deck-Mounted Installation
  • WRAS Approved
  • Supplied with Push Button Waste
  • Round Lever Handle Operation
  • Overflow Included
  • Number of Handle: 1
  • Valve/Cartridge Type: Single Lever Cartridge
  • Control Type: Manual
  • Suitable for Low-Pressure Water System
  • Required Minimum 0.2 Bar and Above Pressure Water System
  • Flow Rate: 0.1 Bar - 2.8, 0.5 Bar - 8, 1 Bar - 11.6, 2 Bar - 16.7 and 3 Bar - 20.7

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Basin Colour
  • : White
  • ⤷ Basin Size - (Width x Depth x Height)
  • : 505 x 350 x 136mm
  • ⤷ Sink Material
  • : Vitreous China
  • ⤷ Basin Waste Included
  • : Yes
  • ⤷ Basin Tap Included
  • : Yes
  • ⤷ Basin Tap Holes
  • : 35
  • ⤷ Sink Type
  • : Inset
  • ⤷ Sink Shape
  • : Rectangular
  • ⤷ WC Colour
  • : White
  • ⤷ WC Pan Size - (Width x Depth x Height)
  • : 375 x 610 x 405mm
  • ⤷ Toilet Overall Height
  • : 800
  • ⤷ Toilet Projection (Depth)
  • : 610
  • ⤷ Rimless Toilet
  • : Yes
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Cistern Type
  • : Push Button
  • ⤷ Cistern (Width x Height x Depth)
  • : 375 x 375 x 130mm
  • ⤷ Cistern Lever Or Button Placement
  • : Centre
  • ⤷ Toilet Material
  • : Vitreous China
  • ⤷ Seat Included
  • : Yes
  • ⤷ Seat Type
  • : Soft-Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Vanity Unit Size - (Length x Width x Height)
  • : 480 x 342 x 539mm
  • ⤷ Furniture Material
  • : MFC
  • ⤷ Vanity Basin Included
  • : Yes
  • ⤷ Warranty/Guarantee
  • : 5 Year
  • ⤷ Theme
  • : Modern

Additional Info & Downloads

Download PDFDownload the Customer Data Sheet for 500mm Unit and Basin Pdf File Download PDFDownload the Customer Data Sheet for 600mm Unit and Basin Pdf File

Technical Images

£798.40
RRP: £998.00
Stock Availablity: 5-7 Working Days Approx
QS Supplies

14 Features Included In This Product Explained

Rigid Furniture - Pre-Assembled

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

Cam & Dowel Method

Cam & Dowel Method

It is a woodworking process in which a dowel or wooden pin is fit into a pre-carved hole in the opposite pieces of wood to create a strong joint. The resulting piece of furniture has a rigid carcass with a neat finish and removes the need for glue or nails for adhesion.

Soft-Close Opening

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Low Water Pressure

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Push Button Basin Waste

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

With / Without Overflow

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Soft-Close Seat

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Push-Button Flush Valve Cistern

Push-Button Flush Valve Cistern

Toilets with push-button flush valves are usually dual-flush toilets. One button triggers a liquid, and the other is for solid flushes. Additionally, since these valves are smaller than levers, they use less water than traditional toilets.

Top And Bottom Fix

Top And Bottom Fix

Using hinges, the toilet seat can be fixed to the Pan from above or below. A top has two bolts fed into the toilet pan. The bottom fixing is a traditional style fixing, with two bolts which fix to the pan and can be tightened from below.

Ceramic Disc Cartridge

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

ABS Plastic

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

CE Certified Product

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

WRAS Approved Product

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
