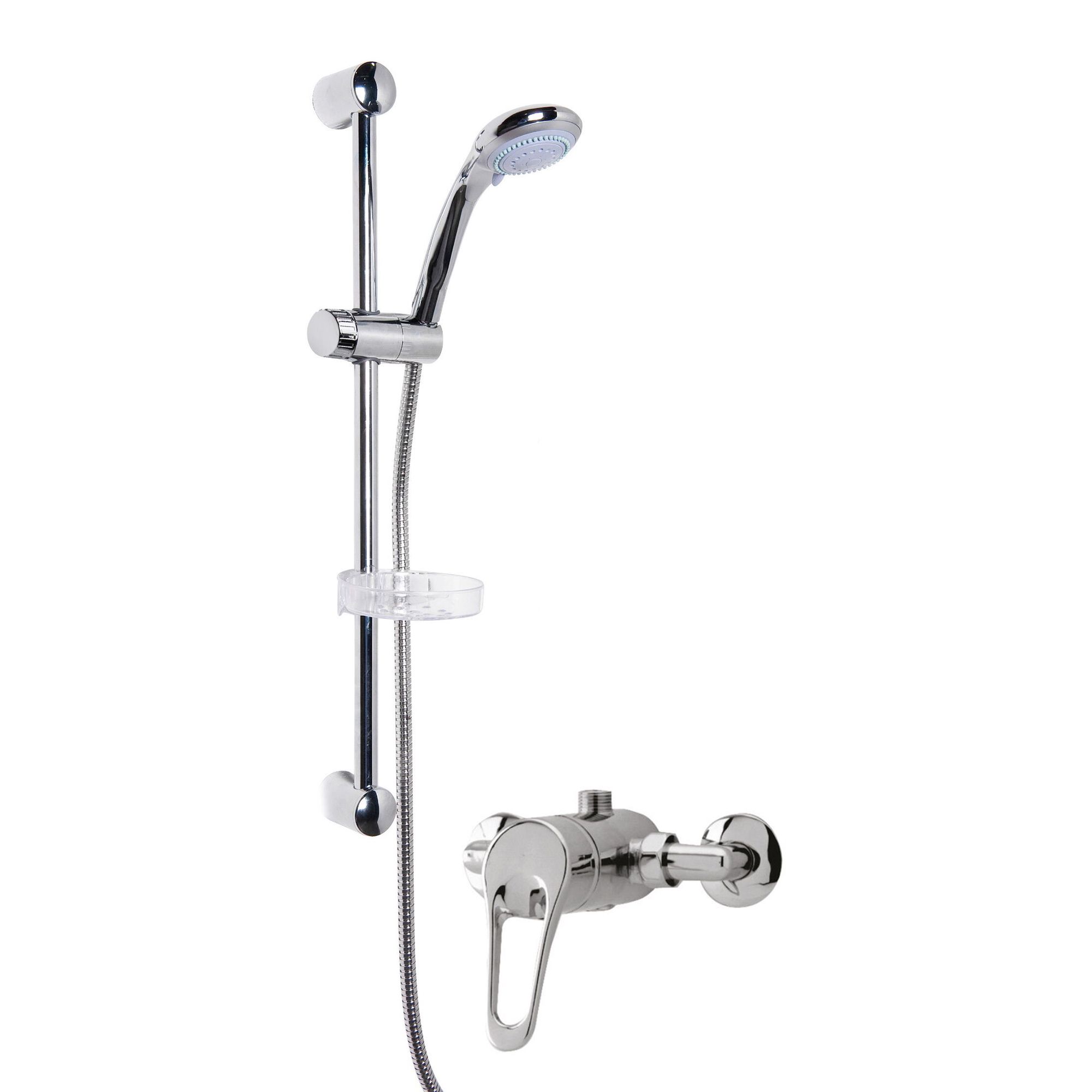

Nuie Chrome Manual Shower Valve with Slide Rail Kit & Handset, 595mm High

Details

MFC: SBR02MV1

Nuie Chrome Exposed Manual Shower Valve with Slide Rail Kit- Multi-Function Handset - 595mm High

Comes in Chrome Finish
Manual Shower Valve
Single Lever Cartridge
Supplied with Soap Dish, 1500mm Hose
It Comes in a Chrome Finish
Suitable for Wall Mounted Installation
Valve Mounting Type: Exposed and Concealed
The Height of the Rail: 595mm (59.5cm)
Pipe Centres: 150mm (15cm)
Inlet Connection G 1/2-Inch
Suitable for Low-Pressure Water System
Requires 0.2 Bar Operating Water Pressure
Flow Rate (Litres Per Minute): 0.2 Bar - 5, 0.5 Bar - 10, 1.0 Bar - 14, 2.0 Bar - 20, 3.0 Bar - 26
Refer to the Technical Drawing for Size Details
Download Technical Data Sheet PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass & ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Flow Rates (l/min)
: 0.2 bar - 5 | 0.5 bar - 10 | 1.0 bar - 14 | 2.0 bar - 20 | 3.0 bar - 26
⤷ Height
: 595
⤷ Temperature Control
: Manual
⤷ Soap Dish Included
: Yes
⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Tes

Additional Info & Downloads

Download the Technical Data Sheet Pdf File

This item can also be found in:

Shower Riser Rail Kits

Nuie Chrome Exposed Manual Shower Valve with Slide Rail Kit- Multi-Function Handset - 595mm High

£110.80

RRP: ~~£277.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
