Bristan Altum Wall Mounted 2 Hole Basin Mixer Tap, Curved Spout, AL 2TH WMBAS C

Bristan Altum Details

MFC: AL 2TH WMBAS C

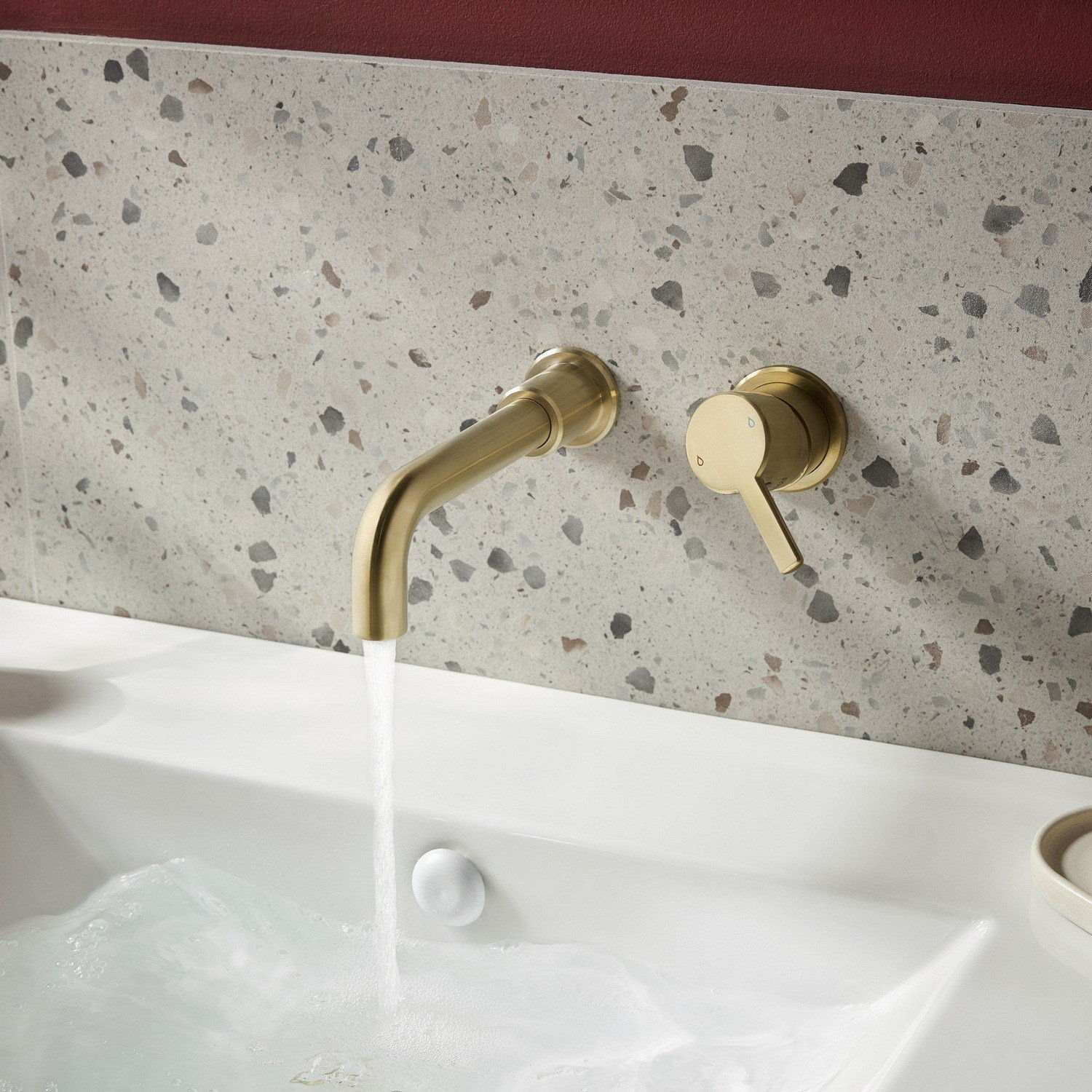

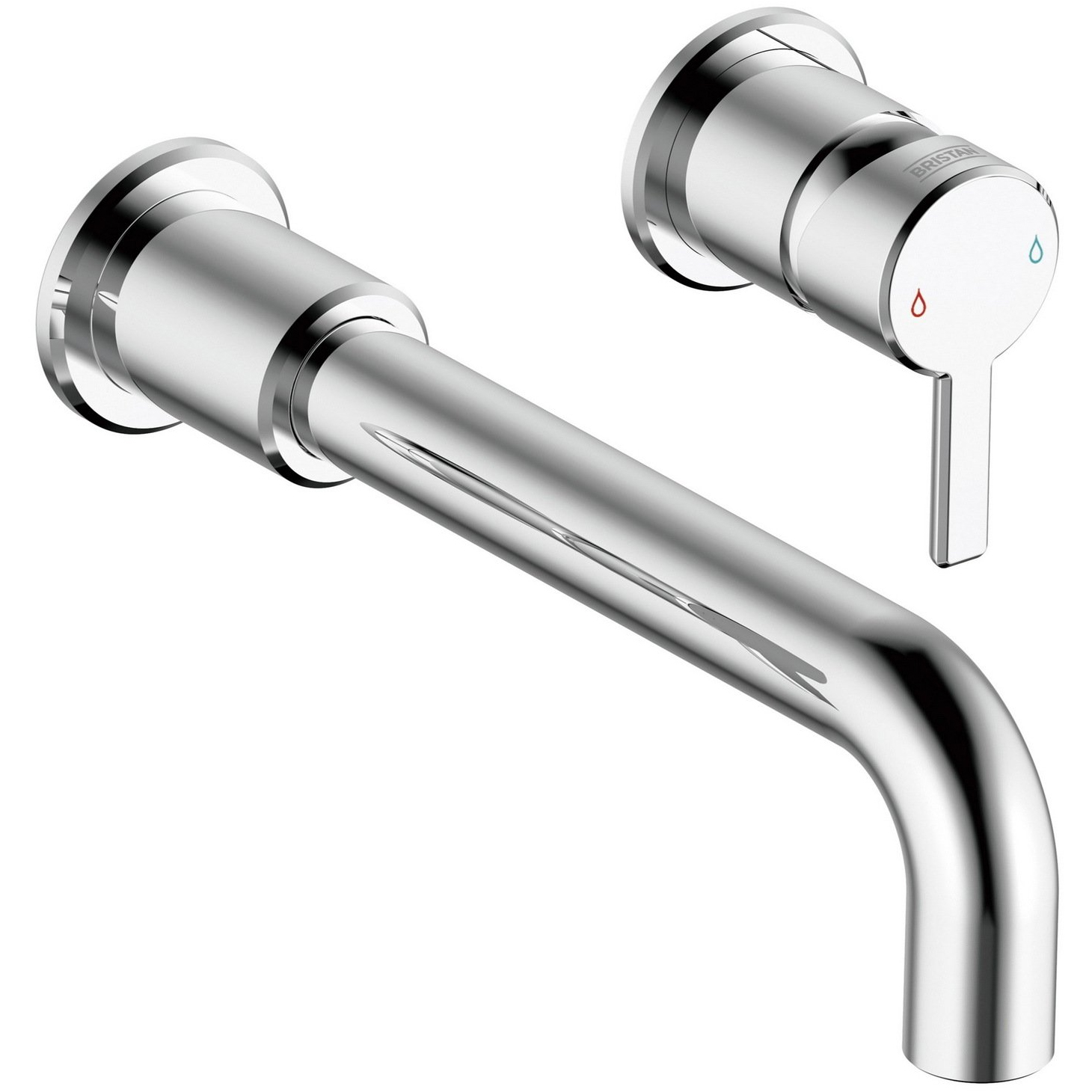

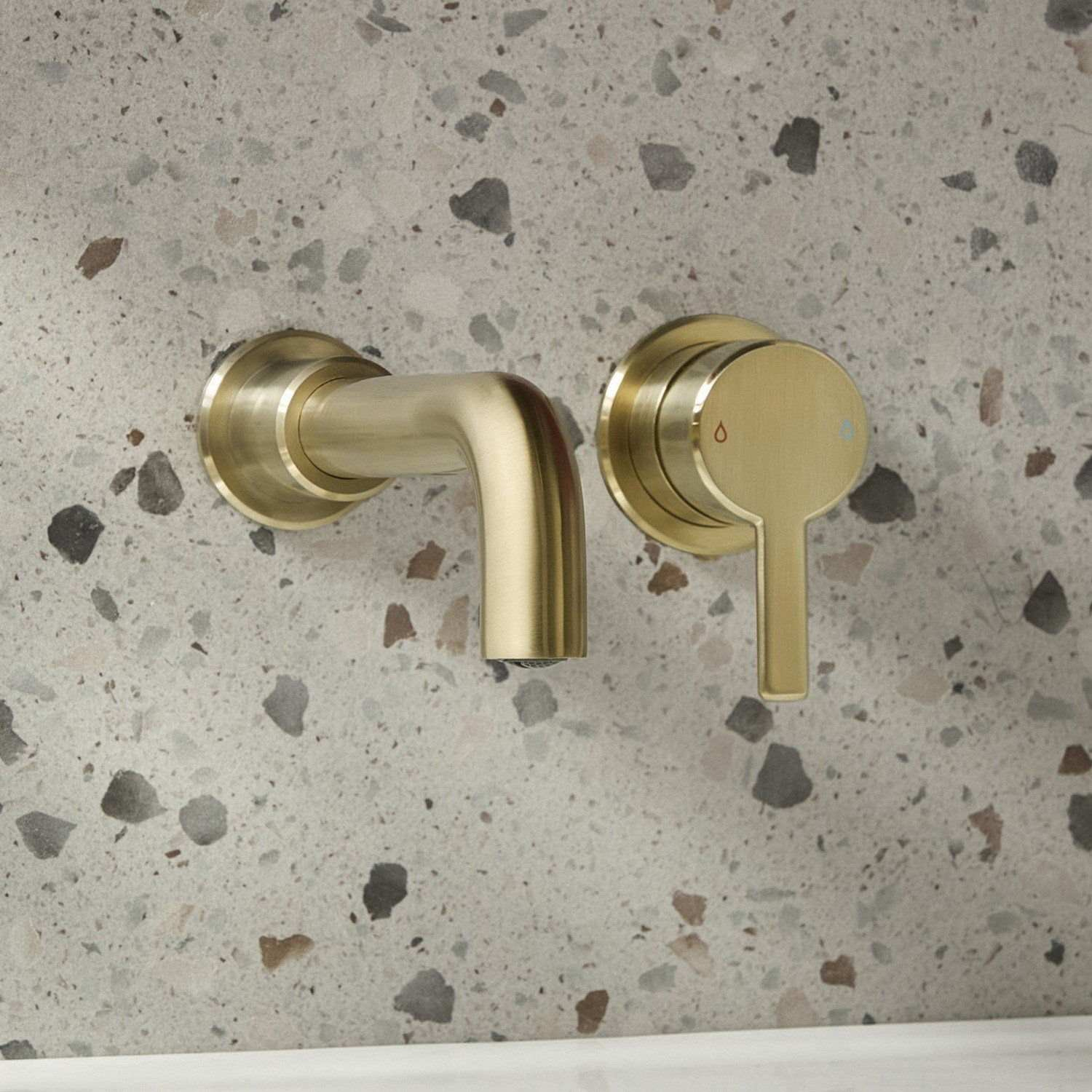

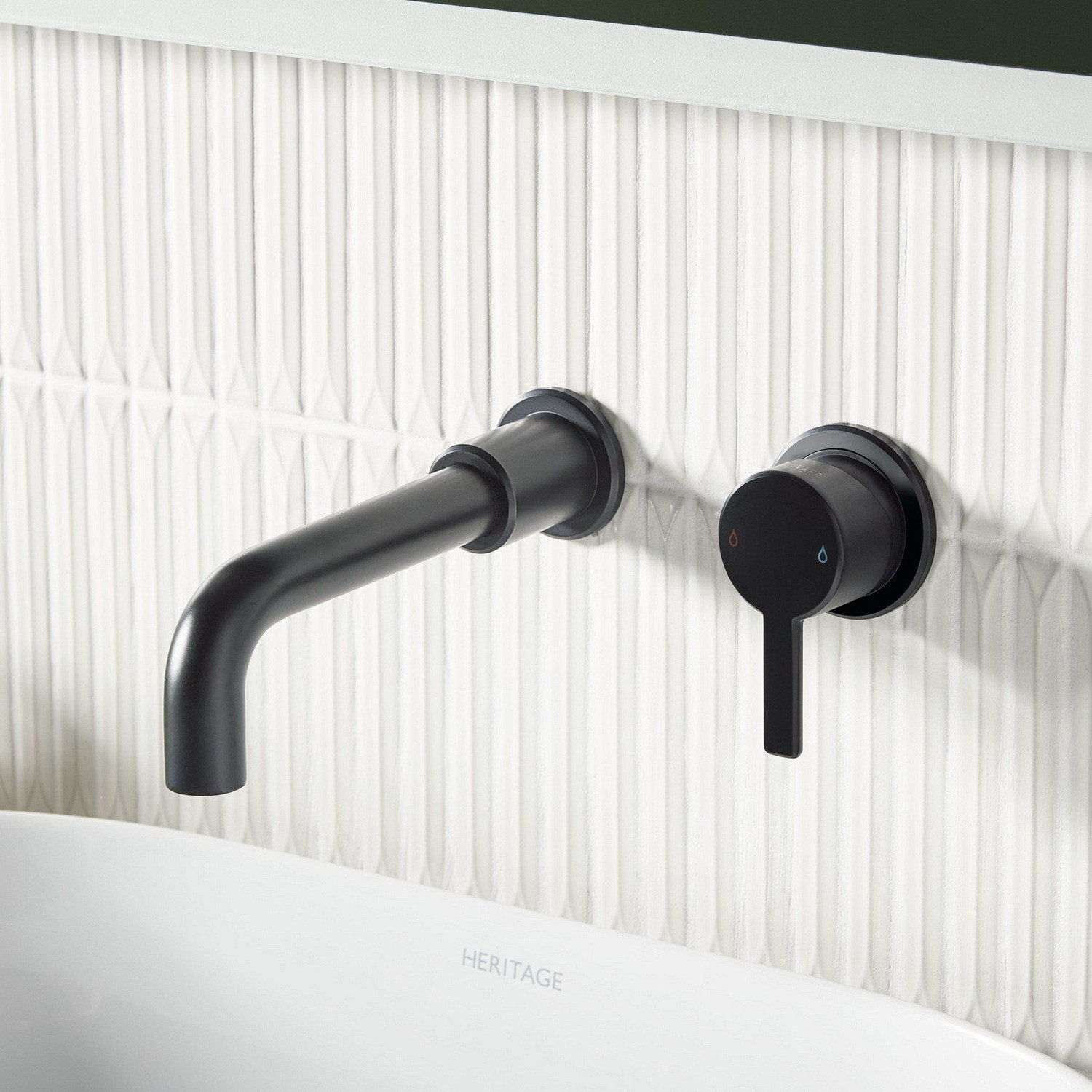

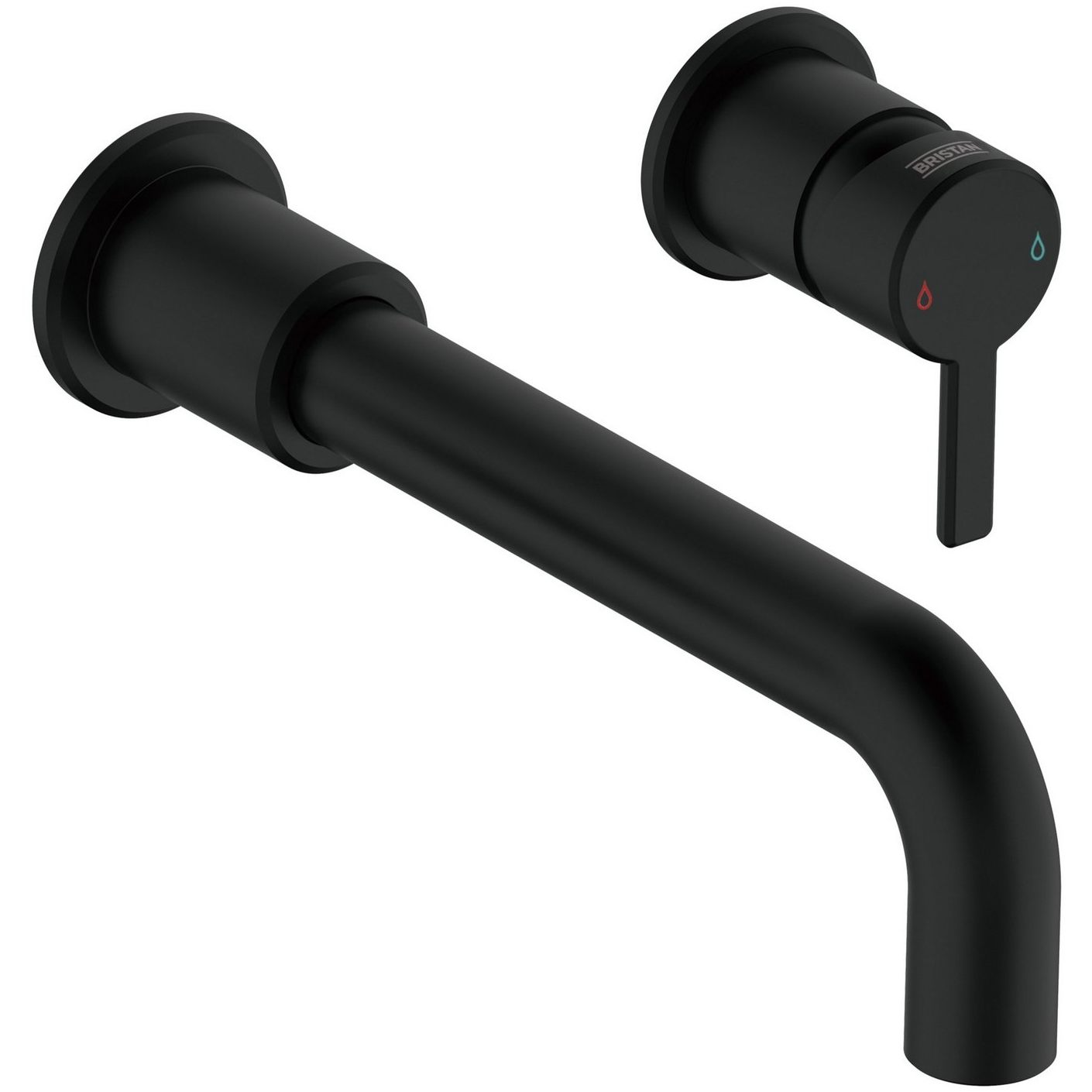

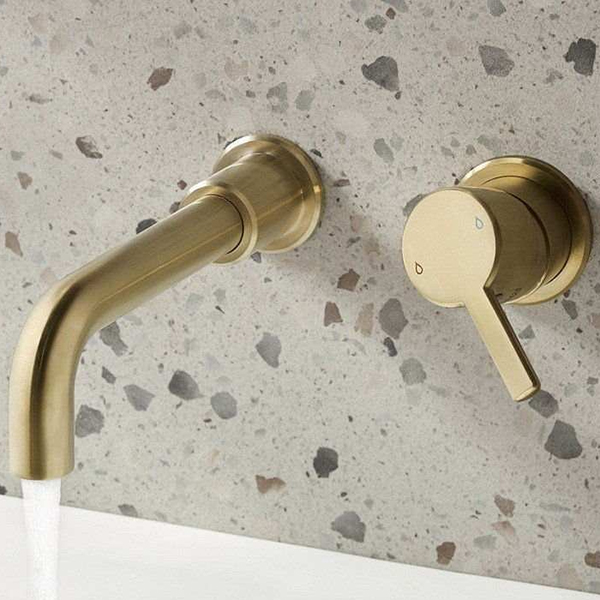

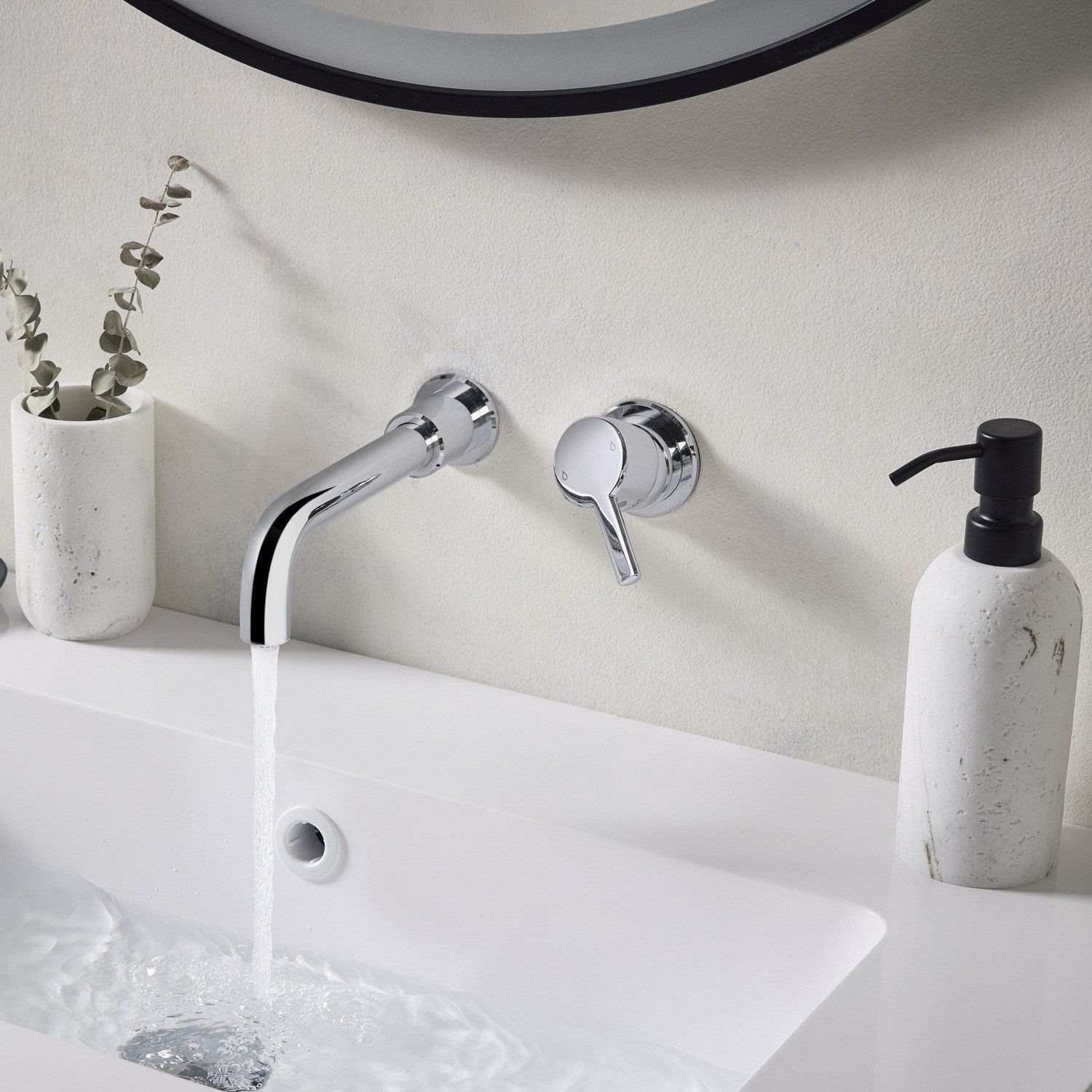

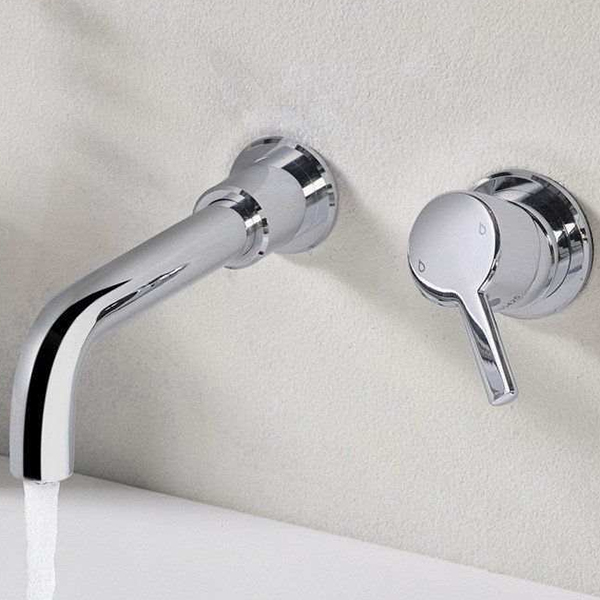

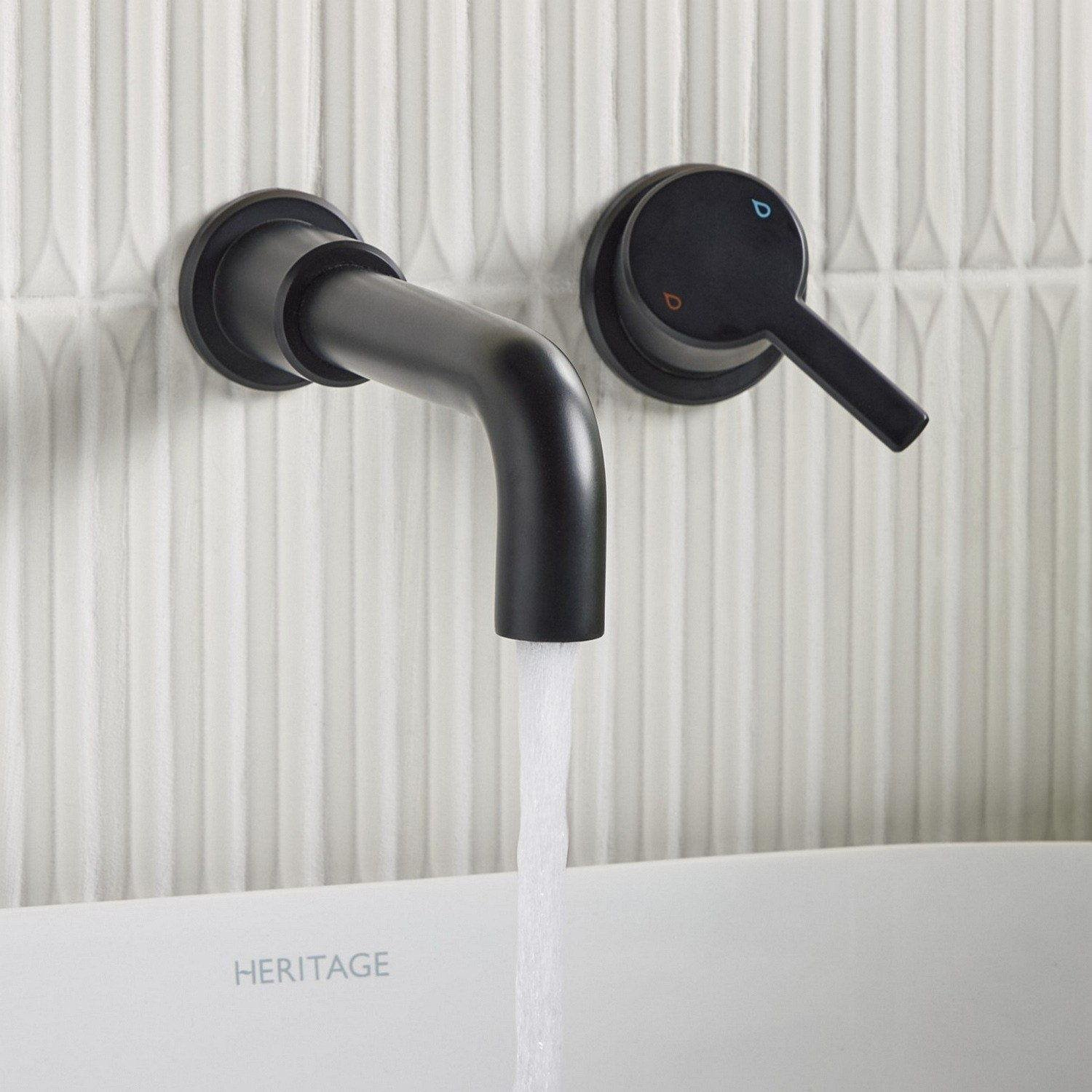

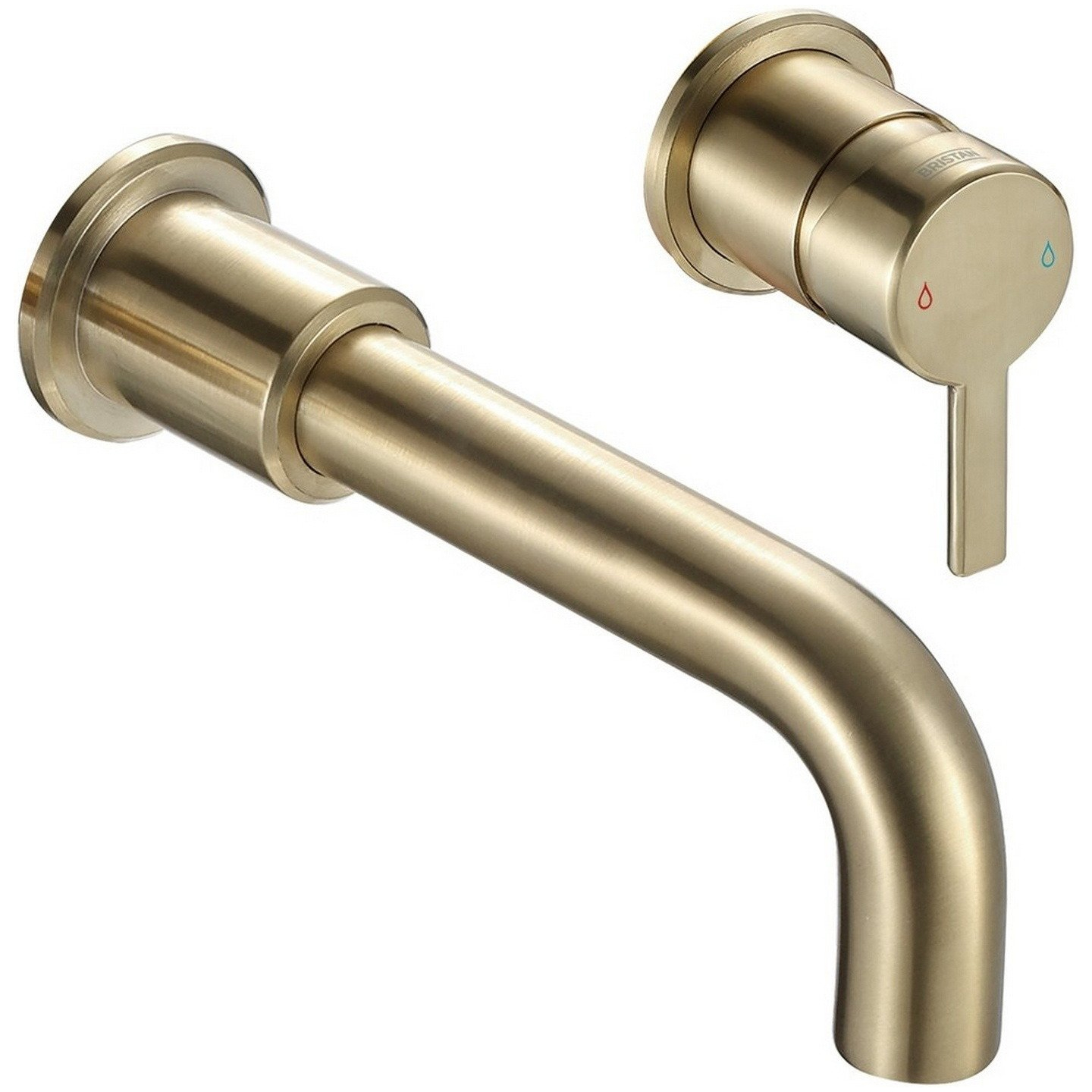

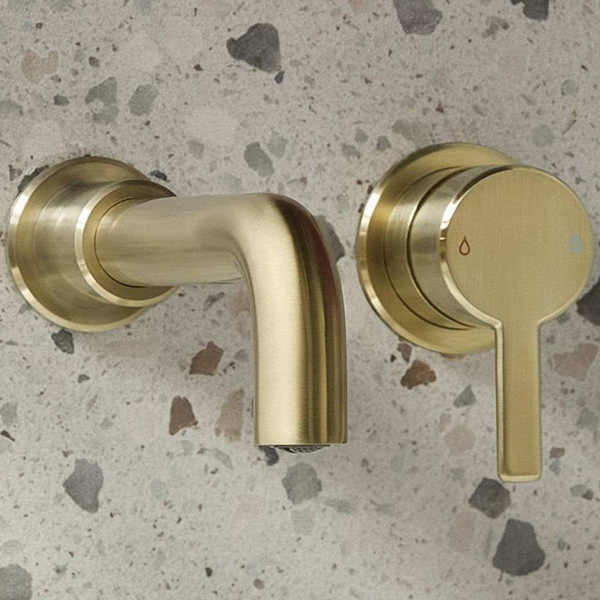

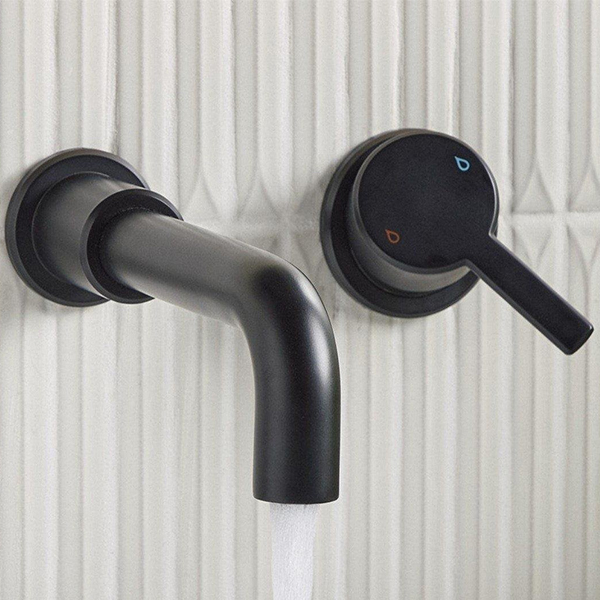

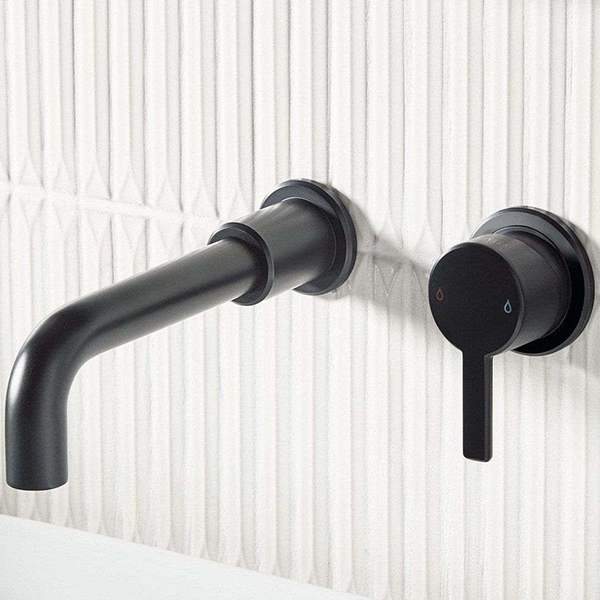

Bristan Altum 2 Hole Contemporary Basin Mixer Tap - Curved Spout - Wall Mounted.

Key Features

✔Choice of Finishes: Chrome, Matt Black, Brushed Brass
✔WRAS Approved Product
✔Manufactured using Brass Material
✔Lifetime Guarantee from the Manufacturer Against any Manufacturer Defects

Wall-Mounted Installation
Handle Type: Lever
Number of Tap Holes: 2
Size [mm]: 150 x 170-195 x 90mm [Width x Depth x Height]
Size [cm]: 15 x 17-19.5 x 9cm [Width x Depth x Height]
Centre of the Inlet to Centre of the Outlet: 160-185mm [16-18.5cm]
Inlet Centre: 100mm [10cm]
Outlet Connection: M18 5lpm Aerator
Valve/Cartridge Type: 35mm Single Lever Cartridge
Inlet Connection: 15mm Compression
Suitable for All Plumbing Systems
Maximum Hot Water Temperature °C: 60°C
Maximum Static Pressure [Bar]: 10 bar
Suitable for Medium and High Water Pressure Systems
Requires a Minimum of 0.5 Bar to a Maximum of 5.0 Bar of Water Pressure
Water Saving Performance: Integrated 5L Flow Regulator Helps Reduce Water Consumption Without Affecting Performance
Smooth & Long-Lasting Performance: 1/4-Turn Ceramic Disc Valves Ensure Effortless Operation and Extended Durability
Strong & Secure Installation: Robust metal Fixing Nut Keeps the Tap Firmly in Place and Prevents Loosening Over Time
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Altum
⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 35mm Single Lever Cartridge

⤷ Handle Material
: Brass
⤷ Spout Reach
: 160-185
⤷ Min-Max Wall Mount
: 50-70
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Water Saving
: Yes
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Barcode
: 5057199879875
⤷ Product Type
: 2 Hole Basin Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Bristan Altum 2 Hole Contemporary Basin Mixer Tap - Curved Spout - Wall Mounted

£188.00

RRP: ~~£235.00~~

STOCK AVAILABLITY: 10 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
