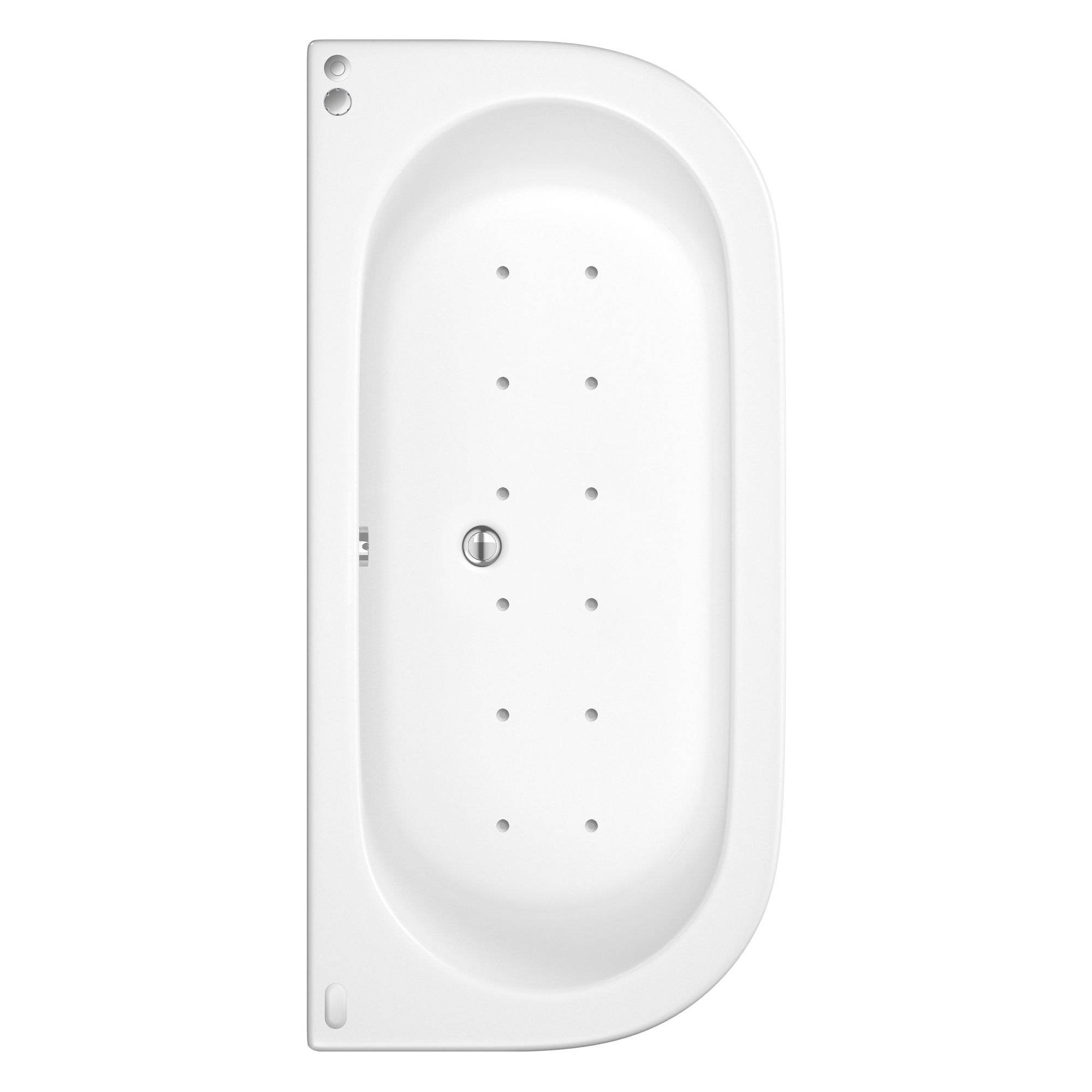

Joseph Miles Double Ended Back To Wall Hydrotherapy Acrylic Whirlpool Bath

Details

MFC: JMA020-HY

Joseph Miles Double Ended Back To Wall Hydrotherapy Acrylic Whirlpool Bath - 12 Jets

Double Ended Curved Whirlpool Bath
12 Air Spa Jets
Size [mm]: 1700 x 750 x 390mm [Length x Width x Height]
Size [cm]: 170 x 75 x 39cm [Length x Width x Height]
Volume (Liters): 200 Litres
Displaced Capacity: 130 Litres
Gloss white Bath Finish
Jet Finish: Chrome
4mm Acrylic Construction (Durable and Easy Maintenance)
Supplied without Tapholes
Central Bath Waste Position
Adjustable Leg Set and Overflow Included
Bath Waste and Taps Shown in the Image are Not Included
Download Installation Instruction PDF from the Additional Info & Downloads Section
Refer Technical Drawing for More Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Centered Waste
⤷ Interior Shape
: Oval
⤷ Bath Type
: Whirlpool
⤷ External Length
: 1700
⤷ External Width
: 750
⤷ Tub Depth
: 410
⤷ Feets Included
: Yes
⤷ Colour
: White
⤷ Internal Bottom Length
: 1200
⤷ Internal Bottom Width
: 466
⤷ Internal Top Width
: 584
⤷ Height of Rim
: 45

⤷ Distance Tub edge to centre of drain hole
: 270
⤷ Distance Top edge to centre of overflow hole
: 75
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 90
⤷ Rim Width
: 104, 61
⤷ Capacity in litres
: 200
⤷ Warranty/Guarantee
: 5
⤷ Material
: Acrylic
⤷ No. of Bathers
: 2
⤷ Theme
: Modern
⤷ Bath Therapy Type
: Whirlpool
⤷ Number of Jets
: 12

Additional Info & Downloads

Download the Installation Instruction and User Guide Pdf File

Joseph Miles Double Ended Back To Wall Hydrotherapy Acrylic Whirlpool Bath - 12 Jets

£842.40

RRP: ~~£1053.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.
