Lecico Atlas Economy Back-To-Wall WC Pan DocM Pack, EDOCMBLBTW

Details

MFC: EDOCMBLBTW

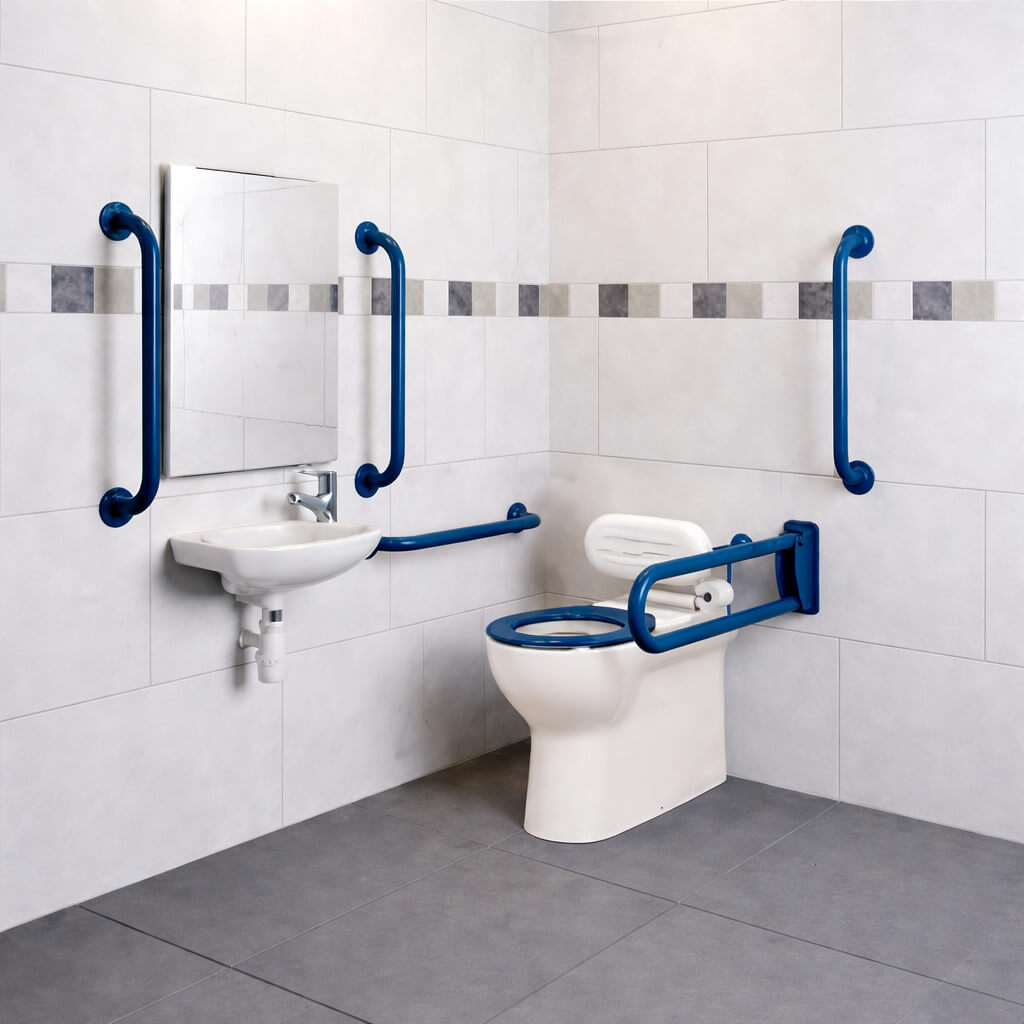

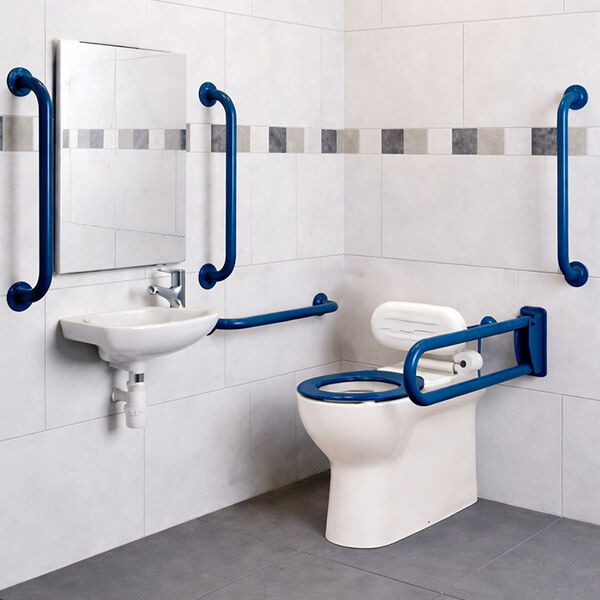

Lecico Atlas Economy Back-To-Wall WC Pan DocM Pack.

Refer to the Technical Diagram for Complete Technical Dimensions
Download Product Data Sheet PDF from the Additional Info Section
Pack Includes:
1x 460mm LH or RH Taphole Basin with Bracket, Tap Hole Stopper and Grated Waste
1x Chrome Finish Sequential Lever Tap
5x 600mm Wide Grab Rails
1x Hinged Grab Rail
1x Raised Height Back-To-Wall Pan with Ringed Seat
1x Extended Flushpipe
1x Concealed Cistern & Fittings with Spatula Lever
1x Backrest
Details Of Pack:
Features Of Basin:
UKCA Compliant
Weight: 6.3kg
It Comes in a White Finish
Features Of Basin:
Size in [mm]: 459 x 290 x 165mm [Width x Depth x Height]
Size in [cm]: 45.9 x 29 x 16.5cm [Width x Depth x Height]
Supplied with Grated Waste and Tap Hole Stopper
Features Of Sequential Tap:
It Comes in a Chrome Finish
WRAS Approved
Weight: 1.02kg
Suitable Low and High Water Pressure System
Works on a minimum of 0.2 bar to Maximum 5.0 bar Water Pressure
Reinforced Cartridge for Heavy Duty Use
Features Of Back-To-Wall WC Pan:
It Comes in a White Finish
Weight: 35.3kg
Manufactured Using Vitreous China Material
Horizontal Outlet
UKCA and HBN 00-10 Part C Compliant
Raised Height, DocM ready
Size of Pan in [mm]: 360 x 745 x 454mm [Width x Projection x Height]
Size of Pan in [cm]: 36 x 74.5 x 45.4cm [Width x Projection x Height]
Provide Easy Access for Wheelchair Users and Those with Limited Mobility
Features Of Ringed Seat:
Stainless steel hinge
Adjustable Locating Buffers
Size in [mm]: 370 x 431mm [Width x Depth]
Size in [cm]: 37 x 43.1cm [Width x Depth]
Features Of Concealed Cistern:
WRAS Approved
Weight: 2.9kg
Dual Flush Mechanism
Flushing Volume: 4/2.6 ltr
Supplied with Fittings
Inlet: RH or LH Bottom Inlet
Includes Chrome Effect Lever
Ideal for Use Behind Tiles and Partitioning and in Most Other Concealed Applications
Factory Assembled for Quick and Easy Installation
Features Of Grab Rails and Hinged Rail:
It Comes in a Blue Finish
Manufactured Using Steel Material
Weight: 7.8kg
Size of Grab Rail in [mm]: 600 x 110mm [Length x Depth]
Size of Grab Rail in [cm]: 60 x 11cm [Length x Depth]
Size of Hinged Rail in [mm]: 800 x 200mm [Length x Height]
Size of Hinged Rail in [cm]: 80 x 20cm [Length x Height]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Atlas
⤷ Colour
: White
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Viterous China, Steel
⤷ Theme
: Modern
⤷ Projection (Depth)
: 745
⤷ Width
: 360
⤷ Outlet
: Horizontal
⤷ Height
: 454

⤷ Seat Included
: Yes
⤷ Seat Type
: Ringed Seat
⤷ Seat Finish
: Blue
⤷ Barcode
: 5057199861849
⤷ Bowl Shape
: Oval
⤷ Cistern Depth (projection)
: 150
⤷ Front Of Bowl To Centre Of Seat Holes
: 429
⤷ Outlet Diameter
: Ø102
⤷ Base to centre of outlet
: 191

Additional Info & Downloads

Download the Product Datasheet Pdf File

Technical Images

Lecico Atlas Economy Back-To-Wall WC Pan DocM Pack

Basin

Waste

Tap

WC Pan

Seat

Cistern

Grab Rail

£1226.17

RRP: ~~£1532.71~~

Stock Availablity: 10-14 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.
