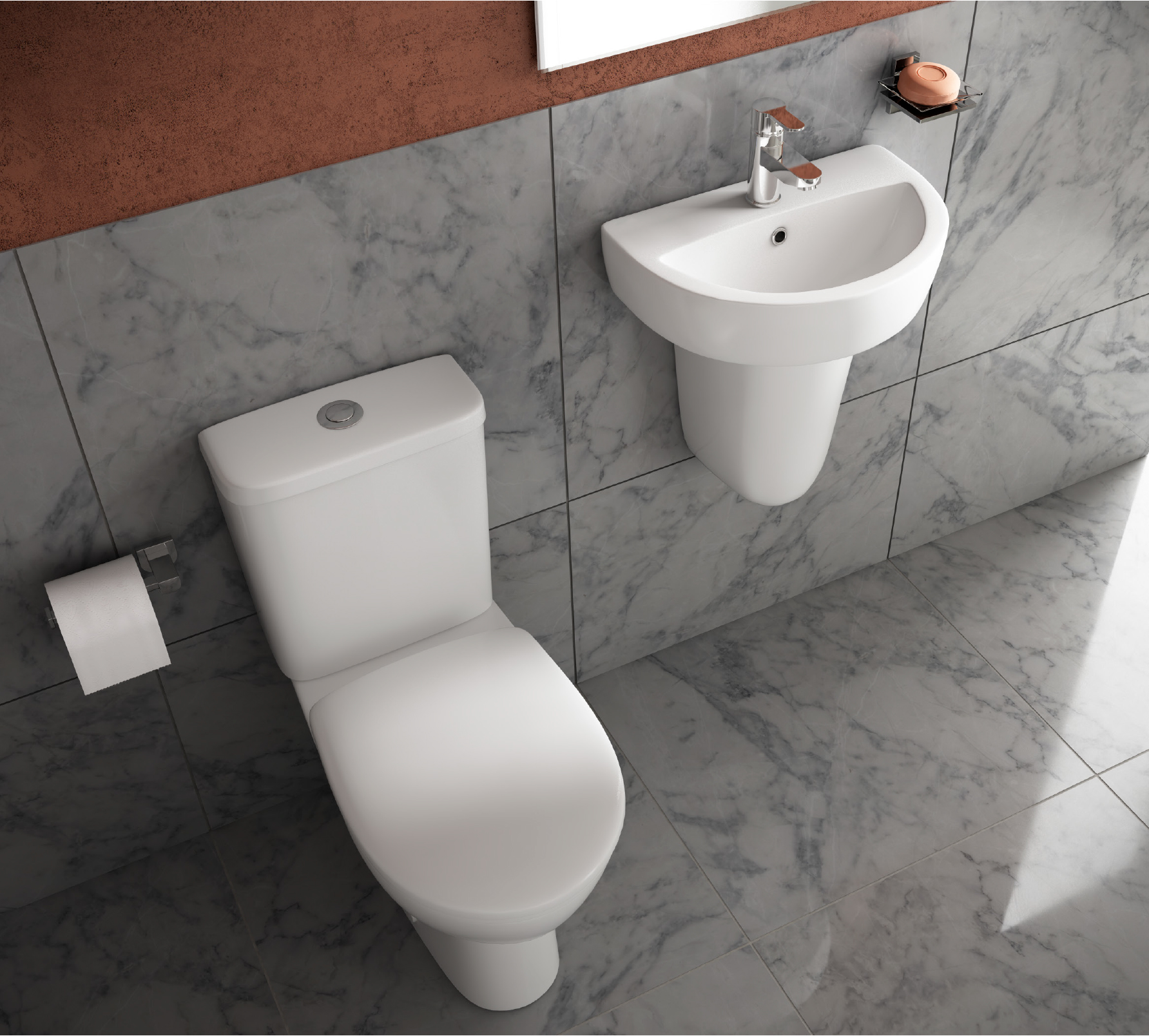

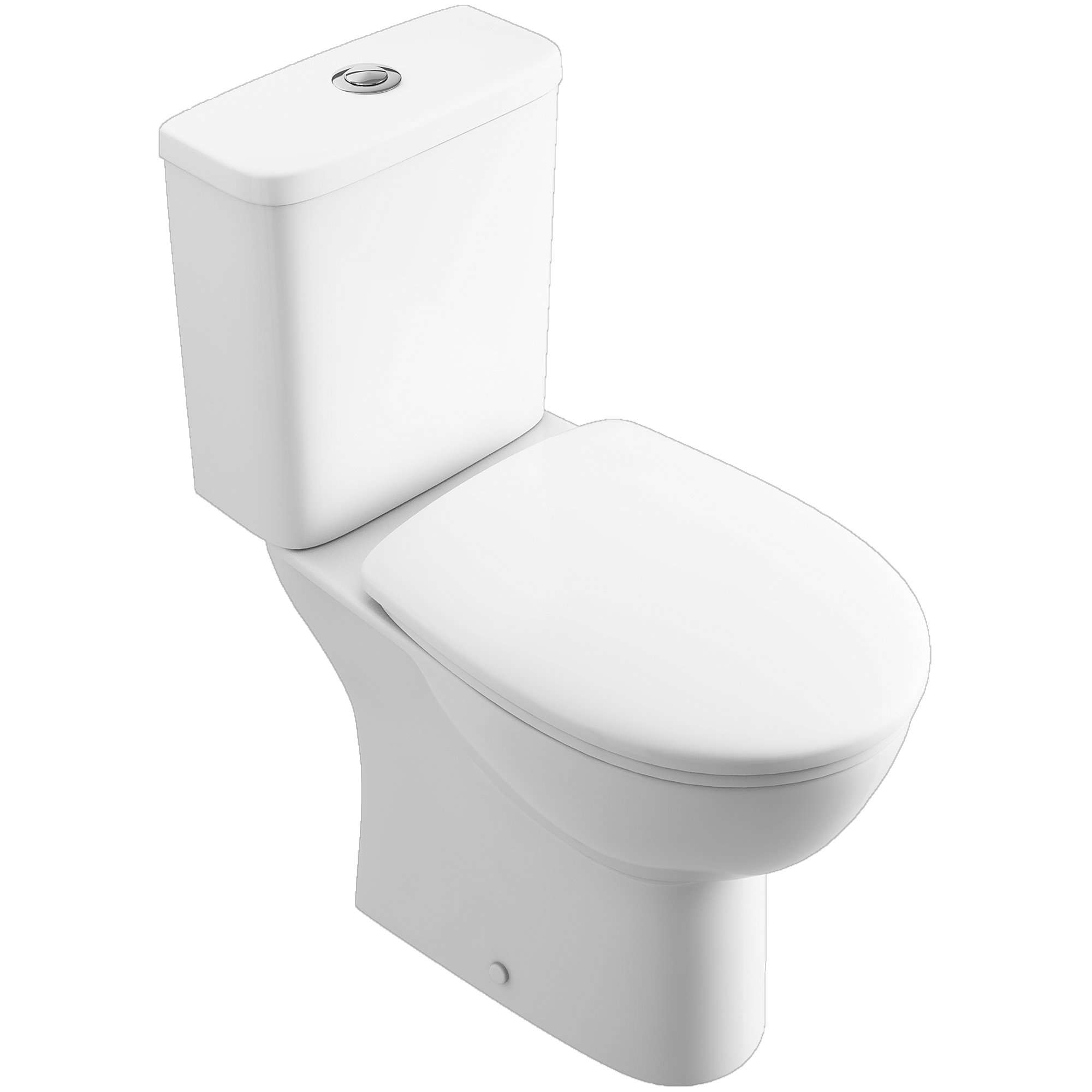

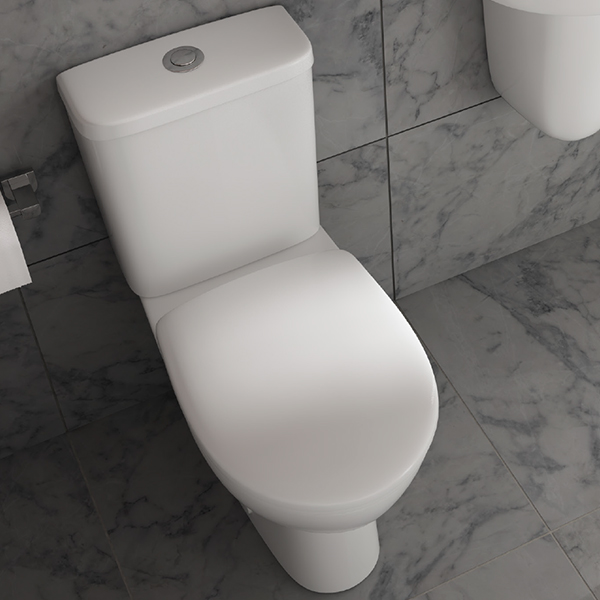

Lecico Atlas Close Coupled WC Pan with Cistern and Soft Close Seat

Lecico Atlas Details

MFC: SPSNPA|GEOWHPCI|STWHSEWRP

Lecico Atlas Close Coupled WC Pan with Cistern and Soft Close Seat - Short Projection.

Includes: WC Pan, Cistern and Soft Close Seat
It Comes in a White Finish
Refer to the Technical Drawing for Complete Size Details
Features of WC Pan
Fixing Kit Included
Size [mm]: 345 x 403mm [Width x Height]
Size [cm]: 34.5 x 40.3cm [Width x Height]
Projection: 614mm [61.4cm]
Overall Height: 764mm [76.4cm]
Weight: 34kg
Features Of Cistern
Flushing Mechanism: Dual Flush Push Button
Inlet: RH Bottom Inlet
Supplied with Cistern Fittings
Flushing Volume: 6/4 Ltr or 4/2.6 Ltr
Size [mm]: 340 x 150 x 361mm [Width x Depth x Height]
Size [cm]: 34 x 15 x 36.1cm [Width x Depth x Height]
Pre-installed/Bagged: Pre-installed
Cistern Can be Fixed to the Wall
Weight: 10.7kg
Features Of Soft Close Seat
Material: Polypropylene
Size [mm]: 348 x 49 x 429mm [Width x Depth x Height]
Size [cm]: 34.8 x 4.9 x 42.9cm [Width x Depth x Height]
Durable and Easy to Clean
Weight: 1.1kg

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Atlas
⤷ Toilet Design
: Open Back
⤷ Colour
: White
⤷ Weight in kg
: 26
⤷ Warranty/Guarantee
: Lifetime: WC Pan & Cistern | Seat: 5 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 345
⤷ Pan Height
: 403
⤷ Toilet Overall Height
: 764
⤷ Projection (Depth)
: 614
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 340
⤷ Cistern Height
: 361
⤷ Flush Type
: Dual Flush

⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 4
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: UKCA
⤷ Barcode
: 5057199860323
⤷ Bowl Shape
: Oval
⤷ Product Type
: Close Coupled WC
⤷ Cistern Depth (projection)
: 150
⤷ Front Of Bowl To Centre Of Seat Holes
: 408
⤷ Base to centre of outlet
: 178

Additional Info & Downloads

This item can also be found in:

Technical Images

Pan & Citern

Seat

£412.28

RRP: ~~£515.36~~

Stock Availablity: 5 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Push-Button Flush Valve Cistern

Toilets with push-button flush valves are usually dual-flush toilets. One button triggers a liquid, and the other is for solid flushes. Additionally, since these valves are smaller than levers, they use less water than traditional toilets.

Thermoplastic (Polypropylene)

Thermoplastic, specifically polypropylene is an injection moulded plastic material with a glossy finish. Products made with this material are easy to clean, warm to the touch, and flexible. Polypropylene is also resistant to chemicals and shatterproof under normal temperature conditions.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.
