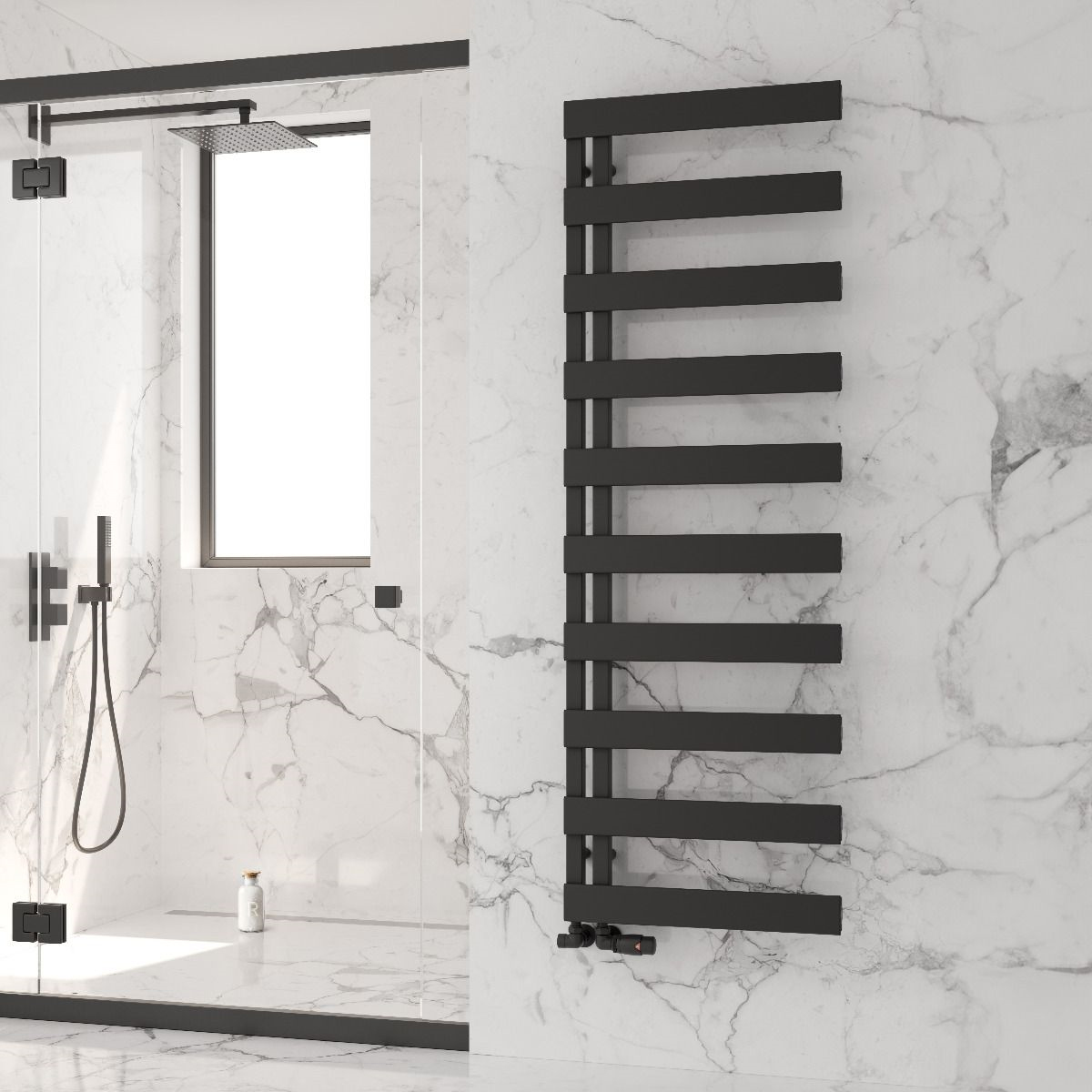

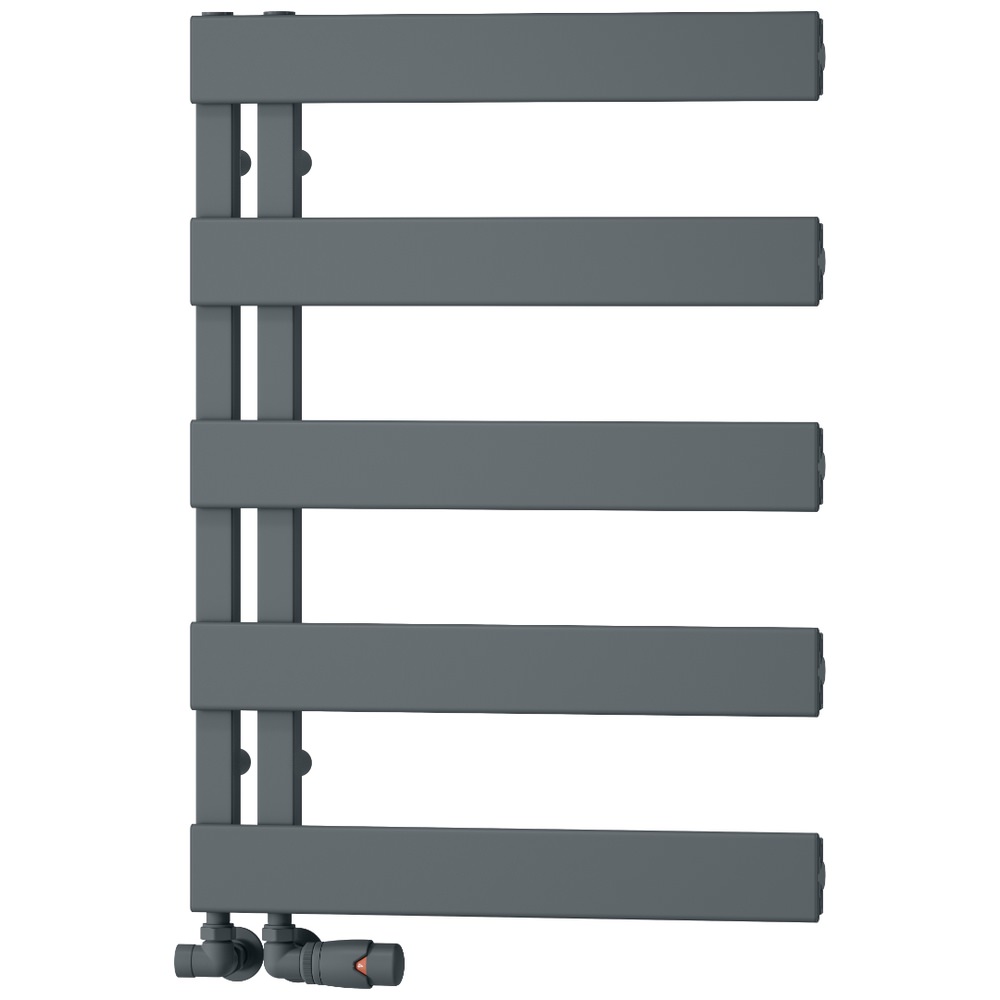

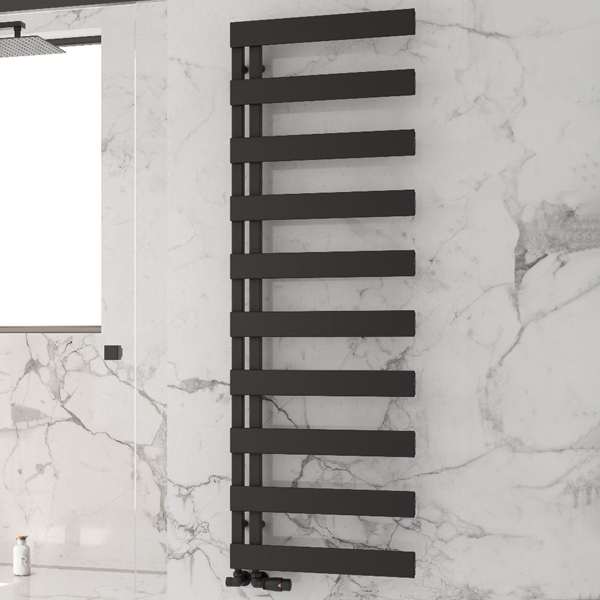

Reina Carpena Flat Panel Straight Heated Towel Rail, Aluminium, A-CPN0715SA

Reina Carpena Details

MFC: A-CPN0715SA

Compatible Valves

Reina Carpena 500mm Wide Aluminium Heated Towel Rail.

Key Features

✔EN 442 Compliant Product
✔Brackets for Radiator Included
✔Choice of Finishes: Anthracite, White and Black
✔Constructed using the Highest Quality Aluminium Material
✔5-Year Guarantee from Reina Against Manufacturing Defects

Choice of Height: 710mm, 1190mm and 1510mm
Width: 500mm (50cm)
Wall to Pipe Centres: 65mm (6.5cm)
Distance from Wall: 92mm (9.2cm)
A Stylish and Efficient Towel Rail
Suitable for Central Heating Systems Only
Supplied with Air Vent and End Plug
Highly Durable and Lightweight, Providing Superior Heat Conductivity
The Image Shown is for Illustration Purposes Only
For BTU and Watts, Please Refer to the Chart in the Product Variations Info and MFC Code Section
Valves, Sleeving Kit and Chrome Pipe Kit - [Optional]
Refer to the Radiator Valves Available in the Product
Technical Drawing Available for More Technical Details
Download the Customer Datasheet and Installation Instruction PDF Files from the Additional Info Section
The Valves Shown in the Image are not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Carpena
⤷ Colour
: Anthracite
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Aluminium
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 92
⤷ Width
: 500
⤷ Height
: 710
⤷ Orientation
: Vertical

⤷ Compliance/Approvals/Standard
: EN 442 Compliant
⤷ Barcode
: 8800161351025
⤷ BTU Output
: 50°C - 1041
⤷ Watts
: 50°C - 305
⤷ No. Of Bars
: 5
⤷ Tapping / Pipe Centres
: 50
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 65
⤷ Brackets Included
: Yes

Additional Info & Downloads

This item can also be found in:

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-243458 - 200mm Chrome Pipe Kit + £18.73
OP-243459 - 130mm Chrome Pipe Kit + £23.18
OP-243460 - 130mm Anthracite Pipe Kit + £23.18
OP-243461 - 130mm White Pipe Kit + £23.18
OP-243462 - 130mm Brushed Brass Pipe Kit + £23.18
OP-243463 - 130mm Black Pipe Kit + £23.18

Reina Carpena Flat Panel Straight Heated Towel Rail - 500mm Wide - Aluminium

£145.44

RRP: ~~£252.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

Height	710mm	1190mm	1510mm
Finish	Anthracite	Anthracite	Anthracite
Fuel Type	Central Heating	Central Heating	Central Heating
Pipe Centres	50	50	50
Wall to Pipe Centres	65	65	65
Wall Distance	92	92	92
Tube Quantity	5	8	10
Total Gap	4	7	9
Watts - Delta-60	391	631	791
BTU - Delta-60	1333	2152	2698
Watts - Delta-50	305	493	618
BTU - Delta-50	1041	1681	2108
MFC	A-CPN0715SA	A-CPN1195SA	A-CPN1515SA

Height	710mm	1190mm	1510mm
Finish	White	White	White
Fuel Type	Central Heating	Central Heating	Central Heating
Pipe Centres	50	50	50
Wall to Pipe Centres	65	65	65
Wall Distance	92	92	92
Tube Quantity	5	8	10
Total Gap	4	7	9
Watts - Delta-60	391	631	791
BTU - Delta-60	1333	2152	2698
Watts - Delta-50	305	493	618
BTU - Delta-50	1041	1681	2108
MFC	A-CPN0715SW	A-CPN1195SW	A-CPN1515SW

Height	710mm	1190mm	1510mm
Finish	Black	Black	Black
Fuel Type	Central Heating	Central Heating	Central Heating
Pipe Centres	50	50	50
Wall to Pipe Centres	65	65	65
Wall Distance	92	92	92
Tube Quantity	5	8	10
Total Gap	4	7	9
Watts - Delta-60	391	631	791
BTU - Delta-60	1333	2152	2698
Watts - Delta-50	305	493	618
BTU - Delta-50	1041	1681	2108
MFC	A-CPN0715SK	A-CPN1195SK	A-CPN1515SK
