Reina Diva 600mm Wide Flat Towel Rail

Reina Diva AG60800WF Details

The Reina Diva Flat Towel Rail comes in different sizes and finishes. Available is constructed from an incredibly sturdy steel material and is coated in an attractive finish for a bold yet versatile look. With several different product lengths to choose from, whichever size is chosen, the result is a stylish and functional addition to any bathroom. Suitable for use with central, electric or dual fuel heating systems, this product comes complete with an air vent and end plug with several other accessories also available separately for installation and use if necessary.

Key Features

✔EN 442 compliant product
✔Manufactured using steel material
✔Supplied with air vent and end plug
✔Five years guarantee from Reina against manufacturing defects
✔Choice of different finishes: White, Black, Anthracite and Chrome - [Optional]

Available in different heights: 800mm, 1000mm, 1200mm, 1400mm, 1600mm and 1800mm - [Optional]
Available variants: Central heating, Dual Fuel and Electric - [Optional]

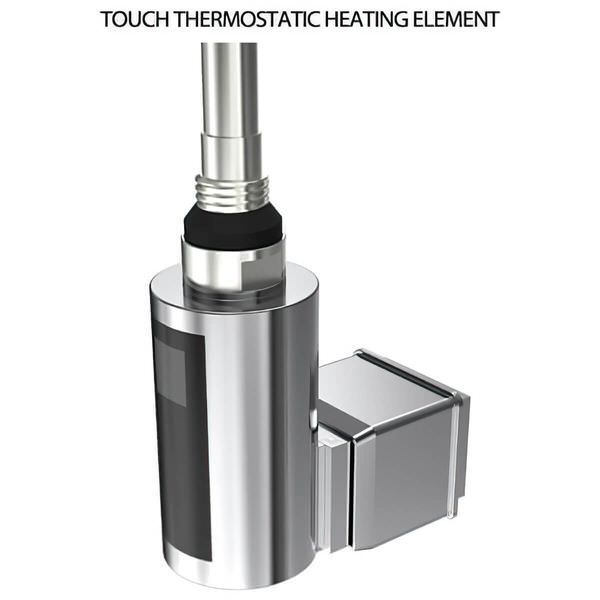

Choice of heating element available - [Optional]
Straight towel rail
Width: 600mm (60cm)
Pipe centres: 560mm (56cm)
Wall to pipe centres: 70mm-85mm (7cm-8.5cm)
Distance from wall: 85mm-100mm (8.5cm-10cm)
Tube diameter: Ø25mm (2.5cm)
Brackets for radiator included
For Central Heating And Dual fuel, Radiator valves are highly recommended
For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece
For Electric models, Optional Liquid Filling is required with the heating element
Valves, Sleeving kit and chrome pipe kit - [Optional]
For BTU, Watts and other details, please refer to the chart in the PRODUCT VARIATIONS INFO and MFC CODE Tab
The image shown is for illustration purposes only
Refer to the technical drawing for more technical specifications
The valves shown in the image are not included

Please Note: The appropriate wattage of the element if selected will be decided by the manufacturer, once the order is placed.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Diva
⤷ Colour
: Chrome
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 600
⤷ Height
: 800
⤷ Fixings included
: Yes
⤷ Orientation
: Vertical

⤷ Barcode
: 5057199959935
⤷ BTU Output
: 1363
⤷ Watts
: 400
⤷ No. Of Bars
: 14
⤷ Tapping / Pipe Centres
: 560
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Dual Fuel | Electric
⤷ Wall to Centre of Inlet
: 85-100
⤷ Tube Diameter
: 25
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic
⤷ Brackets Included
: Yes

Technical Images

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £16.40

£69.25

RRP: ~~£141.32~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Finishes & Height	Chrome Finish - 800mm	Other Finish - 800mm	Chrome Finish - 1000mm	Chrome Finish - 1200mm	Other Finish - 1200mm	Chrome Finish - 1400mm	Chrome Finish - 1600mm	Chrome Finish - 1800mm	Other Finish - 1800mm
Tube Quantity	14	14	17	21	21	24	27	31	31
Fuel Type	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel	Central/Electric/Duel
Total Gap	2	2	2	2	2	3	4	4	4
Watts - Delta-70	400	588	545	699	1027	807	915	1043	1533
BTU - Delta-70	1363	2004	1860	2385	3502	2752	3121	3556	5227
BTU - Delta-60	1117	1643	1525	1955	2870	2256	2558	2915	4284
BTU - Delta-50	879	1293	1200	1539	2259	1775	2014	2294	3372
BTU - Delta-45	766	1126	1045	1340	1967	1546	1753	1998	2937
BTU - Delta-40	662	973	903	1158	1700	1336	1515	1726	2537
BTU - Delta-35	554	815	756	970	1424	1119	1269	1446	2125
BTU - Delta-30	450	661	614	787	1156	908	1030	1174	1725
BTU - Delta-25	175	258	239	307	450	354	401	457	672

4 Features Included In This Product Explained

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
