Jaquar Lexa Deck Mounted High Neck Basin Mixer Tap - 340mm High - Joystick Handle

Jaquar Lexa Deck Mounted High Neck Basin Mixer Tap - 340mm High - Joystick Handle

No Rating

Jaquar Lexa Deck Mounted High Neck Basin Mixer Tap - 340mm High - Joystick Handle

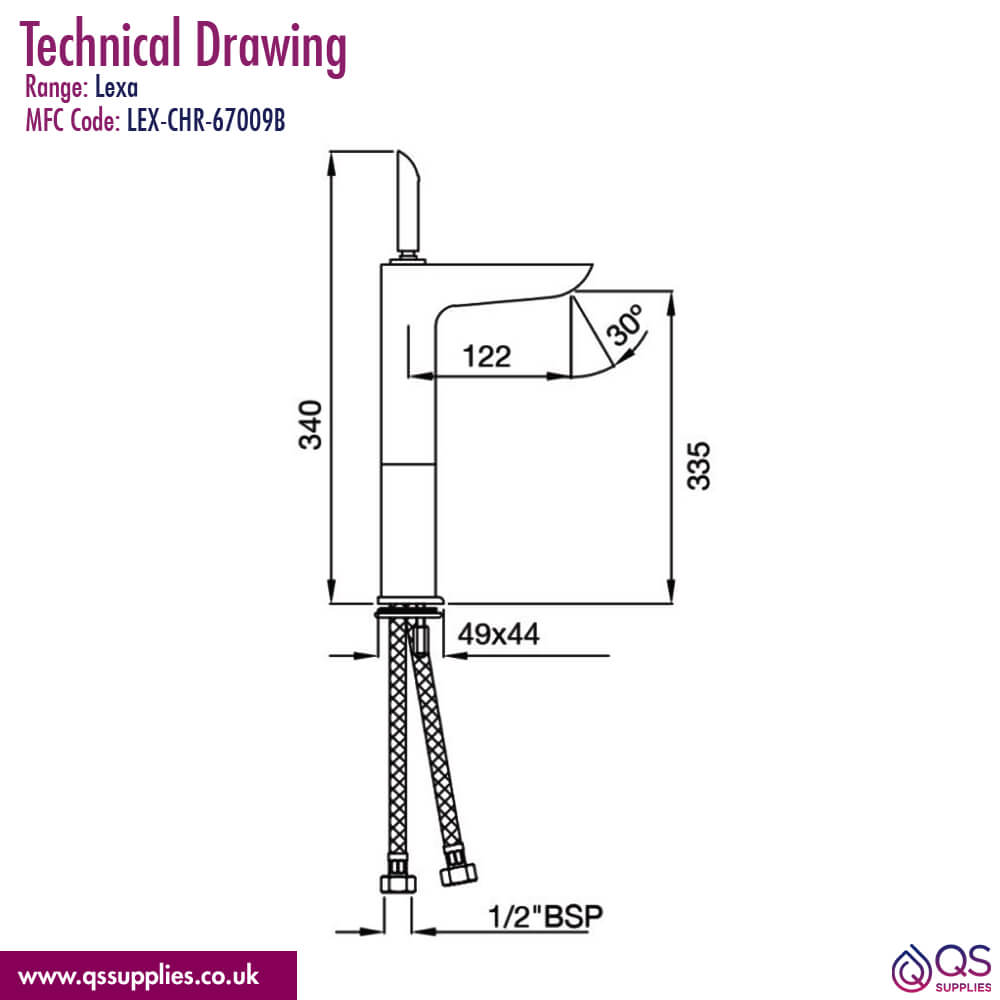

Technical drawing QS-V113583 / LEX-CHR-67009B

Additional image of Jaquar LEX-CHR-67009B

Additional image of Jaquar Lexa Deck Mounted High Neck Basin Mixer Tap - 340mm High - Joystick Handle

Additional image for QS-V113583 Jaquar - LEX-CHR-67009B

Jaquar image

QS-V113583 small Image 1

QS-V113583 small Image 2

QS-V113583 small Image 3

Jaquar Lexa Deck Mounted High Neck Basin Mixer Tap - 340mm High - Joystick Handle small Image 4

LEX-CHR-67009B small Image 5

QS-V113583 small Image 6

£250.60

RRP: ~~£358.00~~

SKU: QS-V113583

Select Finish

Selected: OP-246972 - Chrome

QTY

Shipping: FREE ^* Check Postcodes

Stock Availability:

5 Working Days Approx.

Jaquar Lexa Details

MFC: LEX-CHR-67009B

Jaquar Lexa Deck Mounted High Neck Basin Mixer Tap - 340mm High - Joystick Handle

Key Features

✔Single Lever operation
✔600mm long Braided Hoses
✔1/2" FIP - WRAS Approved
✔Suitable for a High-Pressure water system

Maximum Static Pressure: 10 bar
Flow Rate: 14.37 LPM @ 3 bar
Requires a minimum 1.0 bar to a maximum of 5.0 bar operating water pressure
Brass Ingots as per IS:1264-1997
Brass Rod as per IS:319-1989
Brass Sheets as per IS:410-1977
Cartridge with Brass Spindle
Life Cycle EN 817: 70,000 cycles (Standard)
2.1 LAC Cycles as per EN 817
10.5 LAC Cycles (ON/OFF)
Water Tightness: 16 bar (Pass)
Pressure Resistance: 25 bar (Pass)
Height: 340mm [34cm]
Centre of Inlet to Centre of Outlet: 122mm
Base to Spout: 235mm
1/2" BSP Inlet Connection
Refer to the Technical drawing for more technical details
Download the Datasheet PDF File from the Additional Info & Download section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Lexa
⤷ Tap Body Shape
: Square
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed

⤷ Base To Spout
: 335
⤷ Spout Reach
: 122
⤷ Overall Height
: 340
⤷ Flow Rates (l/min)
: 14.37 LPM at 3 bar
⤷ Handle Style
: Joystick
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5057199986610
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Data Sheet Pdf File
