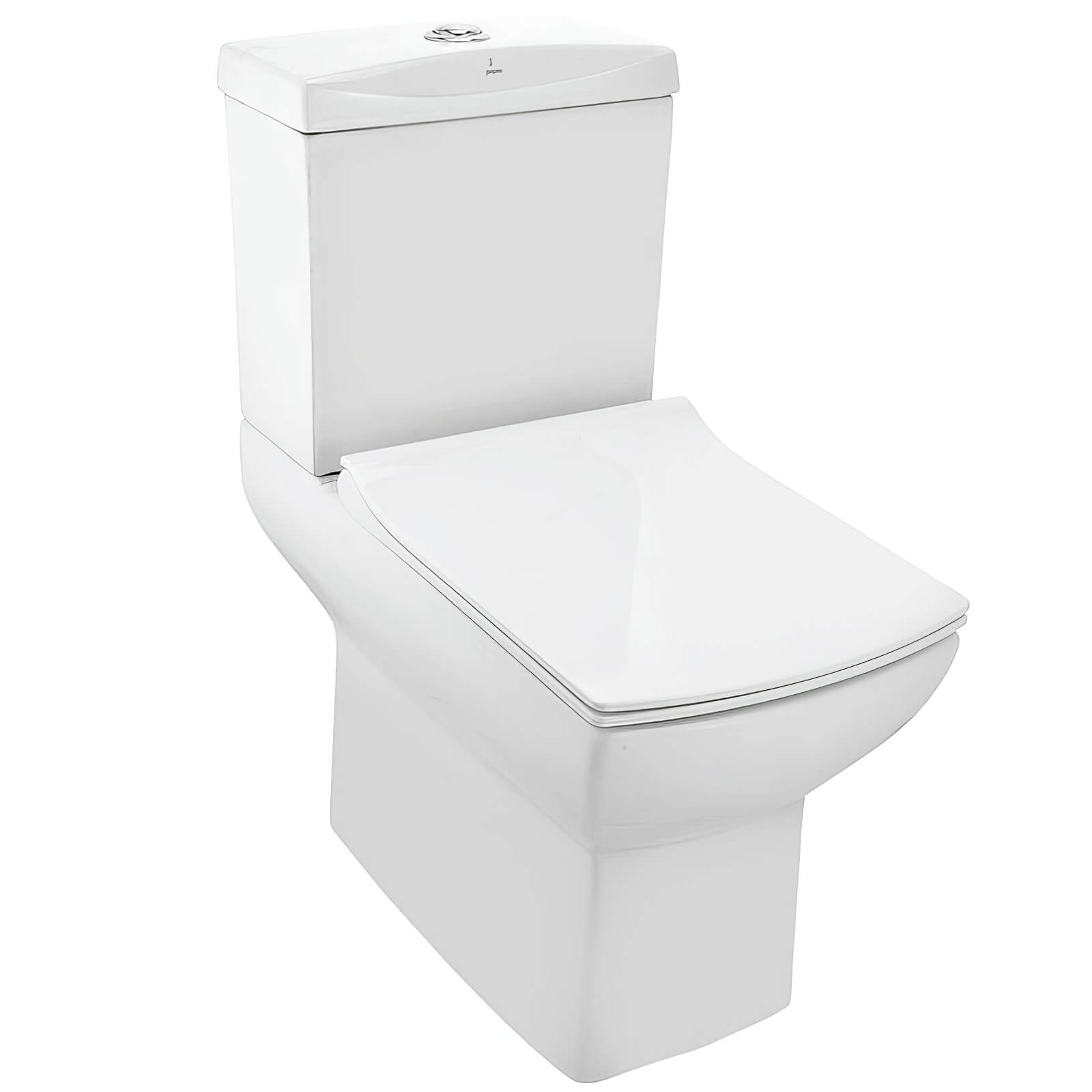

Jaquar Lyric White Close Couple WC Pan with UF Soft Close Seat and Cistern

Not Yet Rated No Rating

£274.80

RRP: £344.00
SKU: QS-V114734
Key Features
  • CE Approved
  • Comes with UF Soft Close Slim Seat Cover and Cistern
  • Manufactured Using Ceramic-Vitreous China Material
  • Warranty Against any Manufacturing Defect: WC Pan [10-Year], UF Seat [5-Year]
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

5-7 Working Days Approx.

Jaquar Lyric Details

MFC: LYS-WHT-38751P180UFSMZ

Jaquar Lyric White Close Couple WC Pan with UF Soft Close Seat and Cistern

  • Manufacturing Code of this Product: LYS-WHT-38751P180UFSMZ
  • It Comes in a White Finish
  • Elegant Design
  • Box Rim
  • Closet Toilet
  • Outlet: Horizontal
  • Size [mm]: 380 x 655 x 765mm [Width x Depth x Height]
  • Size [cm]: 38 x 65.5 x 76.5cm [Width x Depth x Height]
  • Weight: 40kg
  • Trap Distance: P Trap - 180mm
  • Dual Flush: 3/6 LPF
  • Anti-Germ Glaze
  • Flush Valves: Dual Flush Advantages
  • Supplied with Floor Fixing Screw and Cistern Fittings
  • Compliance: EN 997: 2012+A1 2015 (E), SANS 497: 2011
  • External Diameter of Outlet Hole: Ø100 +5/-2mm
  • Vertical Distance Between the Floor and the Centre Line of the Waste Outlet Hole: ≤ 180mm
  • Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Lyric
  • ⤷ Toilet Design
  • : Open Back
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 40
  • ⤷ Warranty/Guarantee
  • : WC Pan [10-Year], UF Seat [5-Year]
  • ⤷ Material
  • : Ceramics, Vitrous China
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Floor Standing
  • ⤷ Pan Width
  • : 350
  • ⤷ Pan Height
  • : 410
  • ⤷ Toilet Overall Height
  • : 765
  • ⤷ Projection (Depth)
  • : 655
  • ⤷ Cistern Included
  • : Yes
  • ⤷ Cistern Width
  • : 380
  • ⤷ Cistern Height
  • : 355
  • ⤷ Flush Type
  • : Dual Flush
  • ⤷ Full Flush Volume in litres
  • : 6
  • ⤷ Half Flush Volume in litres
  • : 3
  • ⤷ Flush Mechanism
  • : Push Button
  • ⤷ Cistern Lever Or Button Placement
  • : Top
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Seat Included
  • : Yes
  • ⤷ Seat Type
  • : Soft Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Fixings included
  • : Yes
  • ⤷ Compliance/Approvals/Standard
  • : CE
  • ⤷ Barcode
  • : 5057199986559
  • ⤷ Bowl Shape
  • : Elongated
  • ⤷ Product Type
  • : Close Couple Toilet
  • ⤷ Cistern Depth (projection)
  • : 180
  • ⤷ Seat Post Hole Centers
  • : 150
  • ⤷ Front Of Bowl To Centre Of Seat Holes
  • : 425
  • ⤷ Outlet Diameter
  • : Ø72
  • ⤷ Base to centre of outlet
  • : 180

Additional Info & Downloads

This item can also be found in:
£274.80
RRP: £344.00
Stock Availablity: 5-7 Working Days Approx
QS Supplies

7 Features Included In This Product Explained

Dual-Flush

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Soft-Close Seat

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

CE Certified Product

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Push-Button Flush Valve Cistern

Push-Button Flush Valve Cistern

Toilets with push-button flush valves are usually dual-flush toilets. One button triggers a liquid, and the other is for solid flushes. Additionally, since these valves are smaller than levers, they use less water than traditional toilets.

BS EN 997 Standard

BS EN 997 Standard

This standard specifies the constructional, performance requirements and test methods for close-coupled suites, one-piece and independent WC pans with integral traps used for personal hygiene made using vitreous china or stainless steel. Compliance with this standard aims to ensure reliability, performance and safety.
