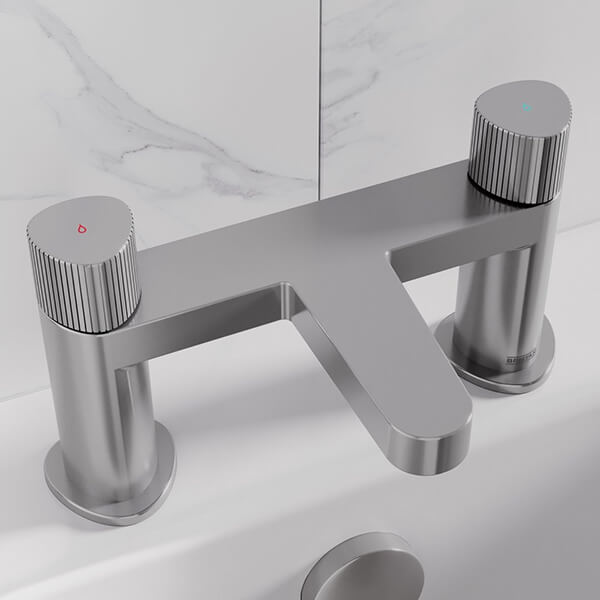

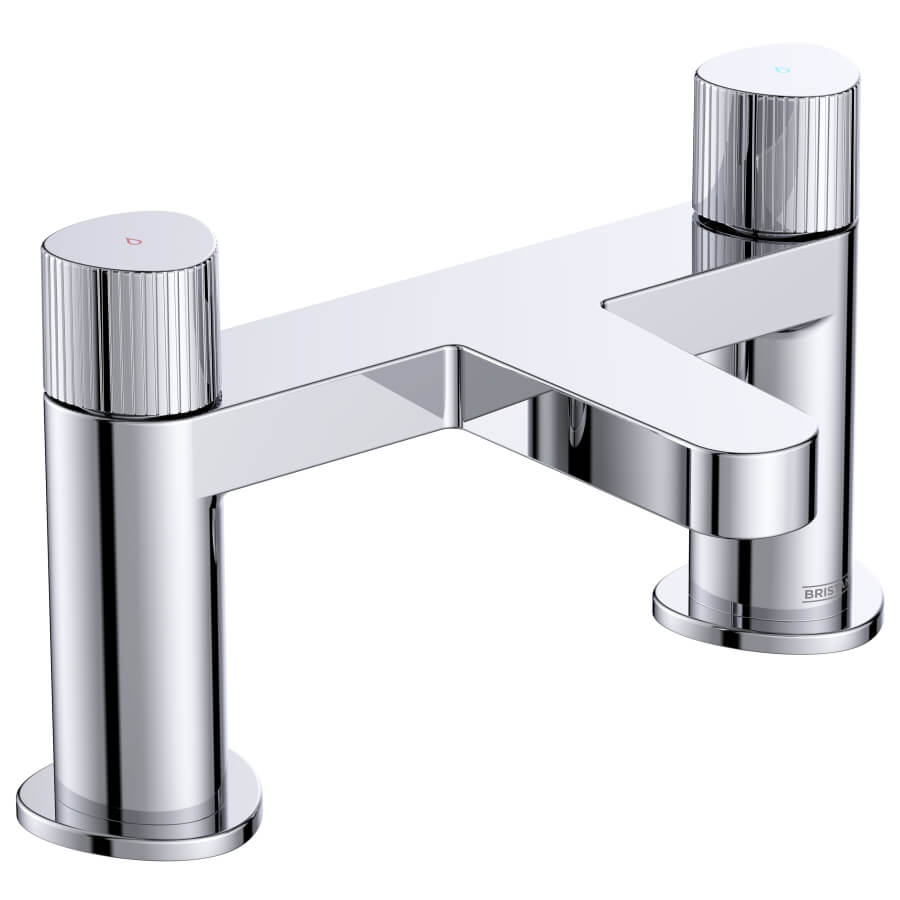

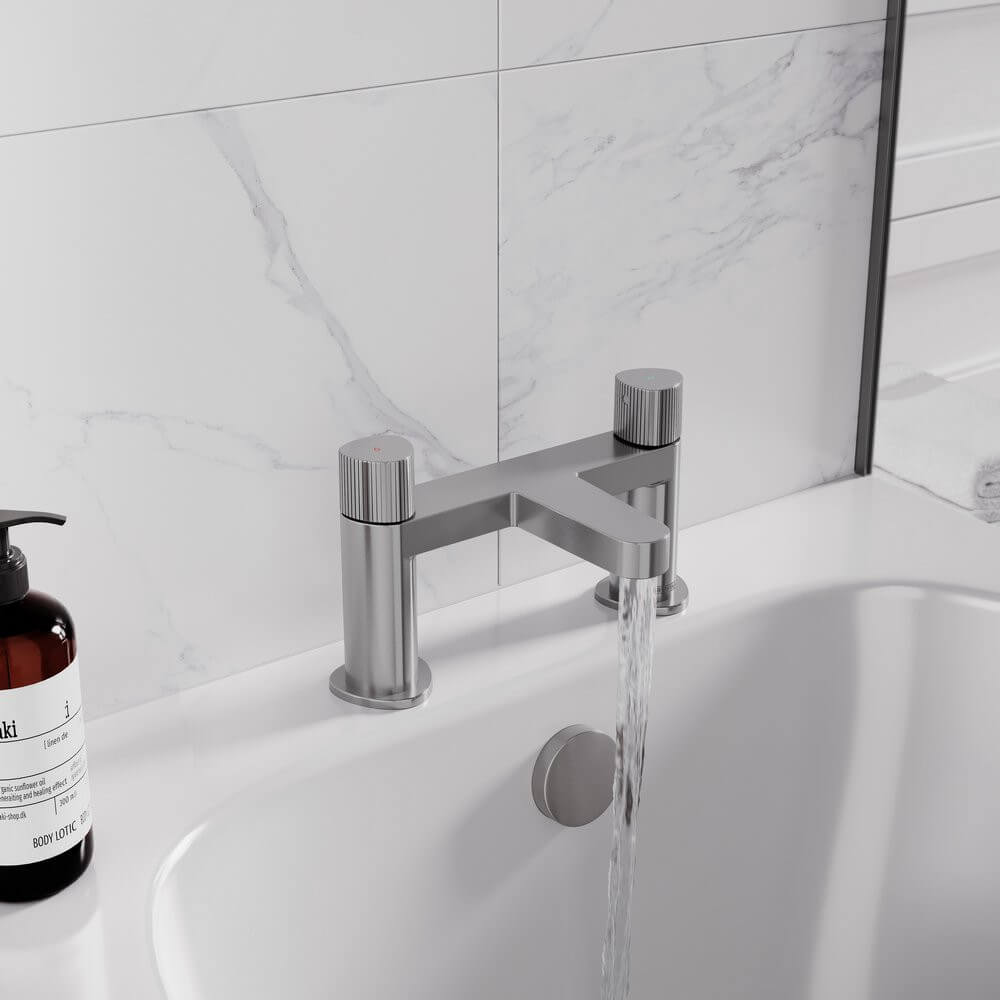

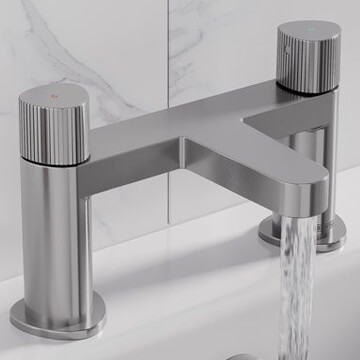

Bristan Liso Contemporary Deck Mounted Bath Filler Tap

Liso Details

MFC: LIS BF C

Bristan Liso Contemporary Deck Mounted Bath Filler Tap - Knob Handles

Key Features

✔Modern Design
✔Flow Type: Single
✔1/4 Quarter Turn Mechanism

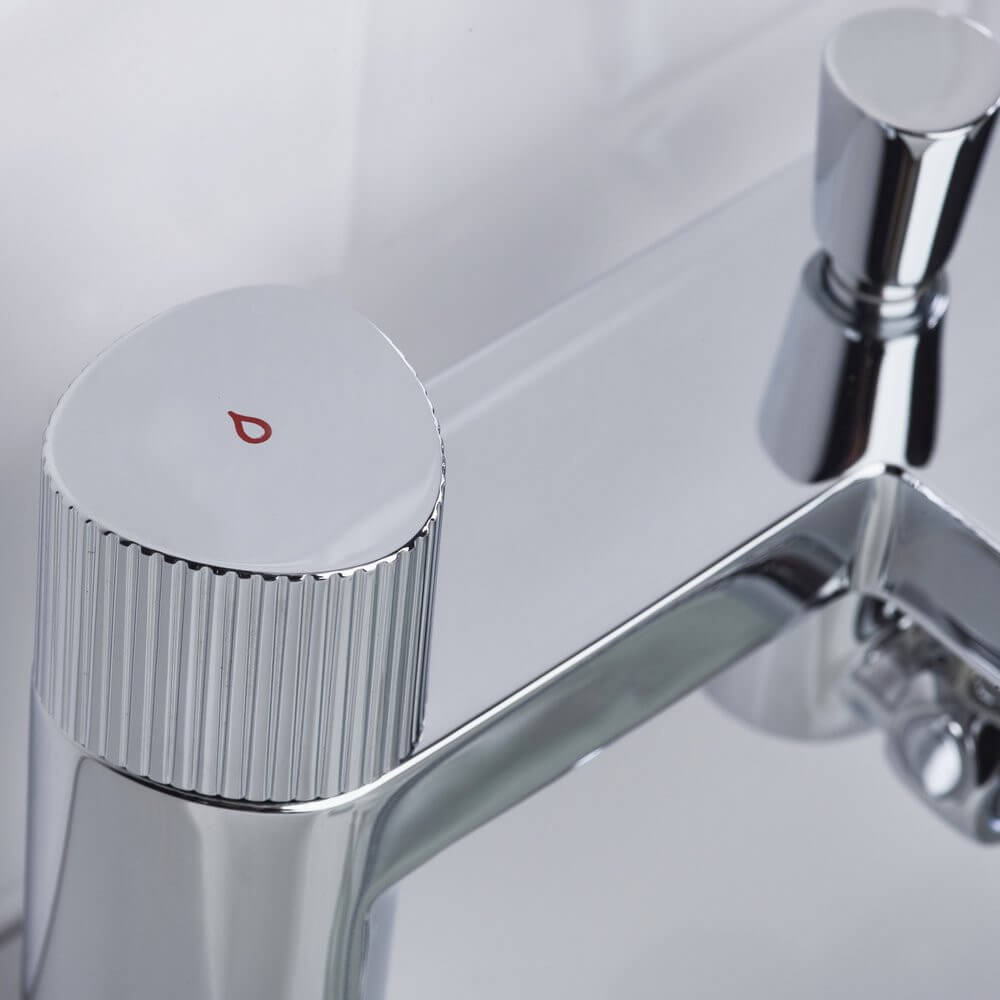

✔Featuring a Distinctive Knurled Finish
✔10 Years On Parts and 1 Year On Labour Guarantee for Peace of Mind from Bristan

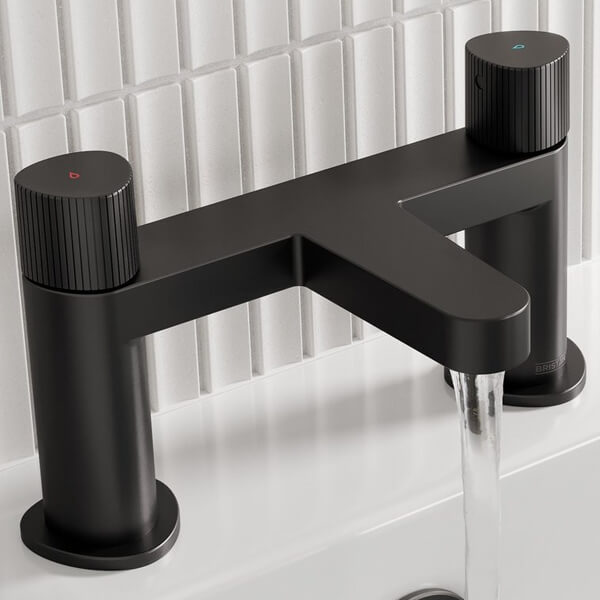

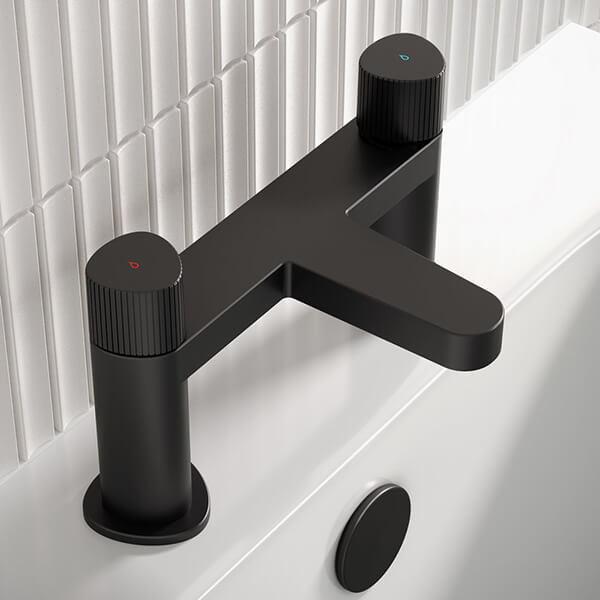

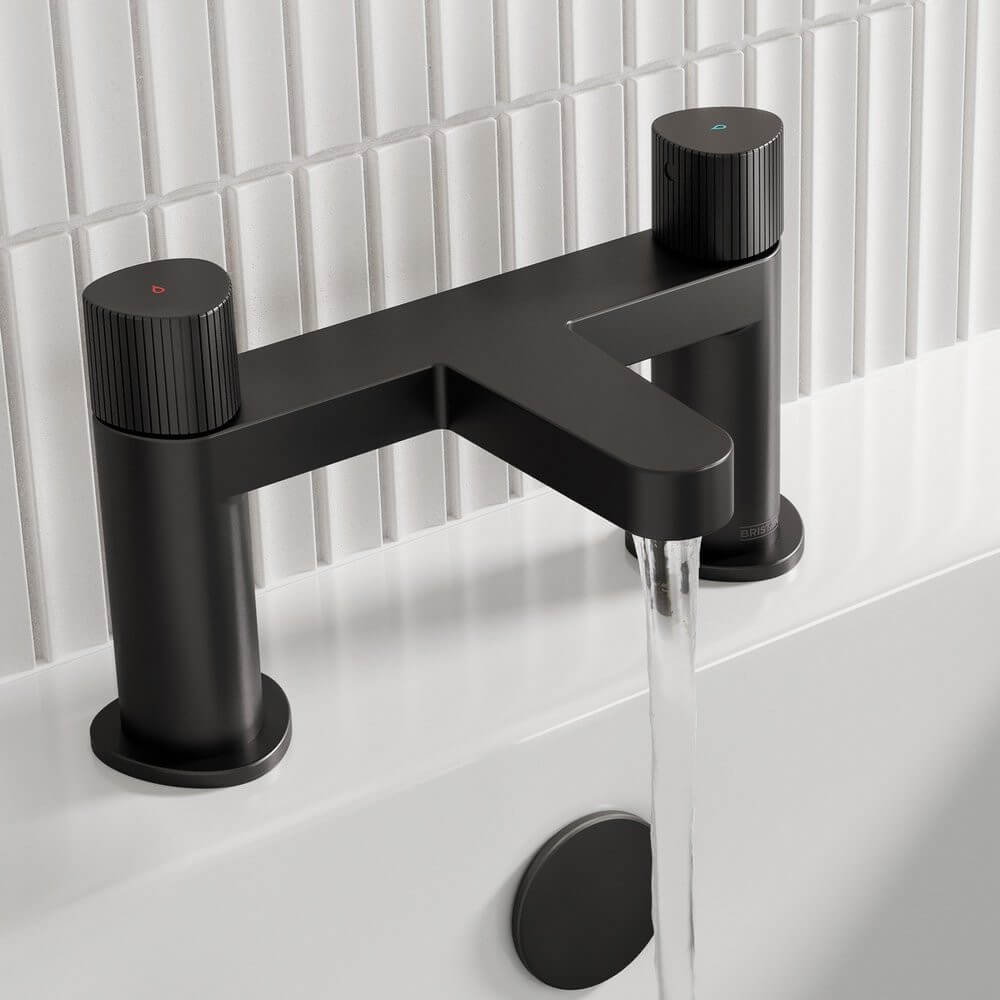

Available in 2 Finishes: Chrome, Black
Available in 2 Variations: Without Handset and With Handset
Mount Type: Deck Mounted
Handle Type: Round
Connection Inlet: 3/4 Inch BSP
Connection Outlet: M24 Aerator
Number of Tap Holes: 2
Size [mm]: 235 x 137 x 134mm [Width x Depth x Height]
Size [cm]: 23.5 x 13.7 x 13.4cm [Width x Depth x Height]
Base to Spout: 80mm [8cm]
Inlet Centre: 180mm [18cm]
Centre of Inlet to Centre of Outlet: 97mm [9.7cm]
Maximum Static Pressure: 10 Bar
Maximum Hot Water Temperature: 60°C
Valve/Cartridge Type: 3/4 Inch Ceramic Disc Valve - 1/4 Turn
Salt Spray Tested to Ensure Added Durability
Plumbing System Requirements: Suitable for All Plumbing Systems
A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish That Lasts for Years
Long Life 1/4 Turn Ceramic Disc Valves for Added Durability and Smooth Control
Robust Metal Fixing Nut to Secure the Tap in Place, Reducing the Risk of Loosening Over Time

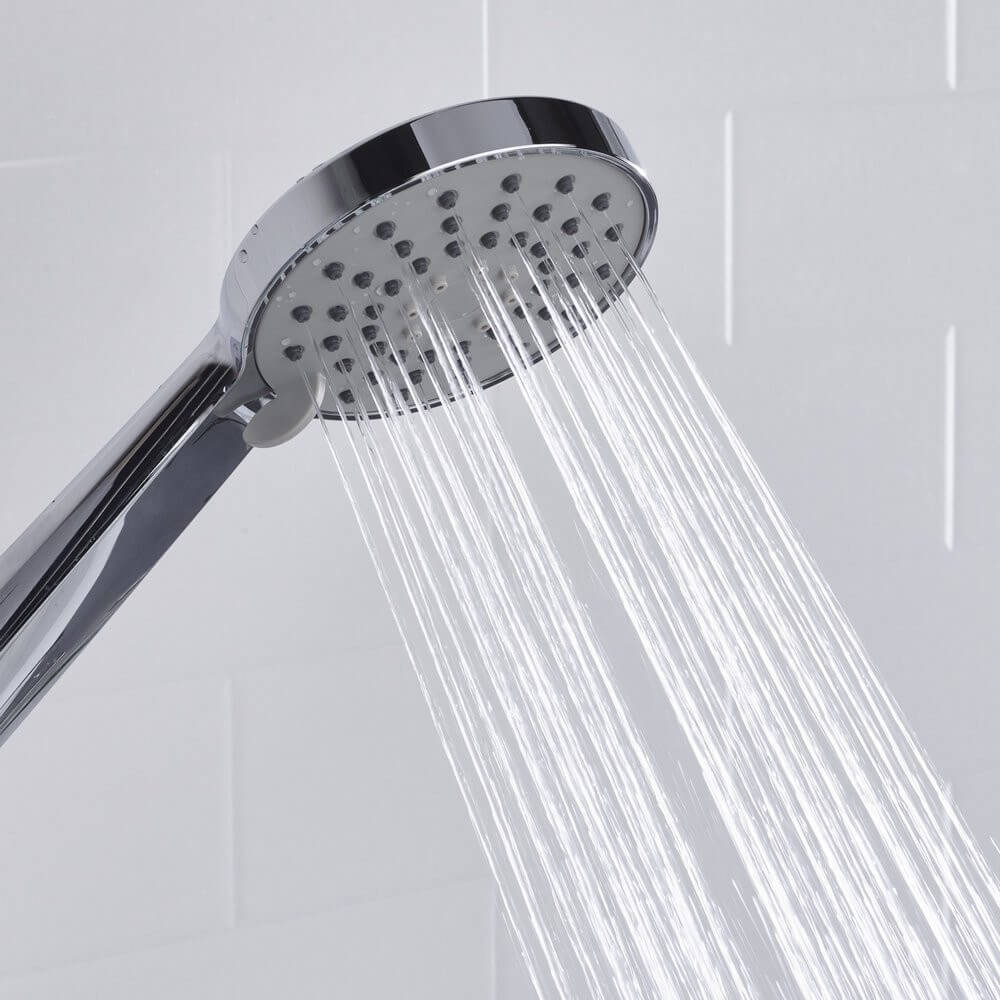

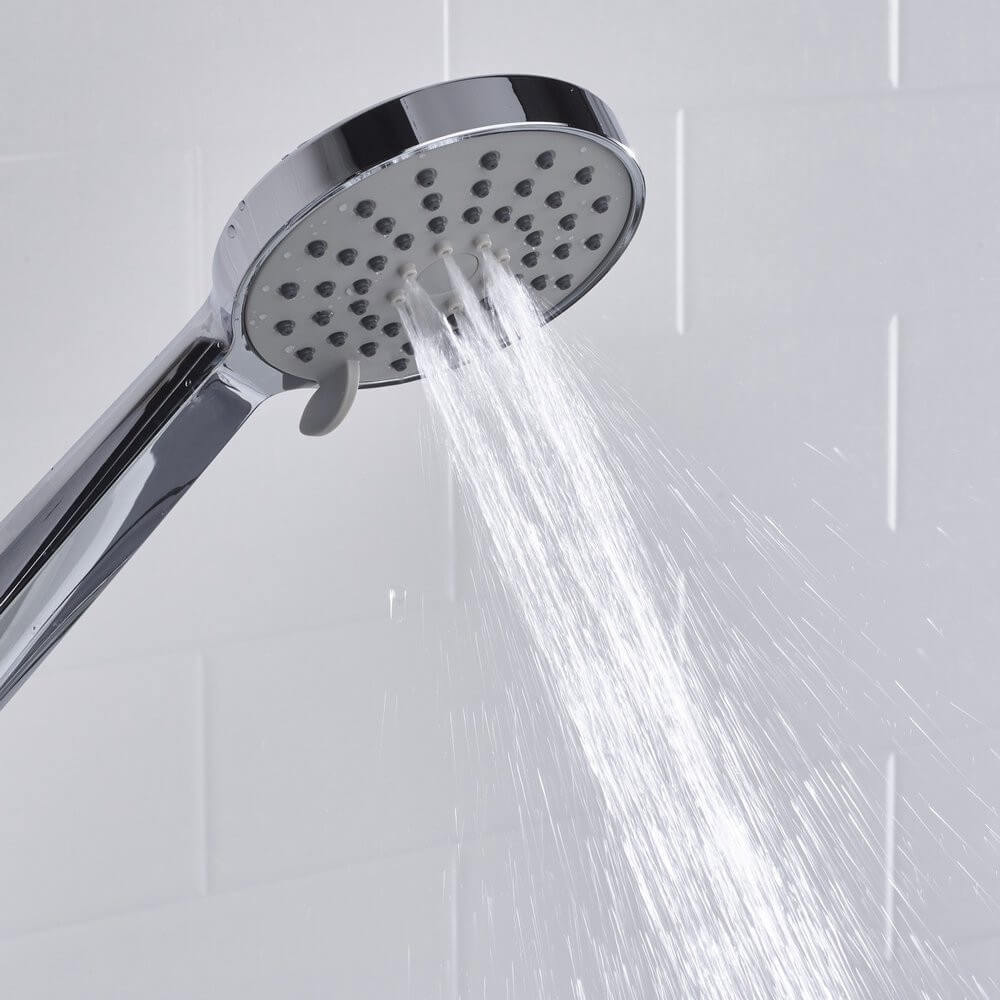

Rub Clean Handset: Limescale and Debris Build-Up is Quickly and Easily Removed by Rubbing a Finger or Cloth Over the Nozzles
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section
Details of Bath Filler Tap:
WRAS Approved
Manufactured Using Brass, Zinc Alloy Material
Suitable for Low and High Water Pressure Systems
Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure

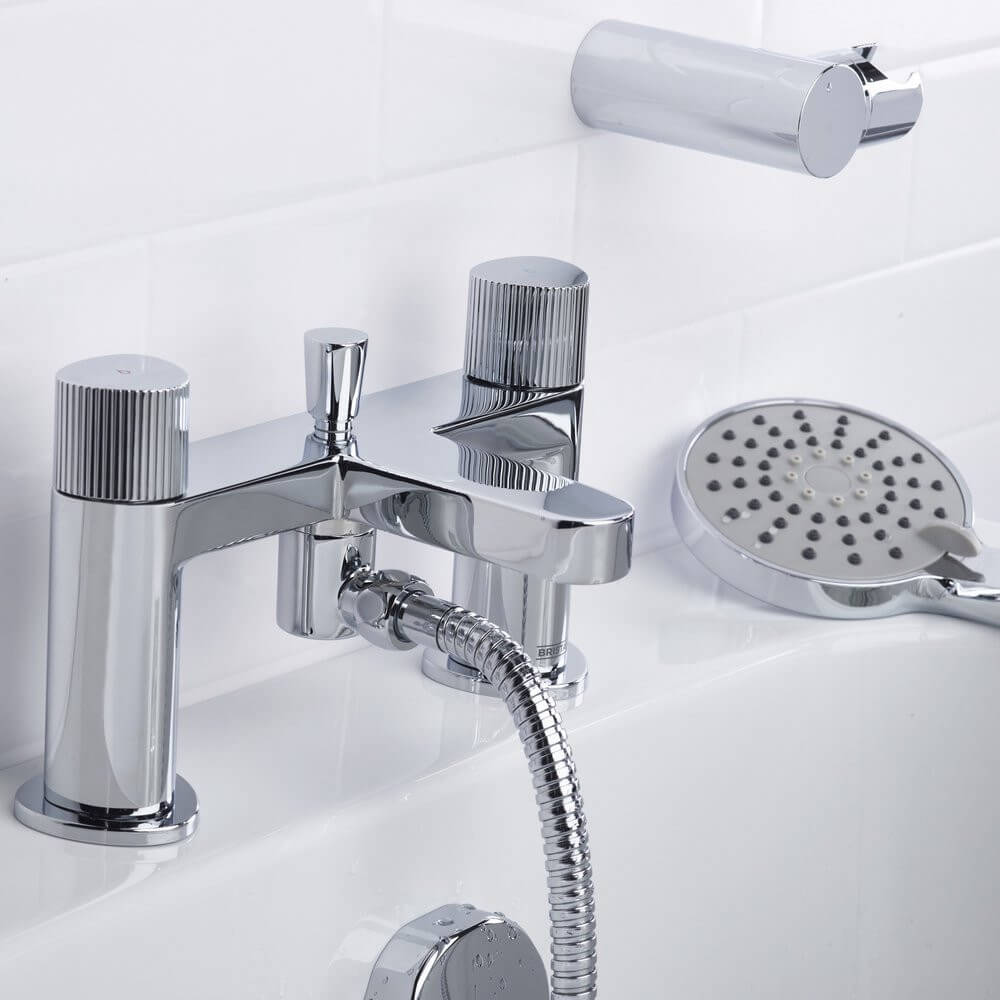

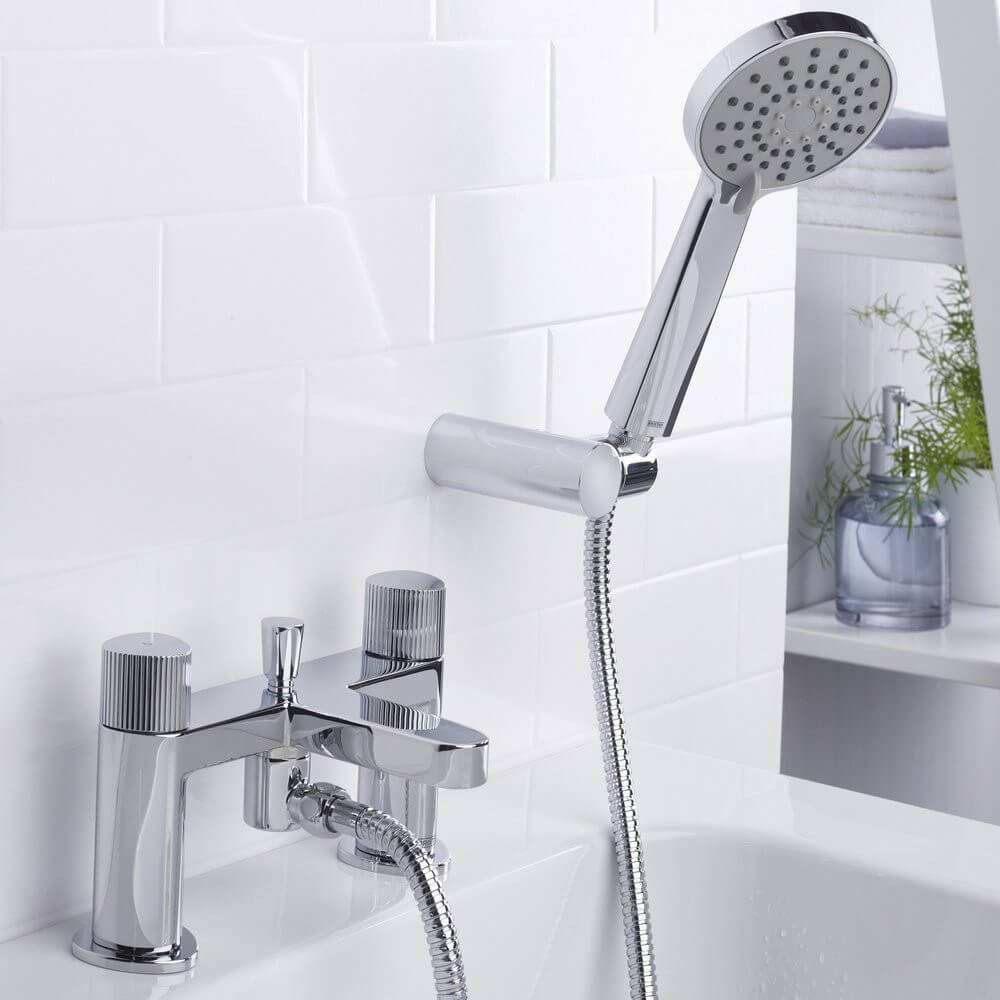

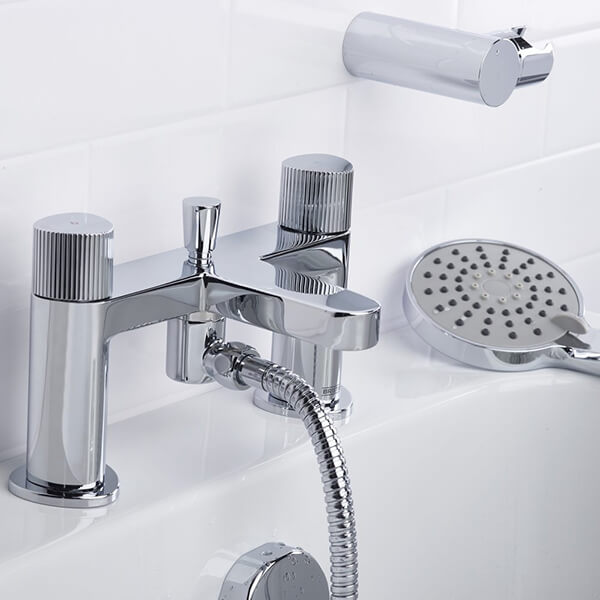

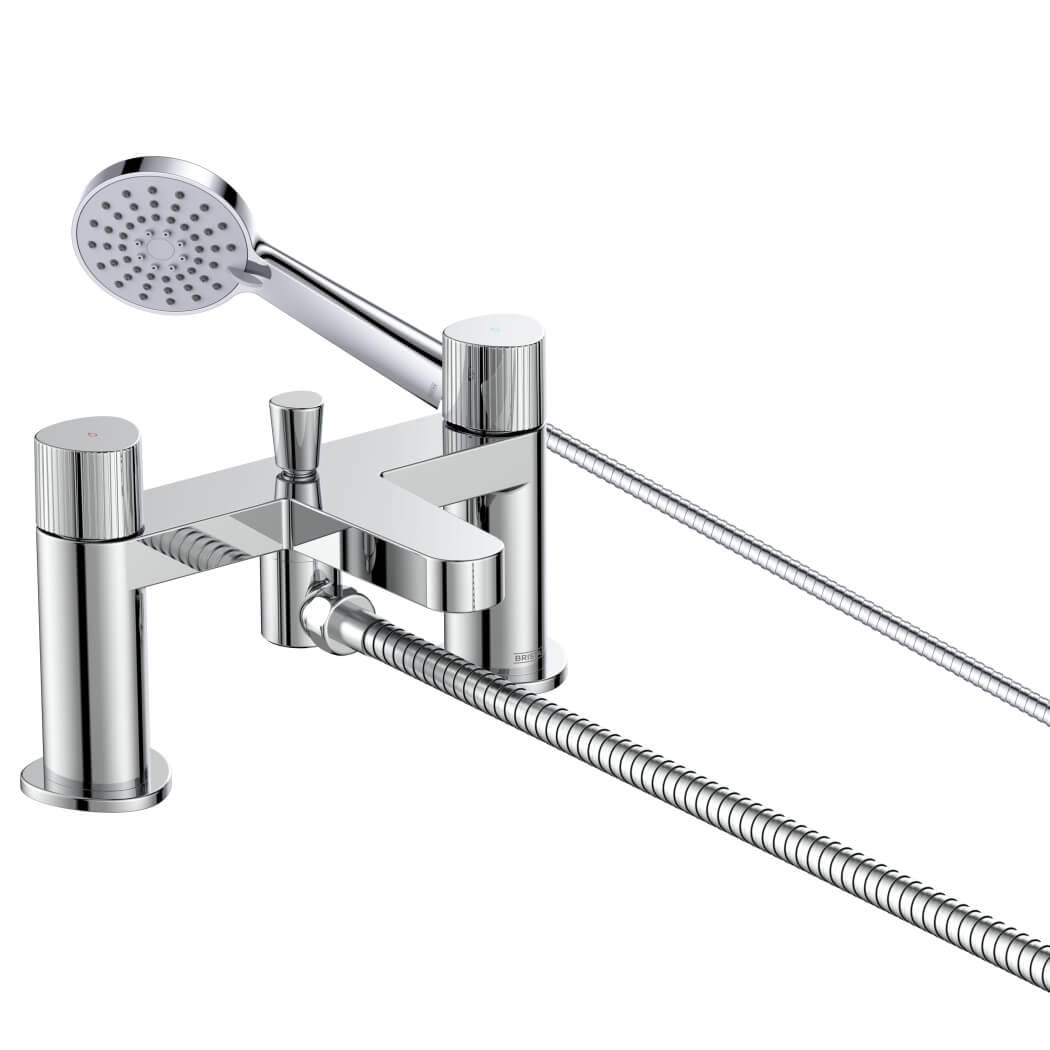

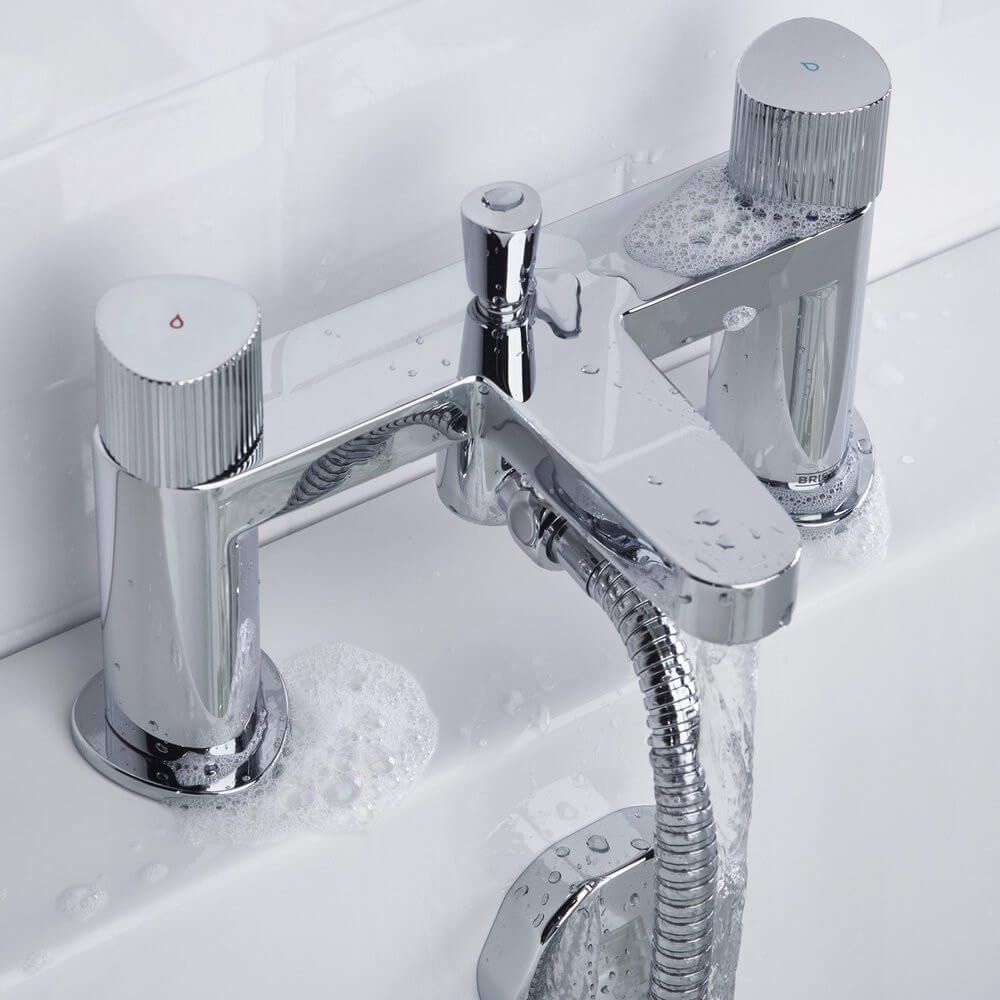

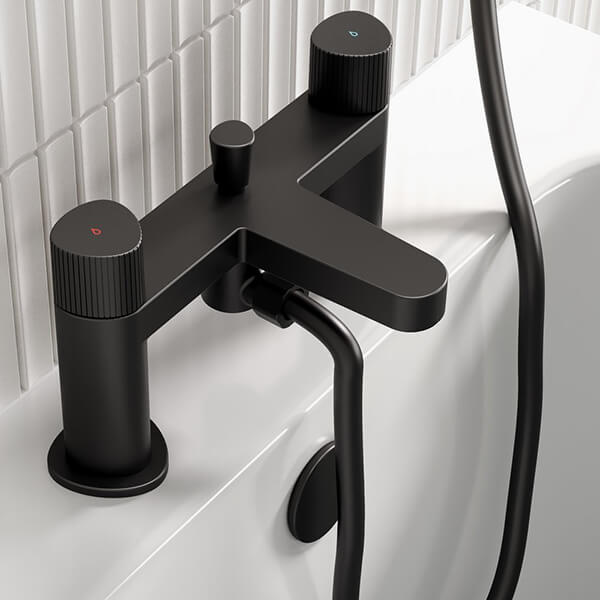

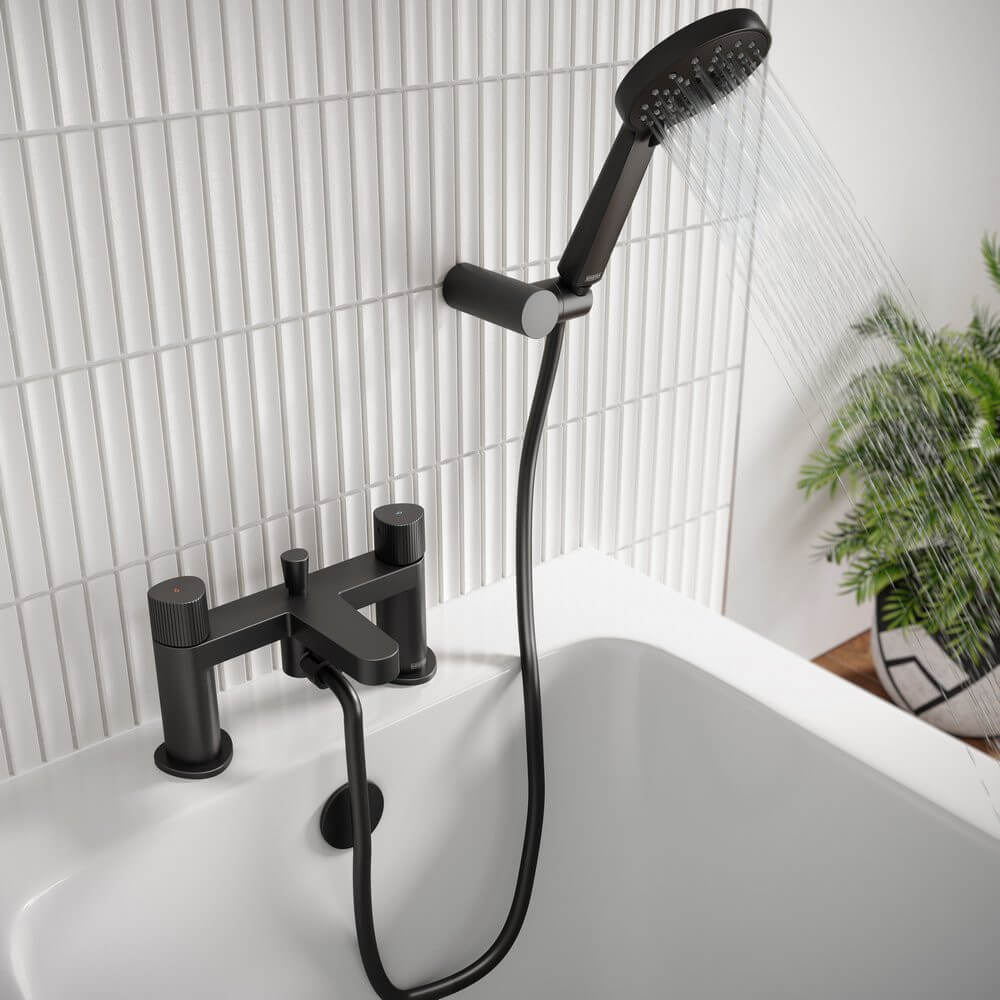

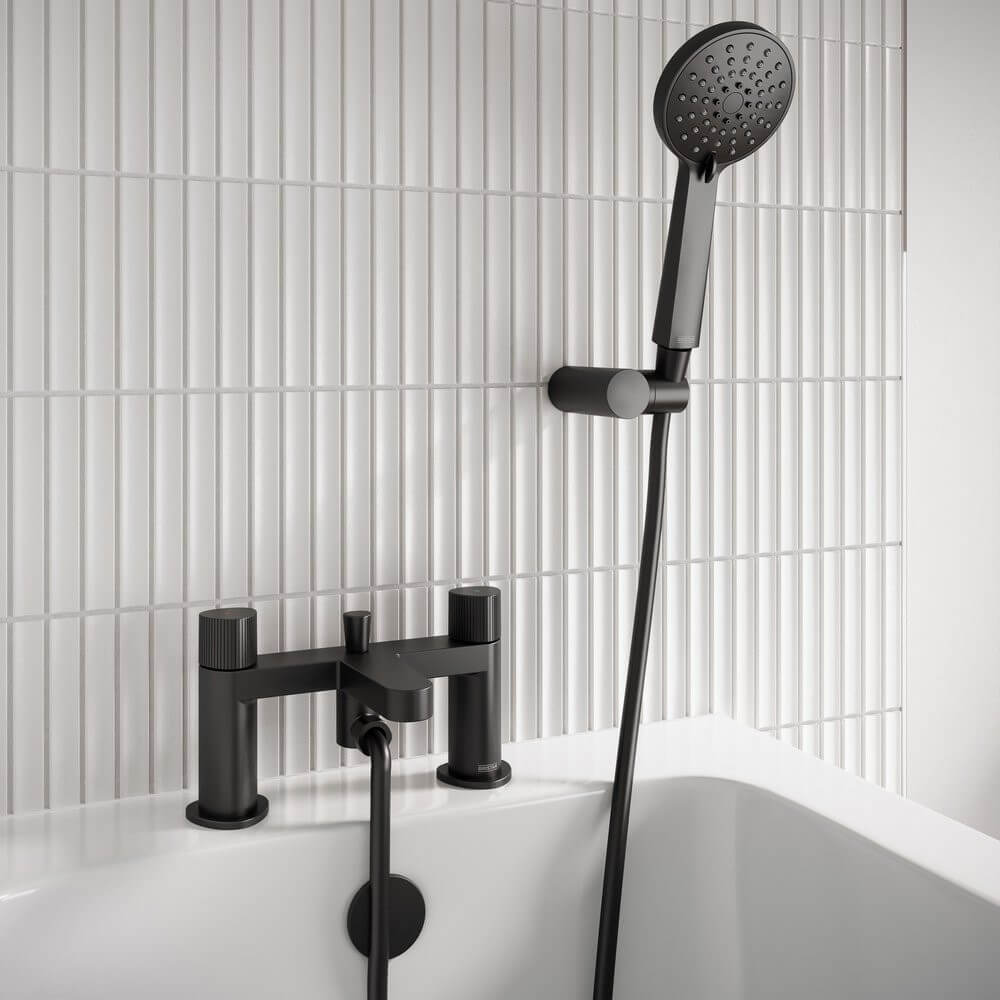

Details of Bath Filler Tap with Handset:
Size of Handset [mm]: 106 x 248mm [Width x Height]
Size of Handset [cm]: 10.6 x 24.8cm [Width x Height]
Hose Length: 1500mm [150cm]
Size of Handset Holder [mm]: 73 x 95mm [Width x Depth]
Size of Handset Holder [cm]: 7.3 x 9.5cm [Width x Depth]
Manufactured Using Brass, Zinc Alloy and Plastic Material
Suitable for Low and High Water Pressure Systems
Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left & Right
⤷ Range
: Liso
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome, Black
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass, Zinc Alloy, Plastic
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc Valve
⤷ Base To Spout
: 80

⤷ Spout Reach
: 97
⤷ Inlet Centres
: 180
⤷ Overall Height
: 134
⤷ Width
: 235
⤷ Inlet Connections
: 3/4 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Length
: 1500
⤷ Hand-Shower Included
: Yes
⤷ Spray Pattern
: 3
⤷ Handle Style
: Knob
⤷ Barcode
: 5014868086668
⤷ Product Type
: Bath Filler Tap

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Technical Images

Bristan Liso Contemporary Deck Mounted Bath Filler Tap - Knob Handles

£121.20

RRP: ~~£200.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Optional: WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Zinc

Zinc is a versatile, lustrous metal that is corrosion-resistant and alloys easily with other metals to enhance their properties. While relatively brittle at room temperature, zinc becomes malleable when heated, allowing it to be shaped for various applications.
