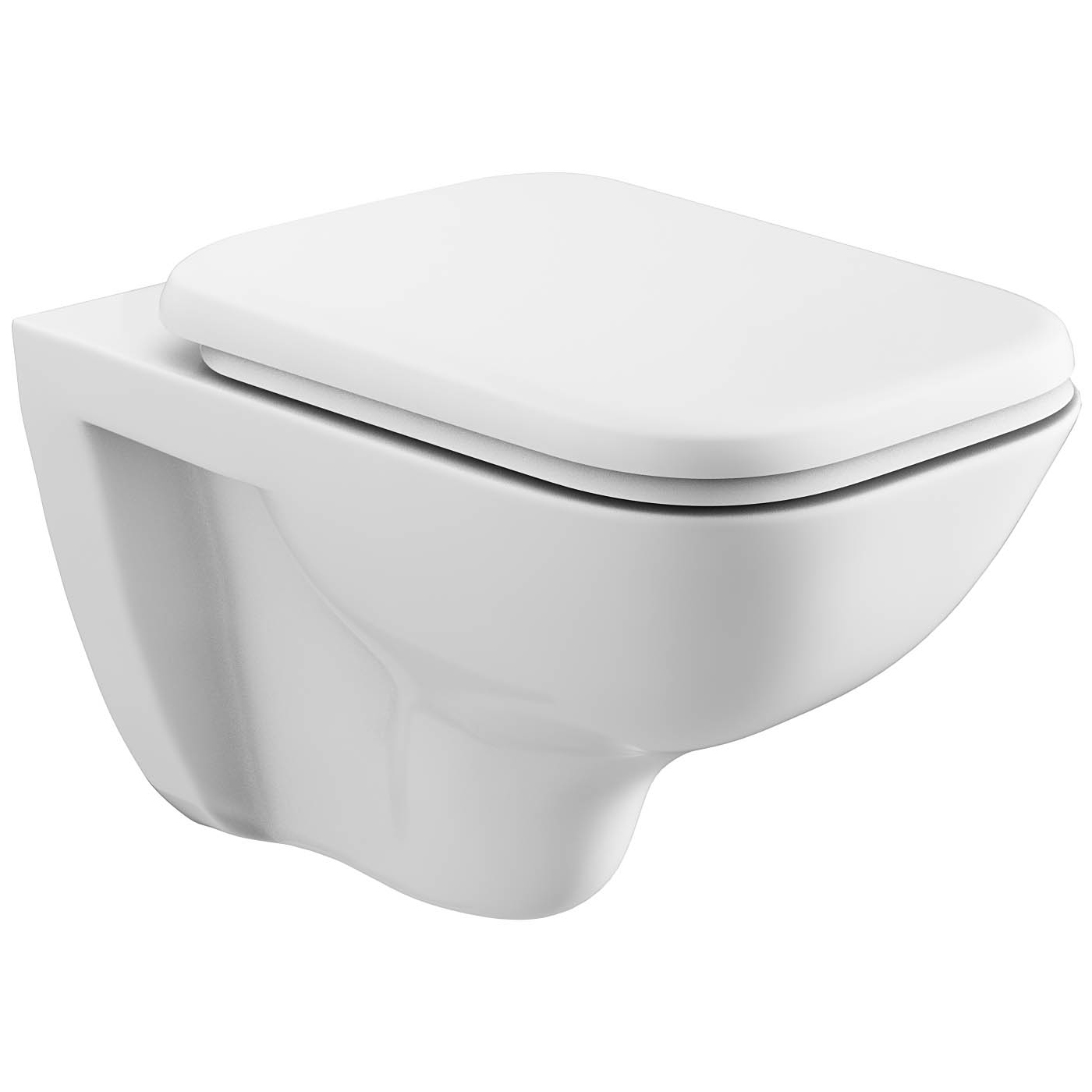

Lecico Atlas Pro Square Wall Hung WC Pan with Soft Close Seat

Lecico Atlas Pro Details

MFC: SENSQWLHGPAN|STSENSQSC

Lecico Atlas Pro Square Wall Hung WC Pan with Soft Close Seat.

Manufacturing Code of this Product is SENSQWLHGPAN|STSENSQSC
Comes in a White Finish
Modern Compact Design
Size of Pan [mm]: 350 x 400mm [Width x Height]
Size of Pan [cm]: 35 x 40cm [Width x Height]
Projection: 528mm - [52.8cm]
Flush Volume: 6/4ltr
Weight: 15.6kg
Ideal for used commercial or residential
Perfect Choice for Locations Such as Motorway Services or Airports, Due to its Reduced Footprint and Ease of Cleaning
It is Possible to use Fixing Brackets [BRACKWHKIT] and a Concealed Cistern Instead of a Frame
For Complete Size Details, Please refer to the Technical Drawing
Cistern Frame shown in the image is not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Atlas Pro
⤷ Colour
: White
⤷ Weight in kg
: 15.6
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 528
⤷ Cistern Included
: Sold Separately
⤷ Width
: 350
⤷ Outlet
: Horizontal
⤷ Configuration
: Pan and Seat
⤷ Height
: 400

⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Fixings included
: No
⤷ Fixing Holes Centre
: 180
⤷ Compliance/Approvals/Standard
: UKCA
⤷ Barcode
: 5057199982810
⤷ Bowl Shape
: D Shaped
⤷ Product Type
: Wall Hung WC
⤷ Front Of Bowl To Centre Of Seat Holes
: 434
⤷ Pan fixing centres
: 180
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 170

Add-Ons

Compatible Frame

A compatible WC Frame is available from Lecico at the best price. The image shown is for illustration purposes only.

No Option Selected
OP-198011 - Tall Fixing Frame With Cistern And Flush Plate + £148.68
OP-198012 - Short Fixing Frame With Cistern And Flush Plate + £191.36

Lecico Atlas Pro Square Wall Hung WC Pan with Soft Close Seat

£165.00

RRP: ~~£385.64~~

Stock Availablity: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.
