Bristan Tangram Thermostatic Concealed Dual Control Shower Pack

£323.17

STOCK AVAILABLITY:

5 Working Days Approx.

Not Yet Rated No Rating

Shipping: £39.99

Select Finish
You've selected: OP-240188 - Chrome
Key Features
  • Available in 3 different finishes: Chrome, Brushed-Brass, Matt-Black
  • Manufactured using brass and abs material
  • 5-year parts and 1-year labour guarantee for peace of mind
SKU Code: QS-V106538

MFC Code: TANGRAM SHWR PK

Bristan Tangram TANGRAM SHWR PK Details

Bristan Tangram Thermostatic Concealed Dual Control Shower Pack.

  • Rail height: 700mm (70cm)
  • Shower head size: 200mm (20cm)
  • Shower arm length: 330mm (33cm)
  • Valve Size [mm]: 100mm x 240mm [Width x Height]
  • Valve Size [cm]: 10cm x 24cm [Width x Height]

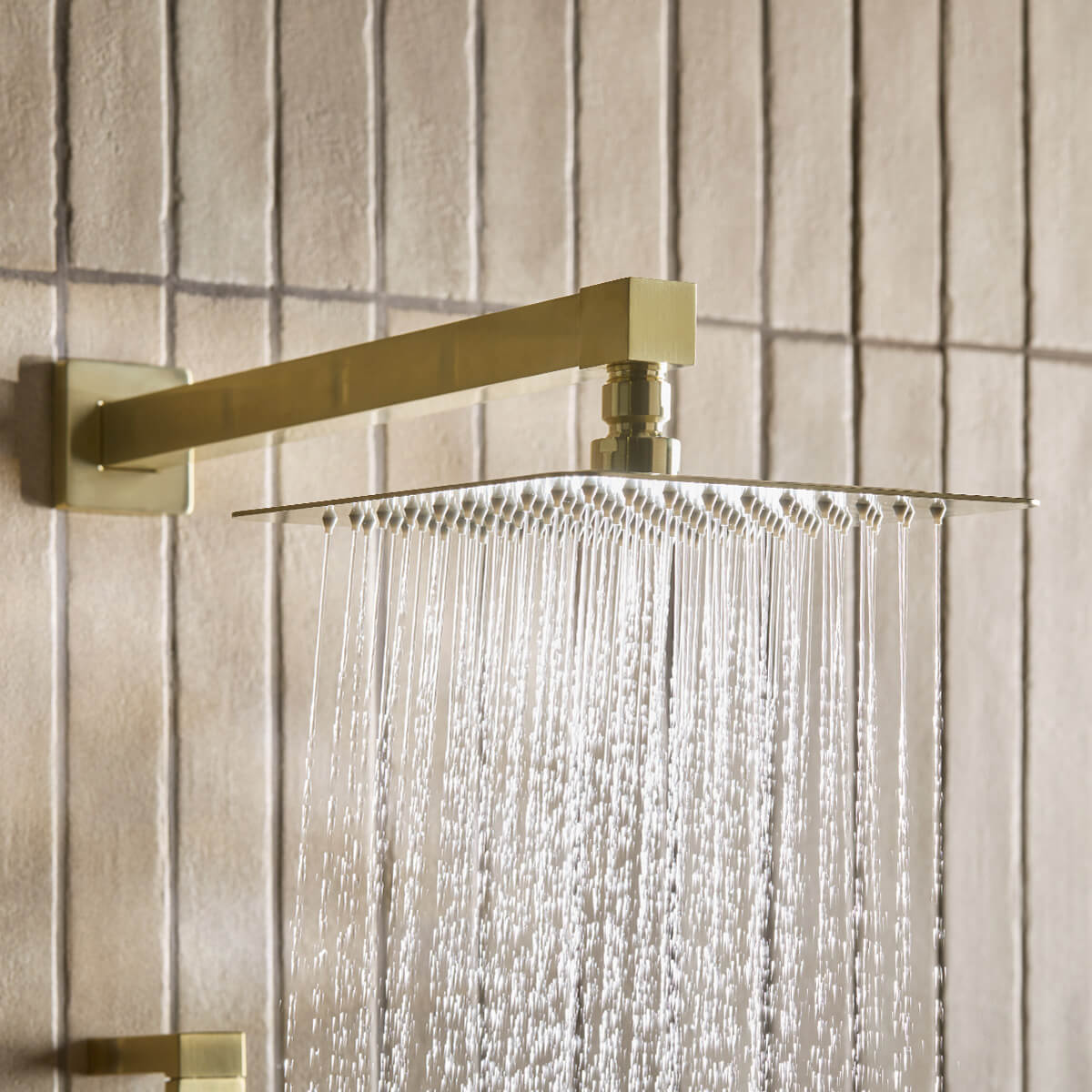

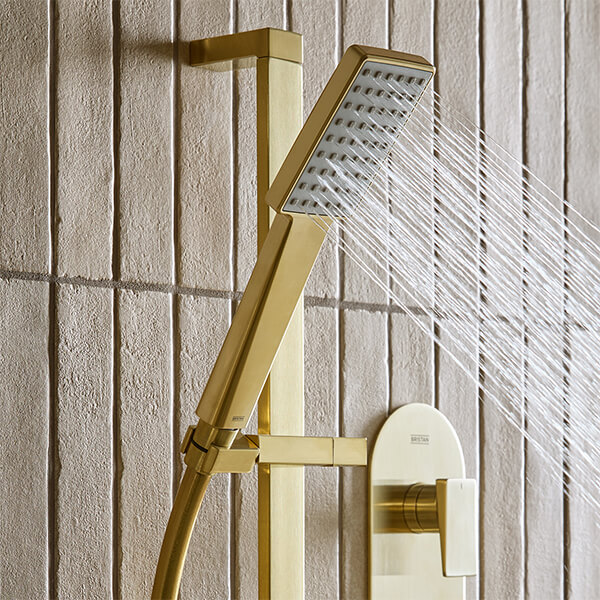

  • Pack includes shower valve with integral two outlet diverter, slimline 200mm square drench head with shower arm, and shower kit with an adjustable riser rail plus a single function handset and wall outlet
  • Rub clean handset and drench head - limescale and debris build-up is quickly and easily removed by rubbing a finger or cloth over the nozzles
  • Slim design recessed shower valve will fit into a cavity space as small as 35mm for hassle-free installation

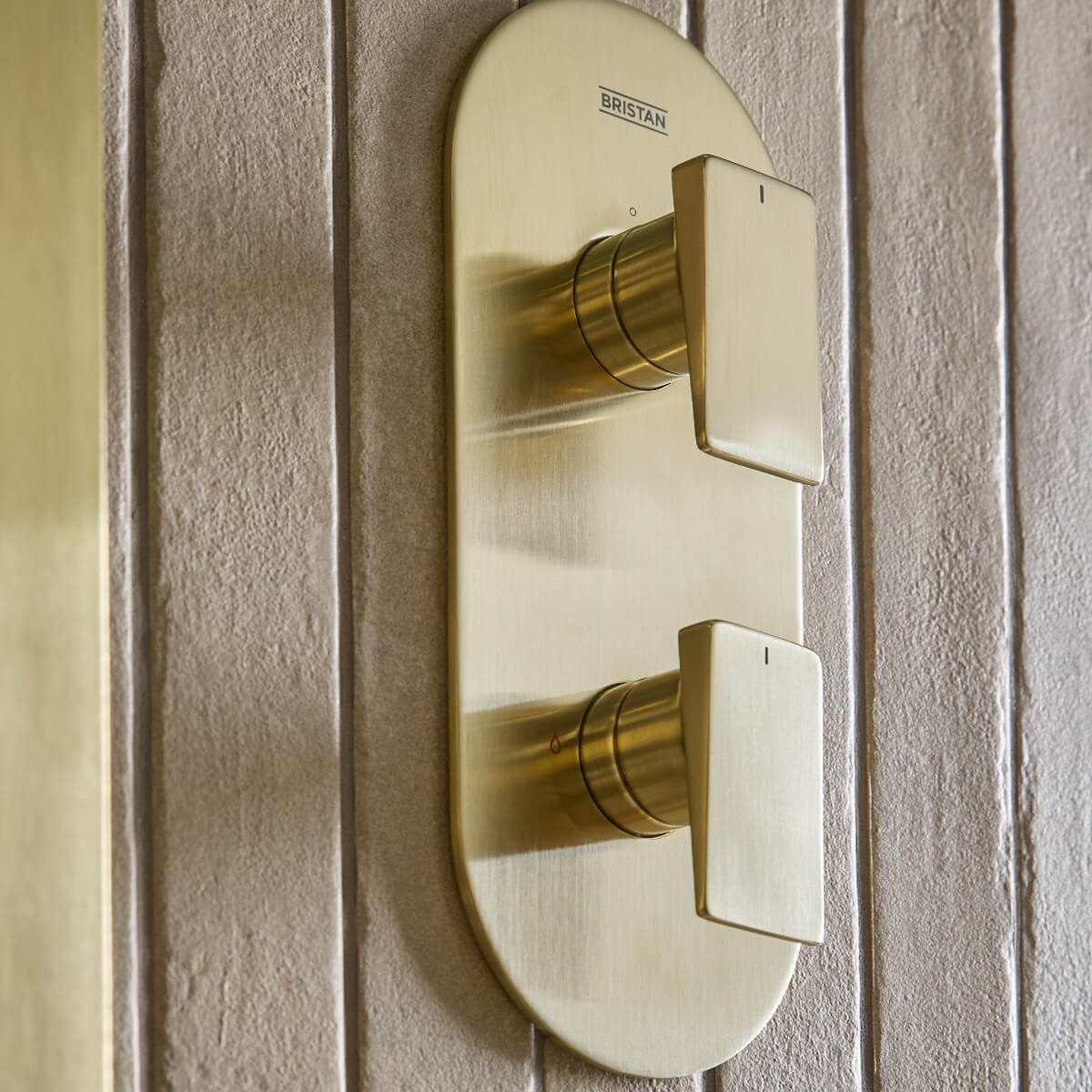

  • Dual control - Flow and temperature are operated separately, giving accurate control of both
  • Thermostatic cartridge and 3/4 inch ceramic disc valve
  • Inlet connections: 15mm
  • Fitting depth including plasterboard and tiles is 60mm - 75mm
  • Required minimum 0.2 bar or above 5 bar water pressure system
  • Suitable for medium water pressure system
  • Maximum static pressure: 10 bar
  • Maximum hot water temperature: 65 degrees Celsius
  • Connection inlet: 15mm compression
  • Connection outlet: G 1/2 inch
  • Refer to the technical diagram for the complete technical dimensions
  • Download the installation instruction and technical data sheet PDF from the additional Info section

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : Chrome, Matt-Black, Brushed-Brass
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Brass, ABS
  • ⤷ Theme
  • : Modern
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Thermostatic Cartridge, Ceramic Disc Valve
  • ⤷ Inlet Connections
  • : 15
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.2
  • ⤷ Hose Included
  • : Yes
  • ⤷ Temperature Control
  • : Thermostatic
  • ⤷ Diverter Included
  • : Yes
  • ⤷ Product Type
  • : Shower Pack
  • ⤷ Handset Included
  • : Yes
  • ⤷ Valve Size
  • : 100 x 240
  • ⤷ Shower Head Included
  • : Yes
  • ⤷ Shower Head Size
  • : 200
  • ⤷ Rail Length
  • : 700

Additional Info & Downloads

Download PDFDownload the Technical Data Sheet Pdf File Download PDFDownload the Installation Instruction Pdf File

£323.17
STOCK AVAILABLITY: 5 Working Days Approx
QS Supplies

8 Features Included In This Product Explained

Family Safe

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Rub Clean

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Drenching

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

2 Outlets 1 On

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

ABS Material

ABS Material

ABS (Acrylonitrile Butadiene Styrene) is a laminate popularly used in woodworking and furniture manufacturing. It is a thermoplastic polymer used to finish and seal the edges of plywood, chipboard, MDF, HDF, and other boards.

Ceramic Disc Cartridge

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Thermostatic Control

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Medium Water Pressure

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
