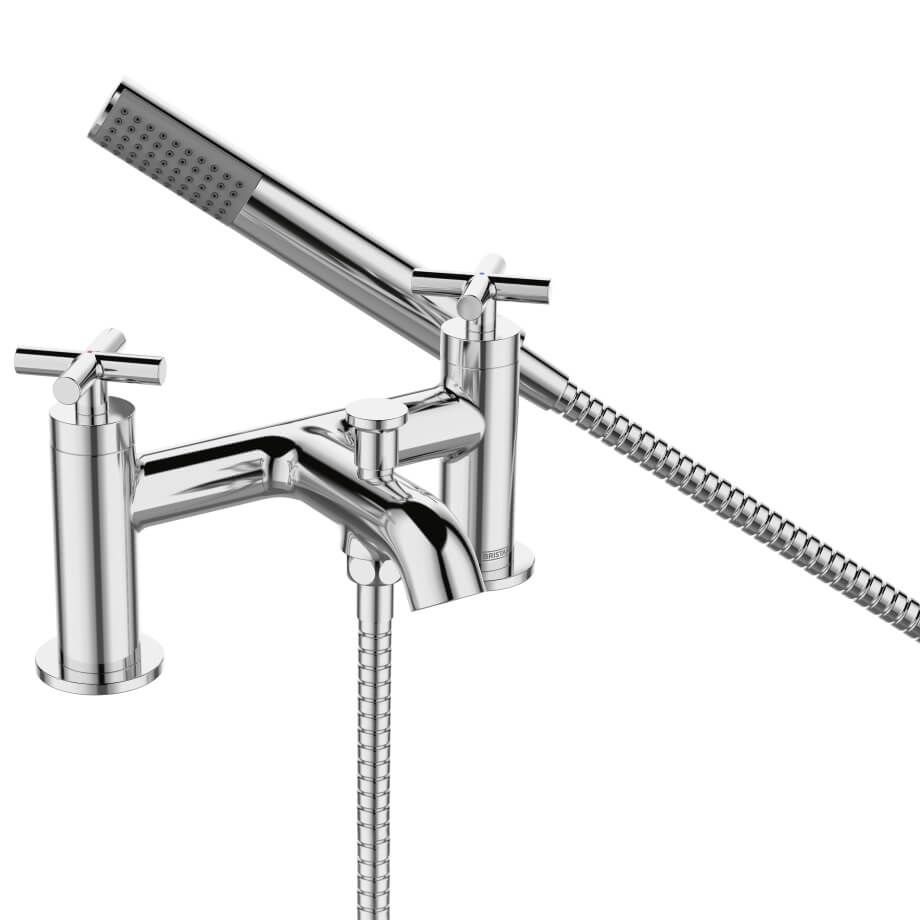

Bristan Naxos Chrome Bath Filler Tap - Crosshead Handles and Long Spout

Naxos Details

MFC: NAX BF C

Bristan Naxos Chrome Deck Mounted Bath Filler Tap is decorated with period-style looks while integrating state-of-the-art technology. This model takes the classic H-shape of the two-hole configuration and gives it a modern overhaul.

Key Features

✔WRAS Approved
✔Flow Type: Single
✔Salt Spray Tested to Ensure Added Durability
✔Manufactured Using Brass, Stainless Steel and ABS Material
✔5 Years On Parts and 1 Year On Labour Guarantee for Peace of Mind from Bristan

Contemporary Crosshead Design
It Comes in a Chrome Finish
Available in 2 Variations: Without Handset and With Handset
Mount Type: Deck Mounted
Handle Type: Crosshead
Connection Inlet: 3/4 Inch BSP
Connection Outlet: M24 Cache Flow Straightener
Number of Tap Holes: 2
Size [mm]: 230 x 148 x 132mm [Width x Depth x Height]
Size [cm]: 23 x 14.8 x 13.2cm [Width x Depth x Height]
Base to Spout: 50mm [5cm]
Inlet Centre: 180mm [18cm]
Centre of Inlet to Centre of Outlet: 110mm [11cm]
Maximum Static Pressure: 10 Bar
Maximum Hot Water Temperature: 60°C
Valve/Cartridge Type: 3/4 Inch Ceramic Disc Valve - 1/4 Turn
Plumbing System Requirements: Suitable for All Plumbing Systems
A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish That Lasts for Years
Long Life 1/4 Turn Ceramic Disc Valves for Added Durability and Smooth Control
Robust Metal Fixing Nut to Secure the Tap in Place, Reducing the Risk of Loosening Over Time
Rub Clean Handset: Limescale and Debris Build-Up is Quickly and Easily Removed by Rubbing a Finger or Cloth Over the Nozzles
Suitable for Low and High Water Pressure Systems
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section
Details of Bath Filler Tap:
Suitable for Low and High Water Pressure Systems
Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure
Details of Bath Filler Tap with Handset:
Size of Handset [mm]: 32 x 211mm [Width x Height]
Size of Handset [cm]: 3.2 x 21.1cm [Width x Height]
Hose Length: 1500mm [150cm]
Suitable for Low and High Water Pressure Systems
Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure

This faucet comes with a traditional crosshead handle design for a practical yet stylish addition to any bathroom. Separate hot and cold feeds can be adjusted via the twin handles. The clean, sparkling finish will match any bathroom décor and will add elegance and sophistication to its interiors. It is extremely versatile as it can work well with both low and high-pressure water systems.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Naxos
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: ABS, Brass And Stainless Steel
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve/Cartridge Type
: Ceramic Disc Valve
⤷ Base To Spout
: 50
⤷ Spout Reach
: 110

⤷ Inlet Centres
: 180
⤷ Overall Height
: 132
⤷ Width
: 230
⤷ Inlet Connections
: 3/4 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Hand-Shower Included
: Yes
⤷ Handle Style
: Crosshead
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868084411
⤷ Product Type
: Bath Filler Tap

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Naxos Deck Mounted Chrome Bath Filler Tap - Crosshead Handles and Long Spout

£66.12

RRP: ~~£114.00~~

IN-STOCK

Delivery in 3 Working Days Approx.

QS Supplies

8 Features Included In This Product Explained

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. Along with other metal alloys, it contains a minimum of 10.5% of chromium and less than 1.2% of carbon. This robust, hygienic, hard-wearing base material is popular in the construction of bathroom products.
