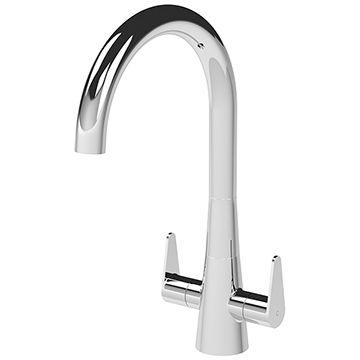

Nuie Samir 398mm High Mono Two Lever Kitchen Mixer Tap

Nuie Samir KSA305DL Details

Modernise the look and functionality of your kitchen sink with this Nuie Samir Two Lever Kitchen Mixer Tap. The mixer tap is known for its trendy design and affordable price, making it a leading choice among the masses. Its high curved spout has an extended reach that allows you to rinse off ingredients or do dishes with greater focus.

This high-quality metal tap is available in different finish choices - Chrome, Matt Black, Brushed Nickel and Brushed Brass; pick according to your decor or the latest trends. Ceramic disc control ensures flawless functionality.

Sleek minimalistic lever design.
Installation type: Deck mounted.
Height: 398mm (39.8cm).
Pipe size: 15mm (1.5cm) (1/2inch Bsp).
Base to spout: 278mm (27.8cm).
Centre of the inlet to centre of outlet: 205mm (20.5cm).
Ceramic disc technology for long life and smooth operation.
Control type: Manual.

Cartridge material: Plastic.
A high-end finishing touch to any kitchen.
Suitable for medium-pressure water system.
Requires a minimum of 0.5 bar of water pressure.
Flow Rates: 0.1 bar - 2.3, 0.5 bar - 5, 1 bar - 7.1, 2 bar - 10, 3 bar - 12.3.
Download the Installation Instruction and Customer Data Sheet PDF File from the Additional Info Section.
Refer to the technical drawing for more technical specifications.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left | Right
⤷ Tap Body Shape
: Round
⤷ Range
: Samir
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years | 3 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: 1/4 Turn Ceramic Disc
⤷ Base To Spout
: 278
⤷ Overall Height
: 398
⤷ Width
: 135
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 0.1 bar - 2.3 | 0.5 bar - 5 | 1 bar - 7.1 | 2 bar - 10 | 3 bar - 12.3
⤷ Handle Style
: Lever
⤷ Waste Included
: Sold Separately
⤷ Barcode
: 5056678400876
⤷ Product Type
: Kitchen Sink Mixer Tap
⤷ Tails
: Yes

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

Total: £96.91 5-7 Working Days Approx QS Supplies

1 Features Included In This Product Explained

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.
