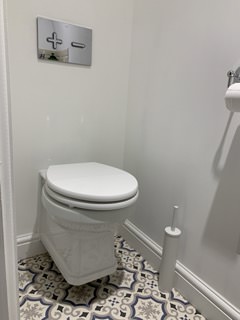

Nuie Carlton Traditional Round Matt White Wall Hung WC Pan, 350 x 515mm, NCS840

Nuie Carlton Details

MFC: NCS840

Nuie pulls out another ace in the bath area design with Carlton Round Wall Hung WC Pan, which comes with a matt white finish. Moulded in a curvy, minimalist format, it is stylish and contemporary, with a water-efficient design that is most appropriate for use in homes and commercial spaces. It is crafted from superior Vitreous China and guaranteed for five years against manufacturing defects. The splendid matt white fixture can be used with a concealed cistern wall hung frame and Seat, which is available for purchase separately.

The Manufacturing Code of This Product is NCS840
Size in [mm]: 350 x 350mm [Width x Height]
Size in [cm]: 35 x 35cm [Width x Height]
Projection from Wall: 515mm (51.5cm)
Weight: 21kg
Contemporary Design
Suitable for use with Concealed Cistern Wall-Hung Frame
Download the Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Diagram for Complete Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Carlton
⤷ Coating
: Without Coating
⤷ Colour
: Matt White
⤷ Weight in kg
: 21
⤷ Warranty/Guarantee
: 5-Year
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Wall Hung
⤷ Toilet Overall Height
: 365
⤷ Projection (Depth)
: 515
⤷ Width
: 350
⤷ Outlet
: Horizontal

⤷ Height
: 350
⤷ Barcode
: 5056462648170
⤷ Bowl Shape
: Round
⤷ Product Type
: WC Pan
⤷ Seat Post Hole Centers
: 150
⤷ Front Of Bowl To Centre Of Seat Holes
: 421
⤷ Base width
: 226
⤷ Base Depth (projection)
: 400
⤷ Pan fixing centres
: 180
⤷ Outlet Diameter
: 98
⤷ Base to centre of outlet
: 155

Additional Info & Downloads

Download the Customer Data Sheet Pdf File

Nuie Carlton Traditional Round Wall Hung WC Pan - Matt White - 350 x 515mm

£79.28

RRP: ~~£234.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

2 Features Included In This Product Explained

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.
