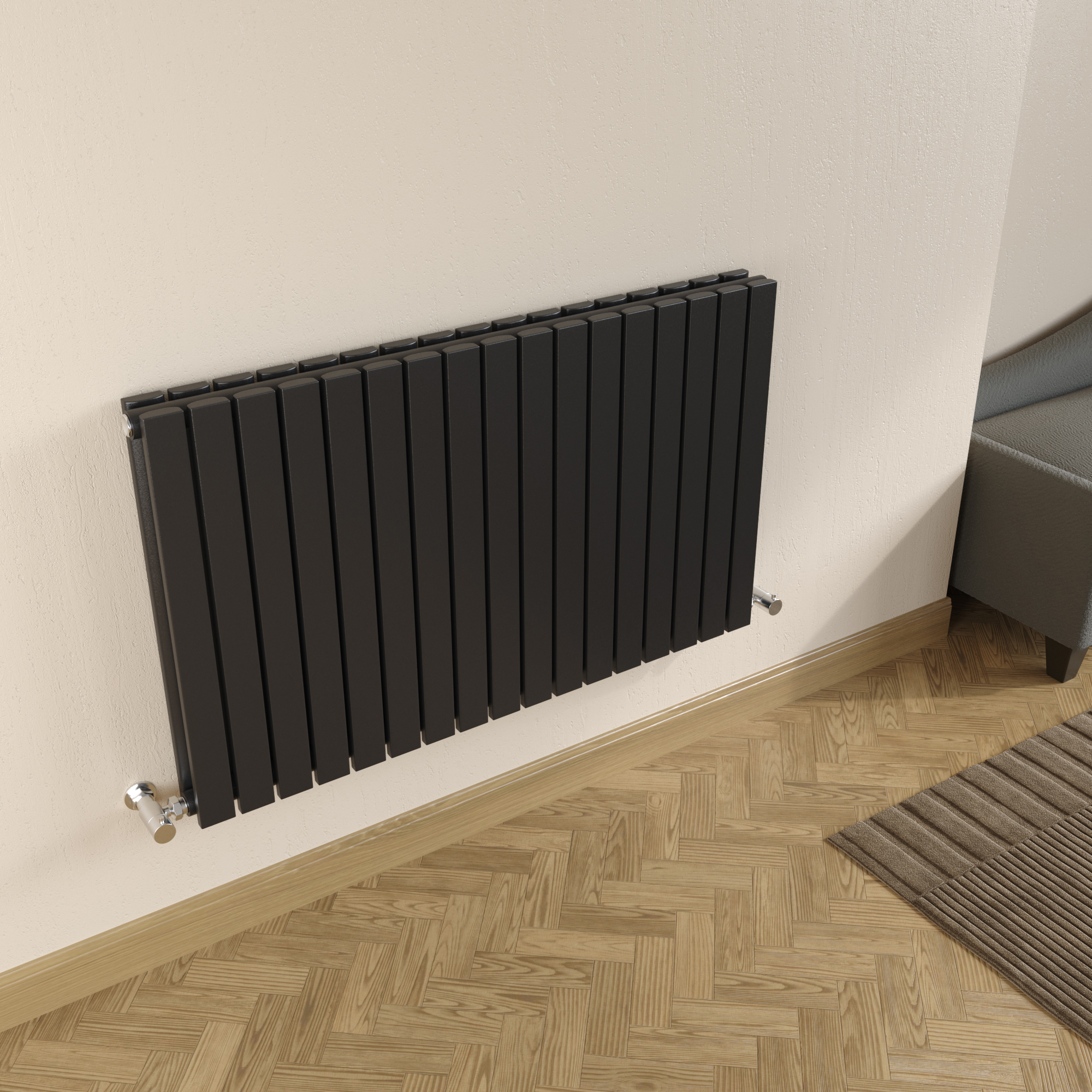

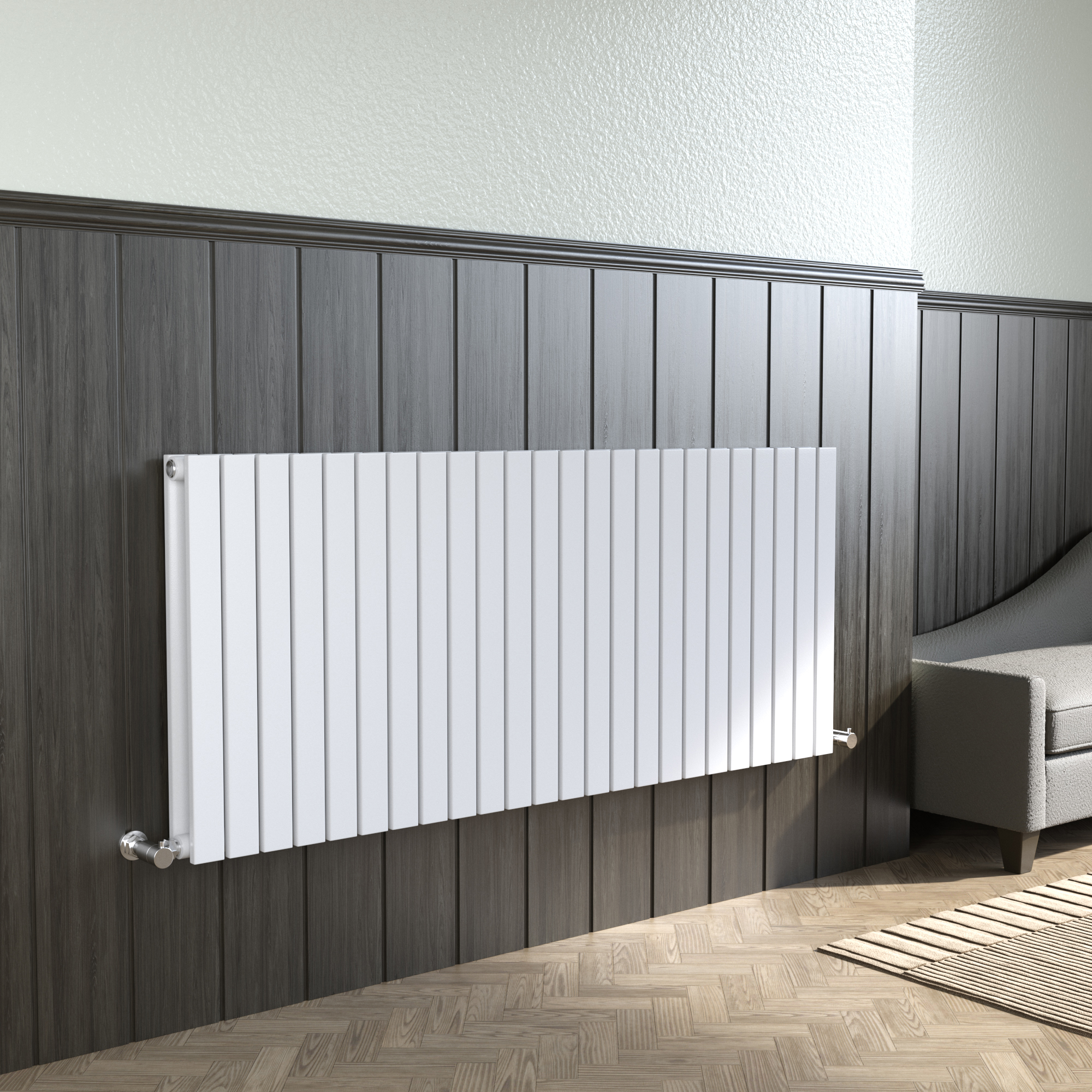

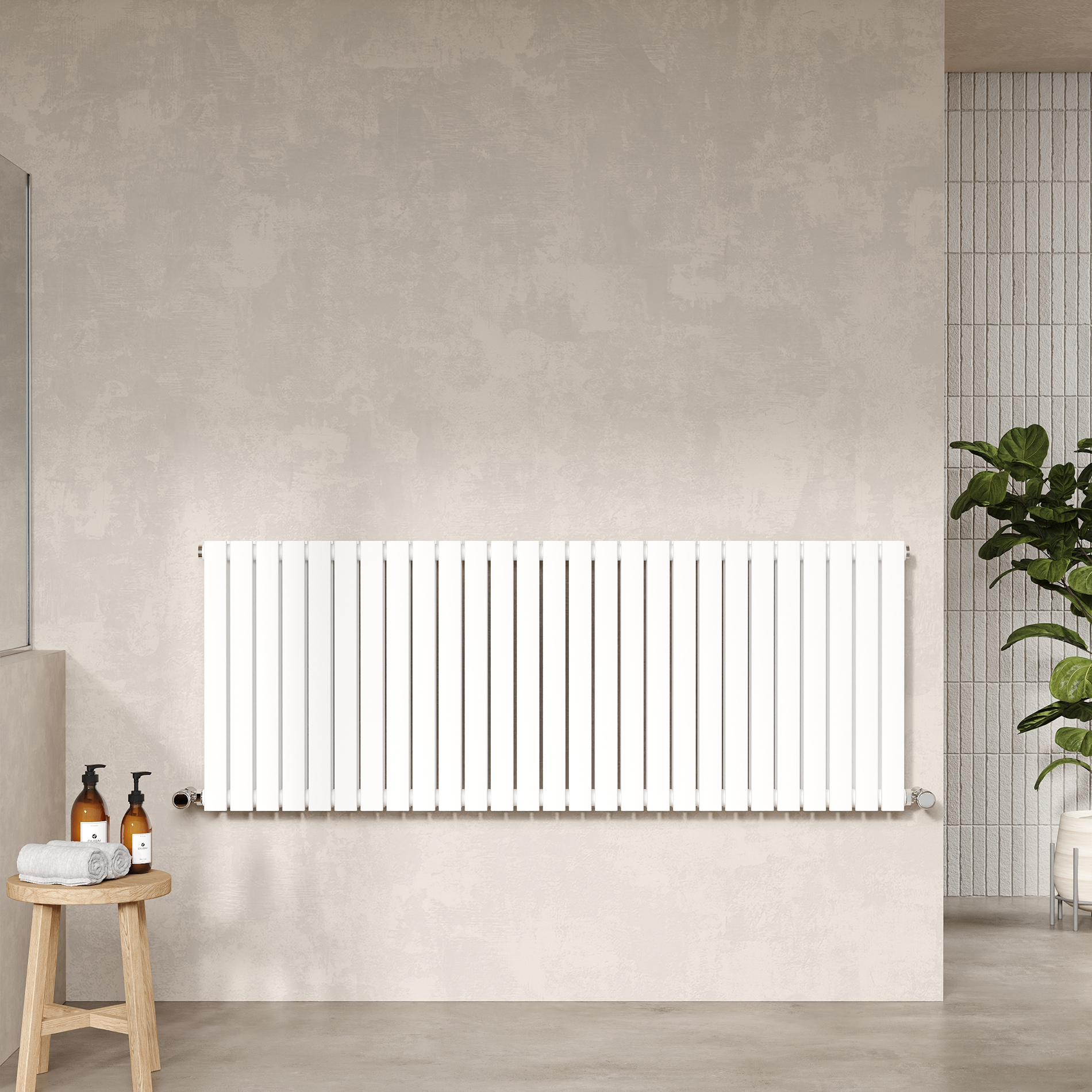

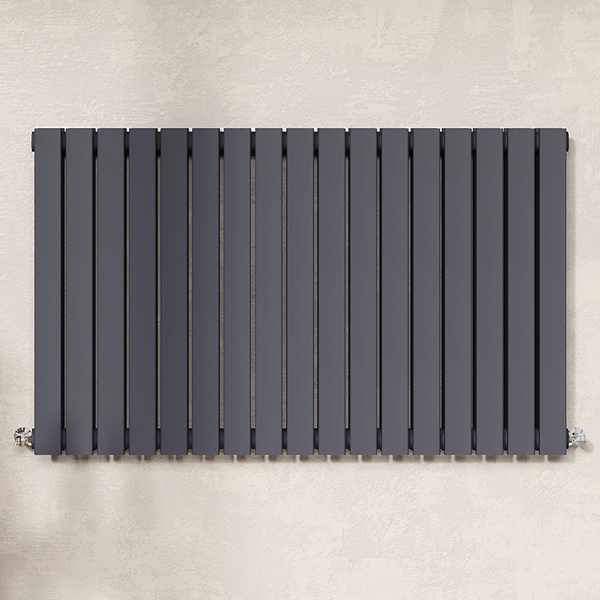

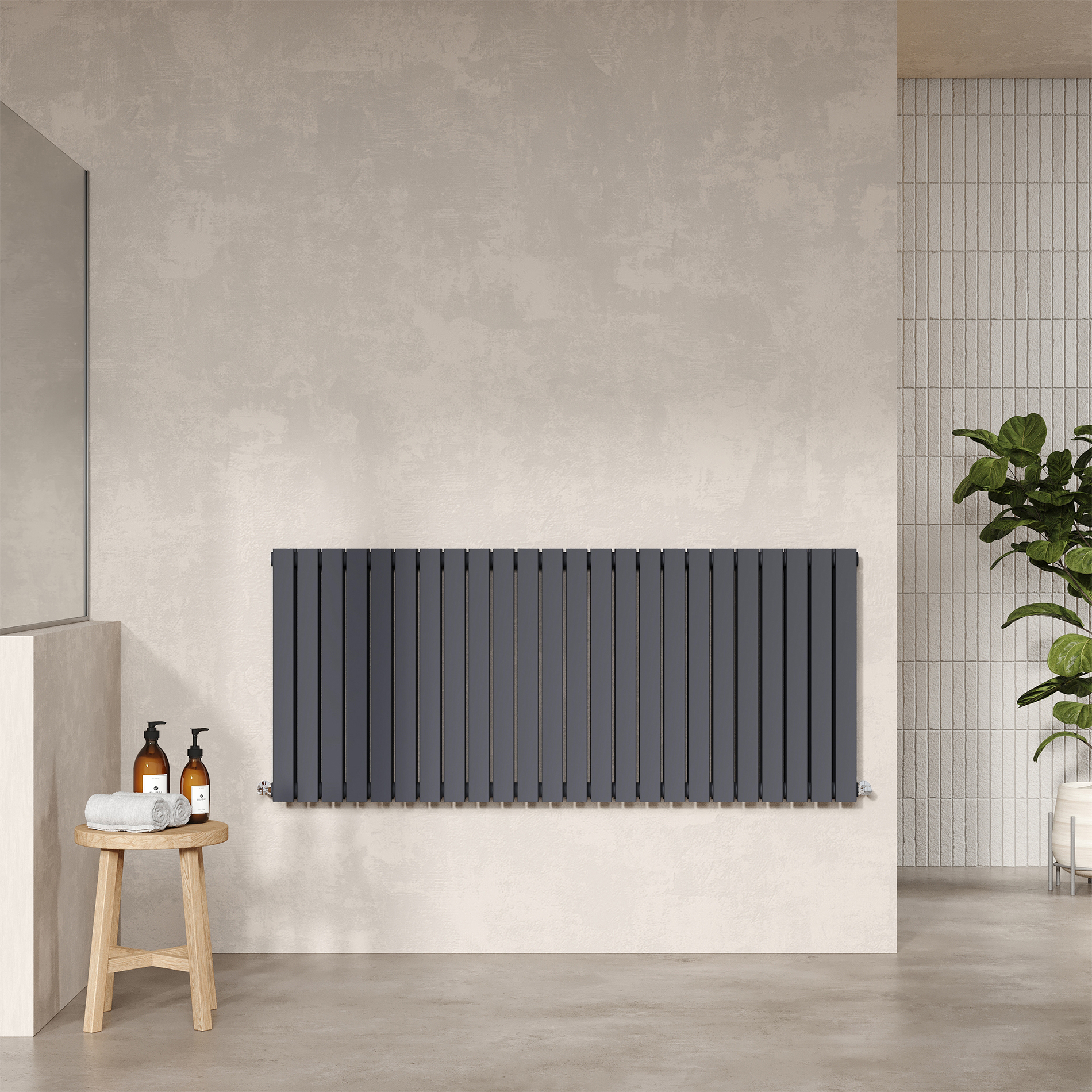

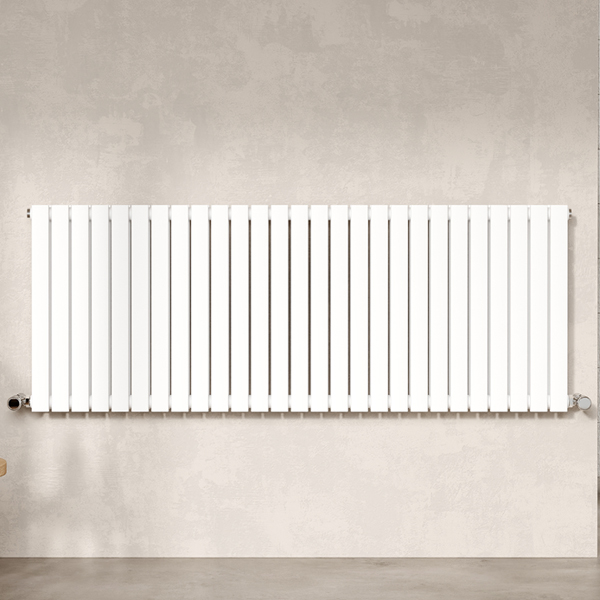

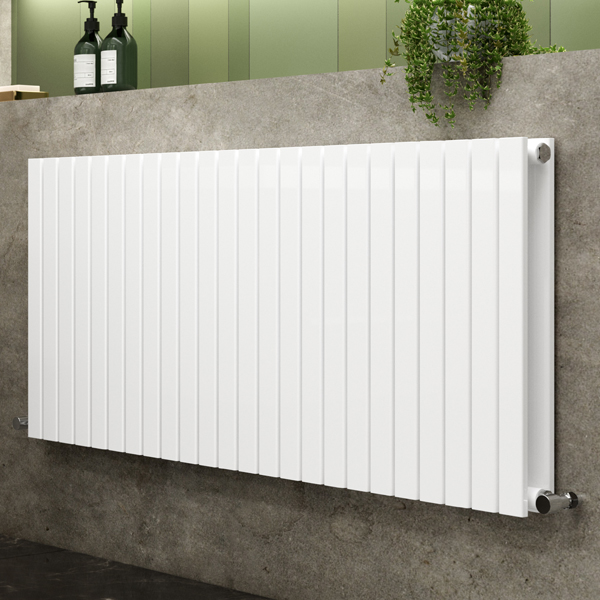

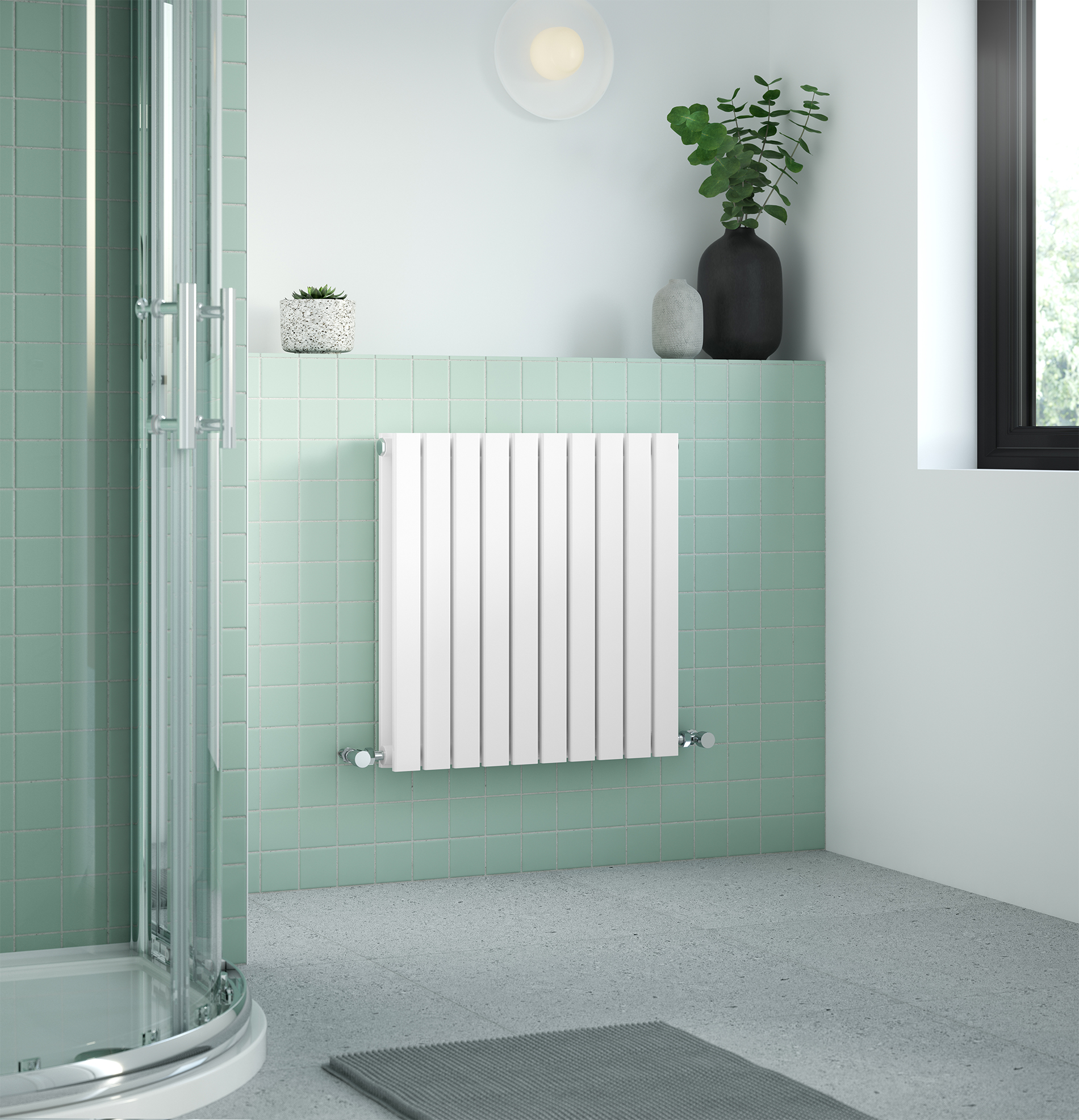

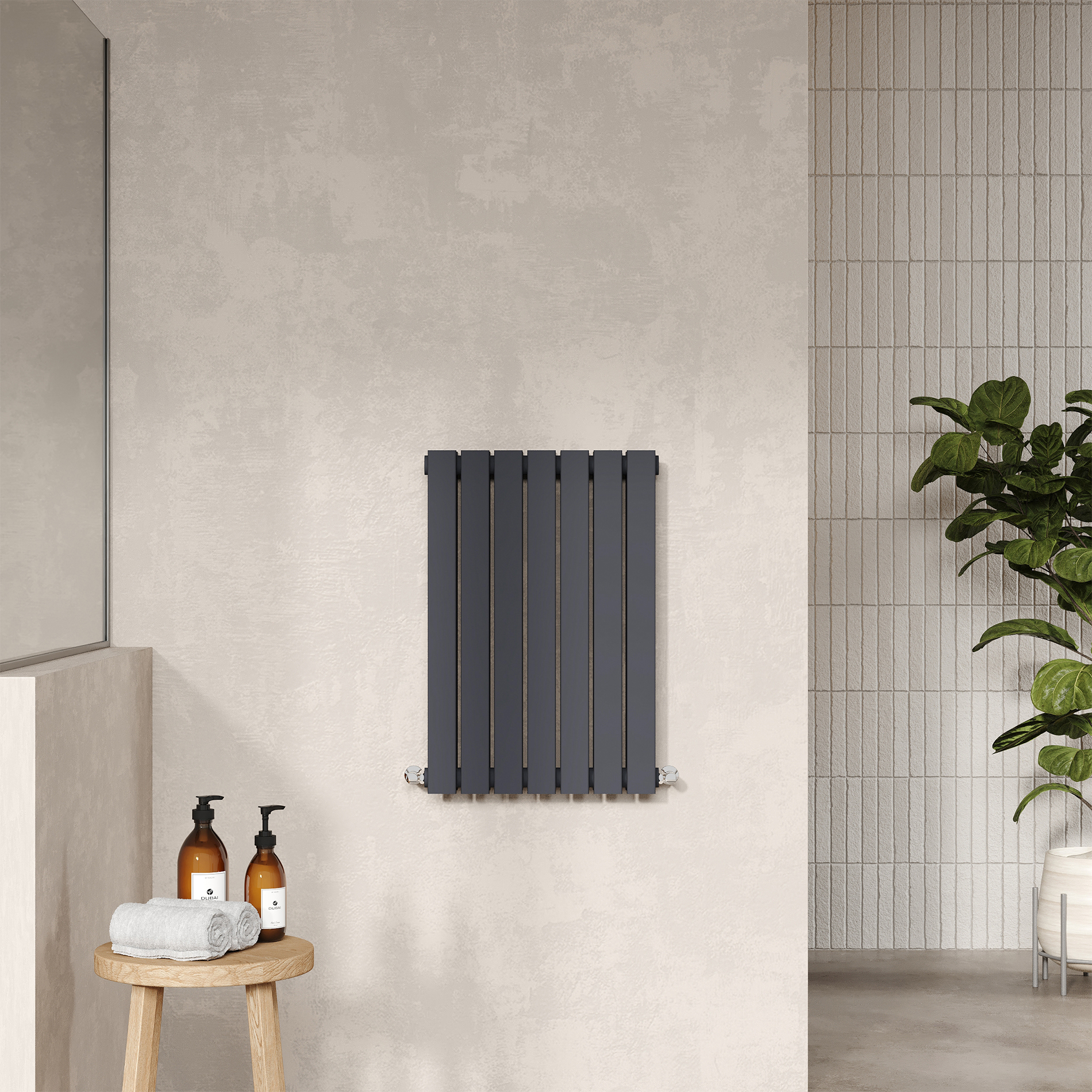

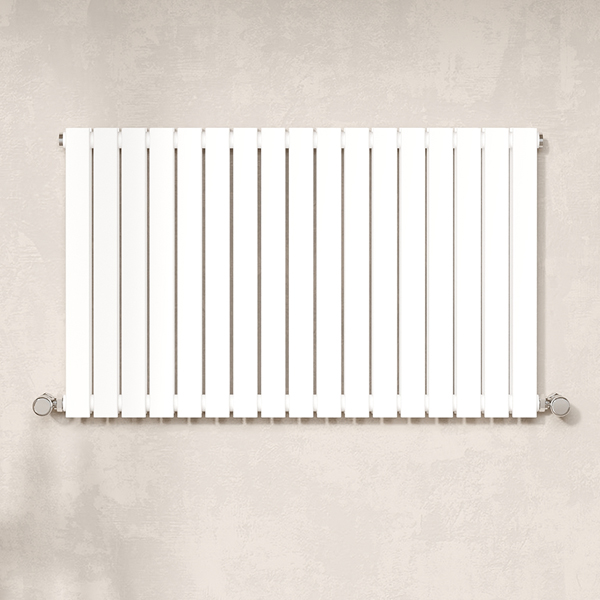

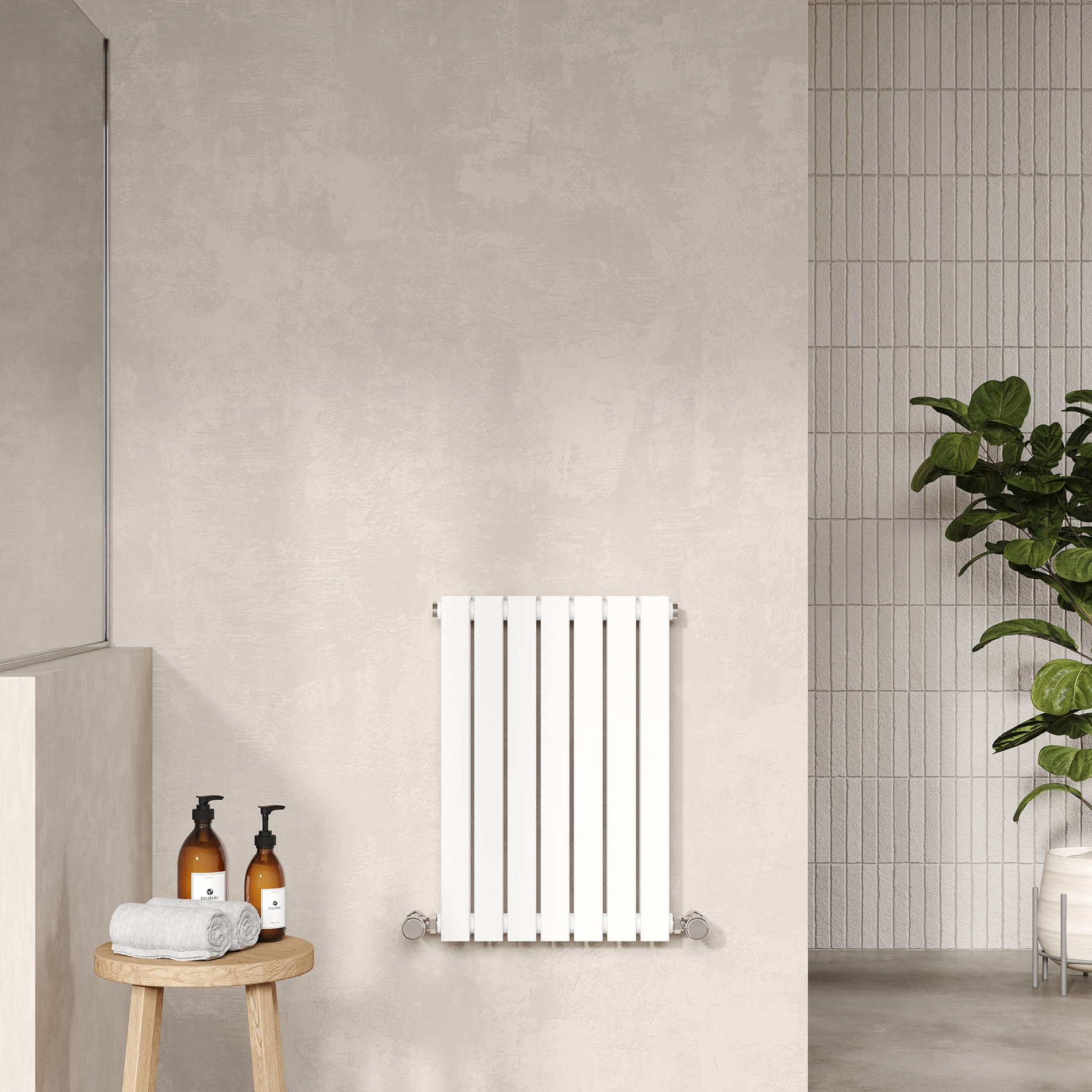

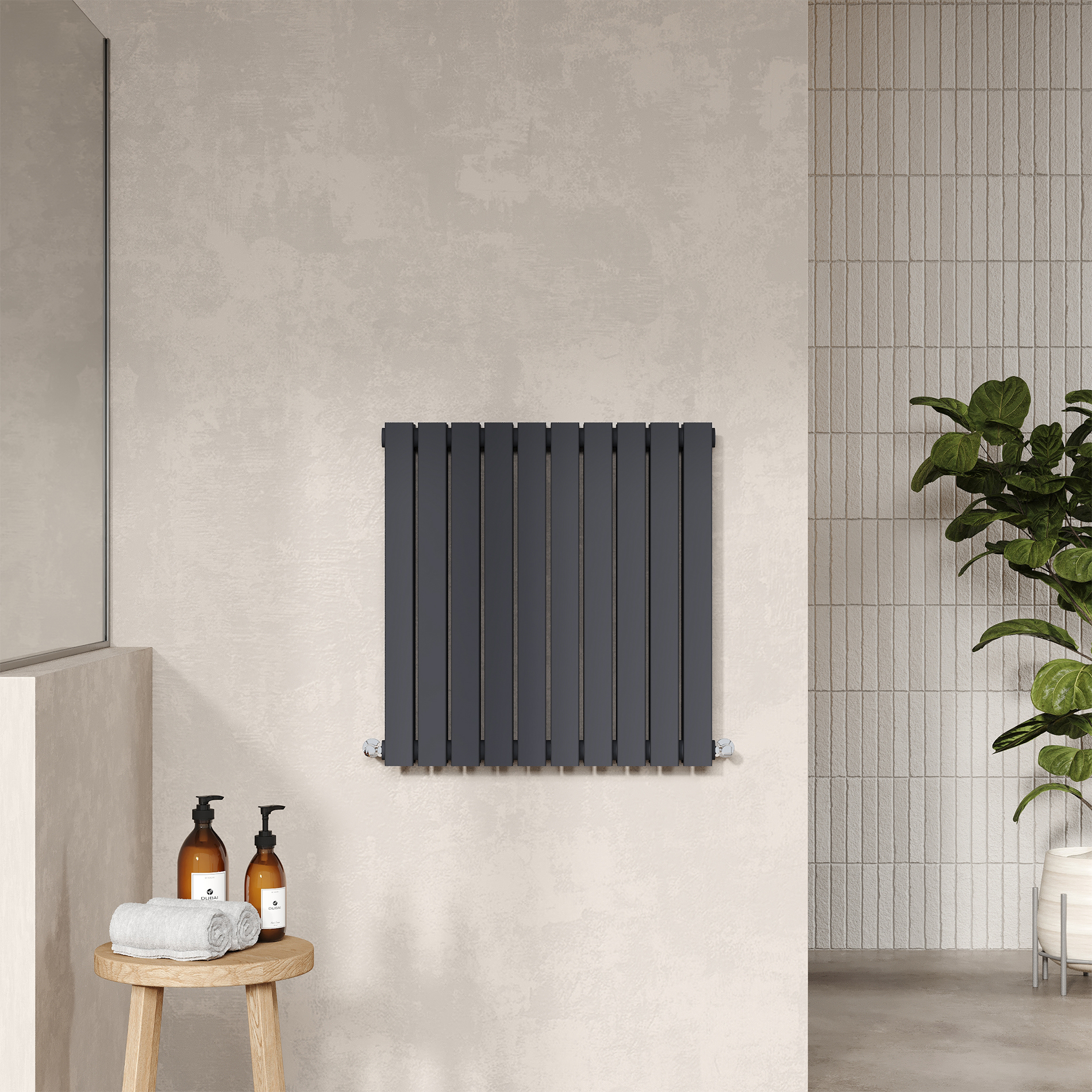

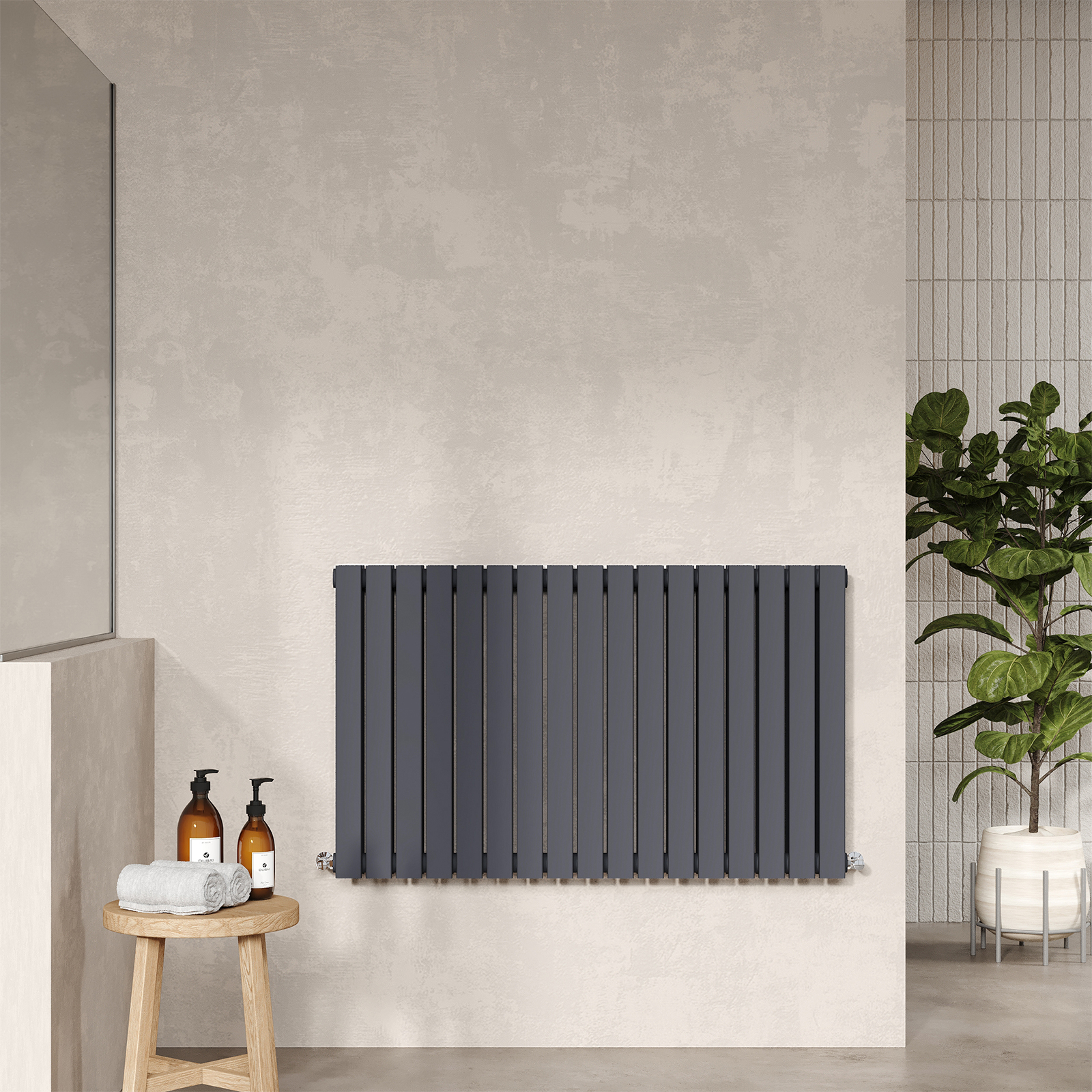

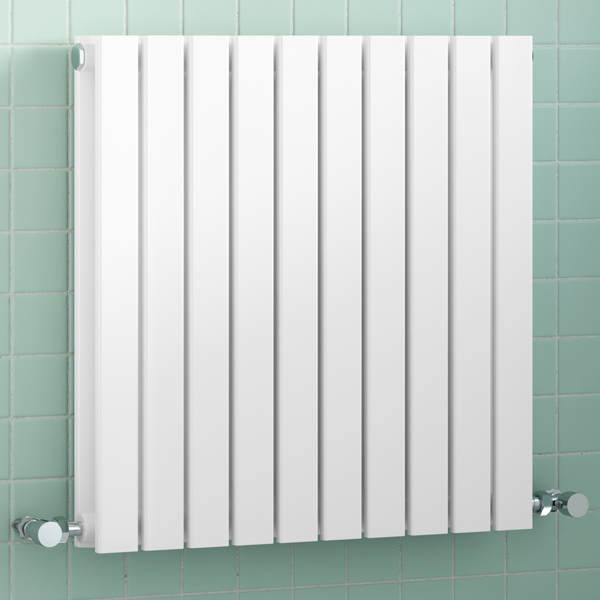

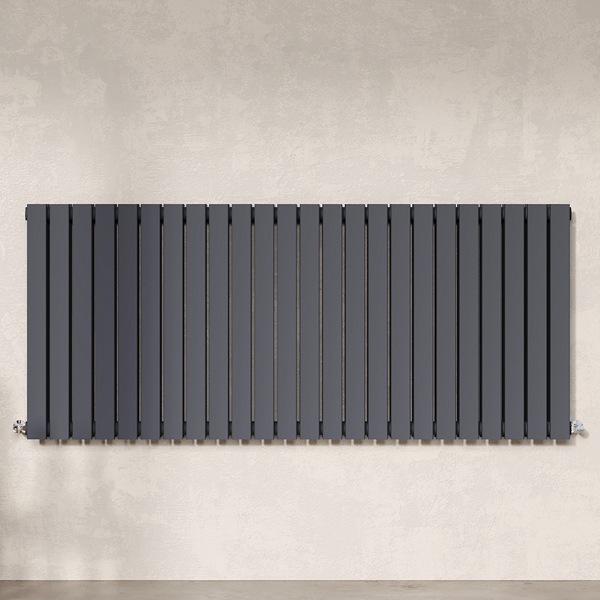

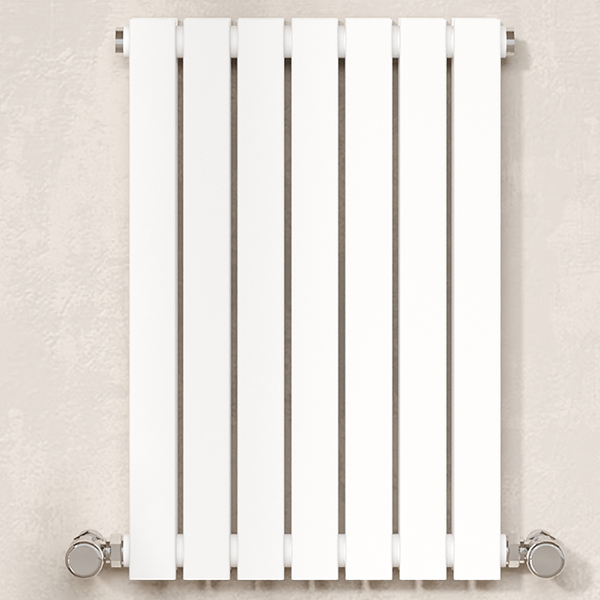

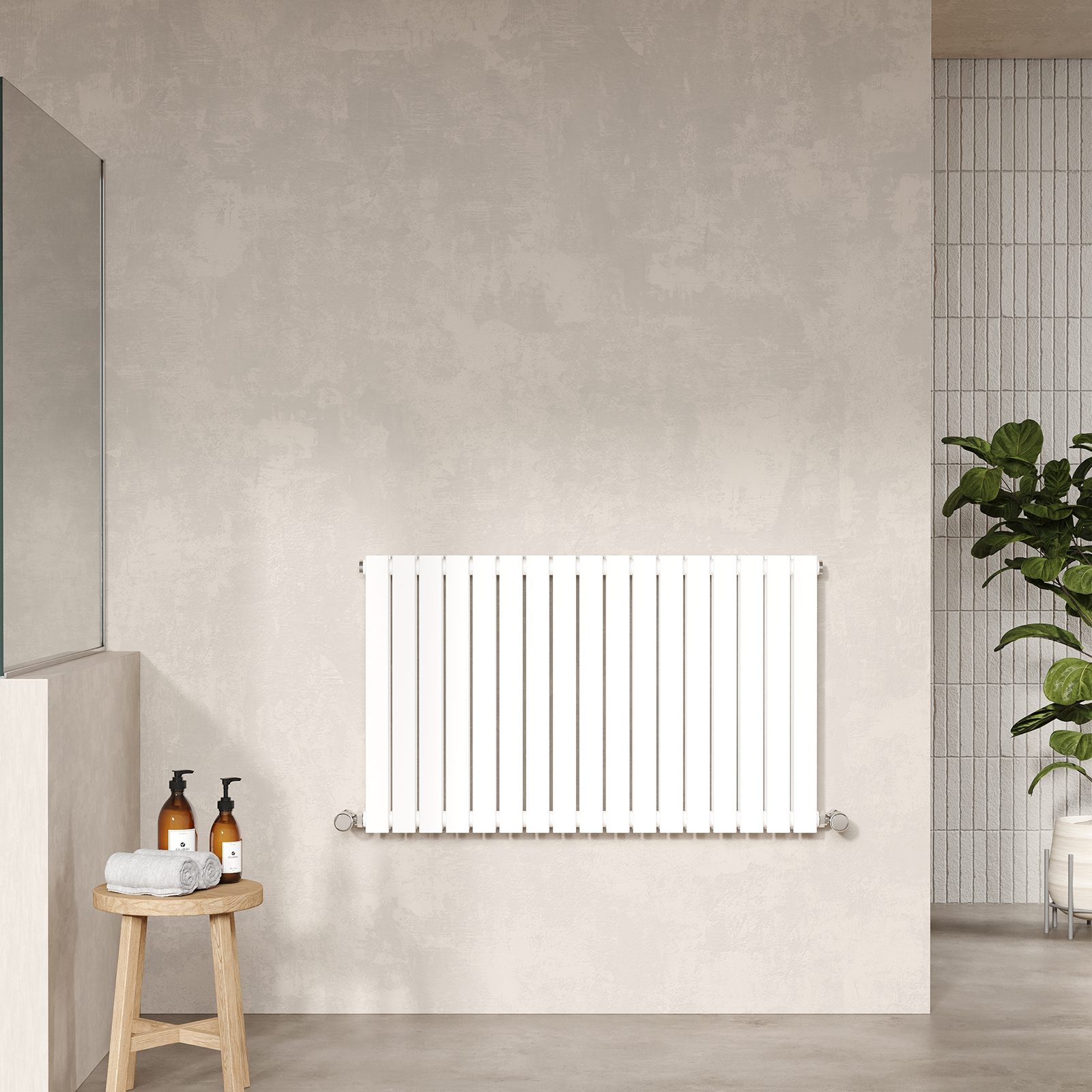

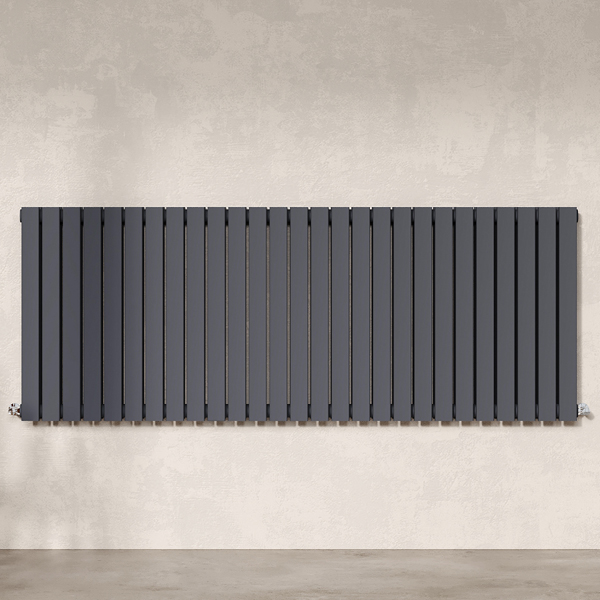

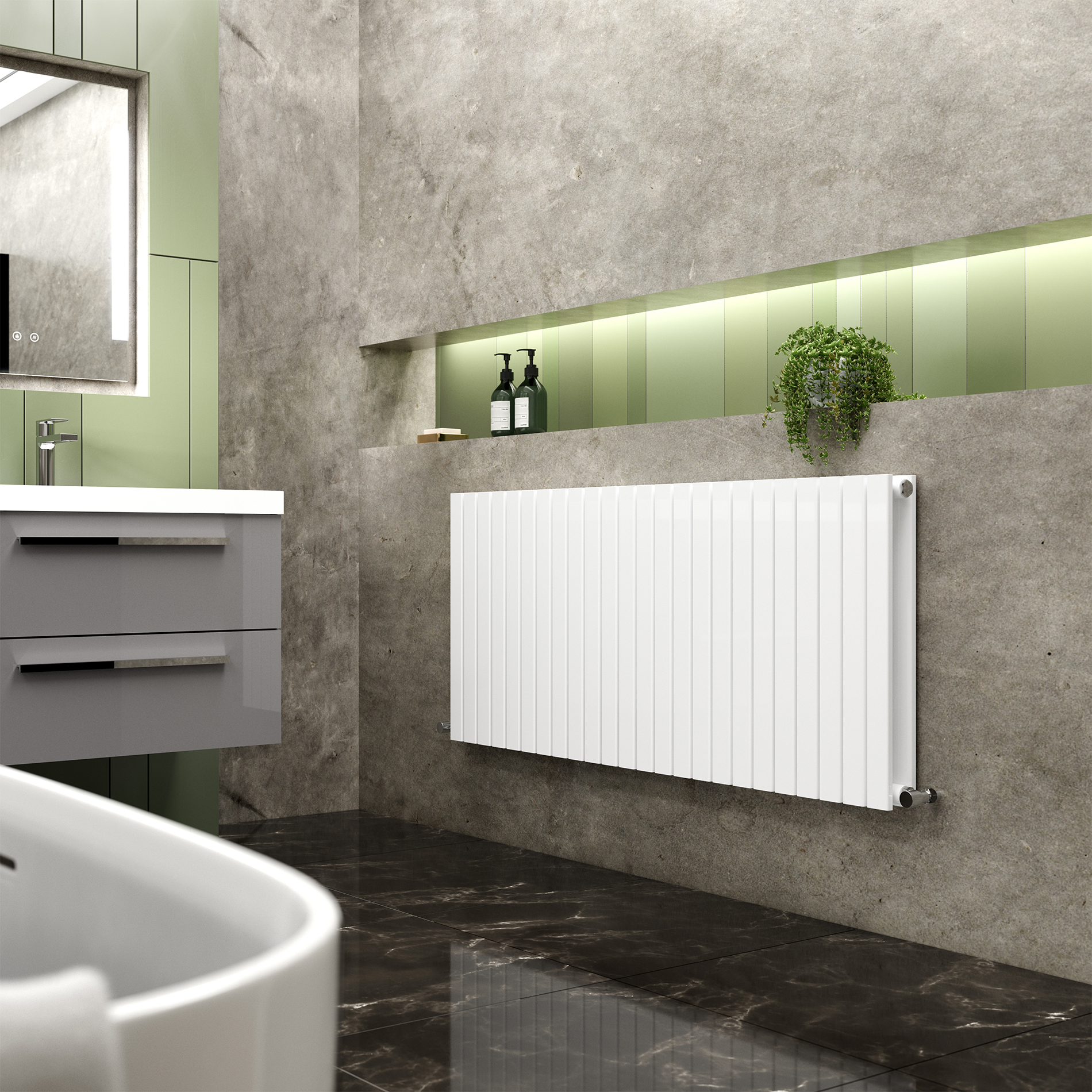

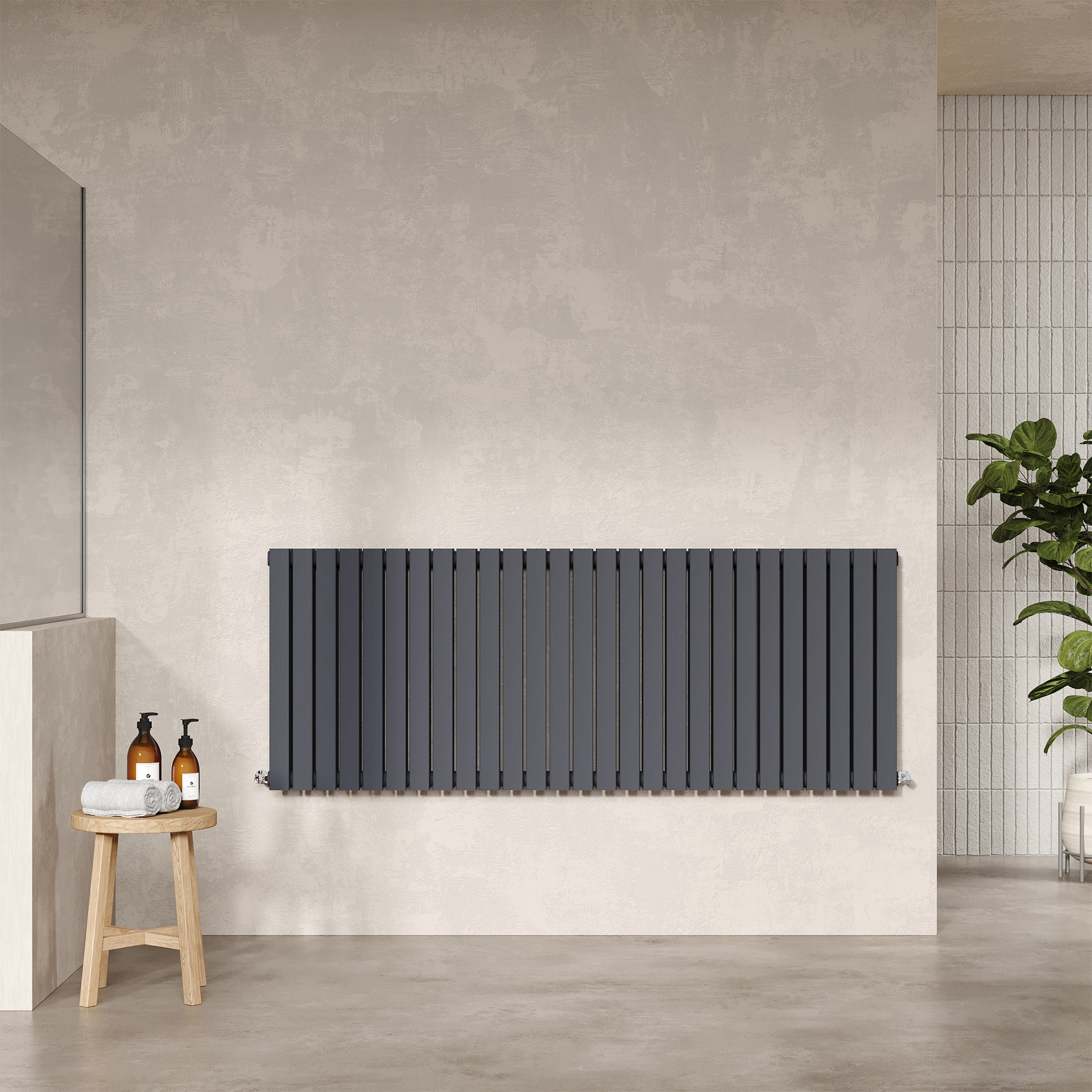

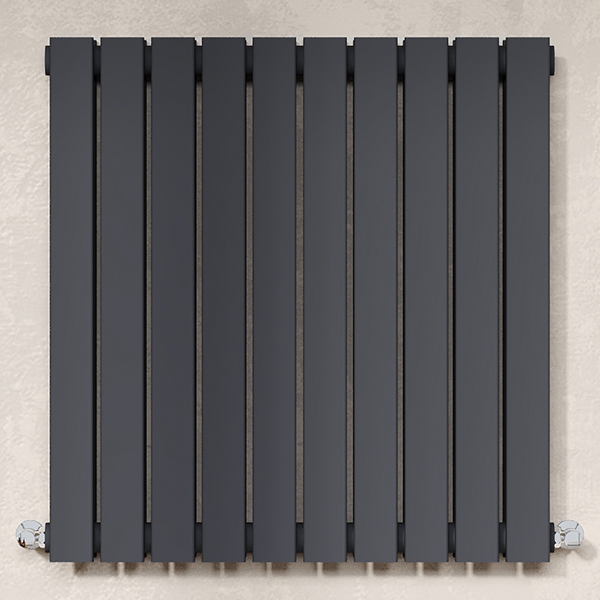

Hudson Reed Sloane 600mm High Horizontal Double Panel Radiator

Hudson Reed Sloane HLW54D Details

Presenting the UK's favourite radiator from the house of Hudson Reed. The Sloane 600mm High Horizontal Double Panel Radiator is one of the most comfortable, quiet and durable ways to heat a room. It comes in anthracite and high gloss white finish with depth of 72mm and height of 600mm. It delivers excellent heat output for keeping you cosy throughout chilly times. Made using heat-conducting steel, it is supplied with fixing screws, and brackets for a secure wall-mounted installation. Compatible radiator Valves, as well as robe hooks, are sold separately.

Key Features

✔Finishes: Anthracite - RAL No. 7016 and High Gloss White - RAL No. 9016
✔Material: Steel
✔Supplied with fixing screws and brackets
✔Five-year guarantee from Hudson Reed against manufacturing defects

Available in different finishes: High Gloss White and Anthracite - [Optional].
Available in different widths: 412mm, 586mm, 992mm, 1398mm and 1572mm - [Optional].
Size [mm]: 72mm x 600mm [Depth x Height].
Size [cm]: 7.2cm x 60cm [Depth x Height].
Suitable for wall-mounted installation.
Wall to the centre of tappings: 51.
Type of heat: water.
No. of heat setting: 1.
Projection from wall: 110mm (11cm).

All tappings are 1/2inch British standard pipe.
After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used.
Valves shown in the image are not included - sold separately.
Suitable valve available in Compatible Valves tab below [Optional].
Robe hook for rail [Optional].
For more details, refer Production Variation Info and MFC Code tab shown below.
Refer to the technical drawing for more details.
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Sloane
⤷ Colour
: Anthracite
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 412
⤷ Projection (Depth)
: 72
⤷ Height
: 600

⤷ Orientation
: Horizontal
⤷ Barcode
: 5056211885429
⤷ BTU Output
: 30°C - 750 | 50°C - 1449 | 60°C - 1836
⤷ Watts
: 30°C - 220| 50°C - 425 | 60°C - 538
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 51
⤷ Panel Configuration
: Double

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instructions Pdf File

Technical Images

Hudson Reed Sloane 600mm High Horizontal Double Panel Radiator

Customise Your Product

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

OP-101782 - Magnetic Robe Hook + £26.06
OP-101783 - Radiator Hook + £17.03
OP-101785 - Robe Hook for Radiator + £11.75
OP-101784 - Magnetic Towel Rail + £60.71
OP-101786 - Towel Rail for Radiator + £41.50

Total: £97.38 3-4 Working Days Approx QS Supplies

Product Variations Info & MFC Code

Radiator Sizes	412mm Wide	586mm Wide	992mm Wide	1398mm Wide	1572mm Wide
Anthracite Finish - RAL Number: 7016	HLA54D	HLA55D	HLA56D	HLA59D	HLA60D
High Gloss White Finish - RAL Number: 9016	HLW54D	HLW55D	HLW56D	HLW59D	HLW60D
Number Of Sections / Panels	14	20	34	48	54
BTU @ 30 Deg. C	750	965	1822	2573	2894
Thermal Output @ 30 Deg. C - Watts	220	283	534	754	848
BTU @ 50 Deg. C	1449	1863	3519	4968	5589
Thermal Output @ 50 Deg. C - Watts	425	546	1031	1456	1638
BTU @ 60 Deg. C	1836	2360	4459	6294	7081
Thermal Output @ 60 Deg. C - Watts	538	692	1307	1845	2075

2 Features Included In This Product Explained

RAL Colours

It refers to a European colour-matching system which defines colours for coatings, paints, and plastics. The colour standard is administrated by the RAL Deutsches Institut für Gütesicherung und Kennzeichnung.
Read more...

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.
